B300S Parker AC Magnetic Yoke

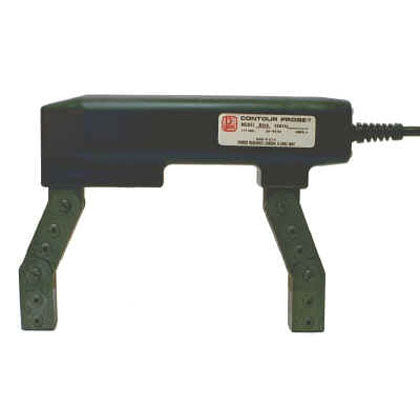

The B-300 Contour Probe is a lightweight (7½ pounds) Magnetic Inspection Yoke designed to perform magnetic particle inspections quickly and reliably.
As with the other Parker probes, the B-300 has fully adjustable legs which allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass.
-
Units are available in 115, 230, 42-48 VAC and 4-12 VDC
-
All units are CE compliant
-
When required, the B-300 may be operated from the optional DC-300 pulsed DC power supply
to provide intense DC magnetic fields -
One year repair/replacement guarantee
SPECIFICATIONS
|
B-300S |
|
|||
| Physical |
71/8H × 91/4W × 21/8D |
|||
| Line Voltage Single Phase |
230 VAC 50/60 Hz |
|||
| Line Current | 3 A | |||
| Duty Cycle |
2 minutes on – 2 minutes off |
|||
| Weight |
7½ lb |
|||
| Construction |
Polyurethane-filled glass/nylon housing |
|||
| Span |
0-12 in. across poles |
|||
Light attachment optional
Carry case with lock optional
