Calibration Block - Phased Array Nav Ship

Calibration Block - Phased Array Nav Ship

Regular price $600.00
Regular price Sale price $600.00
Sale Sold out
Shipping calculated at checkout.
Style

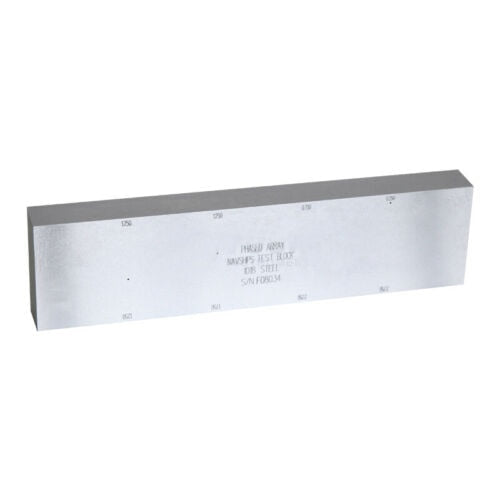

Phased Array NavShips Test Block Inch 1018 Steel Calibration Block

Inch - 6 hole version

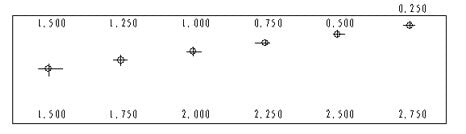

Contains six 3/64 diameter side-drilled through-holes at distances of 0.25 to 2.75 in 0.25 increments. MTDs are engraved near both scan edges on one face. In accordance with MIL-STD-271G Figure 9, and NAVSHIPS Specification 0900-006-3010/Section 6. Also known as a Mare Island block. This block is surface ground to a 32 Ra finish on all surfaces,
Dimensions: 12.000 x 3.000 x 1.250
Material:1018 steel
Weight: 8kg

Inch - 4 hole version
This special Phased Array version of the popular NAVSHIPS block solves the problem of too many holes interfering with one another.

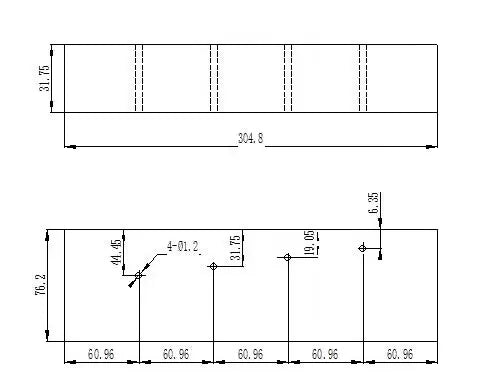

This block contains 4 holes at 3/64" diameter drilled through the 1.250" width. The holes are located at .250", .750", 1.750", 2.250" and 2.750".
Dimensions: 1.250" wide x 3.000" tall x 12.00" long
Material: 1018 Steel
Weight:8 KG

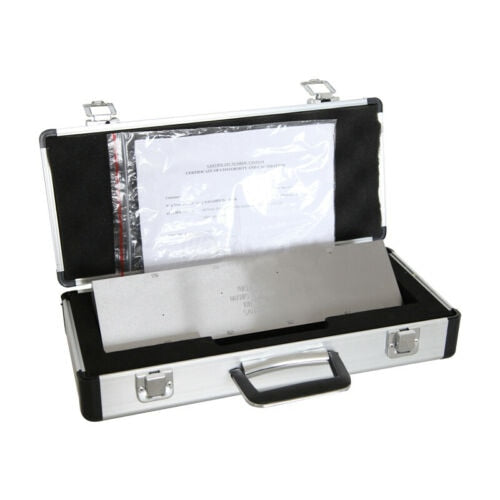

Package Including:
1 calibration block
1 suitcase
1 certificate

By order only, ETA 1-2 weeks, shipped directly from supplier using courier.
