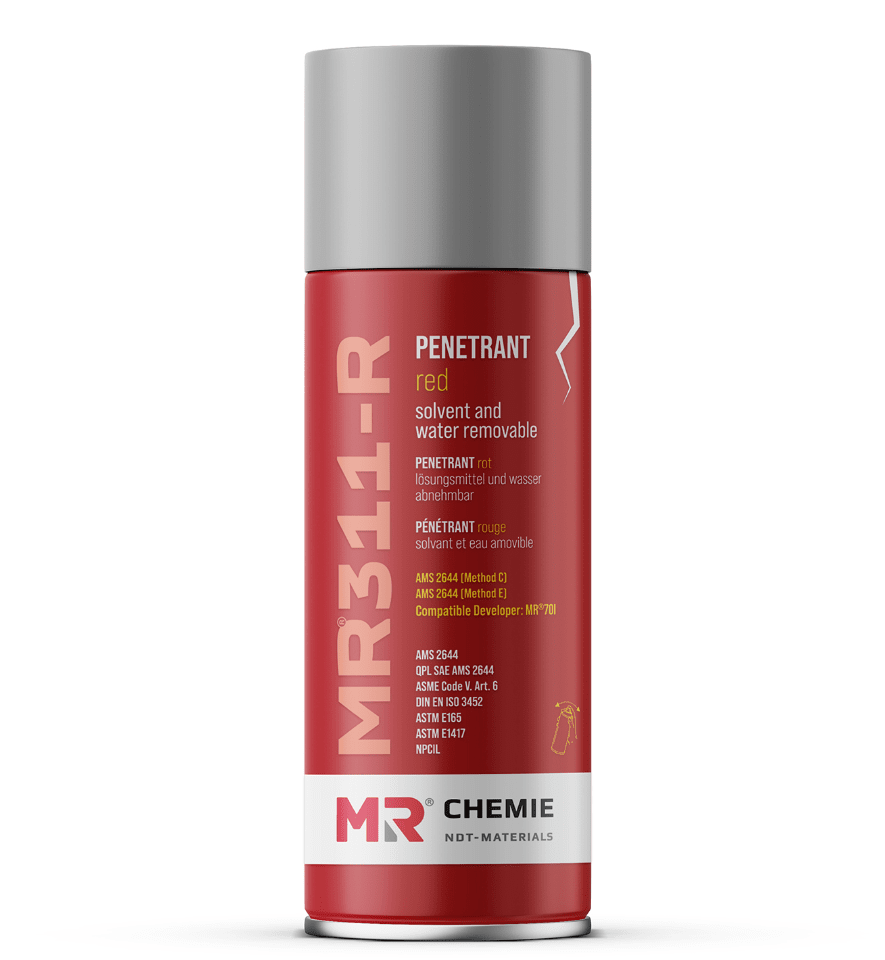

CHEMIE MR311-R - Water Soluble Red Penetrant is a Type II solvent and water removable red colour penetrant ideal for general industrial dye penetrant testing. It exhibits outstanding penetrating characteristics along with dark red indications which provides maximum reliability in locating surface open flaws and discontinuities. Typical application include casting, forgings, leak testing, welds, pressure vessels and general metal works.
Price is per can, 10 per carton
Features:
Dark red, clear indications under white light
Free of aromatics, oil-based
Over-wash resistance
Superior reliability
NPE-free
Phthalate-free
Superior surface wetting
Low odour
Outstanding penetrating capability
Instant indications - high capillary action
Easy to apply and easy to clean
Low toxicity
Suitable for all metals (suitability for plastics & ceramics requires testing prior to use)
Additional information
Properties
Appearance – red oily liquid Chemical Composition – mixture of hydrocarbon and dye Basis – hydrocarbon Odour – characteristic
Approvals
AMS 2644 ASME Code V; Art. 6 DIN EN ISO 3452 ASTM E165 ASTM E1417 RCC-M ASME NPCIL
Recommended Usage
NDT Method – Dye Penetrant Testing Type – II Method – E Sensitivity – 2 Compatibility – MR70I Area Coverage ~ 5 sq m (400ml nett Aerosol can) ; ~ 19 sq m (1 L) Usage Temperature – 41°F to 131°F / +5 °C to +55 °C Storage Temperature – 41°F to 113°F / +5 °C to +45 °C
Reference Test Blocks
Reference test block type 1 (Ni-Cr panel – 30µm & 50µm) Reference test block type 2 (5-star panel) ASTM test block (Aluminium comparator block)
