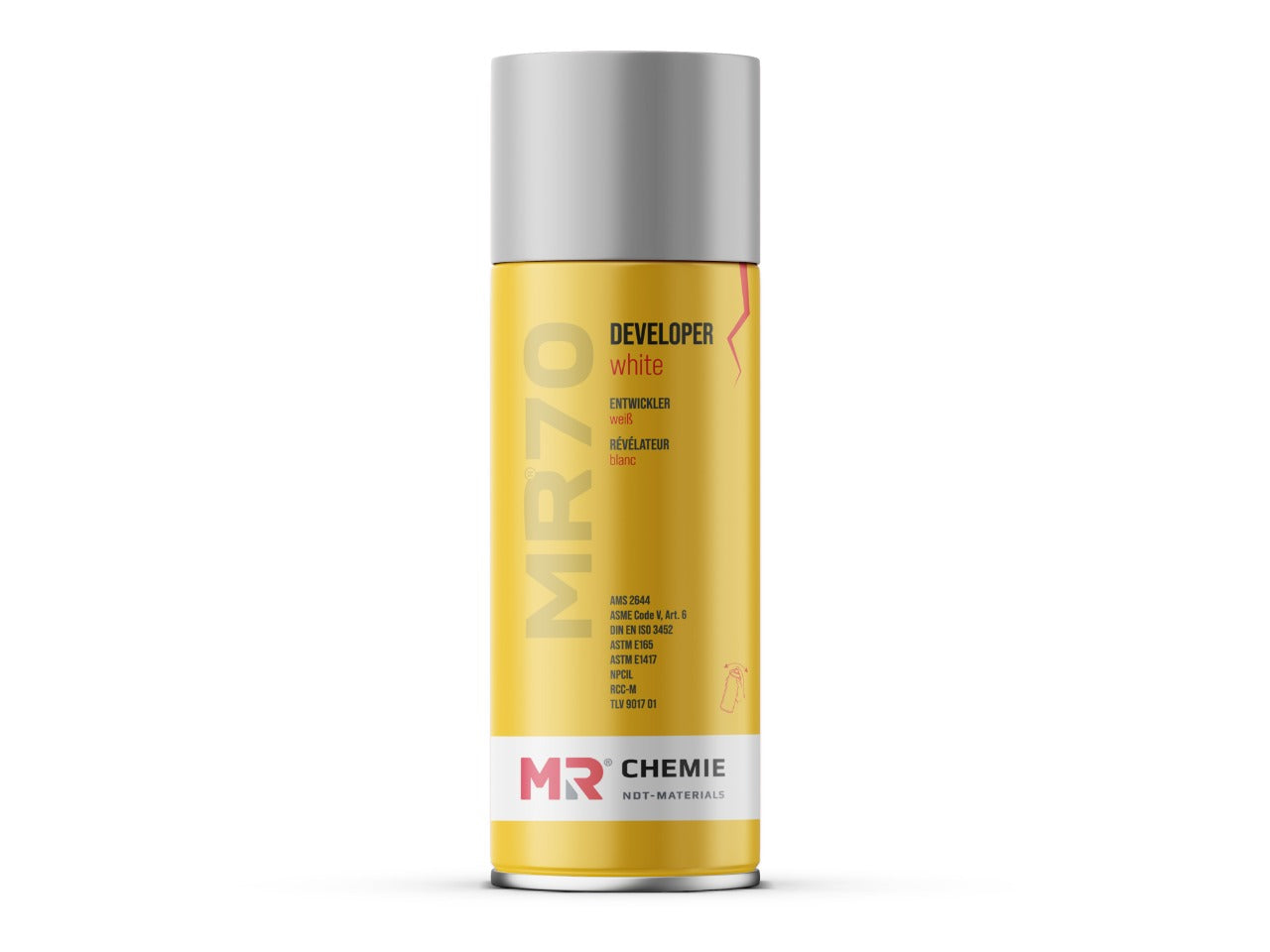

CHEMIE MR70 - Developer White is a bright white, matte finish, non-halogenated, non-aqueous developer used to enhance the visibility of surface-breaking defects or discontinuities by producing an opaque coating during dye-penetrant inspection.
Price is per can, 10 per carton
Features:
Bright white, opaque matte coating
Quick dry
Instant indications - high absorption effect
Creates a thin homogeneous layer
Easy to apply and easy to clean
Controlled application
Shows clear indications
Non toxic
Suitable for all metals (suitability for plastics & ceramics requires testing prior to use)
Additional information
Properties
Appearance – white liquid Chemical Composition – mixture of pigments in volatile non-halogenated solvents Basis – solvent Odour – characteristic
Approvals
QPL SAE AMS 2644 ASME Code V; Art. 6 DIN EN ISO 3452 ASTM E165 ASTM E1417 RCC-M ASME NPCIL TLV 9017 01 PMUC JIS – 2343-2
Recommended Usage
NDT Method – Dye Penetrant Testing Form – d/e (EN ISO 3452-2); e (AMS 2644) Compatibility – all Type 3 penetrants; selective Type I penetrants Area Coverage ~ 6 sq m (400ml nett Aerosol can) ; ~ 19 sq m (1 L) Usage Temperature – 14°F to 131°F / -10 °C to +55 °C Storage Temperature – 41°F to 113°F / +5 °C to +45 °C
Reference Test Blocks
Reference test block type 1 (Ni-Cr panel – 20µm 30µm & 50µm) Reference test block type 2 (5-star panel) ASTM test block (Aluminium comparator block)
