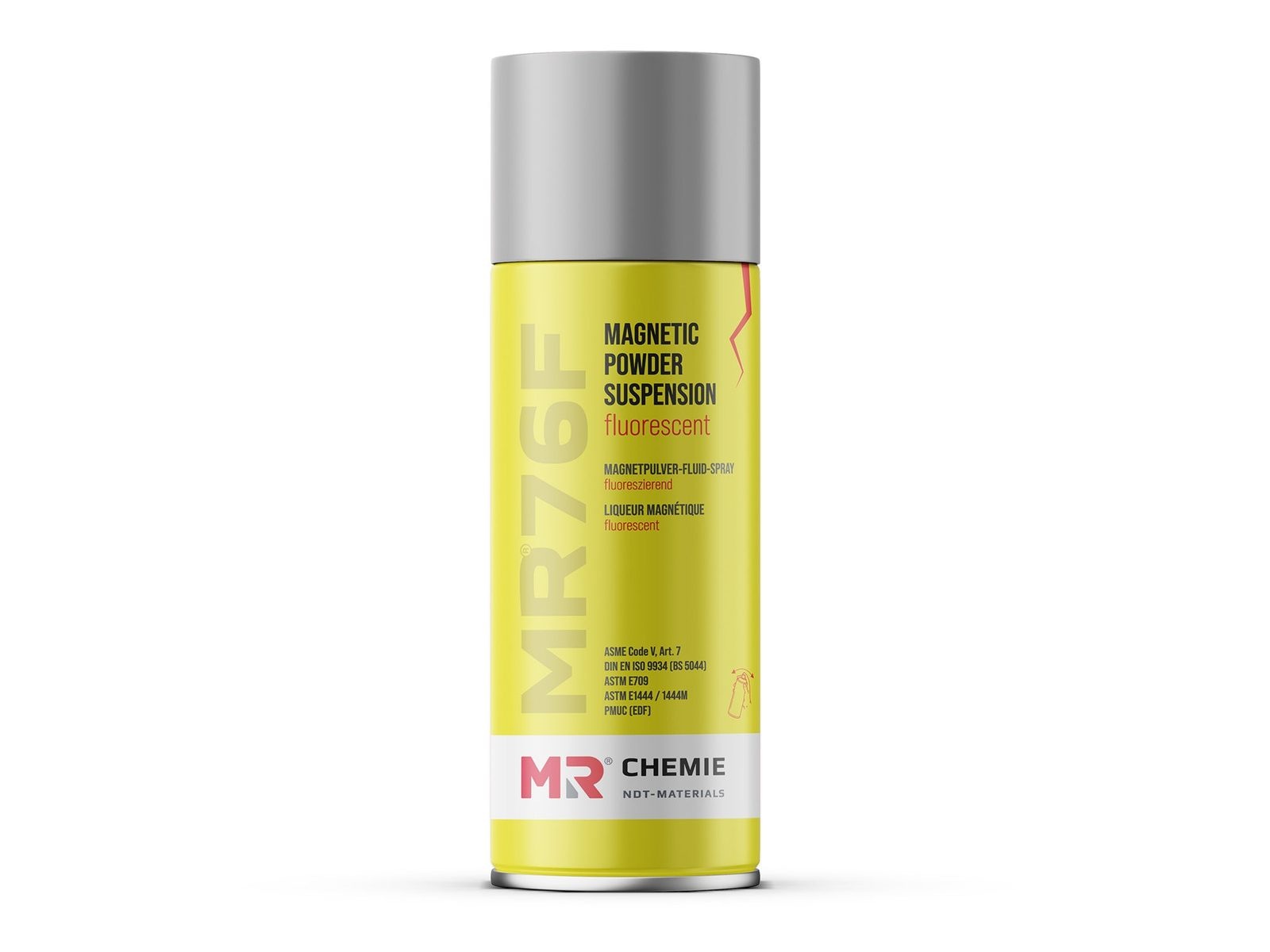

CHEMIE MR76F - Magnetic Powder Suspension - Fluorescent
MR®76F is a highly sensitive oil-based yellow-green fluorescent magnetic particle suspension aerosol which serves to indicate clear, strong background-free cracks when performing coloured magnetic particle inspection.
Price is per can, 10 per carton
Features
Super wetting technology (SWT)
Excellent retentivity of magnetic particle on vertical jobs
Brilliant yellow-green fluorescent, background free indications under UV-light
Heavy particle build up, excellent particle mobility
Free of aromatics, oil-based
Controlled application with wide spray pattern
Low-odour
Low-toxicity
Toluene free
Additional information
Properties
Appearance – green oily liquid Chemical Composition – mixture of oil additives and fluorescent magnetic powder Basis – hydrocarbon Odour – characteristic
Approvals
ASME Code V; Art. 7 DIN ISO 9934 (BS 5044) ASTM E 709 PMUC (EDF) AMS 2641 (Type 1) AMS 3045 AMS 3046 (Aerosols) ASTM E1444/1444M ASME
Particle Size
1-3 µm
Sae Sensitivity
9 ** **as per indications on Ketos ring as defined in ASTM E1444/1444M
Sediment
0.2 – 0.4 ml/100ml (1h) according to ASME
Recommended Usage
NDT Method – Magnetic Particle Testing Area Coverage ~ 6 sq m (400ml nett Aerosol can) Usage Temperature – 41°F to 131°F / +5 °C to +52 °C Storage Temperature – 41°F to 113°F / +5 °C to +45 °C
