Coating Thickness Gauge - SNDWAY SW-6310A Digital Coating Thickness Gauge

  • Sale
  • Regular price $250.00
Shipping calculated at checkout.

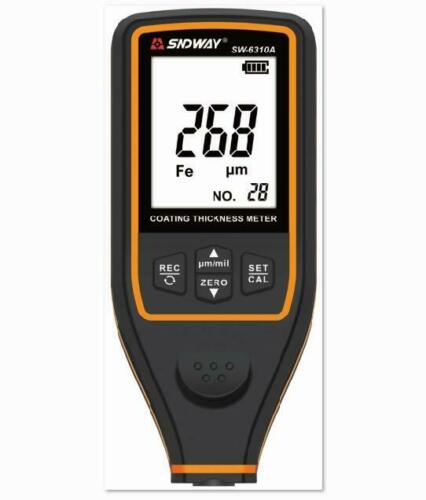

SNDWAY SW-6310A Digital Coating Thickness Gauge Paint Film Coating Tester 0~1700um

Features:
2.0 inches large segment screen, 180 degree screen flip for different views angle during measuring process.
Automatic detecting the metal properties and display on the LCD, symbol Fe for magnetic substrate and NFe for non-magnetic substrate.
Simple operation, directly attach to the coating and on screen shows the property and thickness.
Provide Zero and Multi-spots calibration, calibrating reliably and rapidly.
Saving the measured data up to 30 sets, power-off will not obliterate data.
Warning function of upper/lower limits.
Portable and streamline form design with special handheld anti-skid treatment, light weight, small and fitted size for your palm.
Widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Specifications:
Material: ABS plastic
Sensor Probe Type: Fe / NFe
Working Principle: Magnetic Induction(Fe) / Eddy Current(NFe)
Range: Magnetic material 0~1700μm; Non magnetic material 0~1700μm
Units: μm, mil(1mil=25.4μm, 1μm=0.03937mil)
Accuracy: ±(2+2%*H)μm @ (0~500μm), ±(2.5%*H)μm @ (500~1700μm)
Resolution: 0.1μm(0-99.9μm), 1μm(100-1700μm)
Minimum Curvature Radius: Convex 5mm, Concave 30mm
Minimum Measuring Area: Magnetic material 25×25mm; Non magnetic material 25×25mm
Minimum Thickness of Substrate: Magnetic 0.2mm, Non-magnetic 0.05mm
Data Storage: 30 Groups
Screen: 2.0 inches large segment screen
The Screen Rotation: 180 degree screen flip
Basic Measurement: Single /Continuous measurement
Calibration: Zero-spot calibration/Calibration-film calibration
Limiting Value Measurement: Yes
Memory/Delete Record: Yes
Operating Conditions: 0℃~50℃(10%~80%RH)
Storage Conditions: -10℃~60℃(10%~70%RH)
Power Supply: 2 * 1.5V AAA Batteries(NOT included)
Storage Case Size: 215 * 165 * 47mm / 8.46 * 6.49 * 1.85in
Item Size: Approx. 120 * 52 * 26mm / 4.73 * 2.05 * 1.03in
Item Weight: Approx. 82g / 2.89oz
Package Weight: Approx. 468g / 16.52oz
Package Size: Approx. 23.3 * 17.5 * 5cm / 9.18 * 6.89 * 1.97in

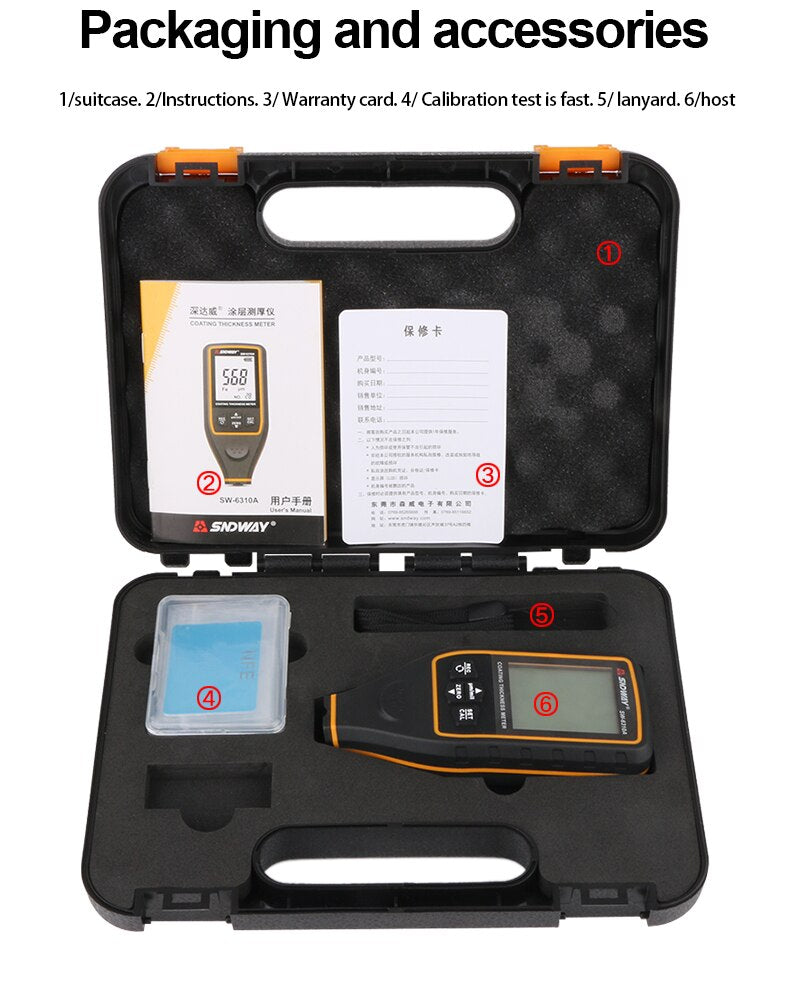

Package List:
1 * Thickness Gauge
1 * Iron Substrate
1 * Aluminum Substrate
1 * Lanyard
5 * Calibration Film
1 * Storage Box
1 * User Manual (English)
