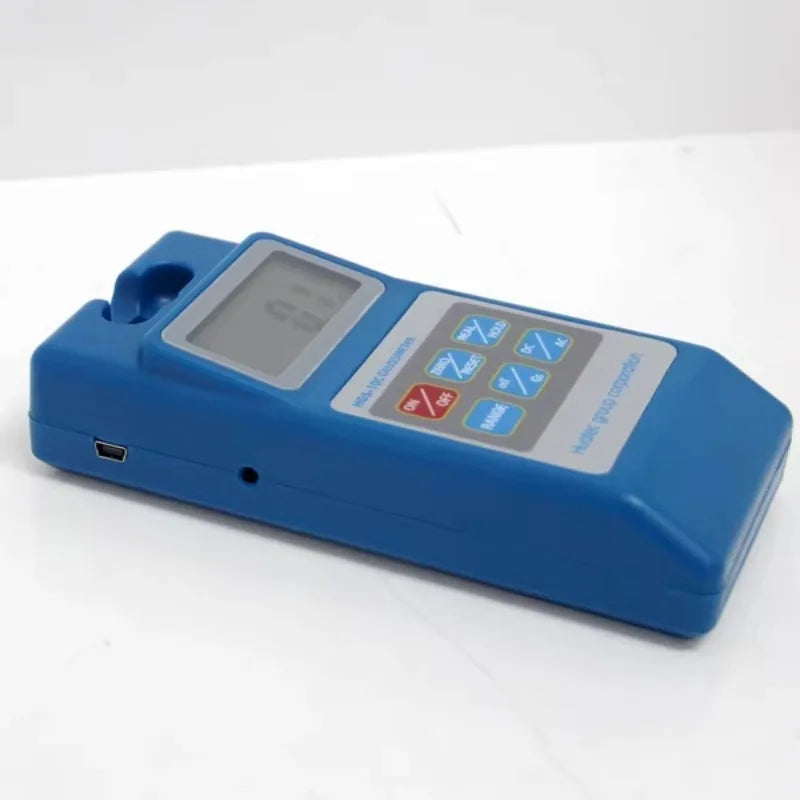

Digital Gauss Meter HGS-10C Kit
The Tasla meter is a special instrument used for inspecting & checking flux density ,which is also one of the most universally devices in the field of magnetic measurement. Model HGS-10C digital Tasla meter is controlled by the SCM, which is suitable for handle operation.It can be used to measure DC or AC magnetic field and flux dencity.The device can be carried on one’s person. It is characterized by its wide measuring range,simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chosen, and others that as resetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.
Main Technical Parameters:
Rang: 0~200mT~2000mT
Accuracy: ±2%
Sensitivity: 0.01mT, 0.1mT
AC Magnet Field: 50-200Hz
Temperature of environment: 5℃-40℃
Relative humidity: 20%-80%(no condensation)
Power Supply: Battery 9V, constant
DC power Dimension: 150mm×70mm×30mm
Weight: N.W: 500g G.W:900g
Display: 4½ LCD
1. Sensor Connecting
2. LED Screen
3. Zero/Reset Reading
