Digital Pit Gauge - DPG-1 with tapered point & certificate

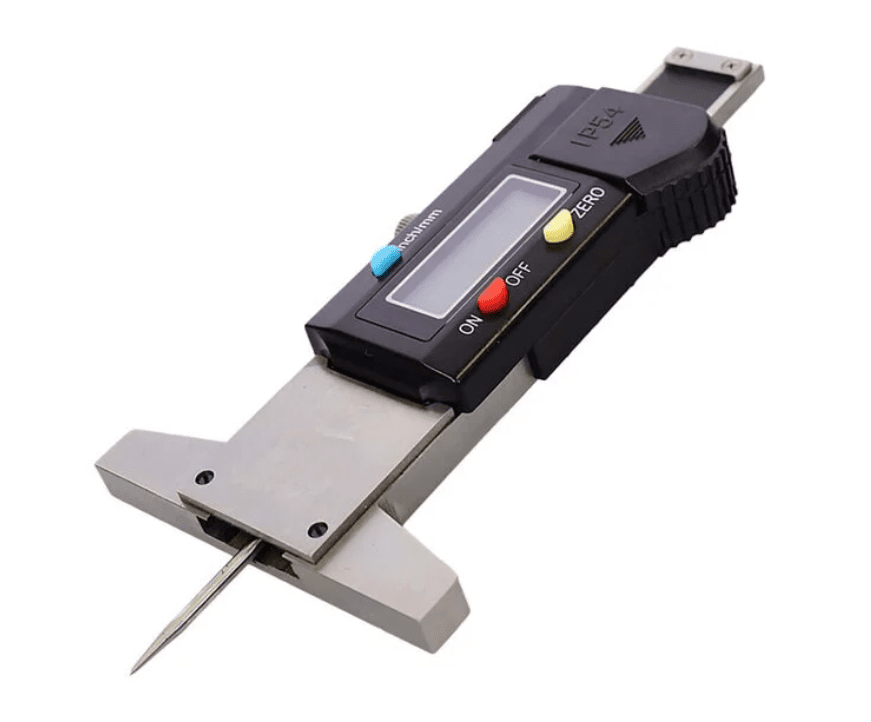

The DPG-1 Digital Pit Gauge with IP54, designed based on digital vernier caliper with direct reading, is easy to use and provides fast and accurate measurements of surface pits, gauges, dents, undercuts, etc.

The DPG-1 Digital Pit Gauge is made of hardened stainless steel, and its 0.2' (0.5mm) probe diameter will access even the smallest pits.

Features:

  • MM/IN - Switch between mm and inch measurements
  • ON/OFF - Now just move the slide to turn unit On/Auto/Off.
  • ZERO - Set "0" at any position
  • IP54 protection level for water spray, dust, etc.
  • Accuracy of +/- 0.001"
  • Can measure up to a 1.18" depth
  • Made of hardened stainless steel
  • 0.050" diameter probe
  • Uses 1.55V LR44 / A76 / AG13 / SR44 / G13 model button battery

Specifications:

Range 1.25 in | 30mm
Resolution 0.0004 in | 0.01mm
Permissible Error +/- 0.001 in | +/- 0.03mm
Measuring Speed ≤ 1.5 m/sec.
Working Temperature 0-40 °C
Working Relative Humidity ≤ 80%
Storage Temperature -10-60 °C
Power One Button Battery 1.55 V, LR44 / A76
Warranty 1-year

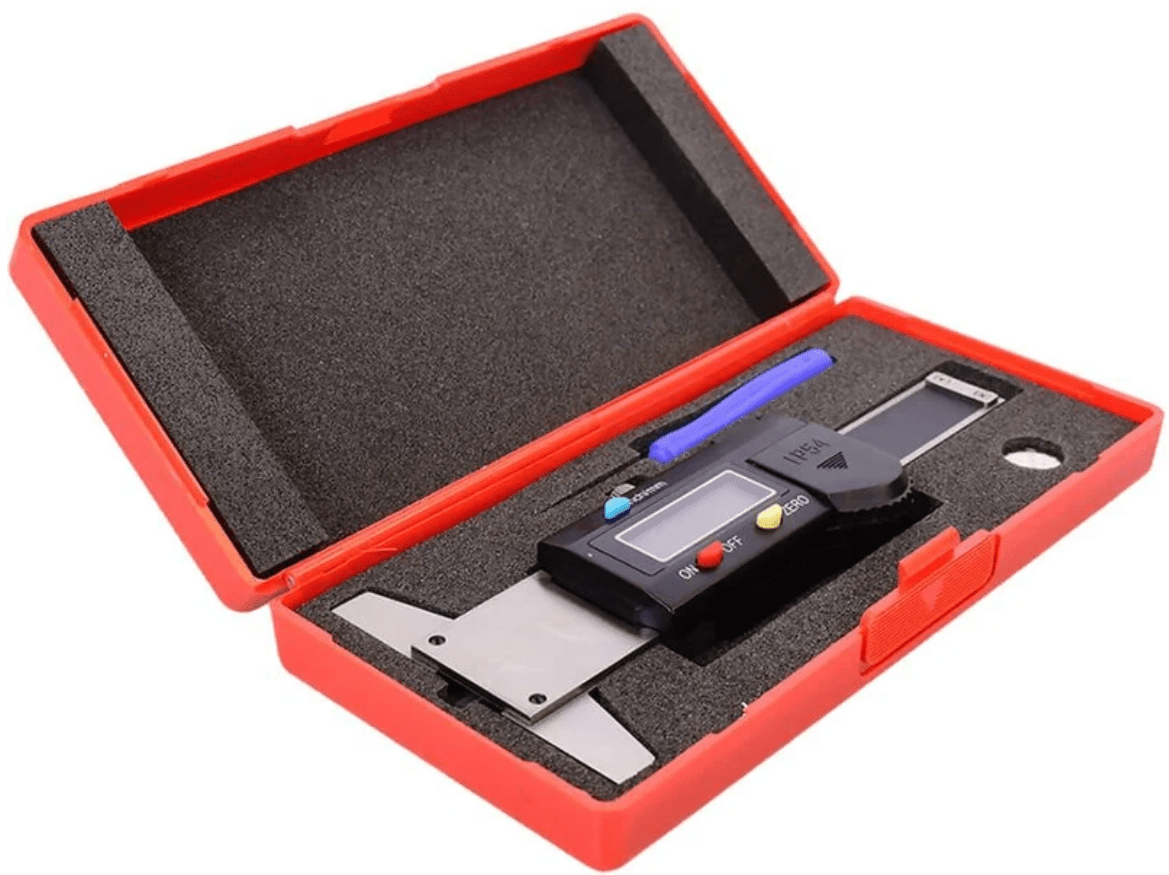

Kit Contents:

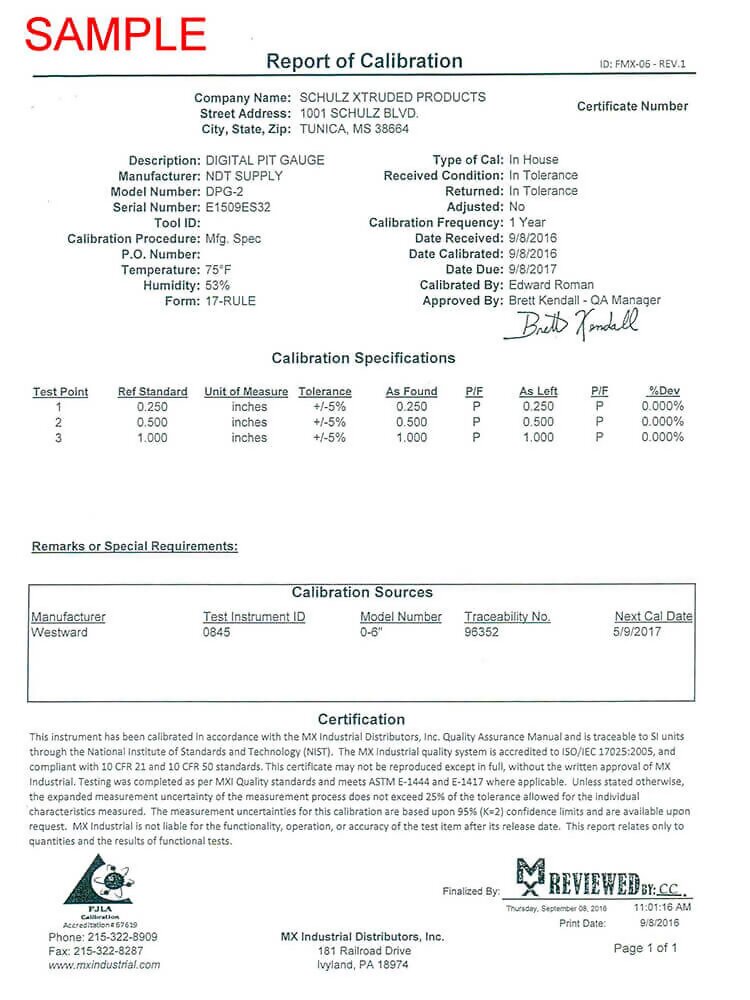

  • DPG-1 Digital Pit Gauge with manufacturers calibration certificate.
  • Screw driver & battery.
  • Hard Storage Case.
