Welding Gauge - Digital Fillet Gauge Inspection Tool

Welding Gauge - Digital Fillet Gauge Inspection Tool

$50.00
$80.00 $50.00
Sale Sold out
Shipping calculated at checkout.
Size

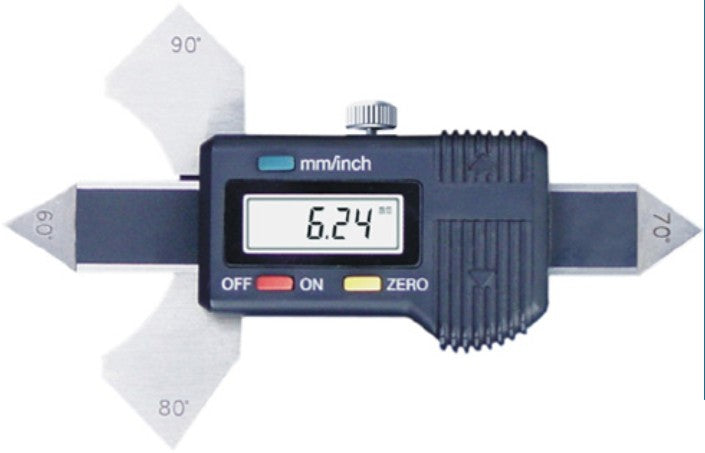

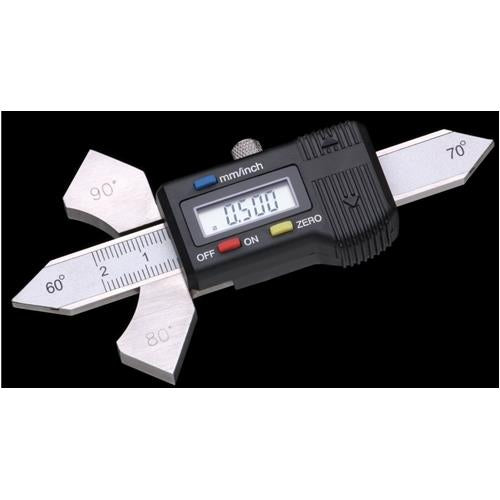

Welding Gauge - Digital Fillet Gauge Inspection Tool

 Features

  • mm/IN (switch between mm and inch measurements)
  • ON/OFF power switch
  • ZERO (set "0" at any position)
  • Includes plastic storage case

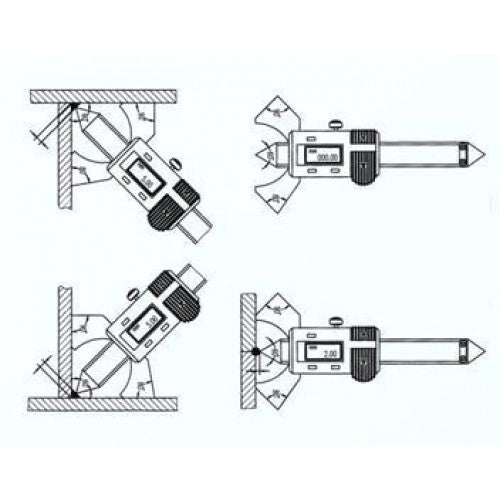

  • Application:
    - 60 70 80 90 degree angle measure
    - beam crown height inspection
    - Fillet weld throat size inspection
    - Stainless Steel & plastic
Specifications mm Inches
Range 30 1.25
Resolution 0.01 0.004
Permissible Error +/-0.03 +/-0.001



Available in Small (50mm width) or Large (75mm width)

Package includes storage box
