100 Groups Data Memory HRB, HRC, HRA, HV, HB, HS, HL.Hardness Tester Meter Gauge
Product Overview:

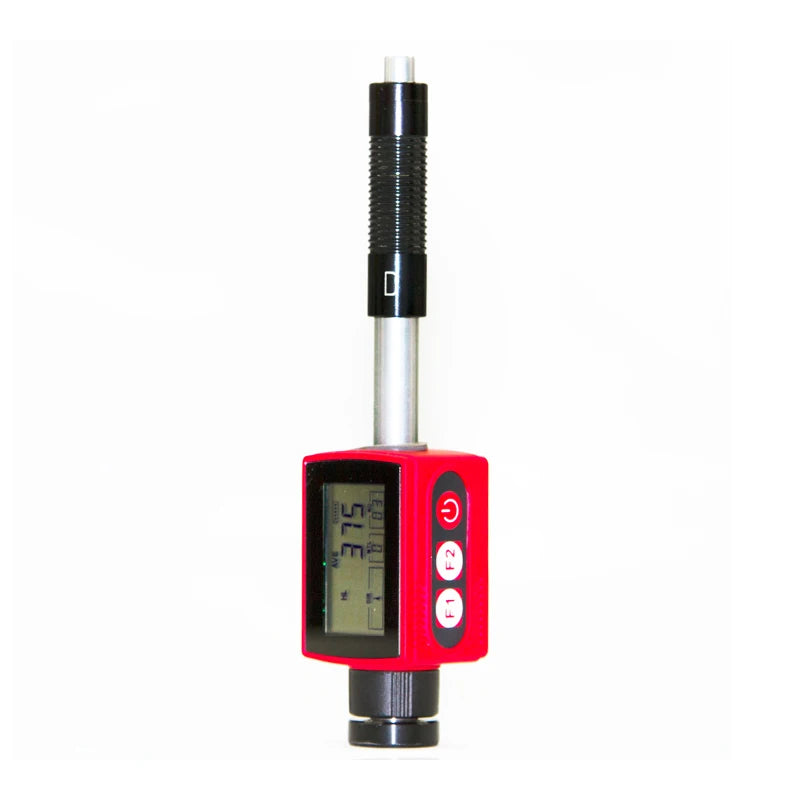

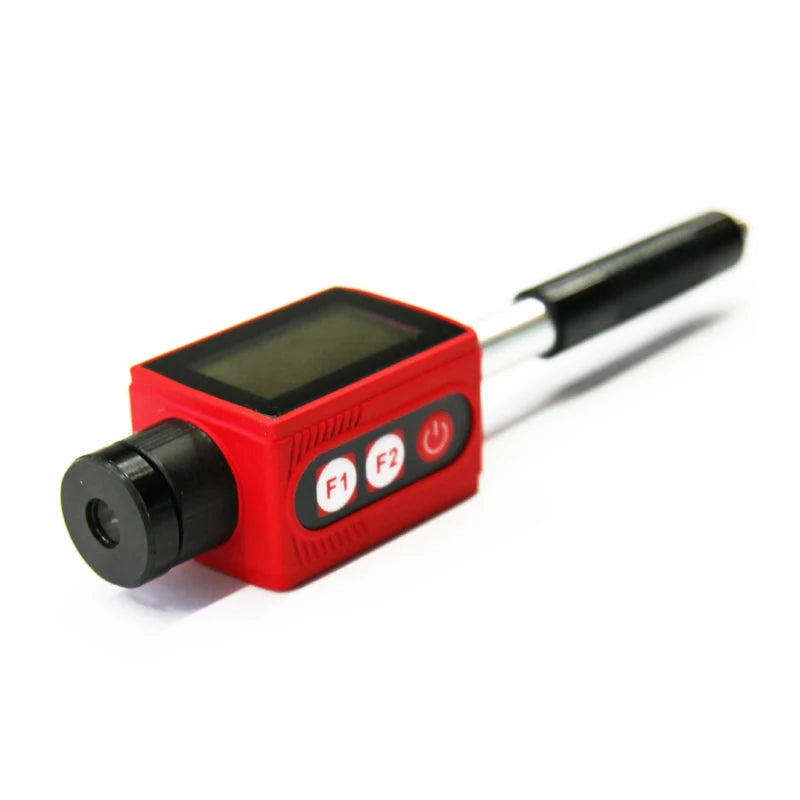

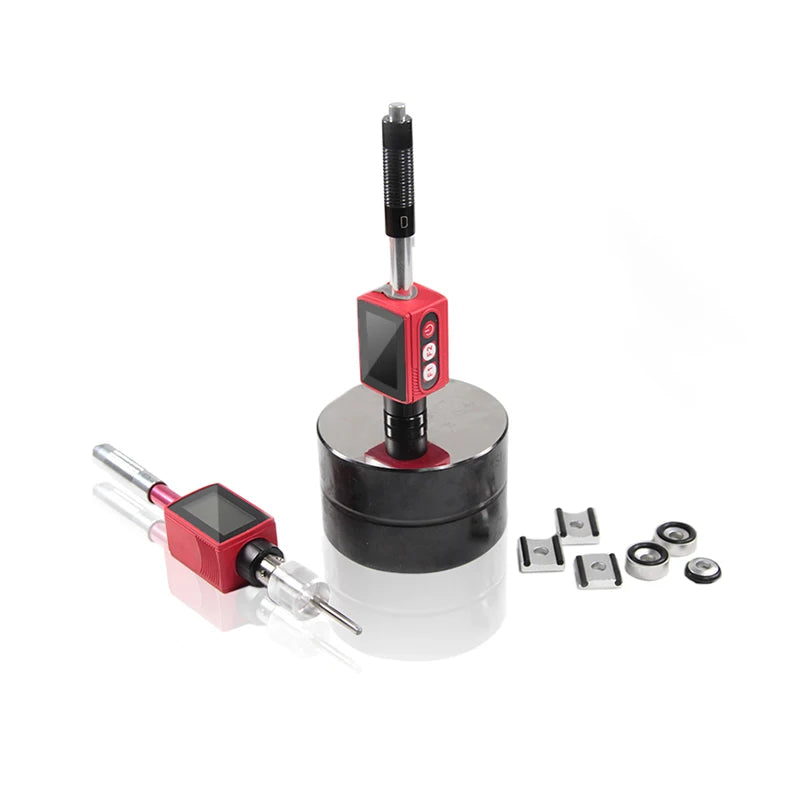

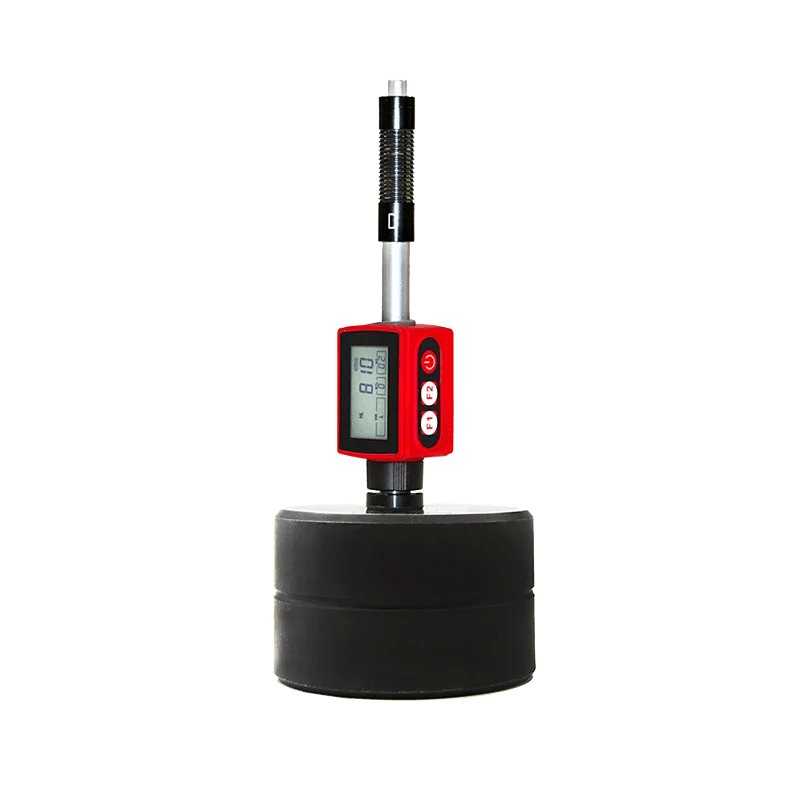

MH 100 Series Pocket Hardness Tester (Pen Type)
The MH 100 series is a portable, pen-style hardness tester based on the Leeb hardness measuring principle. Designed for rapid and on-site testing of metal materials, it offers a convenient solution for hardness evaluation in various industrial settings.
Key Features:
- Quick and Easy On-Site Testing: Enables fast measurement of metal hardness without the need for complex setup.
- Multiple Hardness Scale Conversion: Supports free conversion between Leeb, Brinell, Rockwell, and other hardness scales for versatile use.
- Compact and Portable Design: Small-sized, integrated construction facilitates easy handling and transportation.
- Stable and Reliable Performance: Ensures consistent measurement accuracy during field operations.
- Data Management: Includes functions for data transfer, storage, and printing, aiding in record-keeping and analysis.
- Wide Application Range: Ideal for failure analysis, equipment inspection, permanent assembly testing, and quality control.
- Suitable for Large or Non-Removable Parts: Particularly effective for testing large components or parts that cannot be removed from their assembly.
Technical Parameters:
|
Measuring range |
(170~960)HLD |
|
Impact direction |
vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify |
|
Error |
Impact device D:±6HLD |
|
Repeatability |
Impact device D:±6HLD |
|
Material |
Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alum |
|
HardnessScale |
HL,HB,HRB,HRC,HRA,HV,HS |
|
Min depth for harden layer |
D≥0.8mm;C≥0.2mm |
|
Display |
High-contrast Segment LCD |
|
Storage |
up to 100 groups(Relative to average times 32~1) |
|
Calibration |
SIngle point calibration |
|
Data printing |
Connect PC to print |
|
Working voltage |
3.7V(Built-in lithium polymer battery) |
|
Power supply |
5V/500mA;recharge for 2.5~3.5 h |
|
Standby period |
About 200h(without backlight) |
|
Communication interface |
USB1.1 |
|
Working language |
Chinese |
|
Shell meterial |
ABS engineering plastic |
|
Dimensions |
148mm*33mm*28 mm |
|
Total weight |
4.0KG |
|
Total weight PC software |
Yes |

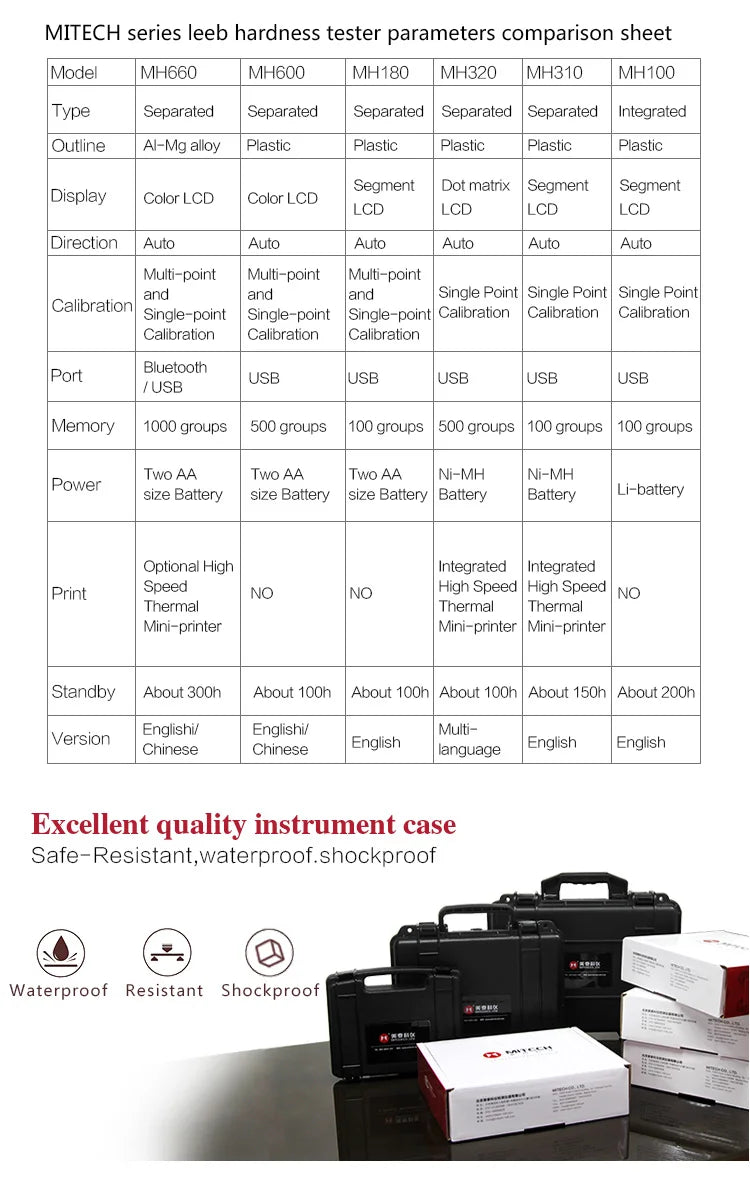

Mitech Hardness Tester Series Parameter Comparation:
