Hardness Tester - Mitech MH310

Hardness Tester - Mitech MH310

Leeb Hardness Tester MH310 Digital Hardness Meter Measuring Range 170~960 HLD Durometer

Product Overview:

The MH310 portable Leeb hardness tester is a versatile and efficient instrument designed for quick on-site hardness measurement of various metal materials. Its main features include:

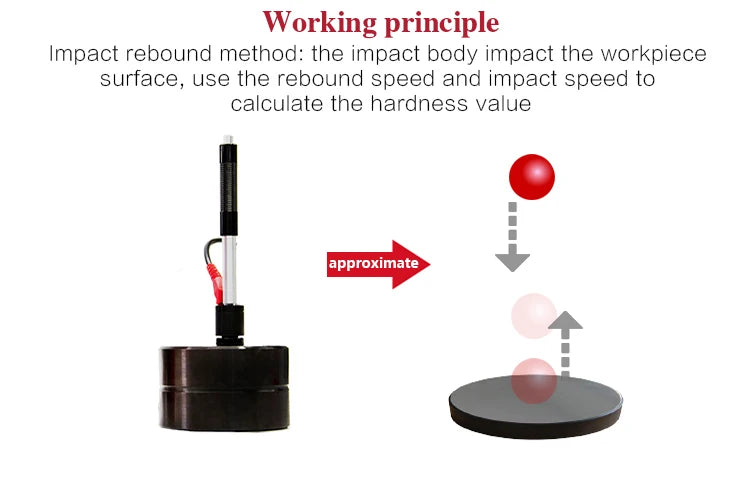

1. Measurement Principle: Based on the Leeb hardness measuring principle, enabling fast and accurate on-site testing.

2. Scale Conversion: Supports free conversion between Leeb, Brinell, Rockwell, and other hardness scales, providing flexibility for different testing standards.

3. Display: Equipped with a high-contrast segment LCD for clear and stable display of measurement results.

4. Printing Capability: Features an integrated high-speed thermal printer, allowing on-site printing of test data for documentation.

5. Applications: Widely used in processes such as annealing, tempering, quenching, and quality control of workpieces; testing hardness of machine tools, automotive chassis, non-removable parts in service, hardware, forging, and special steels; and batch production quality control.

6. Cost-Effective and Reliable: Offers good quality at an effective cost, making it a suitable choice for regular hardness testing needs.

Overall, the MH310 is a reliable, convenient, and efficient solution for various industrial hardness testing scenarios.

Features:

• Multiple Impact Devices: One main unit can connect to up to 6 impact devices, supporting various testing scenarios.

• Steel Testing Support: When using the D/DC sensor, it can directly display HB (Brinell hardness) for steel testing.

• Automatic Calibration: Software handles automatic calibration, ensuring measurement accuracy.

• Data Storage: Stores up to 100 groups of measurements (impact times 32 to 1), including details like single test values, averages, date/time, impact direction, frequency, material, and hardness.

• Display: Features a high-contrast segment LCD with a bright EL backlight, with battery capacity and charge status indication.

• Auto Power Off: Conserves battery life by shutting down automatically when inactive.

• Built-in Printer: Equipped with a high-speed thermal printer for instant on-site documentation.

• PC Software (Optional): Supports measurement data transfer, storage management, and statistical analysis.

• Portability & Durability: Compact, stable, and reliable performance suitable for challenging field environments, resistant to vibration, shock, and electromagnetic interference.

This combination of features makes it ideal for precise, efficient, and durable hardness testing in various industrial and field applications.

Specifications:

Measuring range	（170～960）HLD
Impact direction	vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify
Error	D,±6 HLD
Repeatability	D,6 HLD
Material	Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alu
Hardness Scale	HL、HB、HRB、HRC、HRA、HV、HS
Impact energe	D----11mJ
Impact weight	D----5.5g/7.2g
Impact ball hardness	D---1600HV
Impact ball diameter	D----3mm
Impact ball material	D----Tungsten carbide
Sample surface roughness	D----1.6μm；C----0.4μm
Min depth of harness layer	D≥0.8mm；C≥0.2mm
Display	High-contrast Segment LCD
storage	100 measurement series.(Relative to average times 32～1)
Calibration	Single point calibration
Data printing	Print the test report
Power voltage	6V( Ni-MH battery pack)
Power supply	9V/500mA；recharge for 2.5～3.5h
Power consumption	Lowe power design
Standby period	about 150 hours（with default brightness）
Commumication port	USB1.1
Working language	English
Shell material	ABS engineering plastic
Dimension	212mm×80mm×32mm
Total weight	5.5KG
PC software	Yes

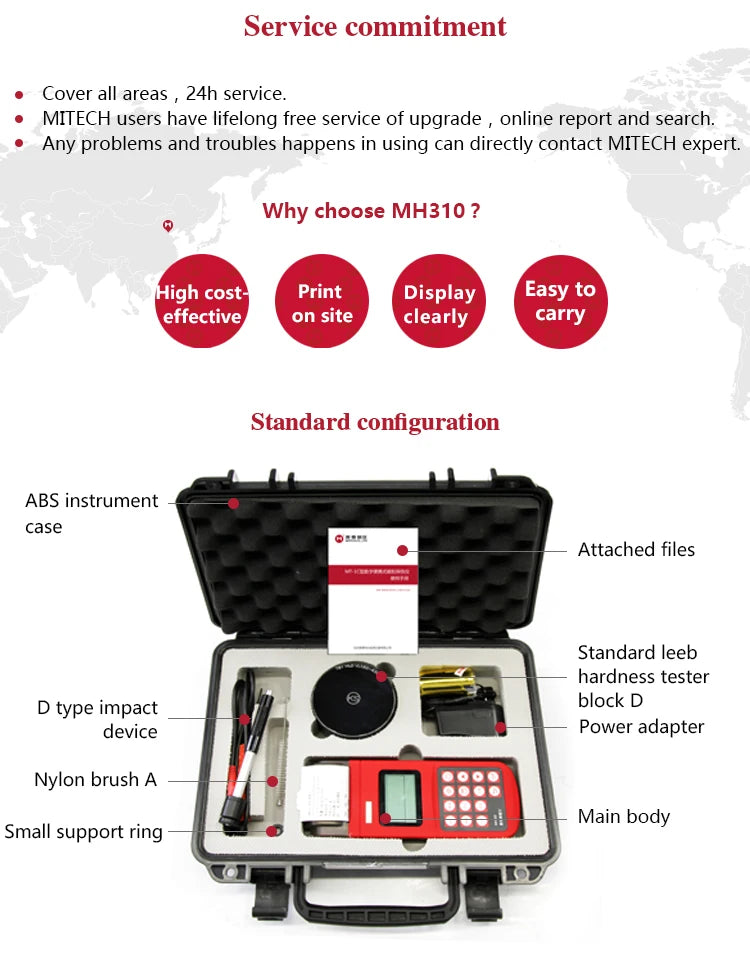

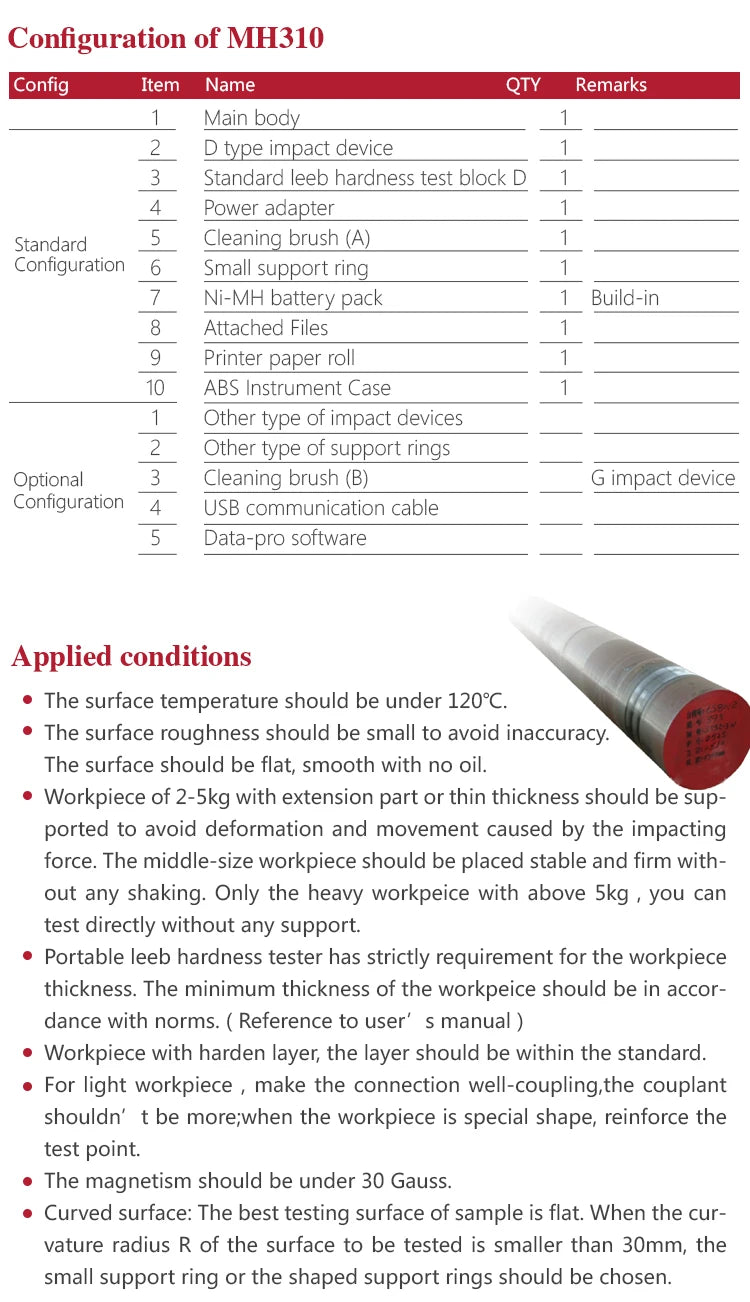

Configurations:

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main unit	1
	2	D type impact device	1
	3	Standard test block	1
	4	Power adapter	1
	5	Cleaning brush (A)	1
	6	Small support ring	1
	7	Ni-MH battery pack	1	In product
	8	Printer paper roll	1
	9	Manual	1
	10	ABS instrument package case	1
Optional Configuration	1	Cleaning brush (B)	1	For use with G type impact device
	2	Other type of support rings
	3	Other type of impact devices
	4	DataPro software	1
	5	Communication cable	1

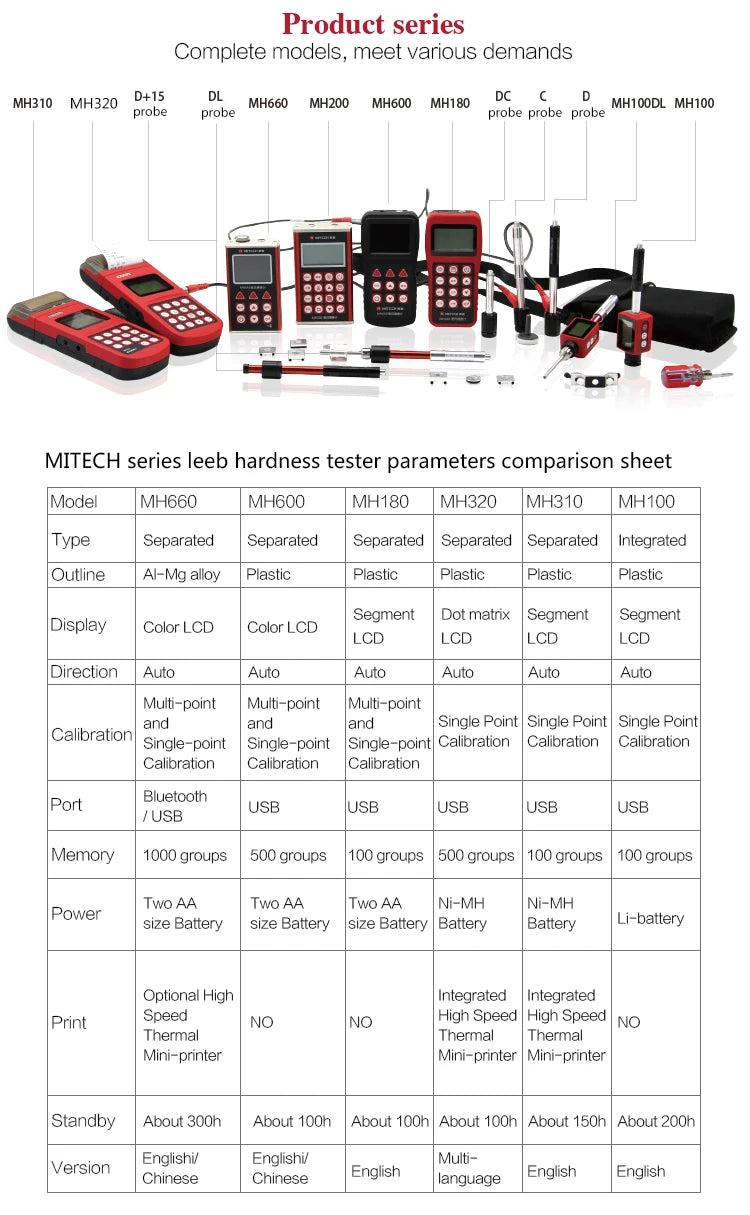

Mitech Hardness Tester Series Comperation:

Model	MH660	MH600	MH180	MH320	MH310	MH100
Type	seperated	seperated	seperated	seperated	seperated	integrated
Outline	AI-Mg alloy	Plastic	plastic	plastic	plastic	plastic
Display	Color LCD	color LCD	segment LCD	DOT matrix LCD	segment LCD	segment LCD
Direction	auto	auto	auto	auto	auto	auto
Calibration	multi-point & single-point	multi-point&single-poing	multi-point&single-poing	single point	single point	single point
Port	Bluetooth / USB	USB	USB	USB	USB	USB
Memory	1000 groups	500 groups	100 groups	500 groups	100 groups	100 groups
Power	two AA size battery	two AA size battery	two AA size battery	Ni-MH battery	NI-MH battery	Li-battery
Print	Thermal mini printer(optional)	No	No	Thermal mini printer	Thermal mini printer	No
Standby	about 300H	about 100h	about 100h	about 100h	about 150h	about 200h
Version	English/Chinese	English/Chinese	English	Multi-language	English	English
