Hardness Tester - Mitech MH600

Hardness Tester - Mitech MH600

Digital MH600 HL HB HRB HRC HRA HV HS - Can Store 500 Groups Hardness Values Scale Color LCD Display

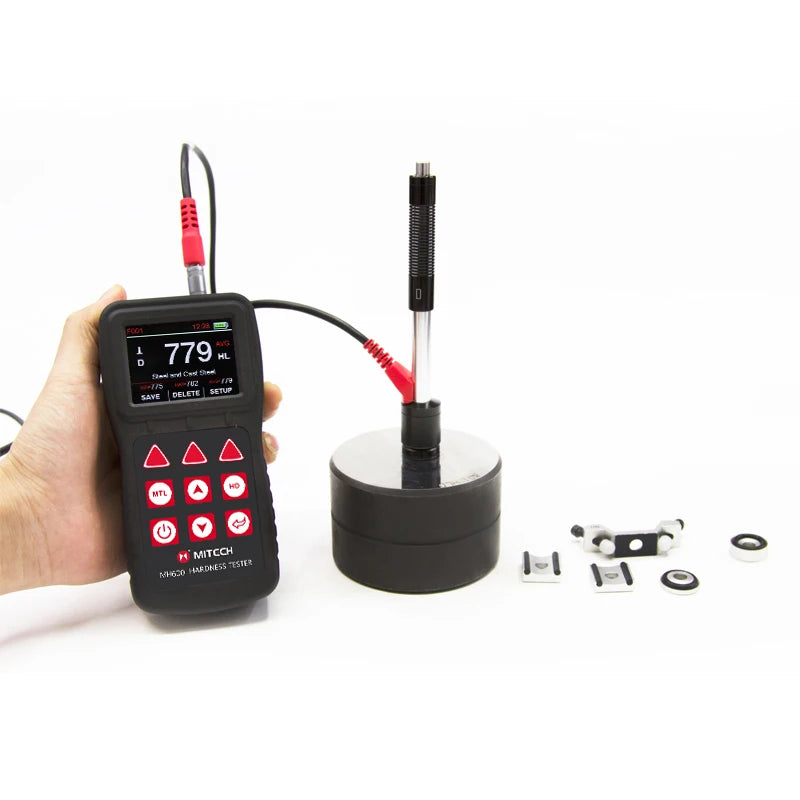

The MH600 portable Leeb hardness tester is an intelligent and easy-to-use instrument designed for on-site metal hardness testing in challenging environments. Its key features include:

1. Protection and Durability: IP65 rated, it effectively shields against oil, dust, and other corrosive elements, making it ideal for harsh field conditions.

2. Display: The color LCD provides clear measurement results, visible in both low light and bright sunlight, enhancing user experience.

3. Calibration and Precision: Features multi-point calibration for conversion curves to minimize errors. It can automatically identify testing directions and issue alarms when readings are out of range.

4. Versatility: Supports multi-angle measurements and free conversion between different hardness scales, accommodating various testing needs.

5. Power and Usability: Powered by two AA batteries, designed for low power consumption, and supports multiple languages for global usability.

6. Applications: Widely used in metal processing, manufacturing, equipment inspection, and failure analysis. It’s especially suitable for testing large, non-removable parts on-site.

Overall, the MH600 is a professional-grade instrument that helps improve production pass rates and reduce costs through accurate, efficient, and durable hardness testing.

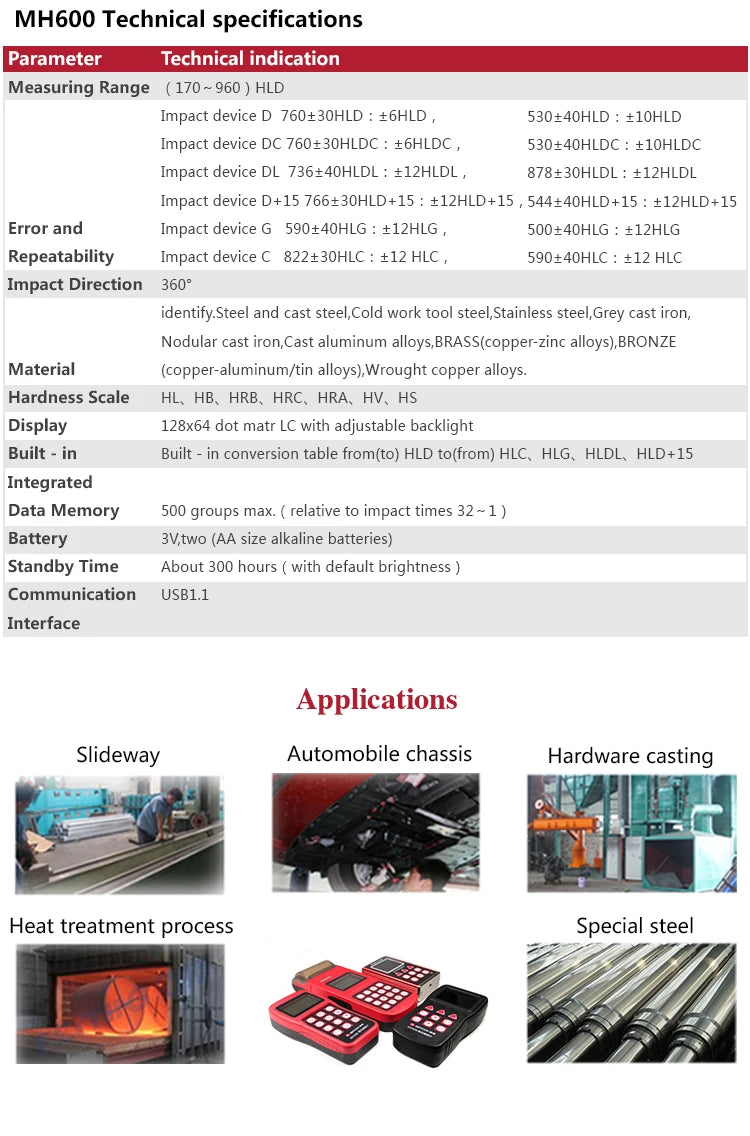

Technical Specifications:

*Measuring range：HLD（170～960）HLD

*Impact direction: vertically downward, oblique, horizontal, vertical upward, automatically identify

*Material: steel and cast steel，cold work tool steel, stainless steel, Grey cast iron,Nodular cast iron, cast aluminum alloys,BRASS(copper-zinc alloys),BRONZE(copper-aluminum/tin alloys),Wrought copper alloys

*Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

*Display：Color TFT,320x240 dots, dot-matric LCD

*Built-in: conversion table from(to) HLD to(from)HLG,HLC,HLDL,HLD+15

*Data memory：500 measurement series.(relative to impact times 32～1)

*Battery : 3V,two AA size,alkaline batteries

*Standby Time: About 100hours (with default brightness)

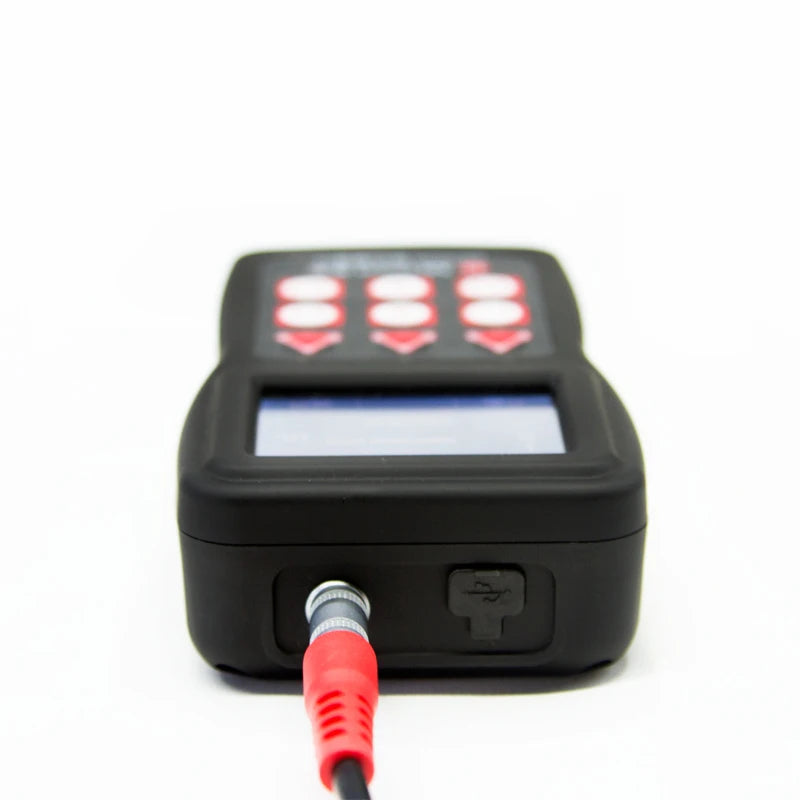

*Communication interface：USB1.1

Features:

*Based on the principle of Leeb hardness testing theory. It can measure many metallic materials

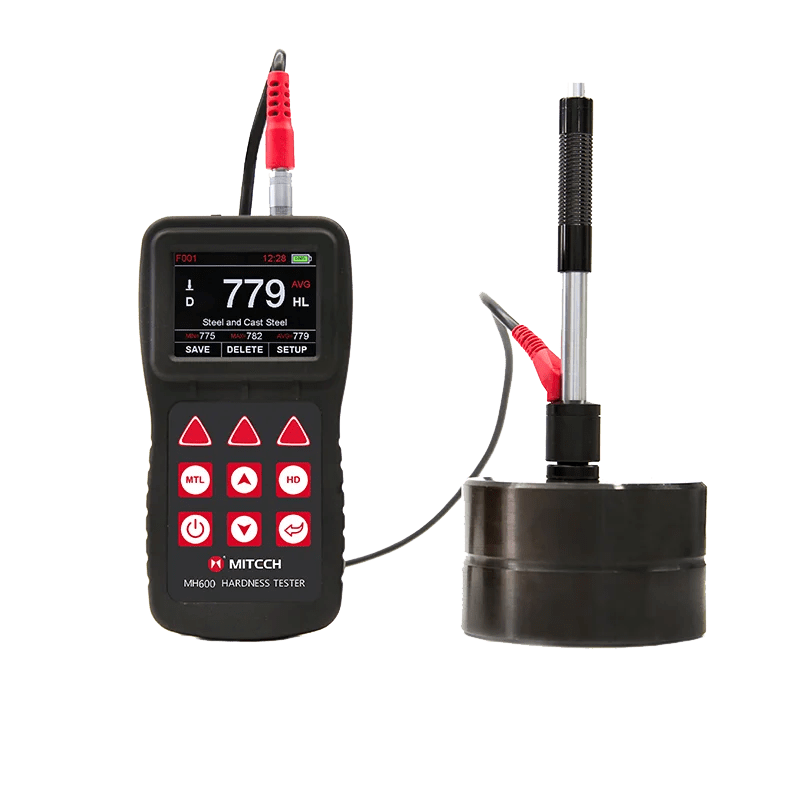

*One main unit can match to 6 impact devices

*Automatically identify the state of impact devices(connect, disconnect, error, etc)

*Automatically identify the direction of impact devices(except G),360°,comprehensive free measurement.

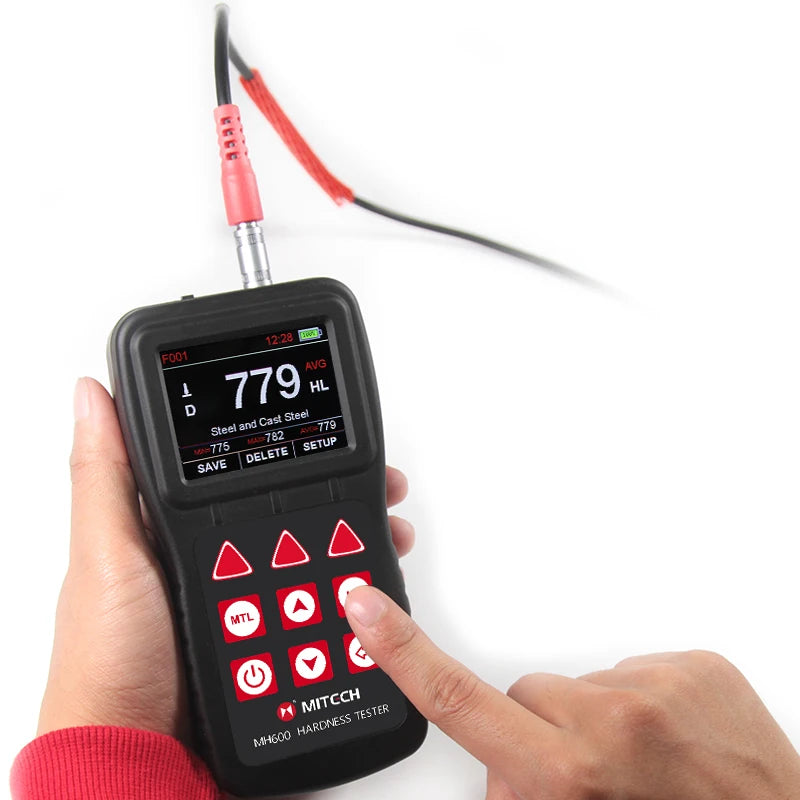

*320 x 240TFT LCD screen, information-rich, intuitive, clear, display, adjustable brightness, easy to use in dimly lit

*Basic (single-point )calibration and multi-point calibration function for convert curve, to reduce the test error

*Hardness scales can to convert to HL,HRB,HRC,HRA,HV,HS.

*Built-in Leeb Hardness conversion function to converse HLD to HLC,HLG,HLDL,HLD+15,which is convenient for calibration and value conversion

*Preset up and low limit of hardness value ,it will alarm automatically if out of range alarm, convenient for batch testings

*Chinese-English converting, menu operation, easy and convenient

*It can store 500 groups (impact times 32 ~ 1) hardness measurements, each set of data includes single testing value, average value, measurement date / time, impact direction, frequency, material, hardness, and other information.

*Two ordinary AA batteries, it can work for not less than 100 hours; automatic screen standby, automatic sleep, automatic shutdown and other power-saving features

*USB interface can do transmission measurements, value storage management, value statistical analysis, printing the value report and batch setting the instrument paraments through the PC data-pro software to meet the higher demand for quality.

*ABS plastic seal design, P6S protection, which can effective y prevent oil, dust and other corrosion of harsh environments.

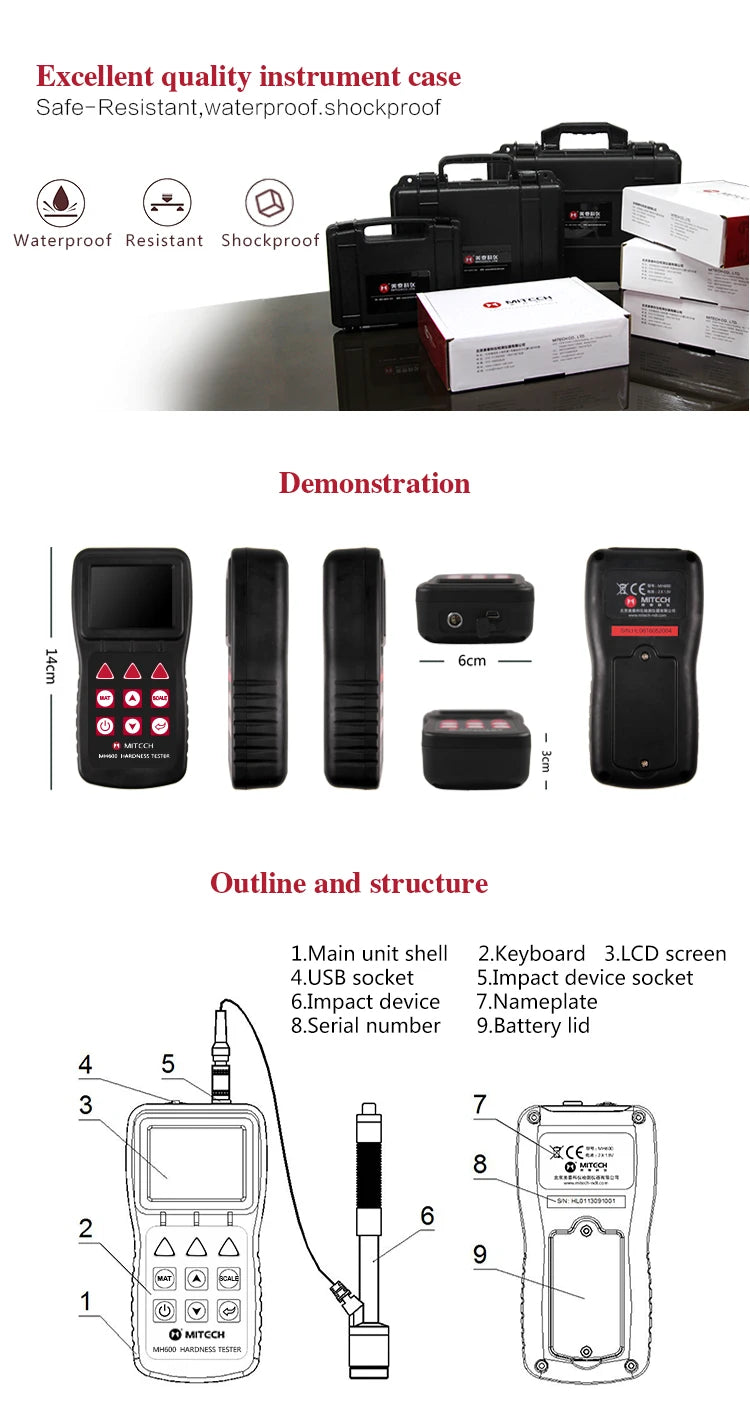

*Dimension:150mm×76mm×38mm
