Hardness Tester - Mitech MH600

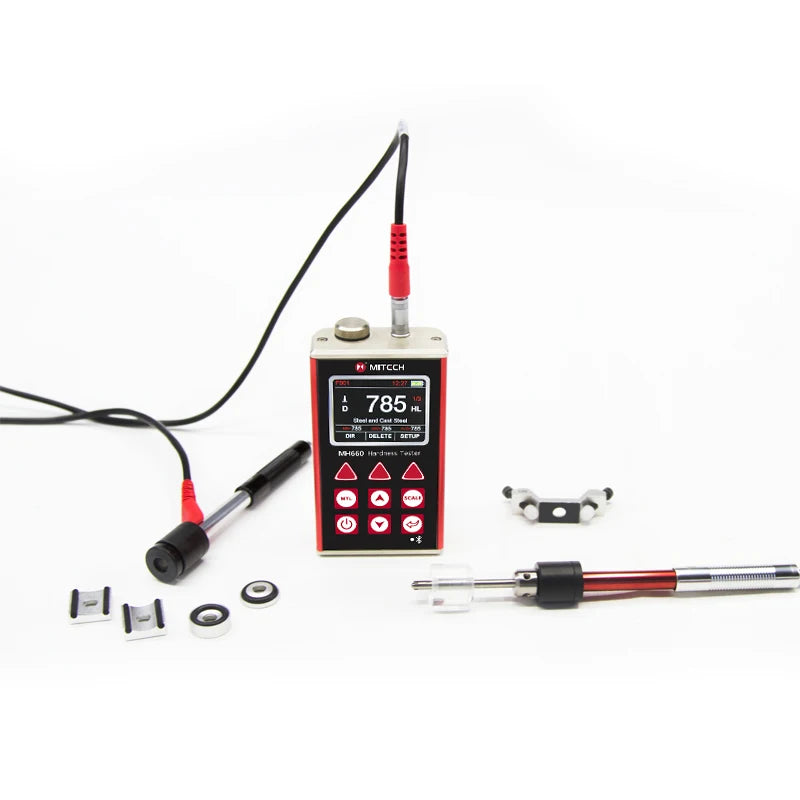

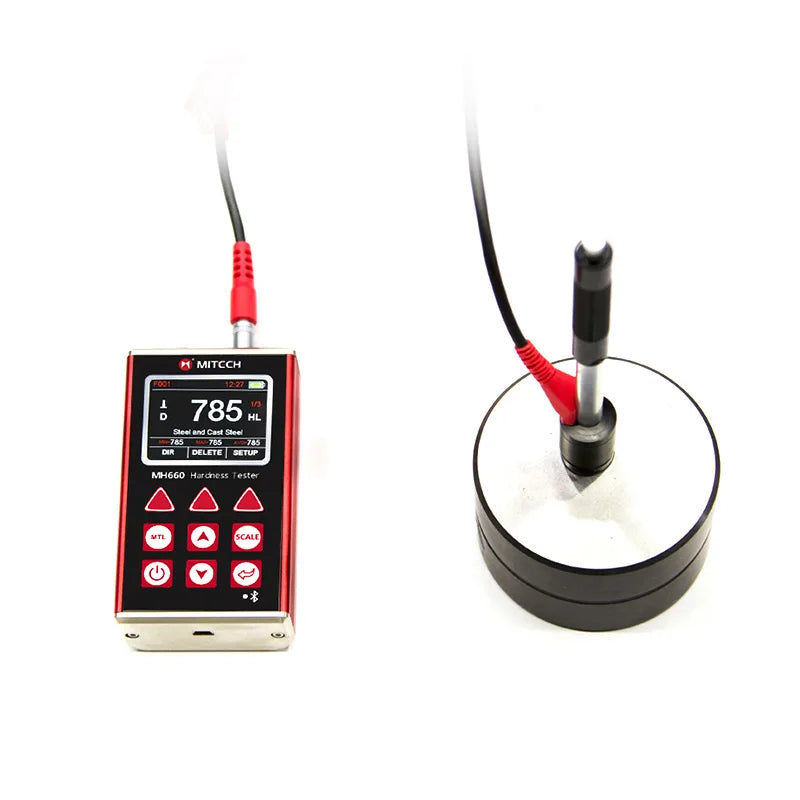

MH660 Leeb Hardness Tester with Printer Hardness meter
Measuring range HLD 170～960
The MH660 portable Leeb hardness tester by Mitech offers several advanced features aimed at improving user experience and measurement accuracy. Key features include:
-
Display: It utilizes a 320 x 240 color LCD display, ensuring clear visibility in both dim and bright environments.
-
Durability: The tester is housed in a sealed metal case designed to withstand harsh conditions such as oil and dust, making it suitable for field environments.
-
Calibration and Precision: Features like original point calibration and multi-point calibration for conversion curves help reduce errors. It automatically identifies measurement directions and alerts users when readings are out of range, ensuring high precision.
-
Flexibility: Allows for free conversion between different hardness types, supporting a variety of materials.
-
Power and Portability: Operates on two AA batteries and supports multiple languages. Its compact size enhances portability.
-
Connectivity: Equipped with Bluetooth printing capabilities for ease of documentation.
-
Applications: Ideal for metal processing, manufacturing, special equipment inspection, and failure analysis, especially useful for testing large, immovable parts.
Overall, the MH660 is designed to meet high precision requirements in various fields while being user-friendly and robust.

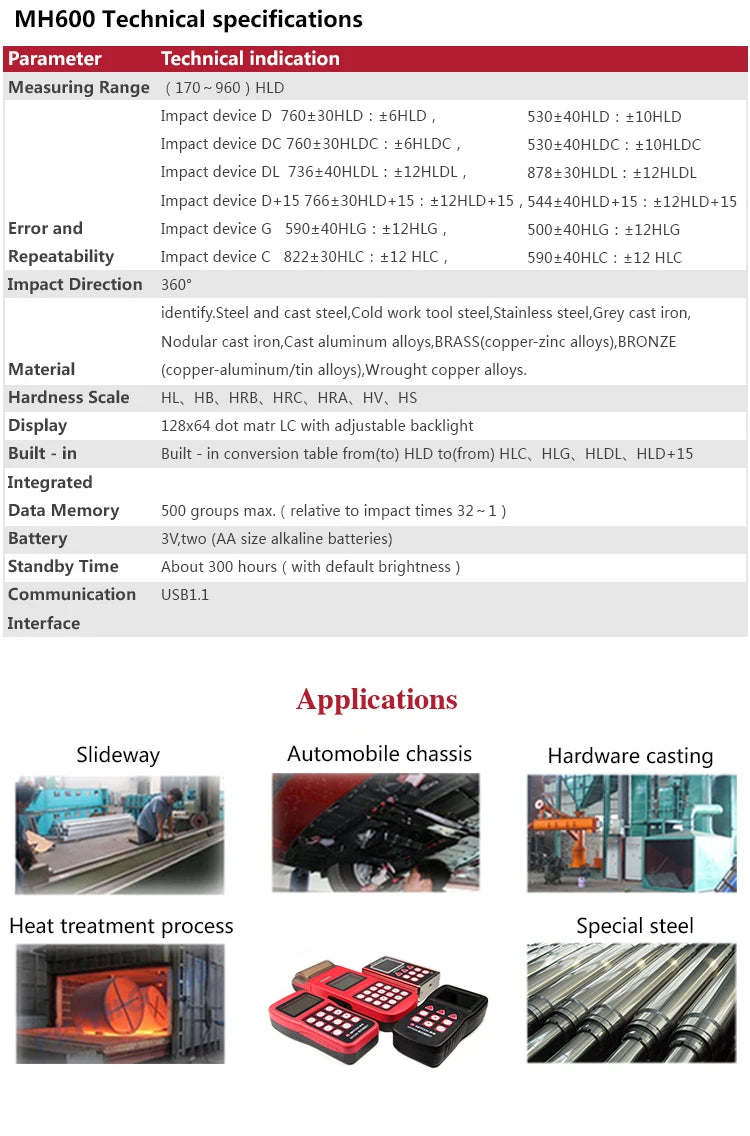

Features:
* Measuring range：HLD（170～960）HLD
* Impact direction: vertically downward, oblique, horizontal, vertical upward, automatically identify
* Material: steel and cast steel，cold work tool steel, stainless steel, Grey cast iron,Nodular cast iron, cast aluminum alloys,BRASS(copper-zinc alloys),BRONZE(copper-aluminum/tin alloys),Wrought copper alloys
* Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
* Display：Color TFT,320x240 dots, dot-matric LCD
* Built-in: conversion table from(to) HLD to(from)HLG,HLC,HLDL,HLD+15
* Data memory：500 measurement series.(relative to impact times 32～1)
* Battery : 3V,two AA size,alkaline batteries
* Standby Time: About 300hours (with default brightness)
*Communication interface：Blue tooth/USB1.1
Features:
* Based on the principle of Leeb hardness testing theory. It can measure many metallic materials
* One main unit can match to 6 impact devices
* Automatically identify the state of impact devices(connect, disconnect, error, etc)
* Automatically identify the direction of impact devices(except G),360°,comprehensive free measurement.
* 320 x 240TFT LCD screen, information-rich, intuitive, clear, display, adjustable brightness, easy to use in dimly lit
* Basic (single-point )calibration and multi-point calibration function for convert curve, to reduce the test error
* Hardness scales can to convert to HL,HRB,HRC,HRA,HV,HS.
* Built-in Leeb Hardness conversion function to converse HLD to HLC,HLG,HLDL,HLD+15,which is convenient for calibration and value conversion
* Preset up and low limit of hardness value ,it will alarm automatically if out of range alarm, convenient for batch testings
* Chinese-English converting, menu operation, easy and convenient
* It can store 1000 groups (impact times 32 ~ 1) hardness measurements, each set of data includes single testing value, average value, measurement date / time, impact direction, frequency, material, hardness, and other information.
* Two ordinary AA batteries, it can work for not less than 100 hours; automatic screen standby, automatic sleep, automatic shutdown and other power-saving features

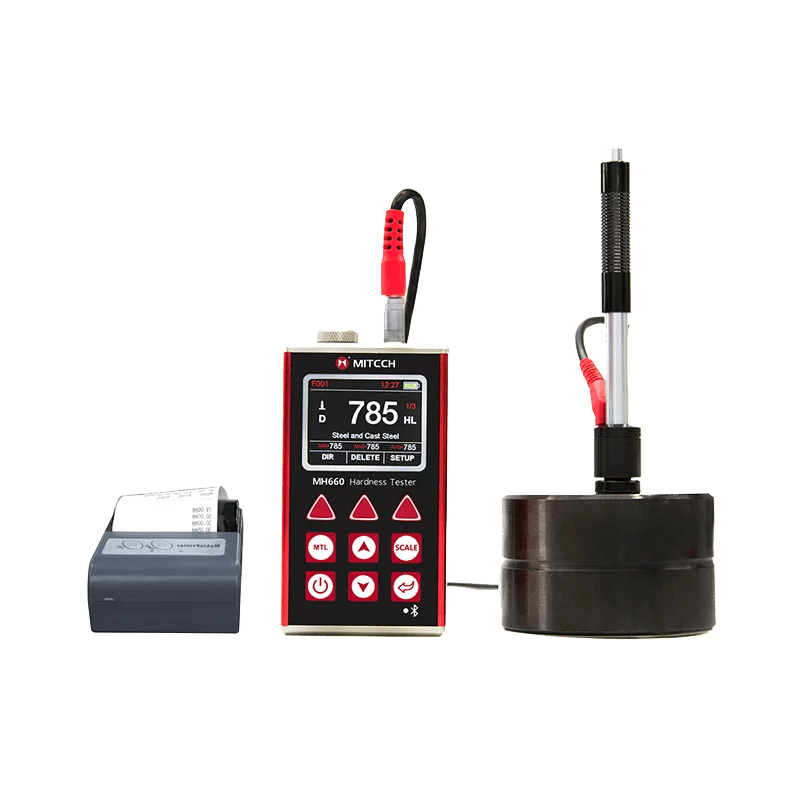

* With field-portable mini-printers with Blue-tooth communications, convenient to generate data reports
* USB interface can do transmission measurements, value storage management, value statistical analysis, printing the value report and batch setting the instrument parameters through the PC data-pro software to meet the higher demand for quality.
* Dimension:120mm×67mm×31mm
