Hardness Tester TMTech - THL600

Hardness Tester TMTech - THL600

Regular price $750.00
Regular price Sale price $750.00
Sale Sold out
Shipping calculated at checkout.
Style

High precision hardness tester THL600

Features

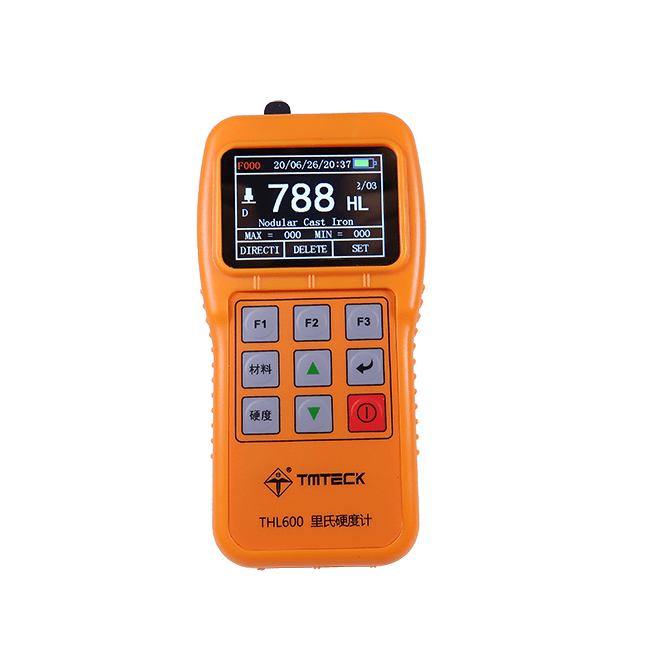

Color display of 3inch screen showing all functions and parameters.

Converts to all common hardness scales (HV,HB, HRC,HRB,HRA,HS).

English displaying and easy and convenient menu operation.

Powerful PC Software available and USB 2.0 interface & with the USB Protective Membrane.

7 types of Impact Device optional, which don't need to be recalibrated when changing them.

Memory of 1200 groups data(impact times:32~1).Lower limit setting and sound alarm.

Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.

Printer be separated from main unit and copies of testing results can be printed as required.

AA battery can easy change and transport.

Inbuilt function of Software Calibration.

With user-defined material curve function, for special materials such as forged steel, rolled steel, alloy steel or special processing metal materials, users can customize the measurement curve according to the actual measurement.

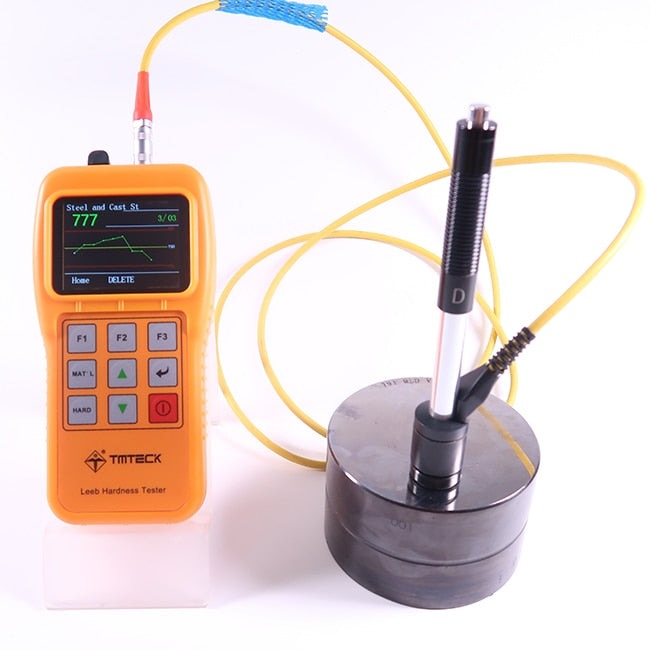

THL600 with The values plotted into the curve, Uniformity will be very obviours.

Standard according including : national standard: GB/T 17394.1-2014; GB/T1172-1999

EU standard: DIN 50156-2007

ASTM standard:ASTM A956(2012)

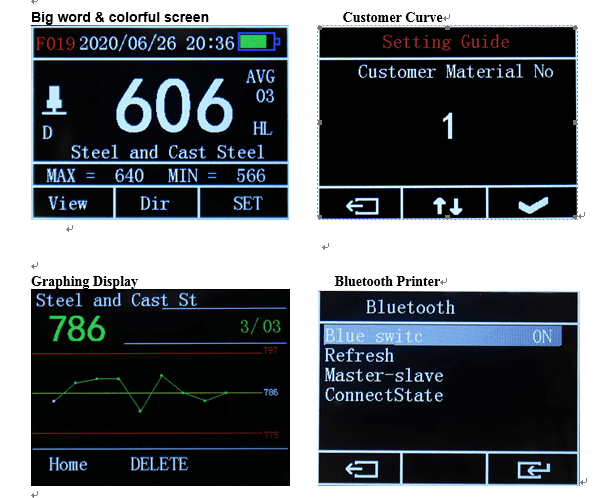

THL600 custom material curve function

Due to the different alloy ratios of alloy materials or due to special hot and cold

processing techniques, the elastic modulus of some metal materials is different

from that of the same kind of ordinary materials, which results in the testing

of such materials, whether it is the national standard conversion table or the

European standard. The conversion table cannot accurately convert the different

hardness systems. The function of the custom material curve provides a means to

adjust the conversion table according to the actual situation, which is

conducive to expanding the applicability and accuracy of the instrument product.

Specifications


Hardness
scale

HL, HB,
HRB, HRC, HRA, HV, HS

Memory

48~600 groups (impact
times: 32~1)

Measuring
range

HLD(170~960)See below table 1 and table 2

Accuracy

±4HLD
(760±30HLD) error of displayed value


4HLD
(760±30HLD) repeatability of displayed value

Standard

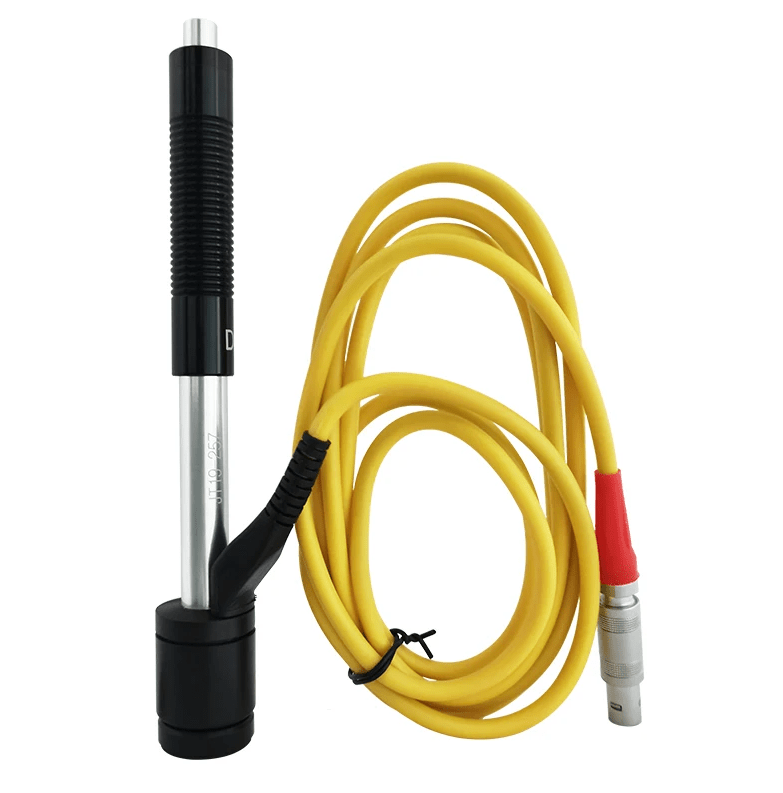

Impact Device

D

Optional
Impact Devices

DC/D+15/G/C/DL/E

Max.
Workpiece Hardness

996HV(For
Impact Devices D/DC/DL/D+15/C)


646HB(For
Impact Device G)

Min.
Radius of Workpiece

Rmin =
50mm (with special support ring Rmin= 10mm)

Min.
Workpiece weight

2~5kg
on stable support

Min.
Workpiece thickness

5mm
(Impact Devices D/DC/DL/D+15)


1mm
(Impact Device C)


10mm
(Impact Device G)

Min.
thickness of hardened surface

0.8mm

Power

AA
battery

Continuous
Working time

approx.
100 h (no back light off)

Operating
temperature

0~40℃

Relative
humidity

≤90%

Overall
dimensions

120*60*31mm
(main unit)

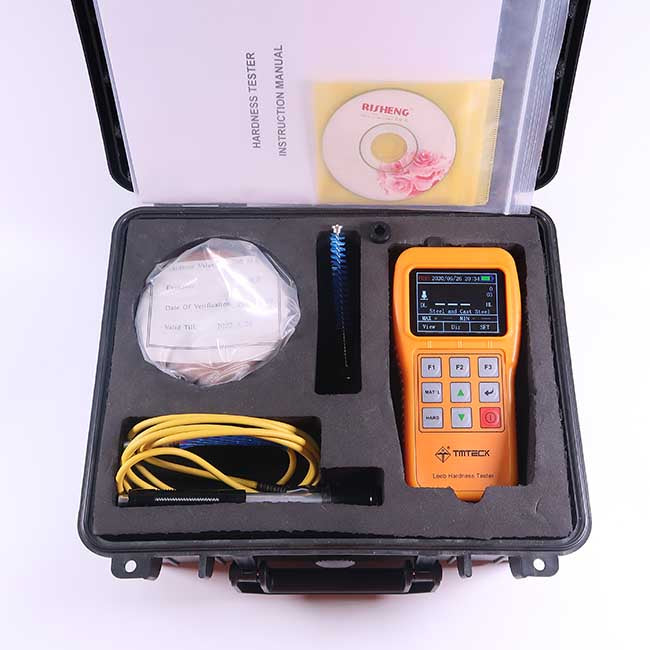

Standard Configuration

Seq

Name

Qty

Remark

1

Main Unit

1

Standard configuration

2

Impact Device Type D

1

Standard configuration

3

Test Block Type D

1

Standard configuration

4

Cleaning Brush

1

Standard configuration

5

Supporting Ring

1

Standard configuration

6

Communication Cable

1

Standard configuration

7

Manual

1

Standard configuration

8

Carrying Case

1

Standard configuration

9

DataPro Software(USB)

1

Standard configuration
