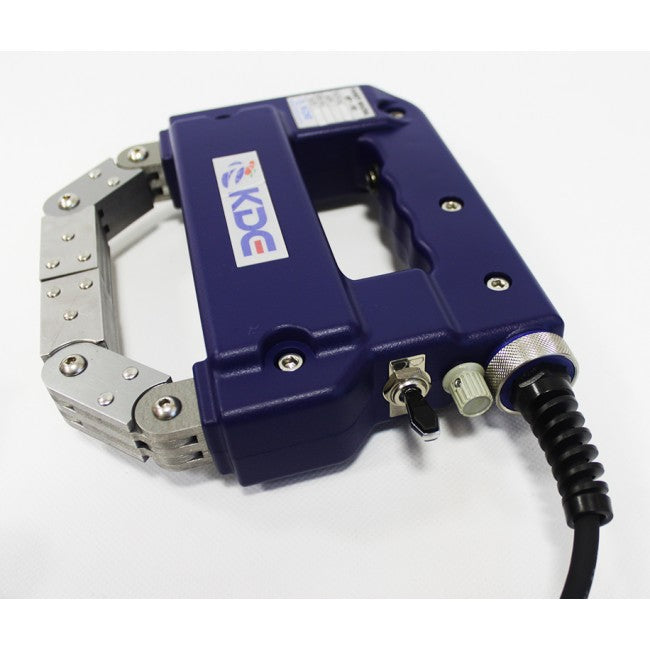

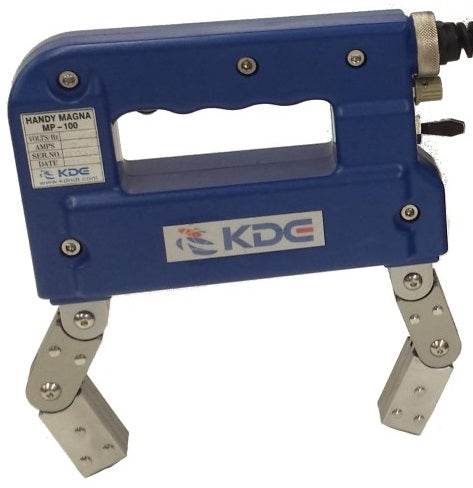

KDE Handy Magna AC/DC Magnetic Yoke - MP-100
A light weight 240V AC/DC magnetic yoke for Magnetic particle Inspection, using both wet and dry methods. It is used to detect surface defects and cracks in ferromagnetic components and structures with it's AC or DC magnetic field.

Features:

  • Magnetizing current: AC & DC
  • Power: AC 220V/50/60Hz, AC 110V/50/60Hz upon request
  • Related current: 220V/60Hz (2.5 Amps), 220V/50Hz (2.5 Amps), 110V/60Hz (3.5 Amps)
  • Lifting power: AC: 5.4kg over / DC: 18.1kg over
  • Dimensions: 285(L) x 320(H) x 50(W)mm
  • Weight: 2.95kg including cable

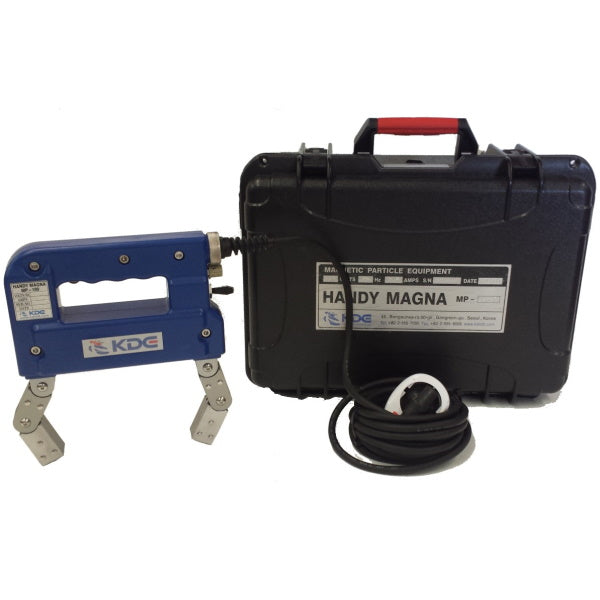

Kit Contains:

• AC/DC Yoke with Heavy Duty Power Cord
• Certificate of Conformance

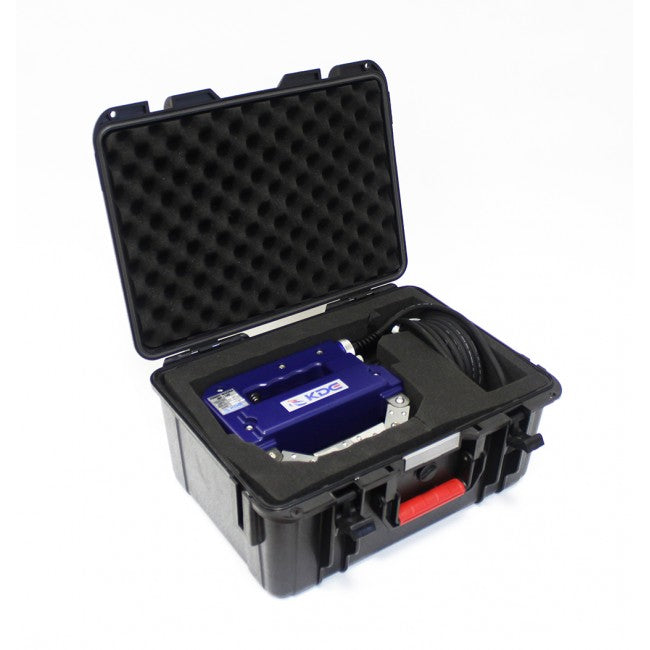

• Hard Carry Case
