KDE Handy Magna Battery DC Magnetic Yoke - MP-A2D

KDE Handy Magna Battery DC Magnetic Yoke - MP-A2D

Regular price $1,375.00
Regular price Sale price $1,375.00
Sale Sold out
Shipping calculated at checkout.

KDE Handy Magna Battery DC Magnetic Yoke - MP-A2D

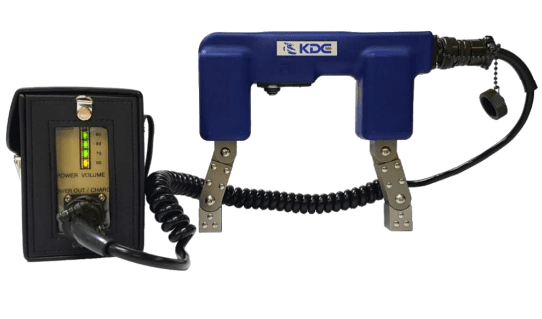

The MP-A2D is a portable, battery powered lightweight 12V DC yoke, for Magnetic particle Inspection, using both wet and dry methods. It is used to detect surface defects and cracks in ferromagnetic components and structures with it's DC magnetic field. Simple to use it comes as standard with flexible legs and a mounted induction powered LED light useful for inspections in areas of low light.

DC Model Features:
• Accessible grip, angled body for better position
• Powerful DC Magnetic Field lifting power 18kg
• Exceed ASTM E709 & ASTM E1444 lifting specifications
• Durable rugged construction
• Lightweight
• Adjustable leg spacing
• Weight: Main Body 2.8kg, Battery 2.5kg, Charger 1.6kg
• Detachable power cord

Technical Specification:

• Electrical Requirement - 12V DC (2.0Amp)

• Lifting Force - 18 Kg / 40 lbs

• Duty Cycle - 50 % (Max 5 sec on/ 5 sec off)

• Leg Span - 80-175 mm

• Battery Life - 4hrs charge / 4hrs usage

• Power Cord Length - 4.0 Meter

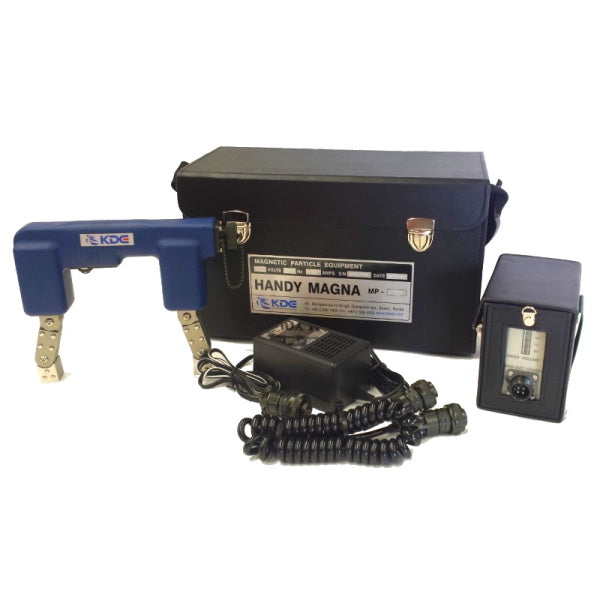

Kit Contains:

• Yoke, Battery, Charger
• Heavy Duty Power Cord
• Certificate of Conformance
• Hard Carry Case

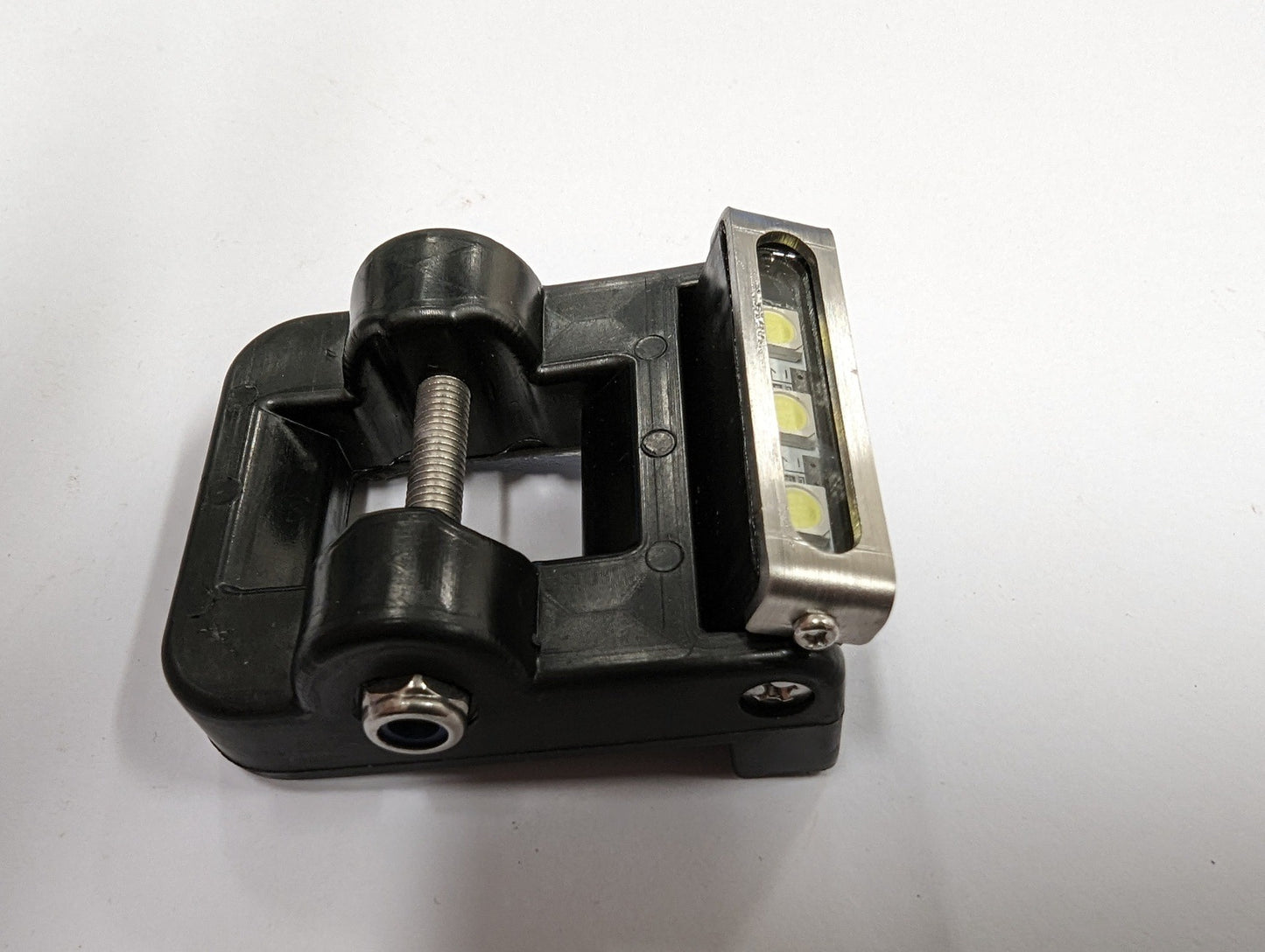

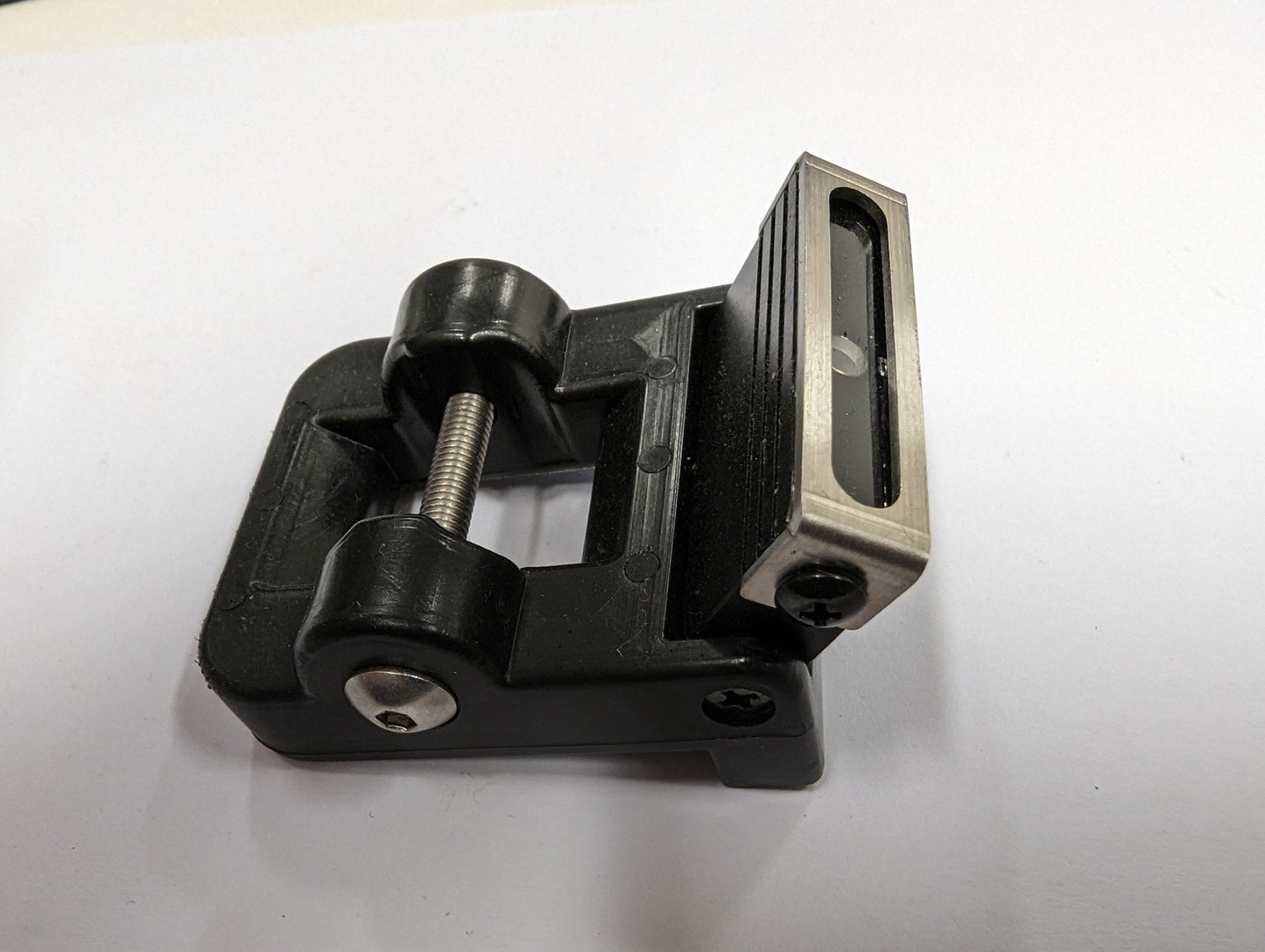

Options: White LED light attachment, UV light attachment

Accessories / spare parts available upon request.
