Quantitative Quality Indicators (QQIs)

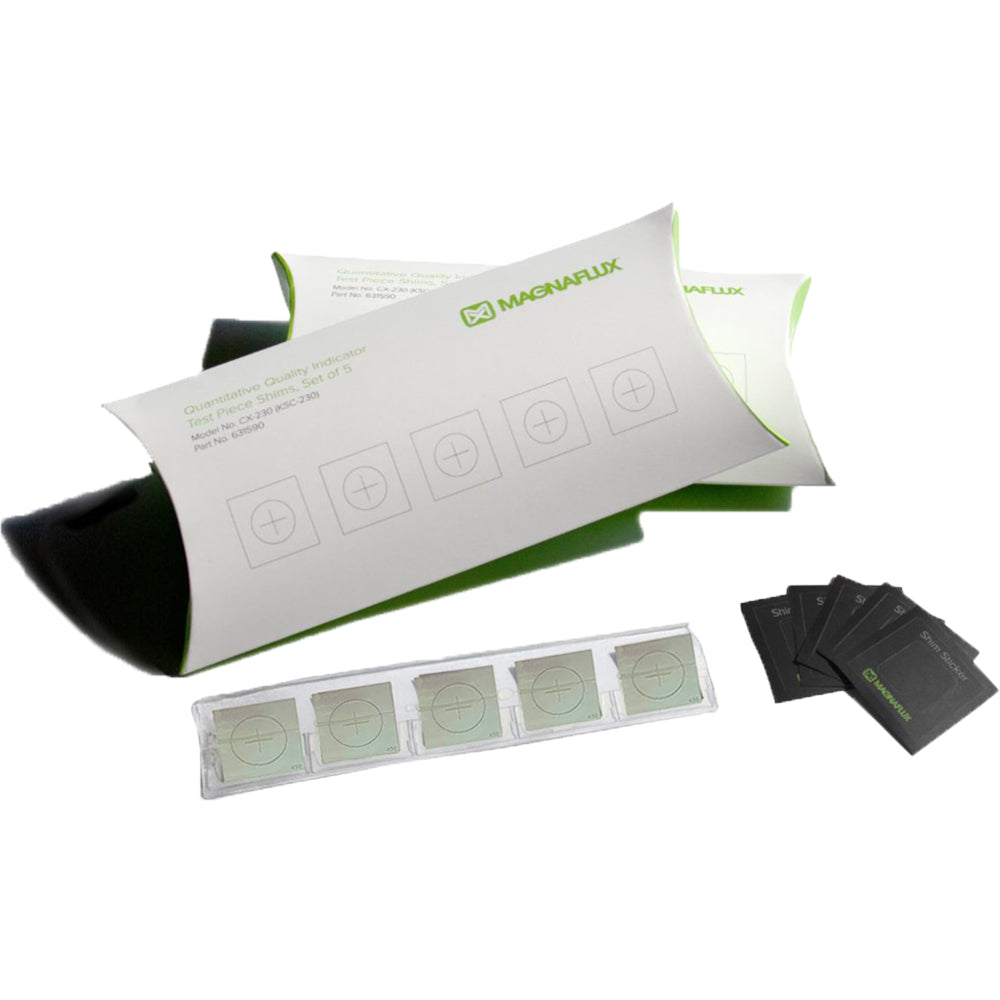

Test Piece Shims Quantitative Quality Indicators (QQI) are magnetic particle test piece shims with artificial defects used to verify field direction and relative strength. QQIs are also used to balance multi-directional fields and to increase productivity by minimizing magnetizing shots. The QQI indicator shims are packaged in sets of five.
|
Part Numnber |
Product Name |
Image |
Description |
|

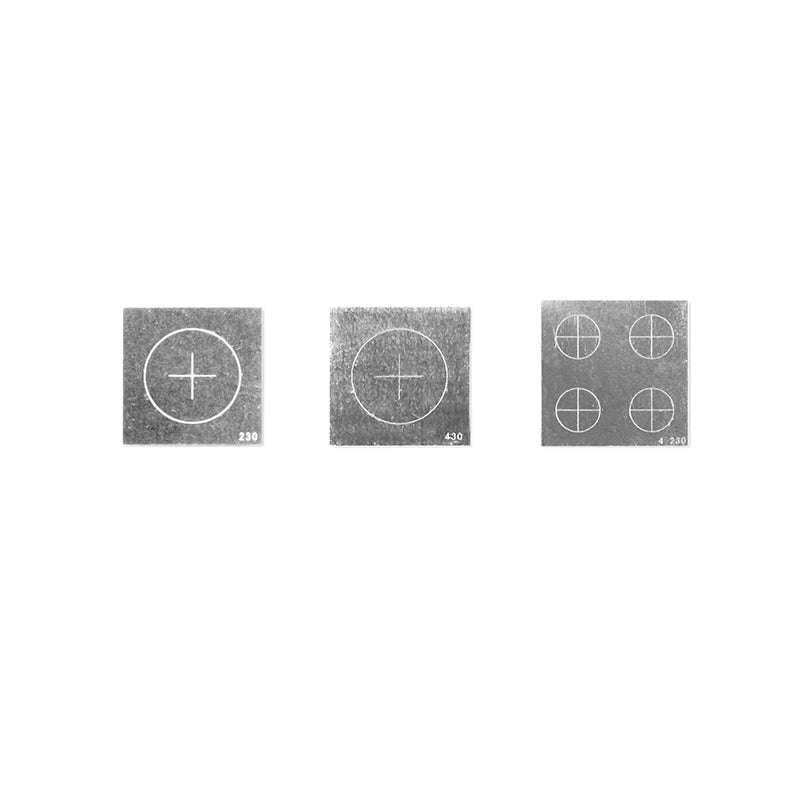

631590 |
CX-230 |
 |
0.002 inch (0.05 mm) thickness with a notch flaw depth of 30% of shim thickness |
|
631591 |
CX-430 |
|
0.004 inch (0.10 mm) thickness with a notch flaw depth of 30% of shim thickness |
|
631592 |
CX4-230 |
|
Four circle-cross notch patterns, to be cut by user into four separate shims. 0.002 inch (0.05 mm) thickness with a notch flaw depth of 30% of shim thickness. |
