Magnaflux Y8 DC Magnetic Yoke

  • Sale
  • Regular price $1,795.00
Shipping calculated at checkout.


Stock Shortage Australia Wide on most Magnaflux / Spotcheck products - ETA Late 2021. Recommend our Sherwin & other products as a replacement.

Magnaflux Y8 DC Magnetic Yoke

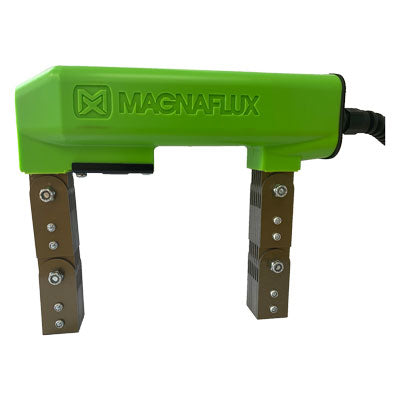

The Y-8 is a battery-powered, DC electromagnetic yoke designed to stand up to the most rugged applications. True portability for magnetic particle inspection in the field and remote locations is achieved through a compact battery pack which provides a full 8-hour shift of inspection power.

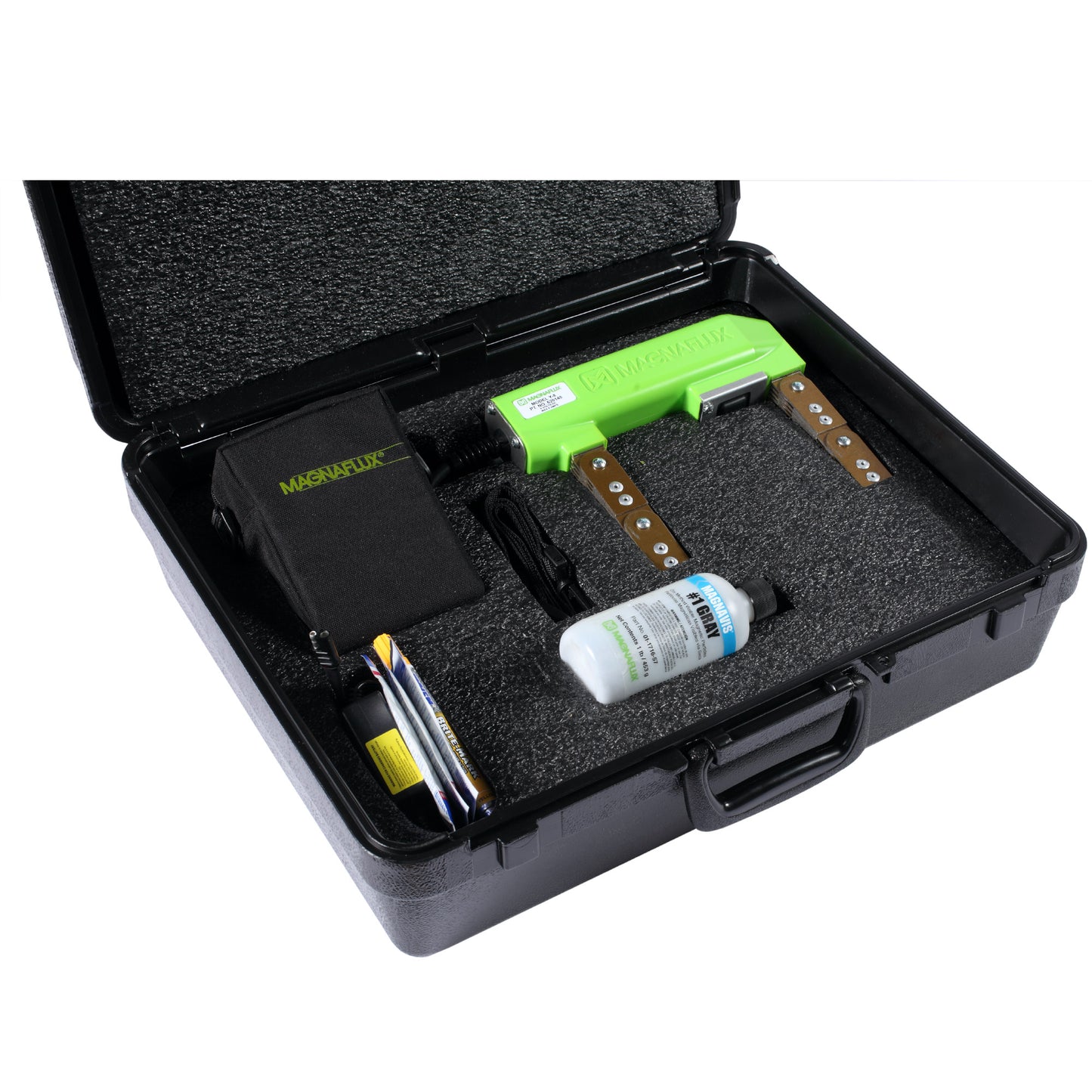

Featuring sealed chemical-resistant construction and articulating legs to contour to any part shape, the Y-8 MV Kit comes with a Y-8 yoke, battery with pouch, universal-voltage battery charger & carrying case.

Benefits & Features

  • Sealed, durable construction
  • Chemical and abrasion resistant
  • True portability with compact battery pack
  • Exceeds ASTM lifting specifications
  • Individual serial number for each yoke

    Applications: Automobile Parts, Off-Road Equipment, Farm Equipment, Welds, Castings, Forgings, Leak Testing, Pressure Vessels, Aircraft, Marine, Construction, Maintenance, Petroleum Pipelines, Power Plant Inspections, General Metalwork.

    GENERAL SPECIFICATIONS Y-8 DC YOKE
    Weight 3.6 kgs / 2.4 kgs Battery
    Elec. Requirement 230V/50-60Hz for Charger
    Leg Span 0 - 30cm
    Battery 6v / 12 A hour
    Warranty 1 year
