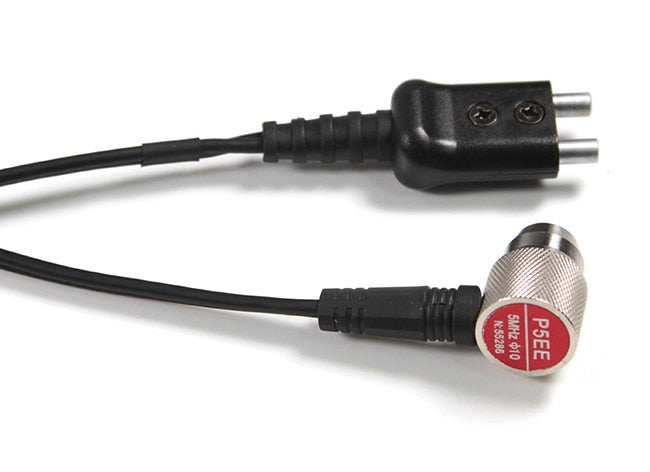

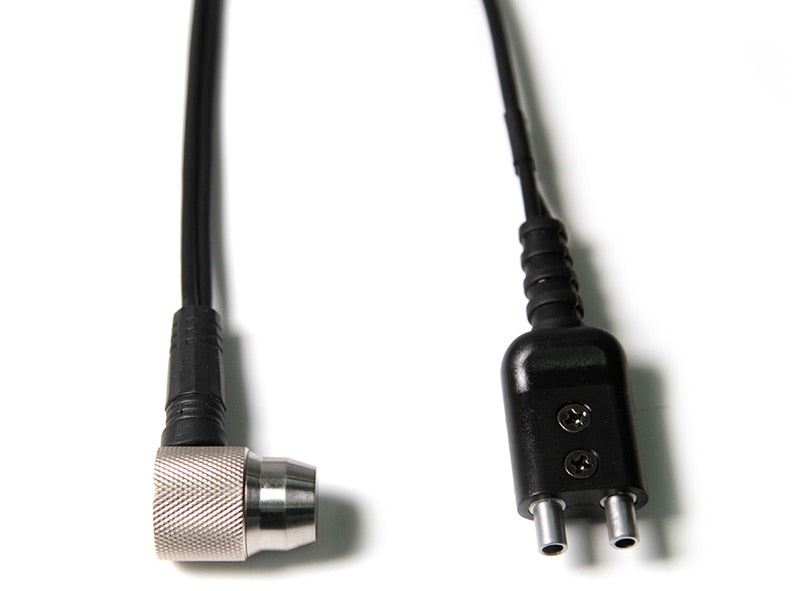

Mitech P5EE Narrow Pulse Probe Transducer (10mm 5MHz) for Ultrasonic Thickness Gauge

Narrow-pulse thickness probe P5EE, suitable for Mitech multi-mode ultrasonic thickness gauges

** The P5EE probe with frequency of 5MHz, crystal size of 10mm, its measuring range is 2mm-600mm in steel under the launch-echo model while its measuring is 3.0mm-100mm in steel under the echo-echo mode.
** The cable length of the P5EE probe is 90cm and its limitation for the minimum pipe diameter is Φ20mm×3.0mm.

P5EE probe, elaborately developed with imported material, integrated die casting process and splinting probe design for convenient plugging,

**  It can effectively reduce the fault caused by frequent plugging, accurate and durable.
**  It can measure the base thickness for the workpiece with coated surface directly through the coating without needing handle the surface.
**  It is widely used in manufacturing, metal processing industry, chemical industry, inspection industry and other testing fields.

SPECIFICATIONS:

Tip dia: 10mm

Temperature range: 0-50℃

Range in Steel: 2mm-600mm

Origin: Mainland China

Model Number: P5EE

Frequency: 5Mhz

Certification: CE

Brand Name: TMTECK
