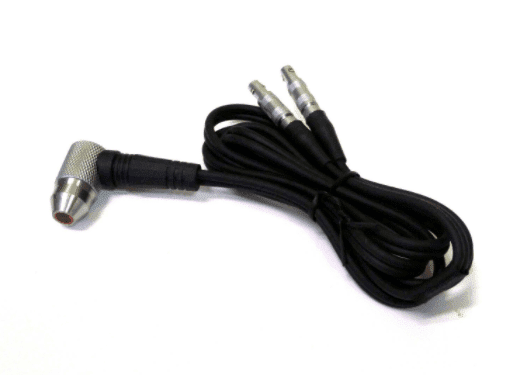

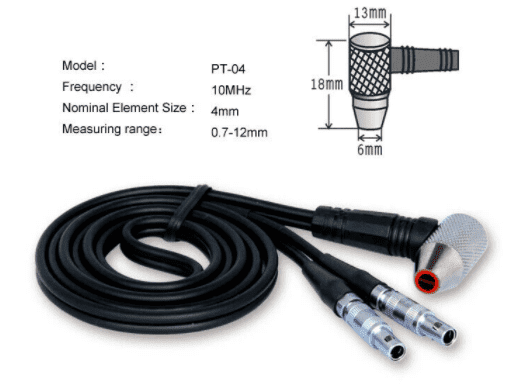

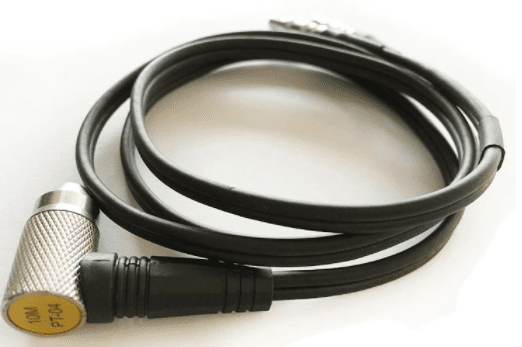

Mitech PT04 Probe Transducer (4mm 10MHz) for Ultrasonic Thickness Gauge
Dual Lemo00 block or dual Lemo00 connectors
|
Model |
PT04 |
|
Type |
Fingertip |
|
Frequency |
10MHz |
|
Chip Diameter |
4mm |
|
Measurement Range(Steel) |
0.75 to 12.0mm |
|
Temperature Range |
-10 to 70 |
|
Features |
For thin pipe wall or small curvature pipe wall measure |
