Multi-function Welding Pit Gauge Measuring Tool

Multi-function Welding Pit Gauge Measuring Tool

Regular price $60.00
Regular price Sale price $60.00
Sale Sold out
Shipping calculated at checkout.

Product Name:

Welding Tools Multi-function Universal Weld Pit Measuring Gauge

Universal Gauge for Welder Butt Welding Gauge Weld Seam Gauges

 Descriptions:

Made of stainless steel material, Multi-function Weld Gauge Excess weld Metal misalignment (high-low), length, gap, thickness Measure tool

 Features:

◆ WS high quality gauge.

◆ The numbers and scales are laser engraving for clarity and easily reading

◆ Gauge is made of stainless steel to ensure durability

◆ Packed in synthetic leather bag for the convenience of storage and carrying ,and better of environmental protection

Specifications:

◆ Material: stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 130g

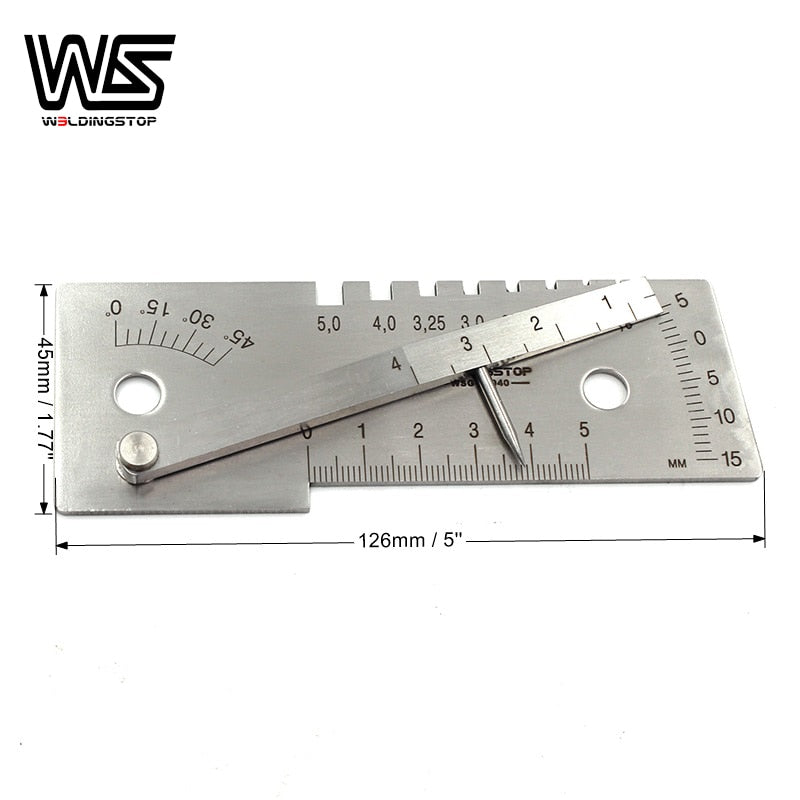

◆ Size in Inch: L x W : 5'' x 1.77 ''

◆ Size in Metric: L x W x H:  126mm x 45mm

◆ Thickness: 2.15mm / 0.09''

◆ Transition: 1cm≈10mm≈0.39inch

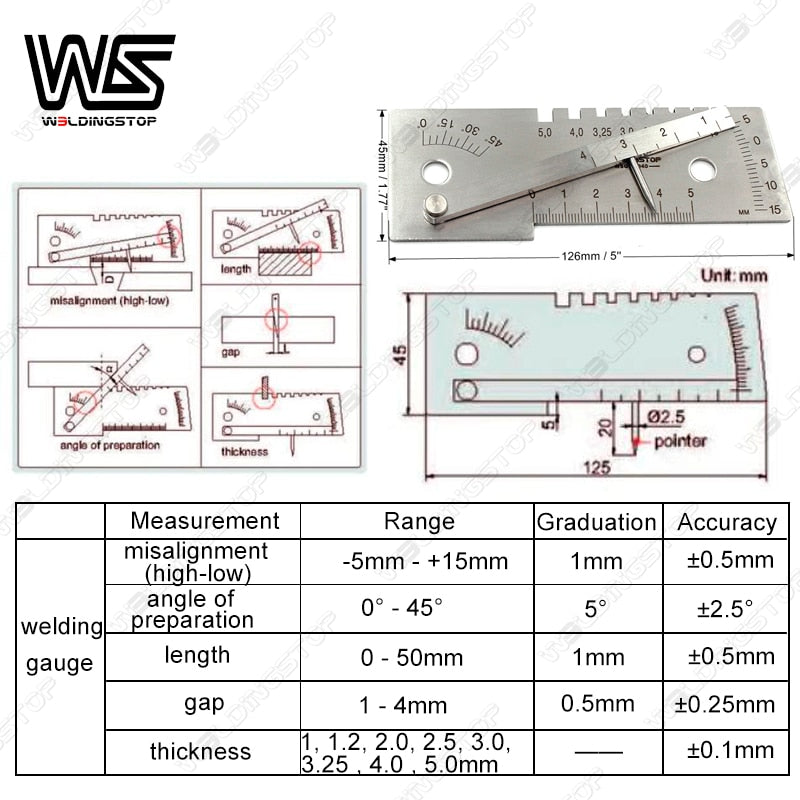

◆ Measuring range:

- misalignment (high-low): -5mm - +15mm

- angle of preparation: 0° - 45°

- length: 0 - 50mm

- gap: 1 - 4mm

- thickness: 1, 1.2, 2.0, 2.5, 3.0, 3.25 , 4.0 , 5.0mm



Package Included:

◆ 1pc x  Multi-function welding pit gauge

◆ Storage pouch or box
