Radiation Monitor - RG1100 Personal Radioactive Alarm X-ray Dosimeter
Radiation Monitor - RG1100 Personal Radioactive Alarm X-ray Dosimeter
Couldn't load pickup availability
Radiation Monitor - RG1100 Personal Radioactive Alarm X-ray Dosimeter
Products Description
|
Detector |
Energy compensation type GM counter tube |
|
Measuring range |
Dose equivalent rate : 0.01uSv/h~ 1mSv/h; |
|
Sensitivity |
>1.5CPS/uSv/h ( relative to 137Cs) |
|
Energy response |
48keV- -3.0MeV |
|
Relative error |
<5% ( 1mSv/h) |
|
Power |
Two 7# dry battery |
|
Temperature |
-10C~+50CS+10% |
|
Working humidity |
0~95%RH(+35℃) ≦±10% |
|
Overall Dimension |
70*40*95(mm) (L"W"H) |
|
Weight |
100g (include battery) |
Product Introduction

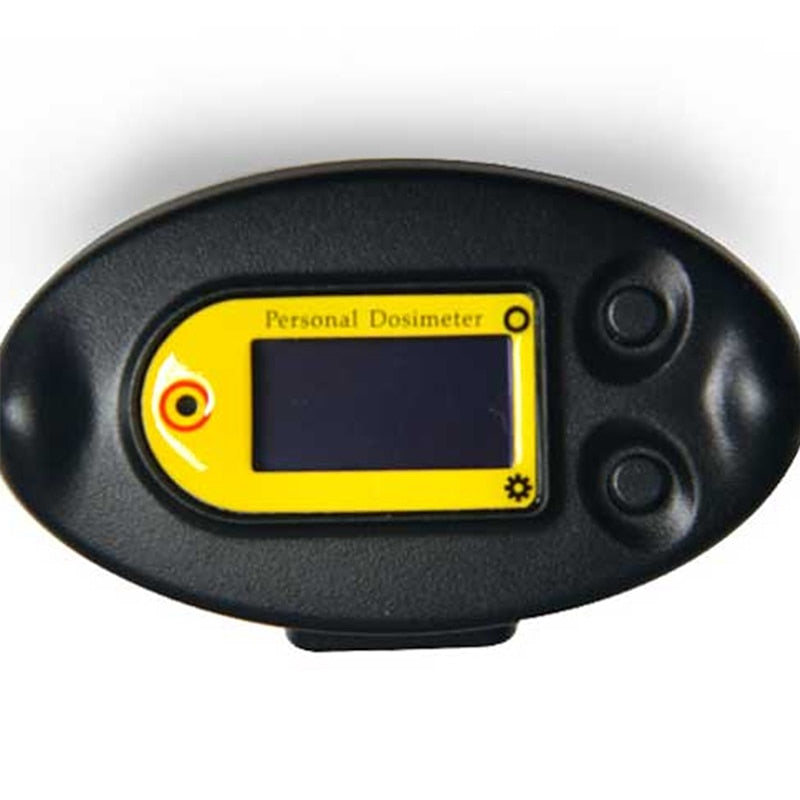

RG1100 personal dosimeter, also be called personal radiation dose alarm. It is a small and high sensitive personal radiation dose alarm. The instrument uses G-M tube as a detector, fast reaction speed; and adopts more powerful microcontroller technology, with strong anti-interference ability. The excellent performance gains good feedback from customers.
Main Features
-Real-time measurement of dose rate, and simultaneously records the cumulative dose.
-The dose rate alarm threshold and the dose alarm thresholds can be set freely.
-Any combination of sound, flash and vibration these three types of alarm modes to meet various alarm needs.
-A dual alarm function of the dose rate and dose.
-Built-in memory, to prevent the value of the cumulative dose, the dose rate alarm threshold and the dose alarm thresholds data lost due to power-down.
-Continuous monitoring of battery power, and with a low battery state prompt.
-Chinese and English menu to switch freely.
SPECIFICATIONS:
Weight: 100g
Temperature: Minus 10 ℃ to plus 50 ℃,less than or equal to 10 %
Product name: Personal x-ray dosimeter
Power supply: 2x AAA batteries
Power consumption: More than 24mW
Origin: Mainland China
Model Number: RG 1100
Energy response: 48keV to 3.0MeV
Dimensions: 95*70*40(mm)
Certificate: Calibration Report
