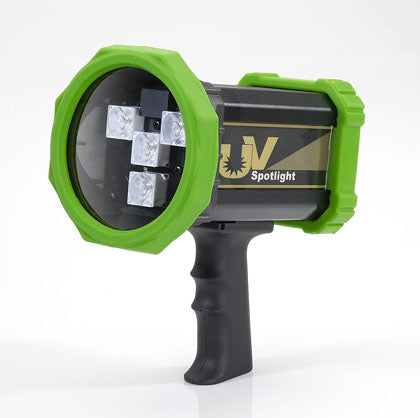

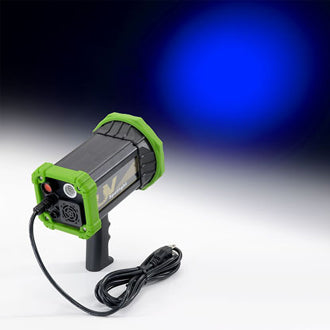

SN4A LED UV LAMP

SN4A LED UV LAMP - HIGH INTENSITY UV LED UV LAMP

4x SPOT 365 nm UV LED WITH REFLECTION MIRROW

UNIVERSAL MODULE DESIGN FOR AC AND DC OPERATION

SIMPLE OPERATION AND EASY ASSEMBLE

FEATURES:

NICHIA True 365 nm wavelength UV light

Less 2 ft Candles of white Light

Instant On/Off, no warm up or cooling down time

No filter or bulbs to replace

Mercury free

Splash proof

Quartz glass protect UV LED

SPECIFICATIONS:

UV Intensity: 9000 uW/cm² at distance 15” from LED light

Fan cooled: 100% duty cycle

Light Weight – 1.1Kg for AC, 850g for DC power Supply

4 x LED UV with lens, average LED life is 30,000 hours

Universal Voltage: 110/220 VAC, 50/60 Hz

Dimension –     AC LED UV Lamp 200 X 120 X 120 mm ( LxWxH )

Working area: 7” diameter at distance 15 inches

Max Working intensity of 1000uW/cm²?60 inches

AC Power Code: 3 m length

STANDARD PACKAGE:

• SN4A AC LED UV LED with 3 m AC power code in case
• Maker inspection certificate

OPTIONAL ACCESSORIES:

• 12 V DC Power supply module with connection cable and belt


Comparison Chart can be found here: DOWNLOAD
