Ultrasonic Flaw Detector - UEE981 Smart/Optimum/Expert

  • Sale
  • $4,750.00
  • Regular price $5,500.00
Shipping calculated at checkout.

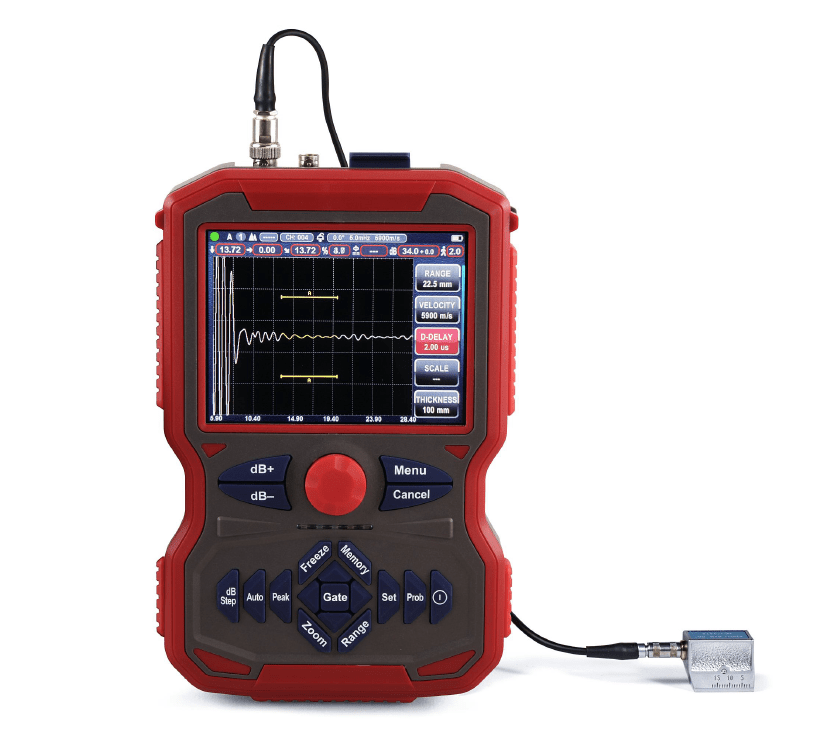

Ultrasonic Flaw Detector UEE981 Smart Model

Functions & Features

● IP65, with portable and ultra-thin design

● Meet the standard requirements of EN12668-1

● Square wave pulser, PRF up to 3 kHz for fast scanning

● High-speed sampling for clear & stable echo diagram with all details

● High numbers of digital filters, suitable for nearly any application

● Anti-noise design, high signal-to-noise ratio, perfect for tough working conditions

● With standard DAC/ DGS / AVG function

● Reports can be automatically formed and viewed on the equipment

● PC connection for data management and reports printing on-site

● Storage: 1000 groups of data (expandable); External USB for directly storage (unlimited memory)

● Battery life ≥ 10 hours, with fast independent charging control

● Language: English ( expandable: German / Turkish / Korean / Spanish and etc)


Technical Parameters

Model Uee981 Smart
Scan Range(mm) 0~10000mm
Velocity Range(m/s) 1000~15000
Gain Range(dB) 110dB
Operating Frequency 0.2~20MHz
Pulse Repetition Frequency 10~1500Hz
Vertical linearity error ≤2.5%
Horizontal linearity error ≤0.2%
Sampling Frequency 150Mhz
Transducer Frequency Max. 15MHz
Dynamic Range ≥38dB
Resolution ≥40dB
Testing sensitivity ≥65dB
Pulse amplitude 100V~500V
Pulse Width 0.03~0.51µs
Transducer Damping 50Ω~400Ω

Interface for Probe cable

BNC (Optional LEMO)

Working mode

7 modes: Straight / Angle / Dual crystal probe, Penetrating, etc.

Power Supply

100-240V 50-60Hz; DC 9V Rechargeable battery,10+ hours life

Dimension & Weight

Dimension 240×153×38mm; Net weight 0.98kg

Environment

Temperature -10~50℃, Humidity 20~ 95%RH

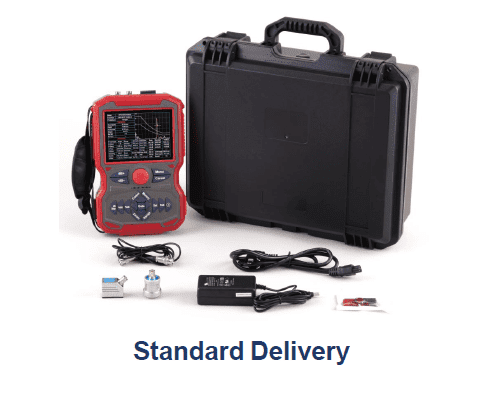

Standard Delivery:

* Main unit
* Probe and Cable  x2
* Power Adapter & Battery
* PC software
* Carry Strap
* Manual
* Certificate & Documents
* ABS Instrument Box

Mobile app with Optimum & Expert model

V2 Calibration block with Expert model

This item is by order only.

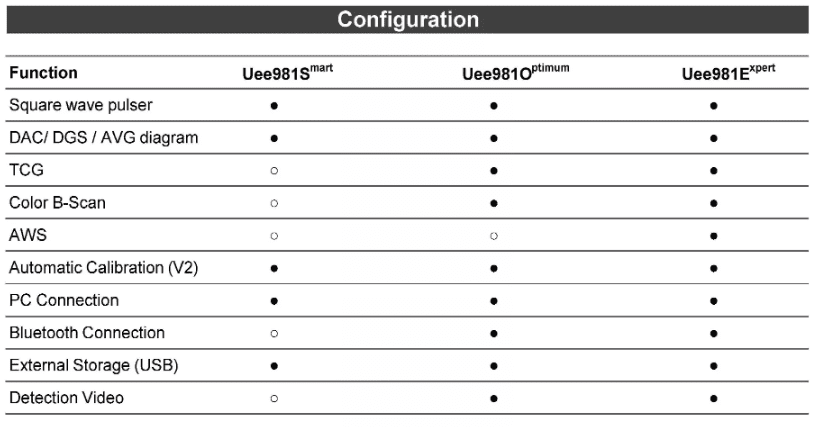

Configuration Comparison for Uee981 Series:


Download Brochure
