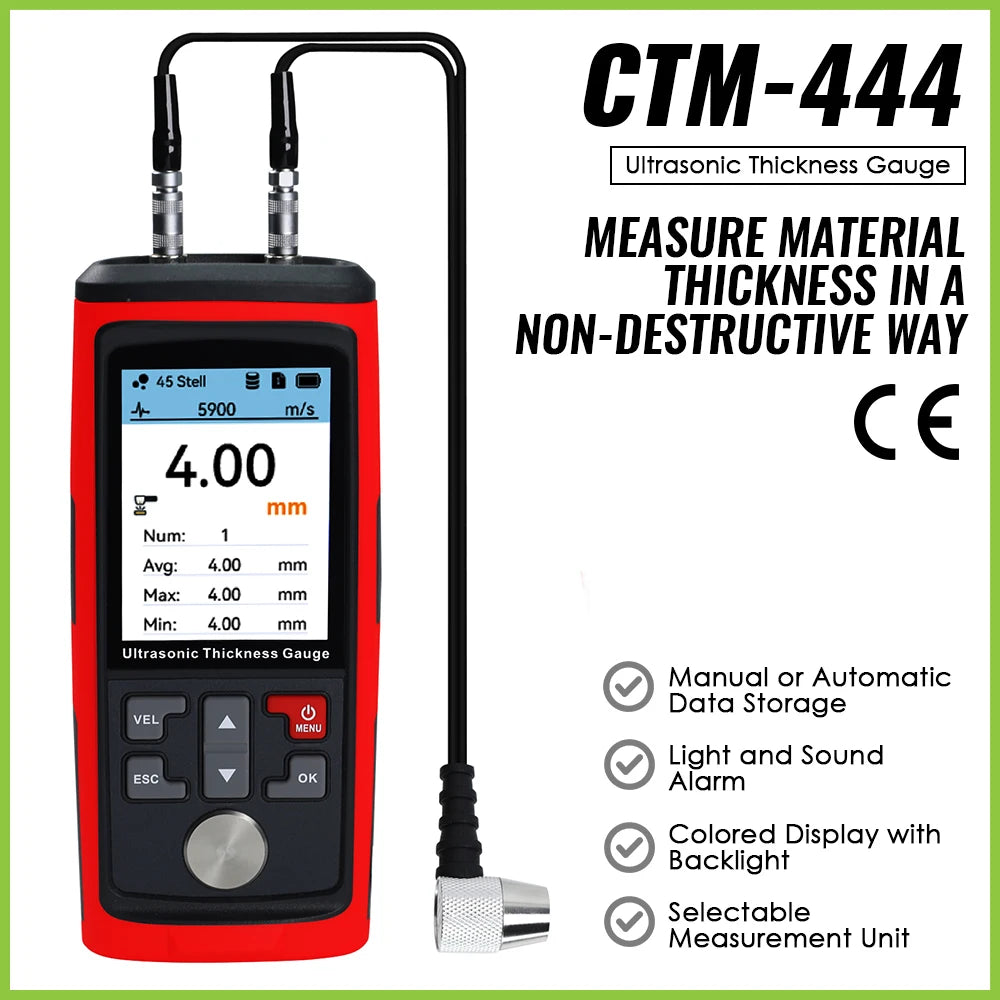

Ultrasonic Thickness Gauge - CTM-444 with Colour screen & Data-logger

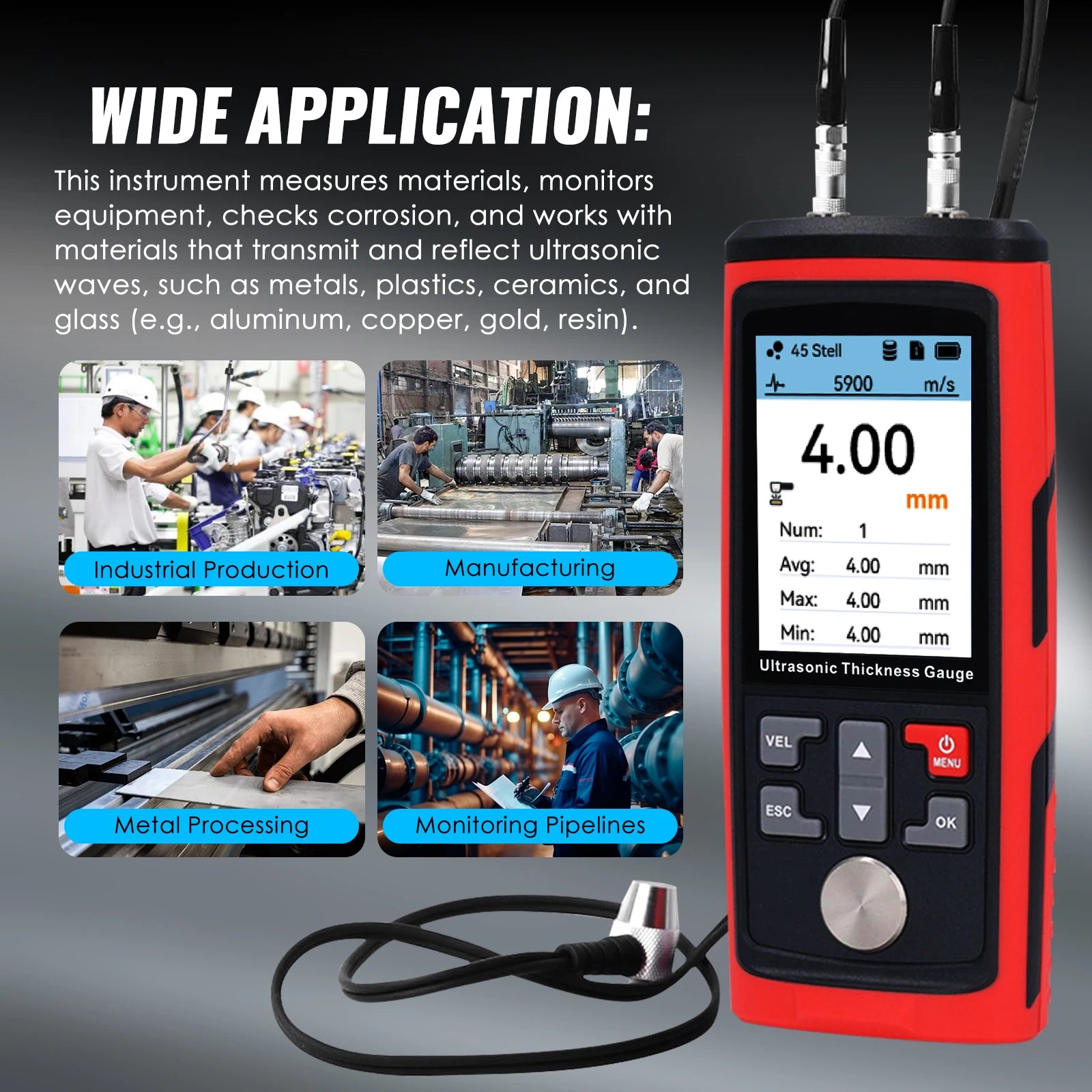

This ultrasonic thickness gauge offers quick, non-destructive thickness measurement from one side of solid materials that conduct ultrasound waves well, such as steel, other metals, glass, plastics, and ceramics.

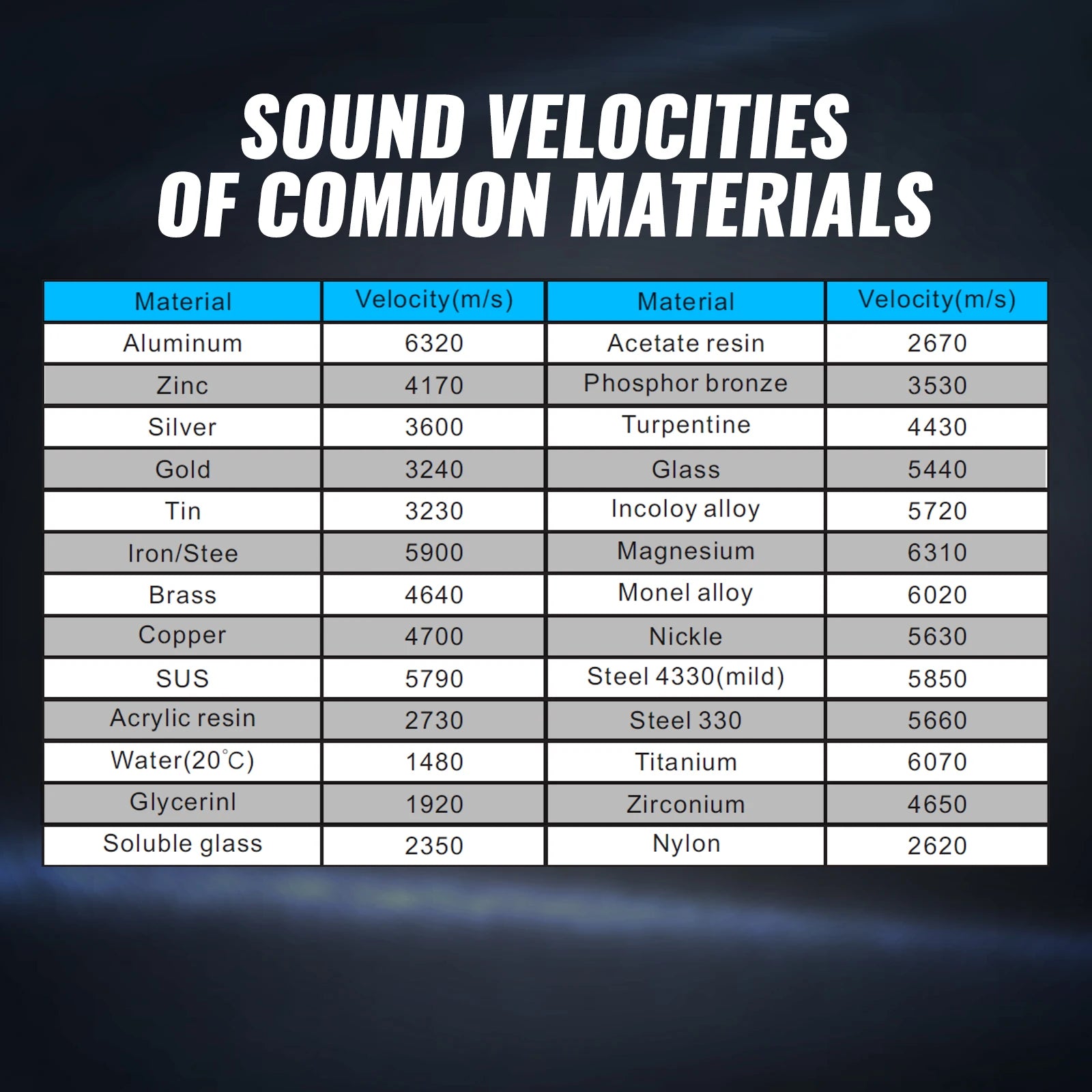

Measurement ranges may vary depending on the sound velocity and density of the material.

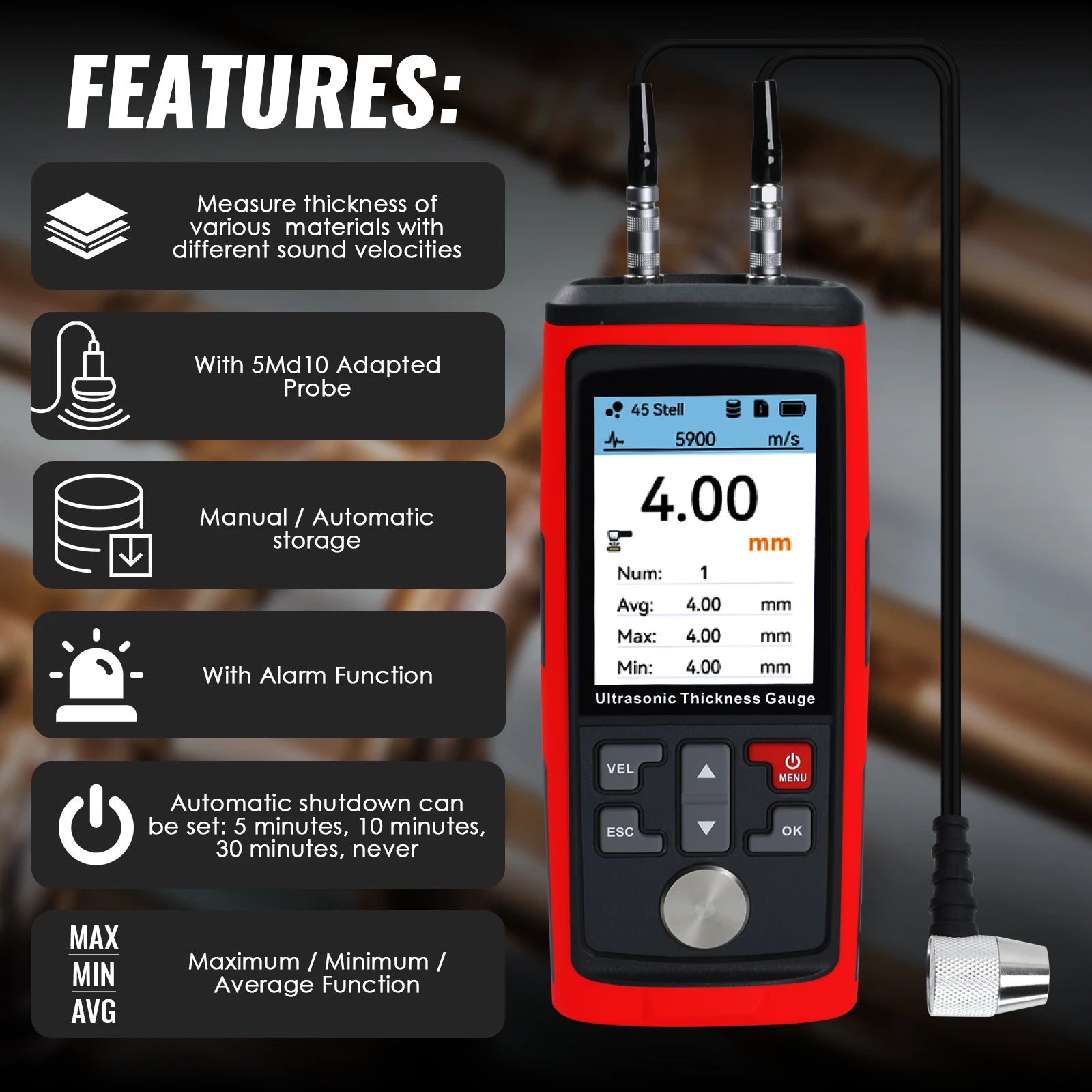

Features

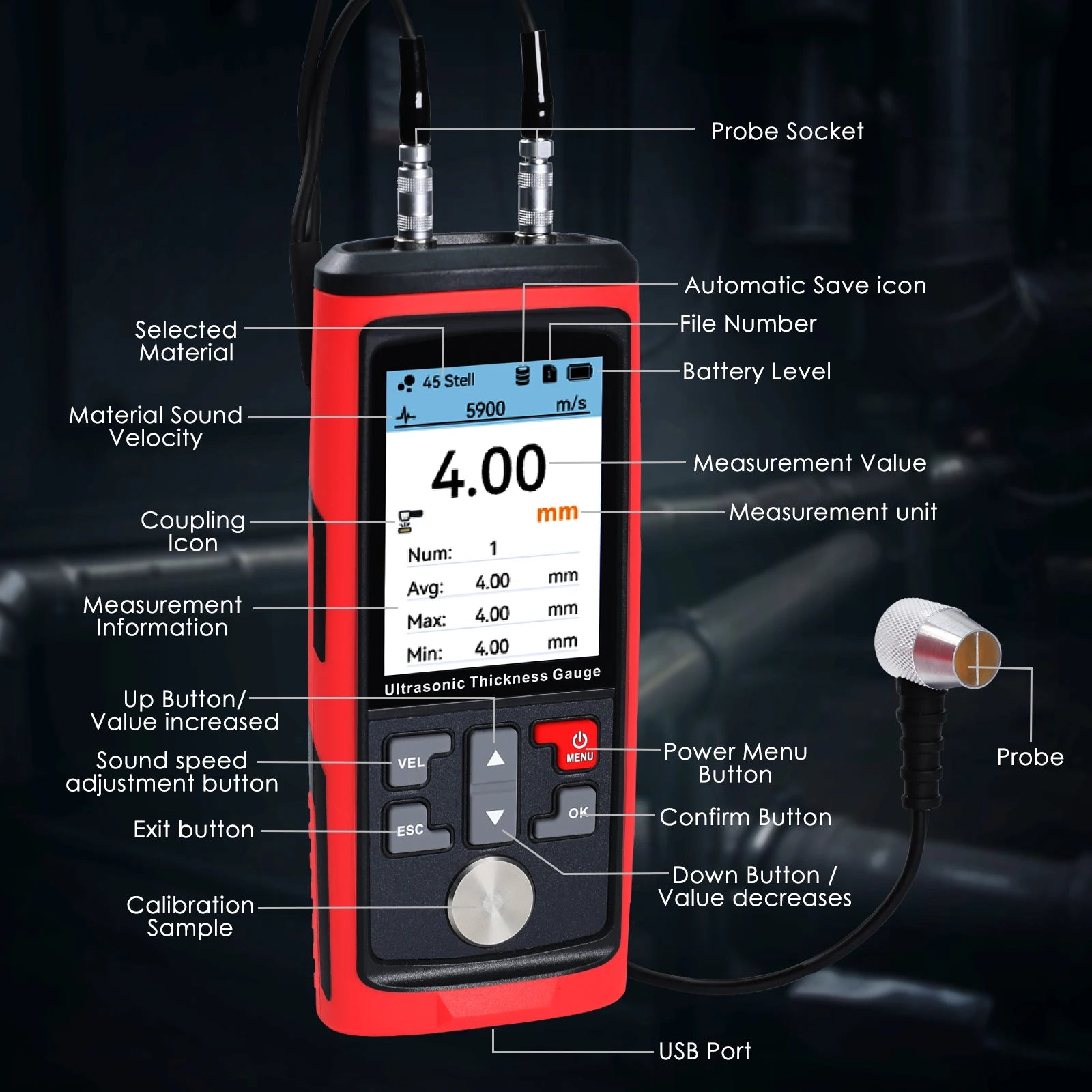

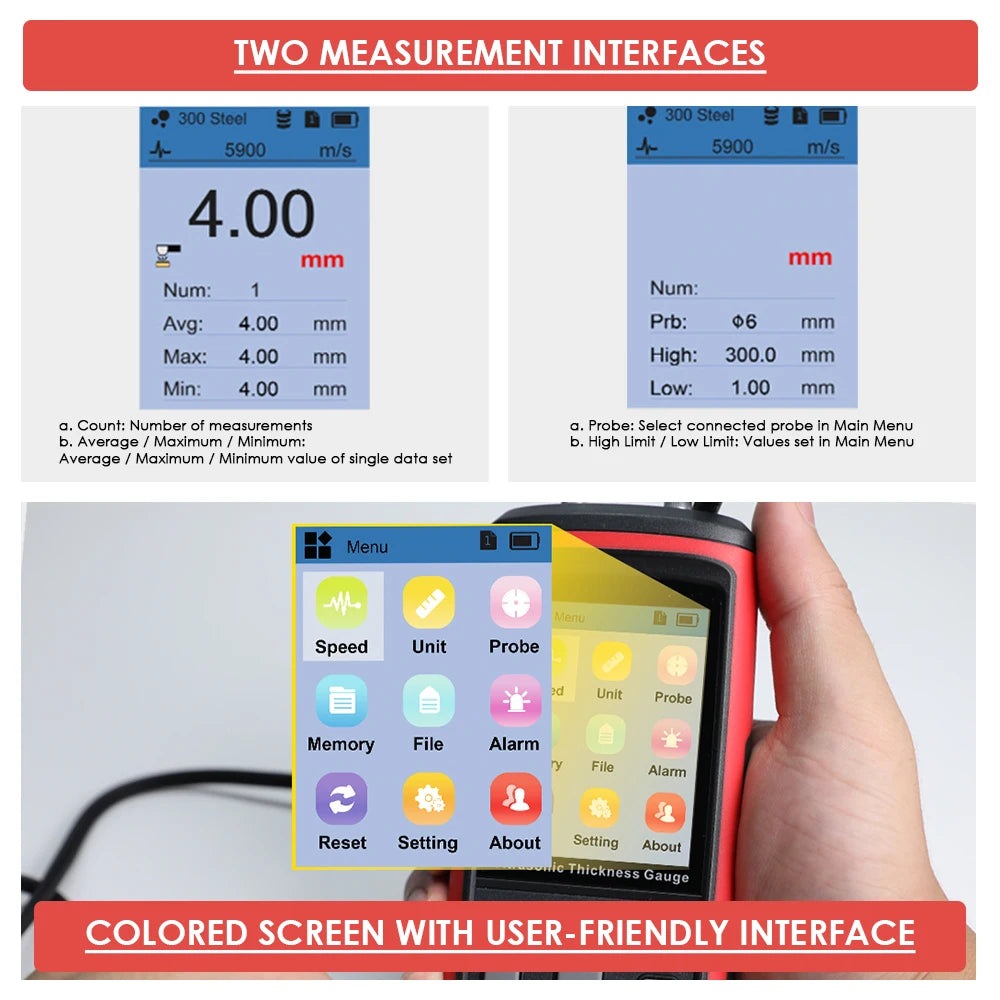

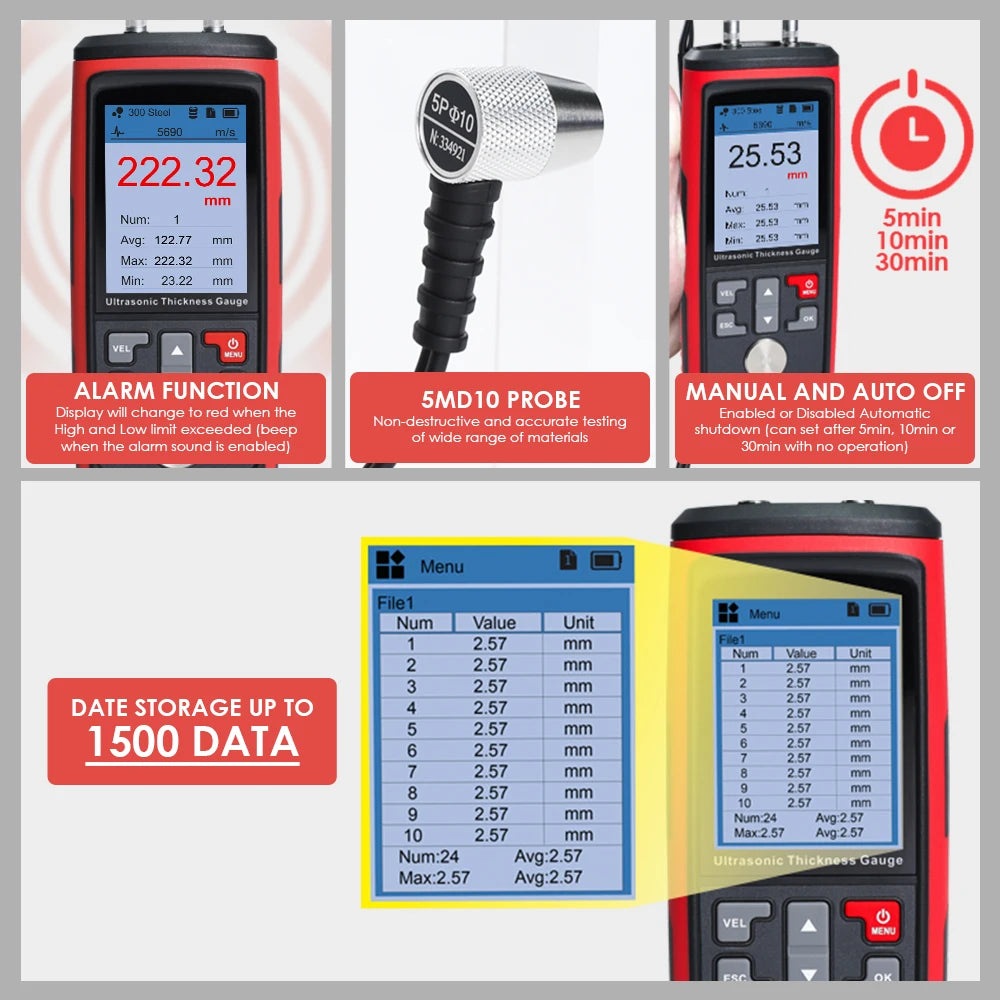

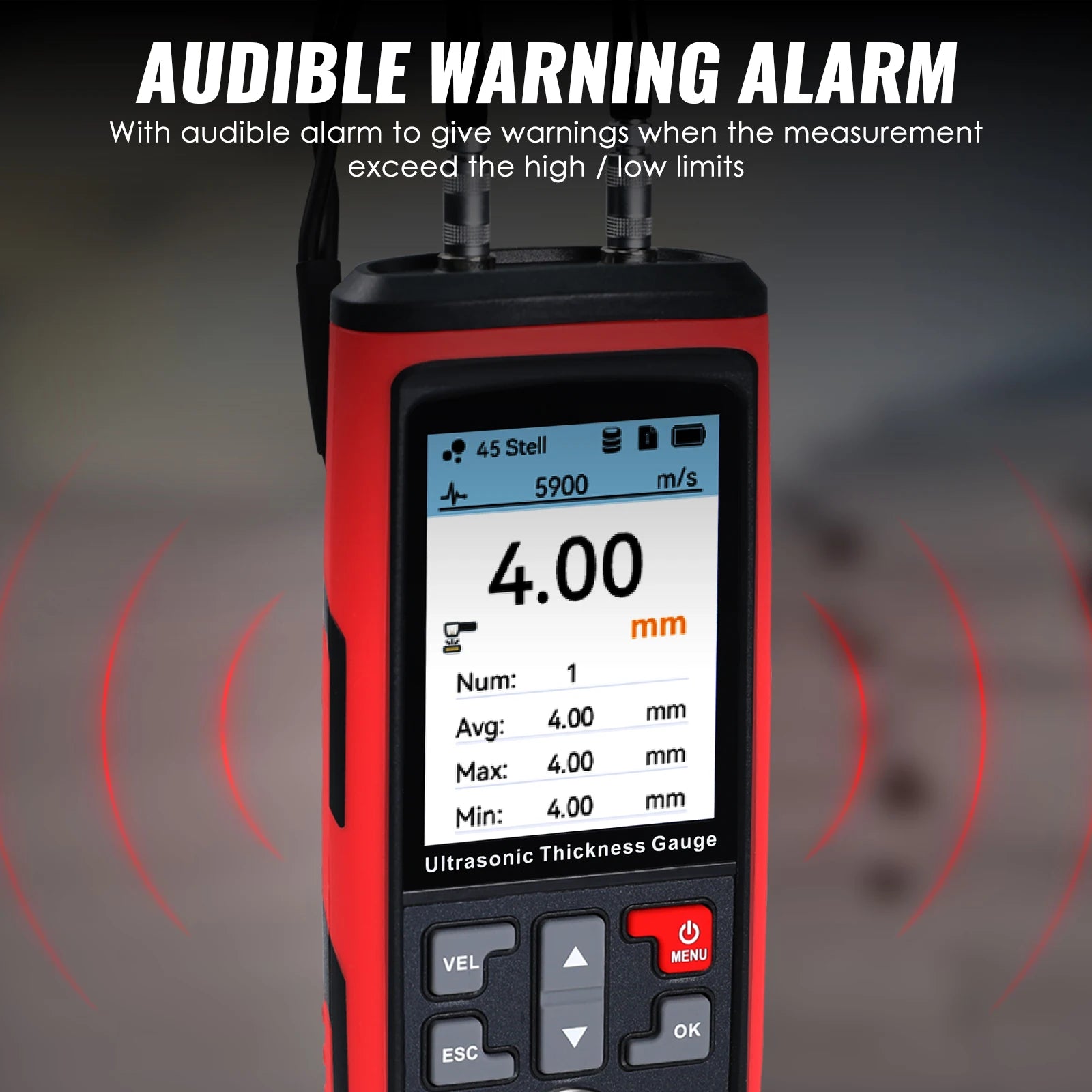

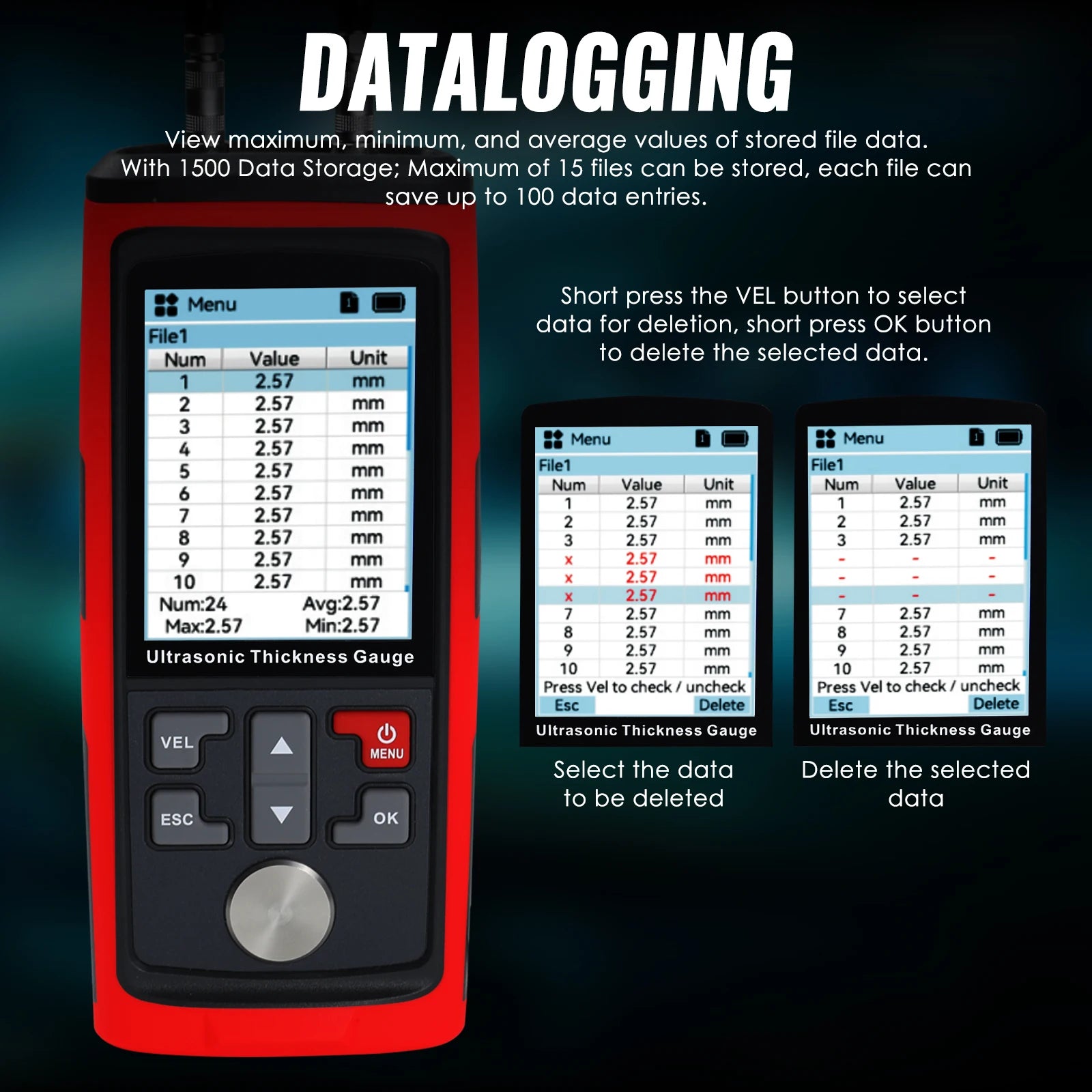

Measure the thickness of materials with different sound velocities Probe: 5Mhz Dia 10mm Manual or automatic data storage Display will change to red when the High and Low limits are exceeded (beep when the alarm sound is enabled) Backlight selection (constant or high brightness) MAX/MIN/AVE reading display Battery strength indicator Data storage indicator Two measurement interface view Colored screen display with user friendly interface Selectable measurement unit (mm/inches) Easy calibration with built-in 4mm block & coupling agent
Specifications

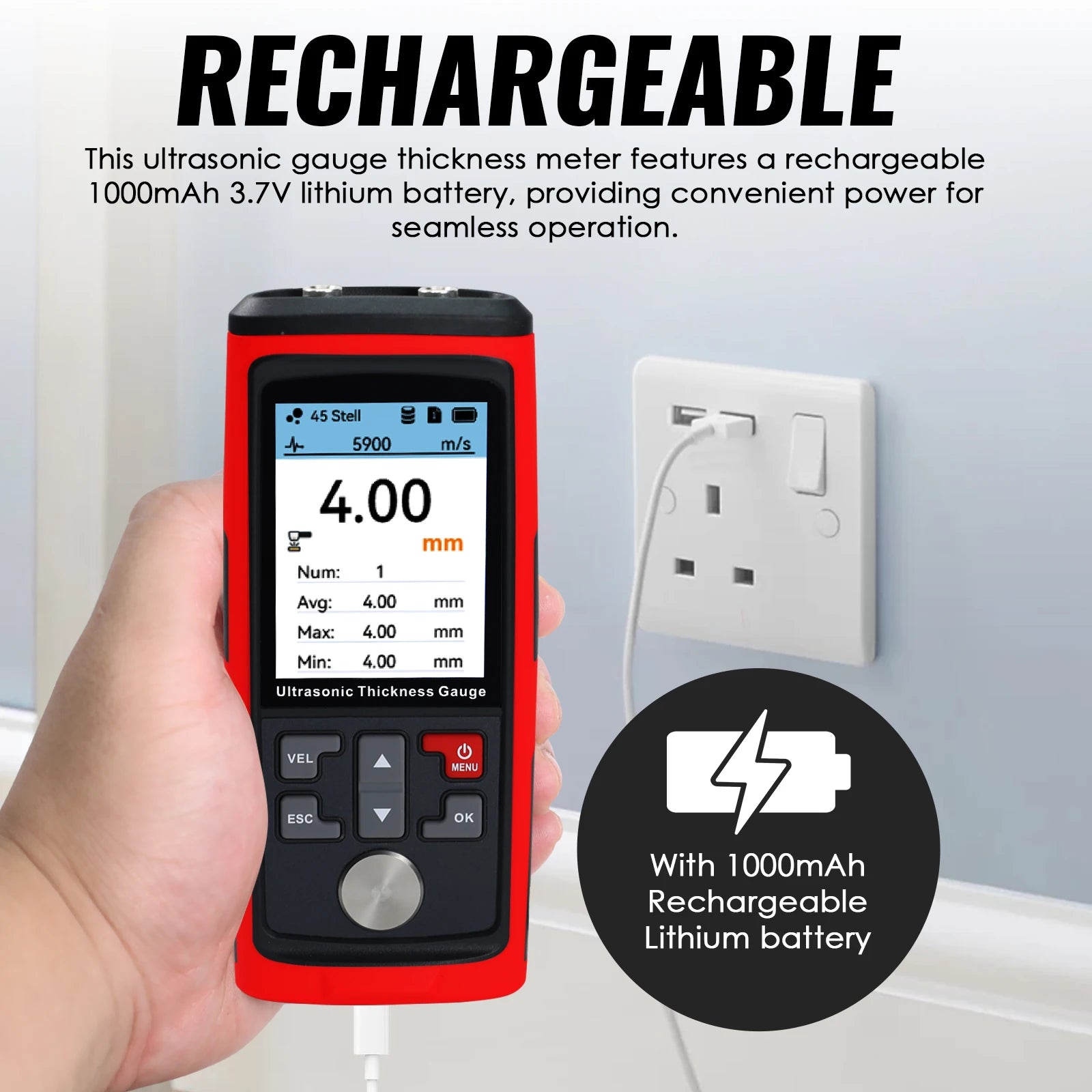

Measurement range: 1.0~300.0mm (steel) Data Storage: 1500 data sets Operation Frequency: 5MHz/2.5MHz Accuracy: ±(0.5%H+0.05)mm Resolution: 0.01mm(1.00~99.99mm)/0.1mm(100~300mm) Pipe Lower Limit: ⌀20x3mm(steel) Sound Speed Measurement: 1000~9999m/s Operating Temperature: 0~40°C (32~104°F) Power Supply: 1000mAh 3.7V LI Battery USB Charging: 5V 1A

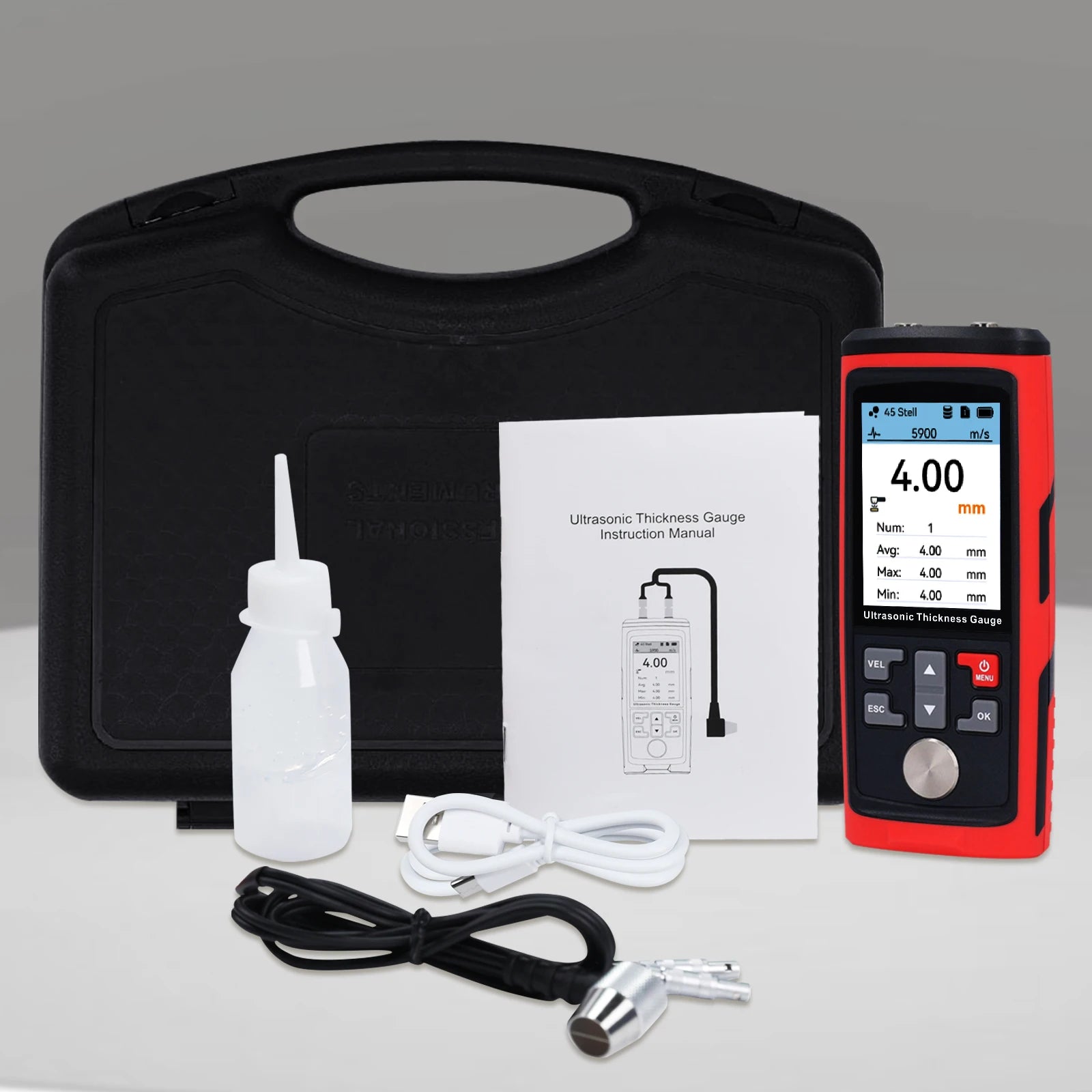

Kit Includes:
1 x Ultrasonic Thickness Meter 1 x Sensor Probe 1 x Bottle of Coupling Agent 1 x USB Cable Carrying Case English Instruction Manual
