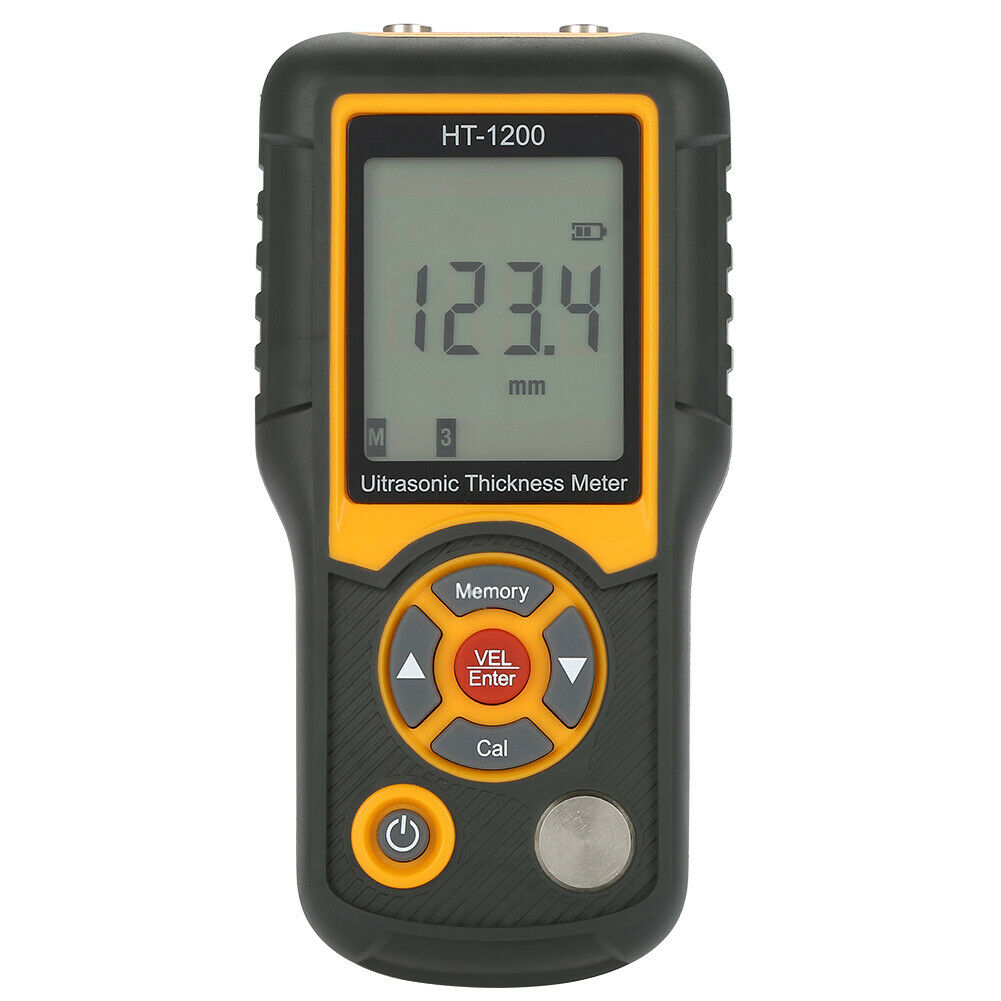

Ultrasonic Thickness Gauge - HT-1200

Ultrasonic Thickness Gauge - HT-1200

Regular price $245.00
Regular price $0.00 Sale price $245.00
Sale Sold out
Shipping calculated at checkout.

A Basic Ultrasonic Thickness Gauge


  • 100% brand new and high quality
  • This is a type of smart ultrasonic thickness meter and can measure thickness
  • It can measure sound speed of many type of materials, such as metal,plastic,ceramic,glass and other good conductors of ultrasonic wave.
  • This ultrasonic thickness meter features high accuracy and high stability
  • The measuring range is  1.2~225mm, and sample to operate


Probe operating frequency: 5MHz
Range: 1.2 ~ 225mm (steel)
Resolution: 0.1mm
Measurement accuracy: ± (l% H + 0.1) mm, H is the thickness of the object
Pipe measurement lower limit: Dia. 20x3mm
Sound speed adjustment range: 1000 ~ 9999m/s
Known thickness of the measured speed of sound: measuring range of 1000 ~ 9999m/s

The measured thickness <20mm, the speed of sound measurement accuracy of ± 1mm / H * 100%

The measured object thickness> 20mm, the speed of sound measurement accuracy of ± 5%
Power: 3 * 1.5V, AA alkaline batteries (not included)
Relative humidity: <90% RH

Storage temperature: - 10 ~ 50 ℃

Workpiece temperature: <60℃
Operating current: <100mA

Weight: 784g

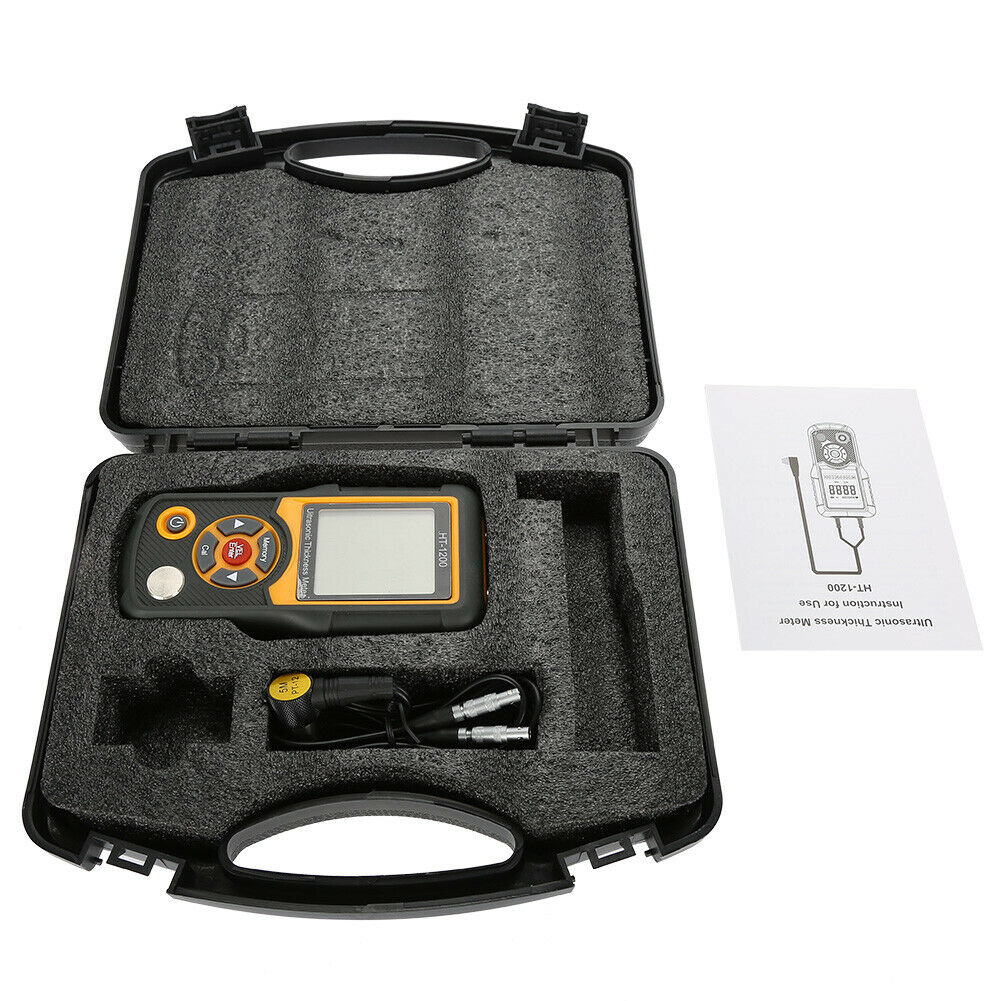

Package included:

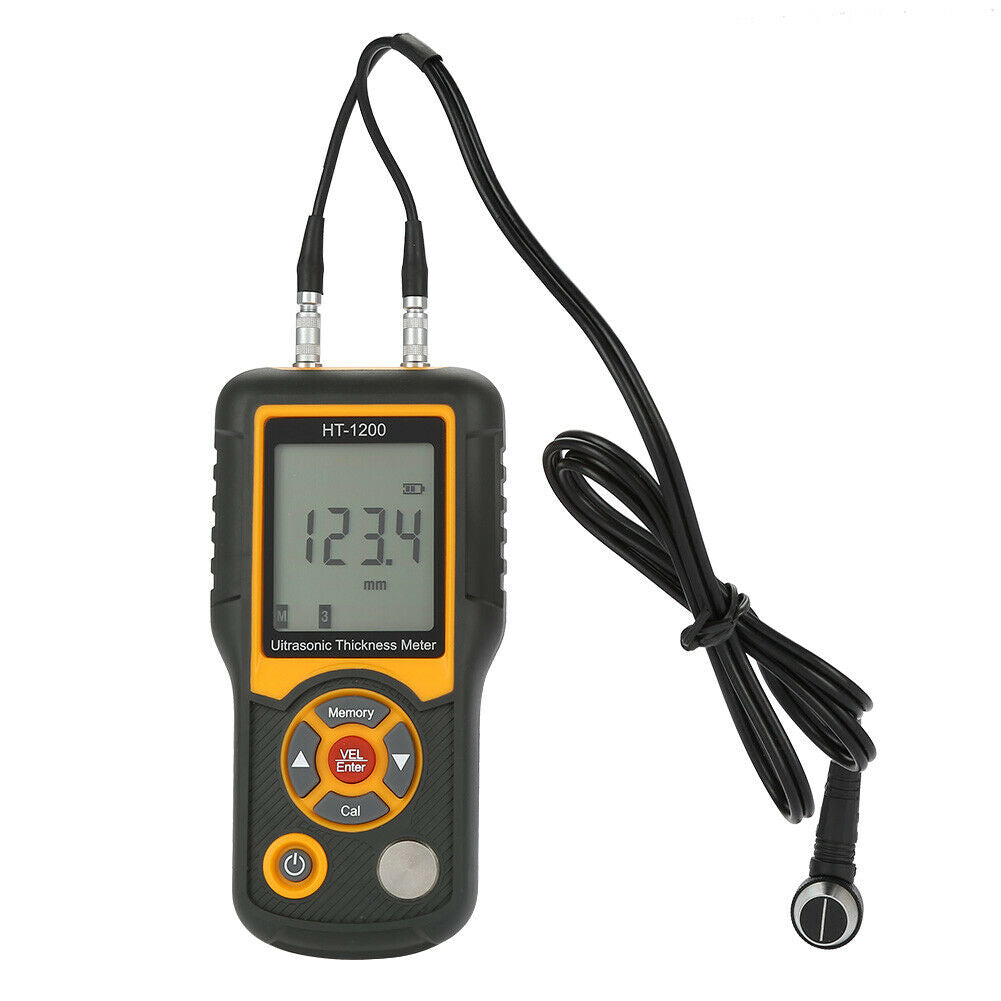

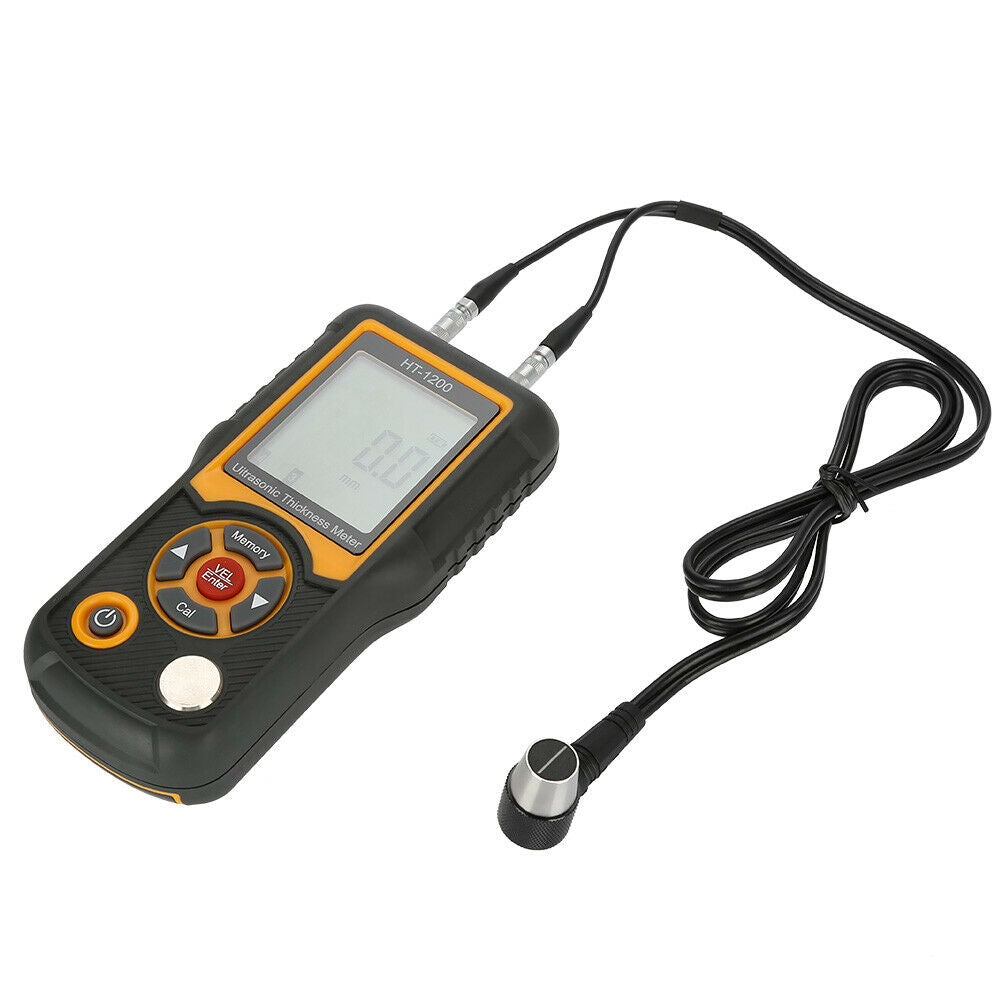

1 x Ultrasonic Thickness Meter (batteries not included)

1 x Probe

1 x User Manual
