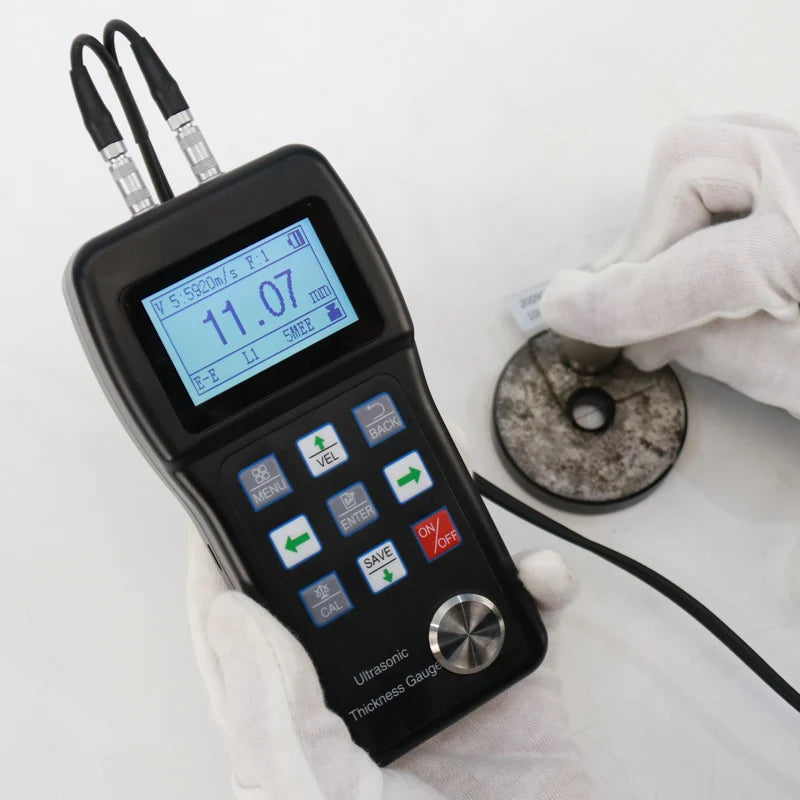

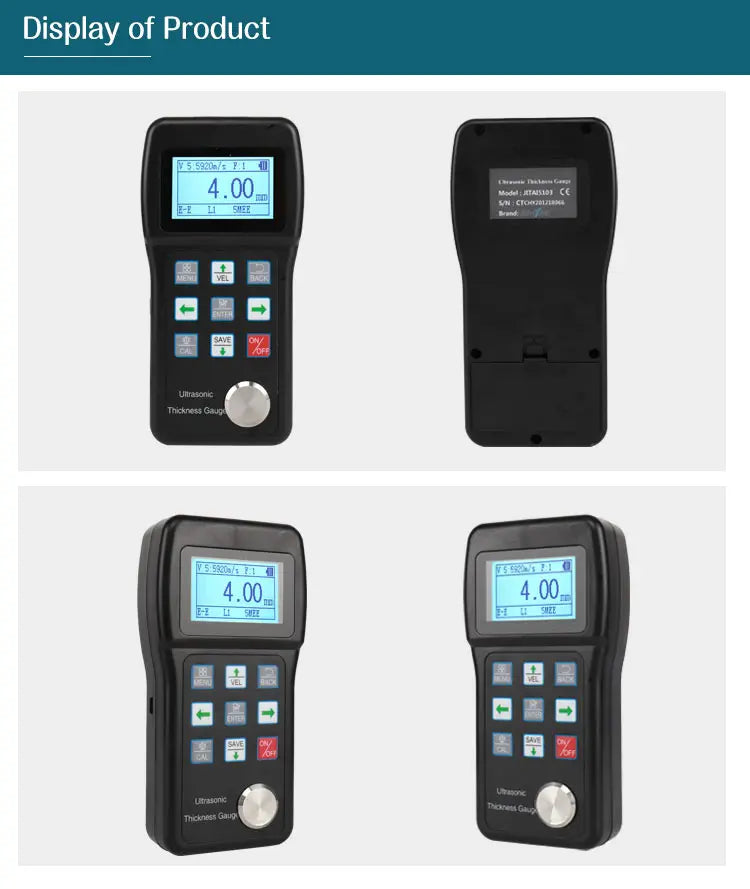

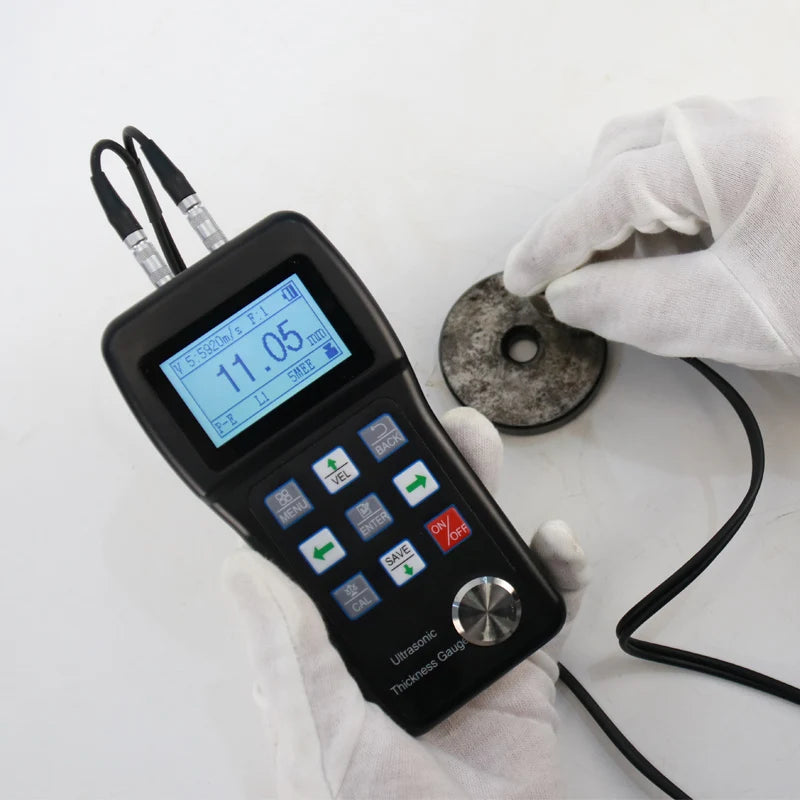

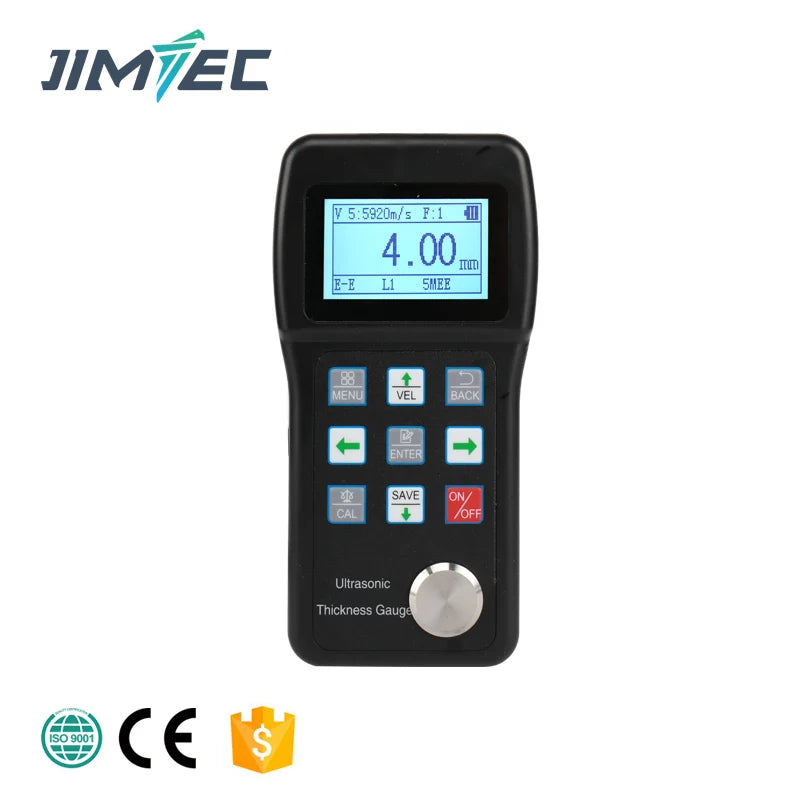

Ultrasonic Thickness Gauge - JIMTEC 5103 Through Coating Digital Thickness Meter
Introduction:
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields
Technical Specification:

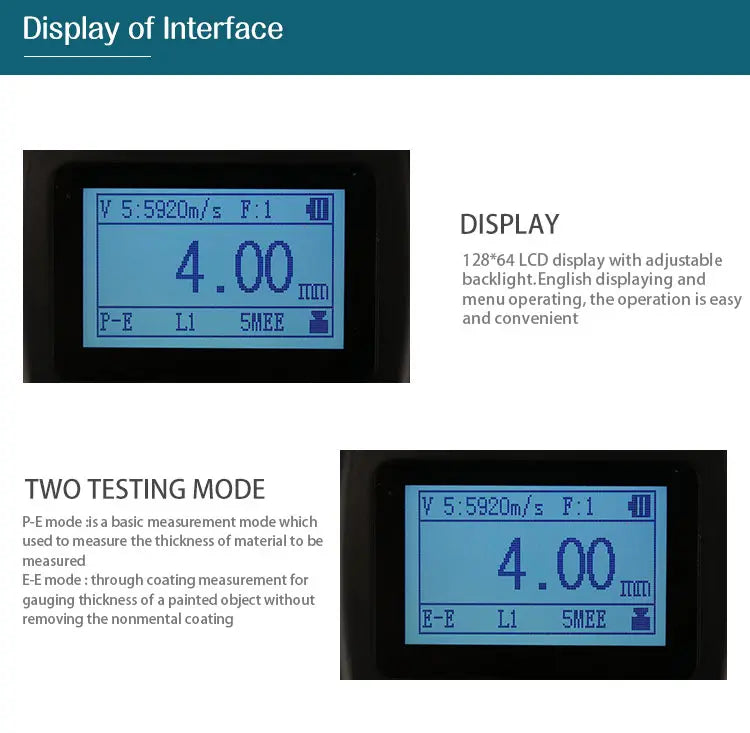

Display：128*64 LCD with LED backlight, Color display:
Through coating measurement for gauging thickness of a painted object without removing the non-metal coating
Measuring Range：(0.75~600)mm（Steel)
Measuring Range(Through Coating):3-40mm

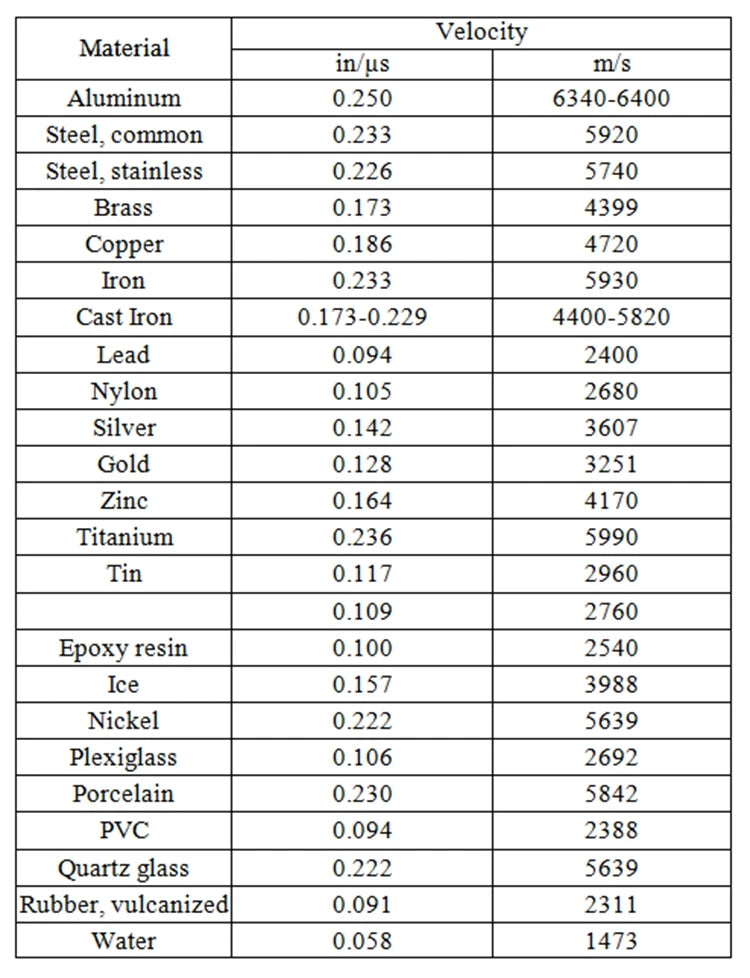

Velocity Range：(1000~9999) m/s;
Resolution：0.01mm
Measuring accuracy：±（0.5%H+0.04mm);H is thickness value;
Measurement cycle：Single point measurement 6 times/per；
Storage：40 values of saved data
Power Source:2pcs 1.5V AA size

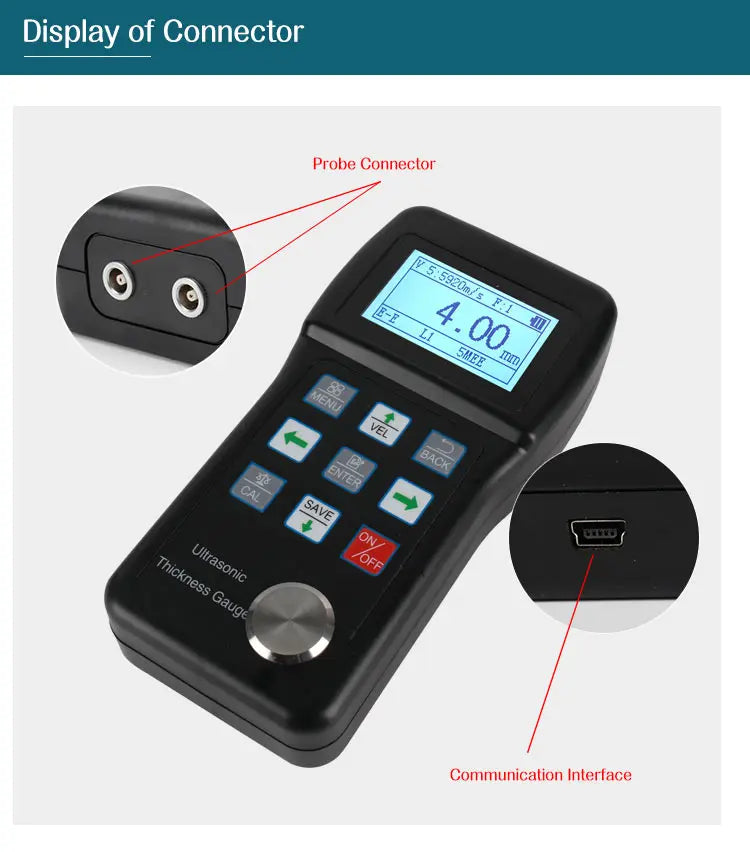

USB Port
Working Time:more than 50 hours (LED backlight off).

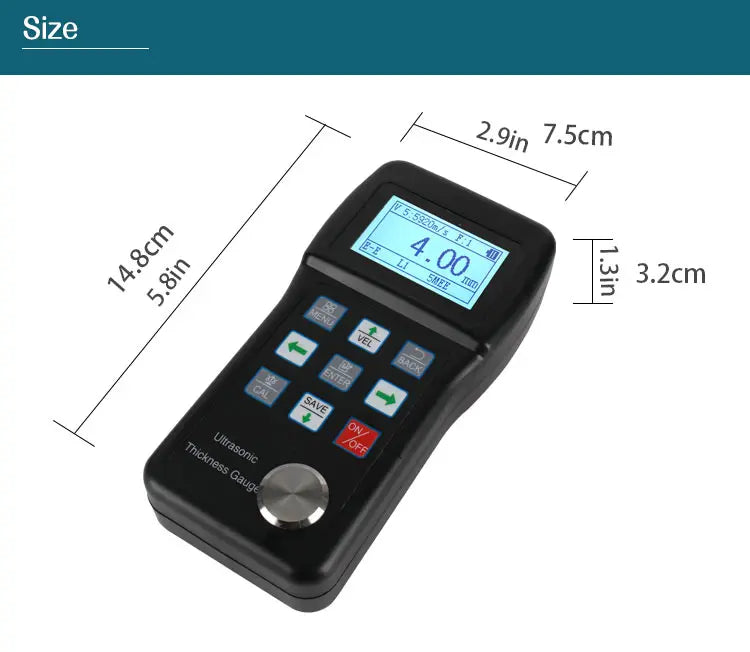

Outline Dimensions:145mm*74mm*32 mm
Weight：245g
Main Functions:
1. Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
2. Can collocate variety different frequencies,wafer sizes of probes；
3. Sound Velocity Calibration function as a known thickness;
4. Coupling status indicator showing the coupling status;
5. EL backlight, and convenience to use under dark environment；
6. Have the battery indicator function, can real-time display the remaining power
7. Auto sleep and auto power off function to conserve battery life；
8. Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

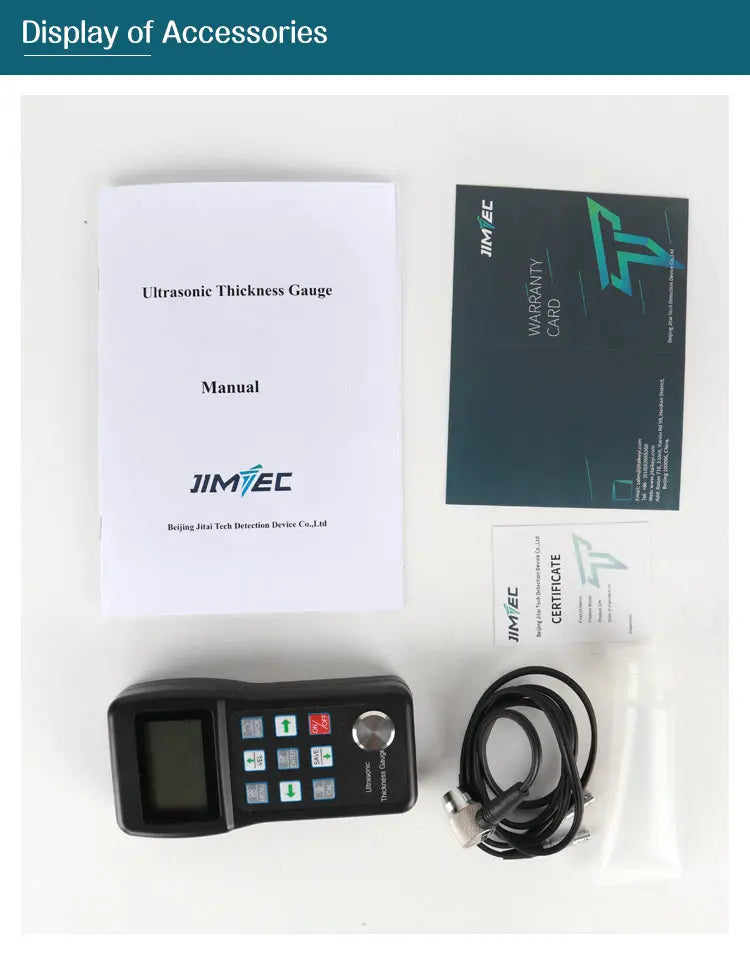

Package List:
1x Main Body
1x Standard Probe（5MHz,D10mm）
1x Bottle

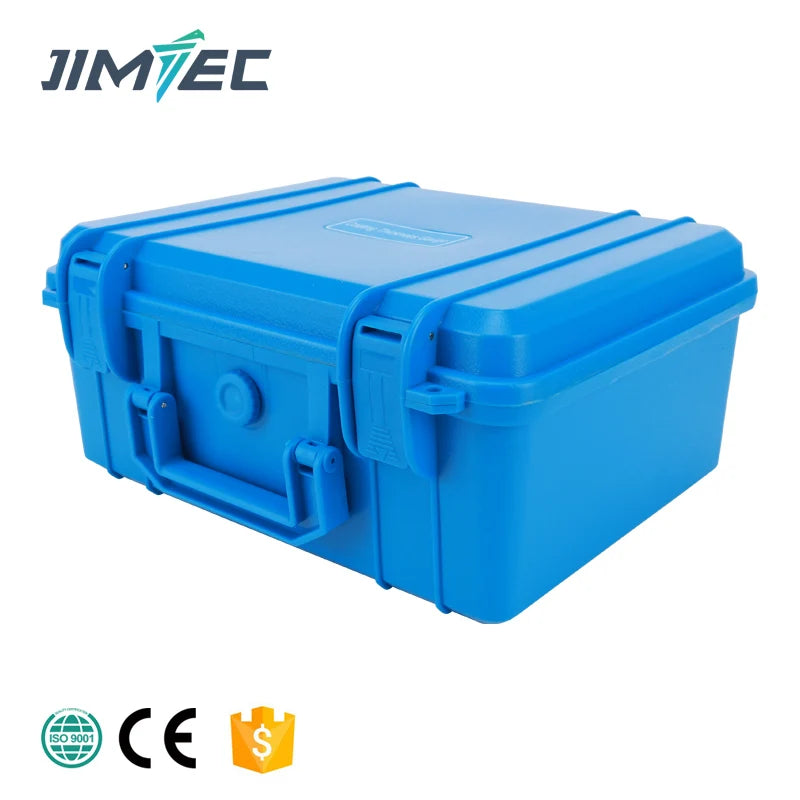

1x ABS Case
1x Manual
