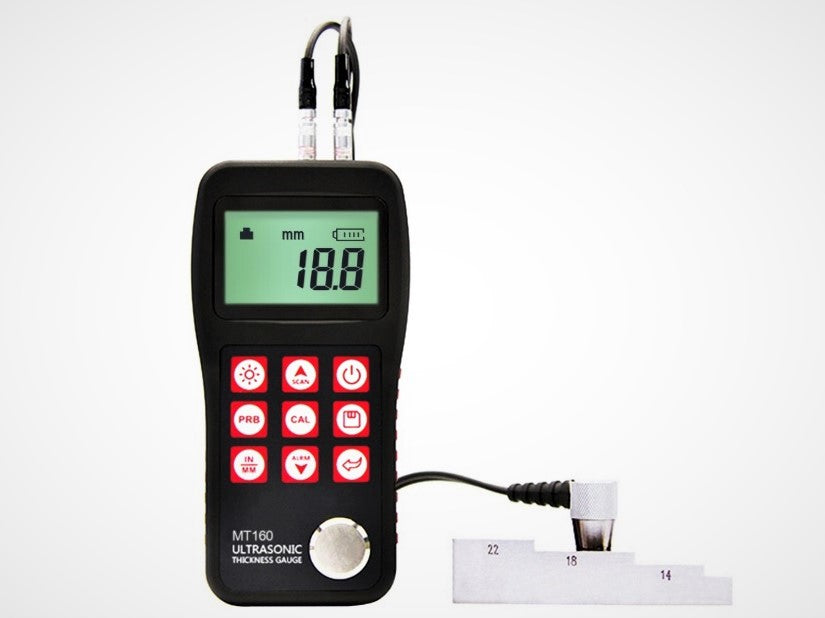

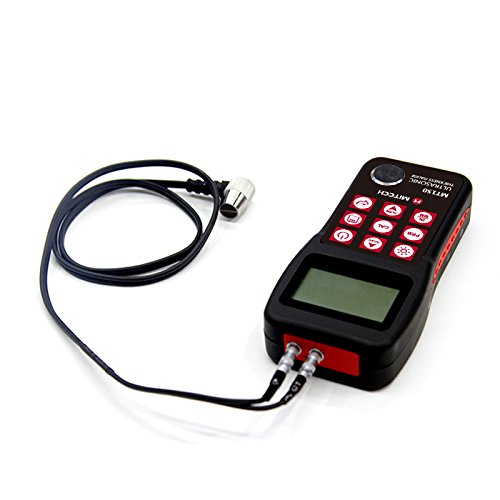

Mitech Ultrasonic Thickness Gauge - MT160
Mitech Ultrasonic Thickness Gauge - MT160
Mitech Ultrasonic Thickness Gauge - MT160

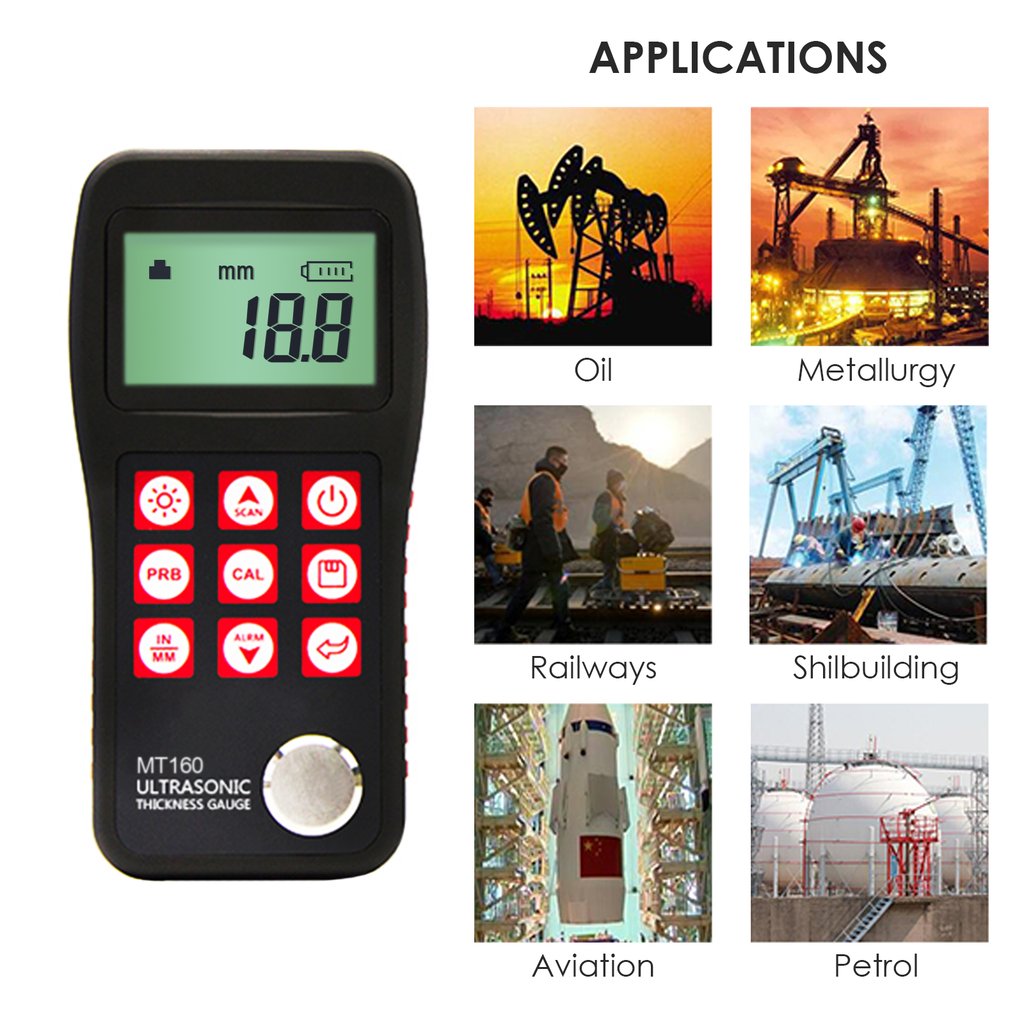

The MT-160 is capable of performing UT (ultrasonic thickness) measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other materials that are good conductors of ultrasound.
Features:
- The MT-160 is capable of performing thickness measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other materials that are good conductors of ultrasound.
- A range of transducers (probes) are available for specific applications.
- One or two-point calibration option for highly accurate results.
- Thickness measurement in single point mode or scan mode.
- Coupling status indicator verifies a good connection with the work surface
- Optional download software and cable for transfer of recorded data.
- Optional thermal mini-printer for immediate print out of measurements.
Configuration:

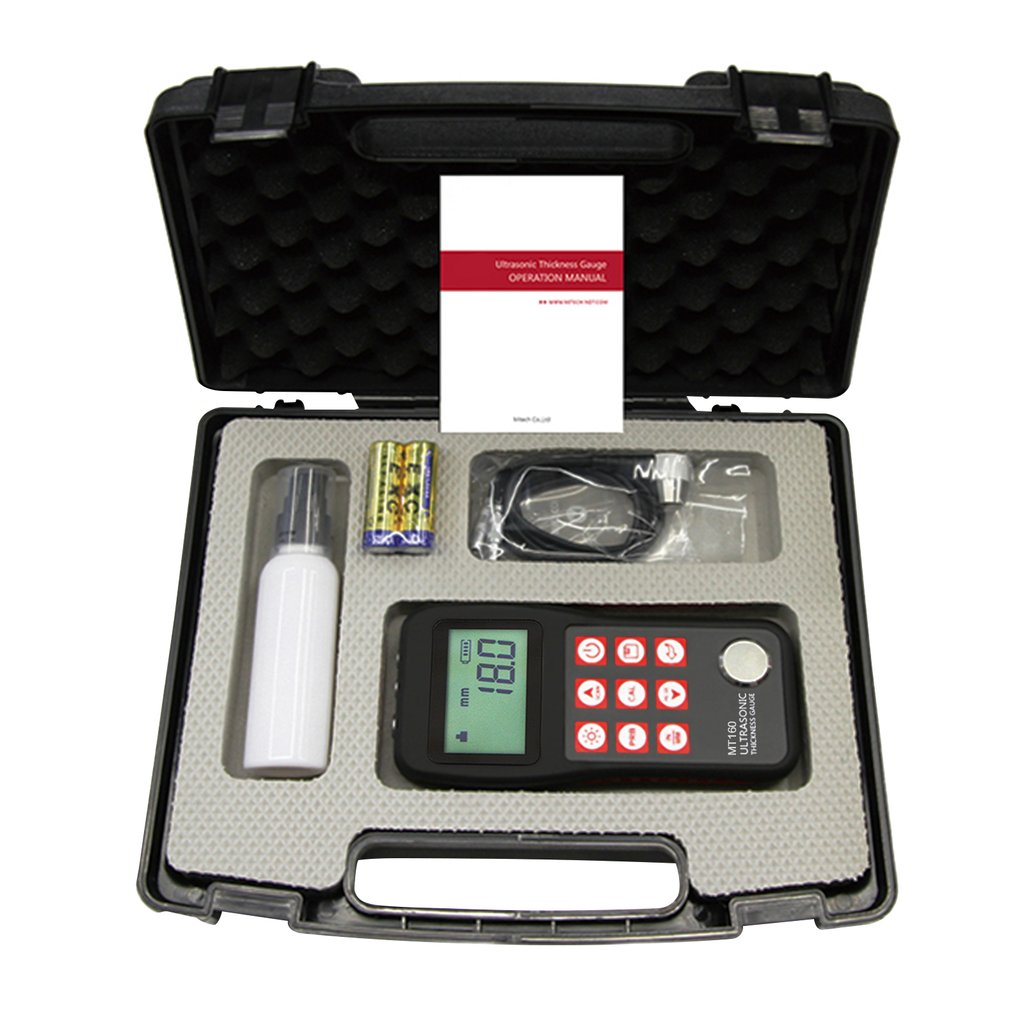

Standard configuration includes the instrument, No 5 probe (5MHz), 2 AA alkaline batteries, couplant container, operating manual and instrument case.
Options include the download software and cable, mini printer and cable, 2MHz probe, 7 MHz Probe, 5MHz high temp probe.
Specifications:
- Measuring Range:0.75 mm~300 mm (in Steel).
- Sound Velocity Range: 1000~9999 m/s.
- Readout to 2 decimal places.
- Accuracy: ± 0.5% of the thickness + 0.04 mm (depending on material and conditions).
- Units: metric or imperial (selectable).
- Four measurement readings per second for single point measurement, and ten per second for Scan Mode.
- Memory: 20 separate files, with up to 99 thickness readings per file.
- Power Source: 2 “AA” size, 1.5 V alkaline batteries, allowing approximately 100 hours of operating time
- LCD display.

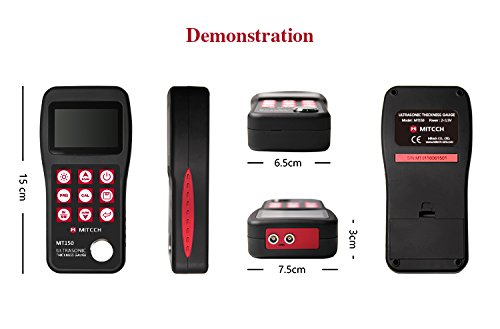

- Dimensions: 150×74×32 mm.
- Weight: 245 grams.
Download Brochure: Here

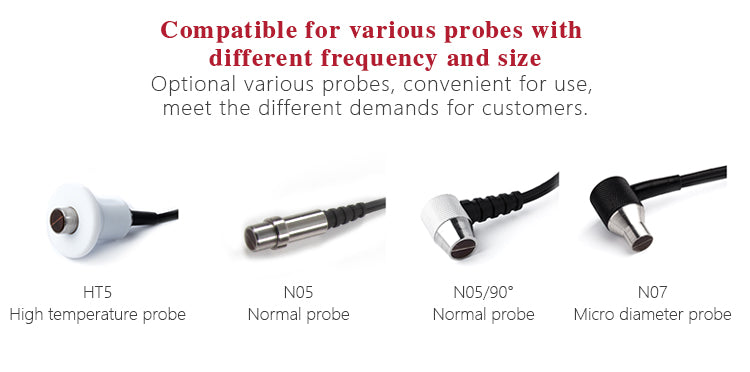

Opitional Probes Available:
Model |
PT08 |
TC510 |
PT12 |
ZT12 |
PT06 |
PT04 |
GT12 |
Type |
Standard |
Standard |
Standard |
Cast iron |
Small tube |
Fingertip |
High-Temperature |
Frequency |
5MHz |
5MHz |
5MHz |
2MHz |
7.5MHz |
10MHz |
5MHz |
Chip Diameter |
8mm |
10mm |
10mm |
12mm |
6mm |
4mm |
10mm |
Measurement Range(Steel) |
0.8 to |
1.2 to |
1.0 to 200.0mm |
4.0 to |
0.8 to |
0.75 to 12.0mm |
4.0 to |
Temperature Range |
-10 to 70 |
-10 to |
-10 to 70 |
-10 to 70 |
-10 to |
-10 to 70 |
-20 to 300 |
Features |
Normal measure |
For UM4/5 Series |
Normal measure |
For thick highly attenuating or highly scattering materials |
For thin pipe wall or small curvature pipe wall measure |
For thin pipe wall or small curvature pipe wall measure |
For high temperature (Lower then 300°C) |
