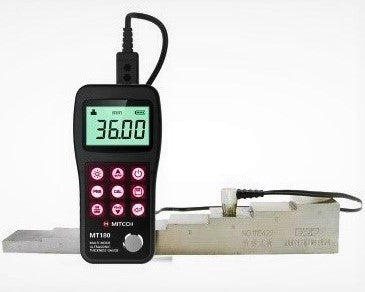

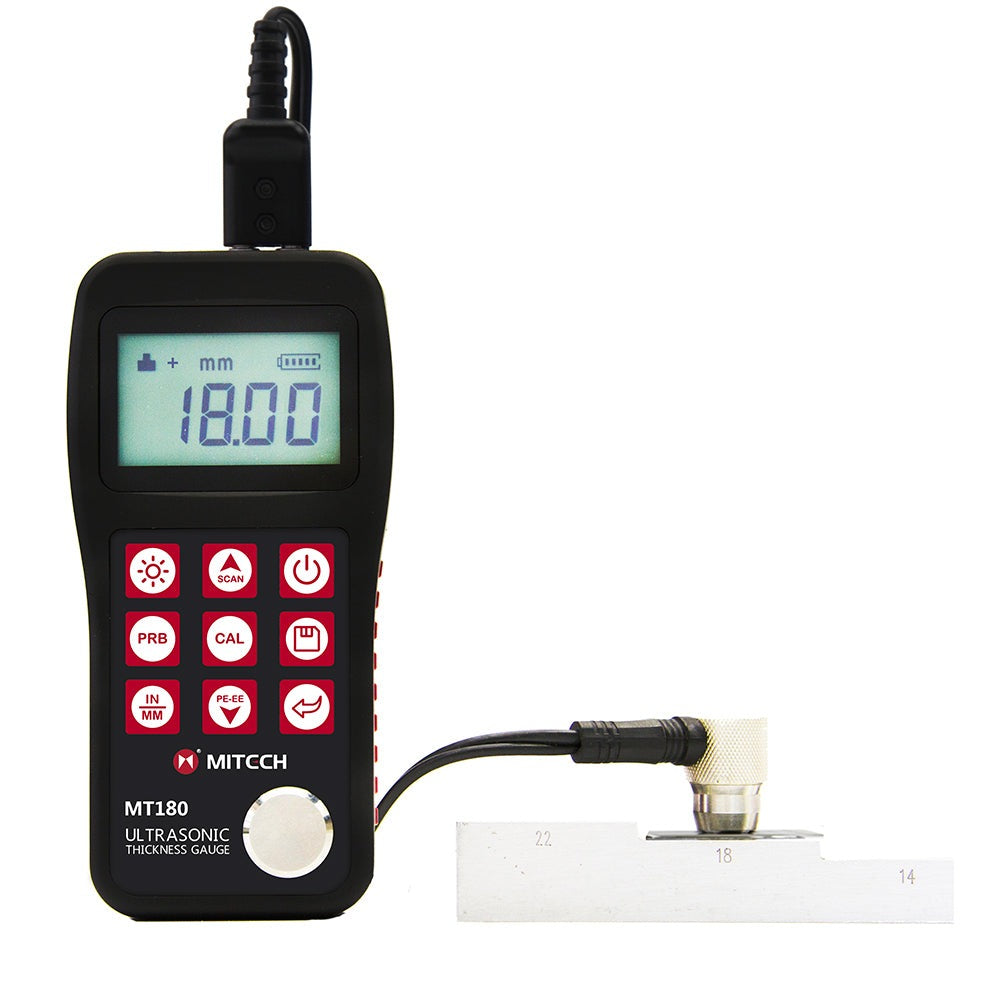

Mitech Ultrasonic Thickness Gauge - MT180 Thru Paint

Mitech Ultrasonic Thickness Gauge - MT180 Thru Paint

Regular price $745.00
Regular price $795.00 Sale price $745.00
Sale Sold out
Shipping calculated at checkout.

Mitech Ultrasonic Thickness Gauge - MT180 Thru Paint

The Mitech MT180 is a through-coating multi-mode ultrasonic thickness gauge, capable of measuring the thickness of various material types with a high degree of accuracy. The multi-mode feature of the gauge allows the user to toggle between pulse-echo mode for normal thickness measurement, and echo-echo mode which will eliminate any paint or coating thickness from the reading.

Features:

  • Multi-mode: Pulse-Echo mode and Echo-Echo mode.
  • Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass etc.
  • Various probes (transducers) are available for special application requirements.
  • One and two-point calibration function.
  • Single point mode and Scan mode. Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode.
  • Coupling status indicator showing the coupling status.
  • Units: metric or imperial readout is selectable.
  • Battery capacity indicator.
  • Auto sleep and auto power off function to conserve battery life.
  • Optional software to process the memory data on the PC.

Configuration:

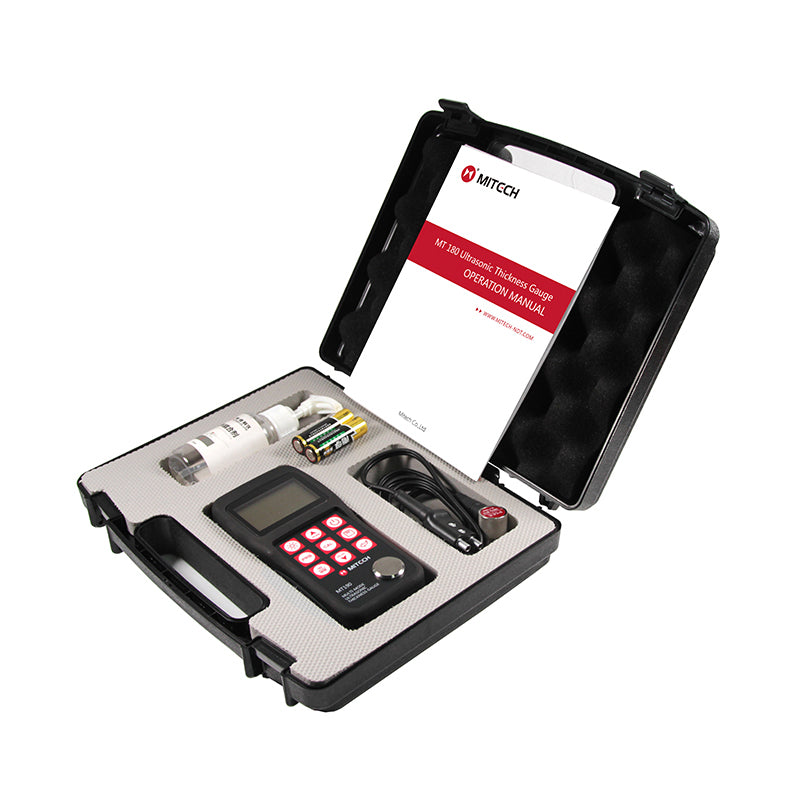

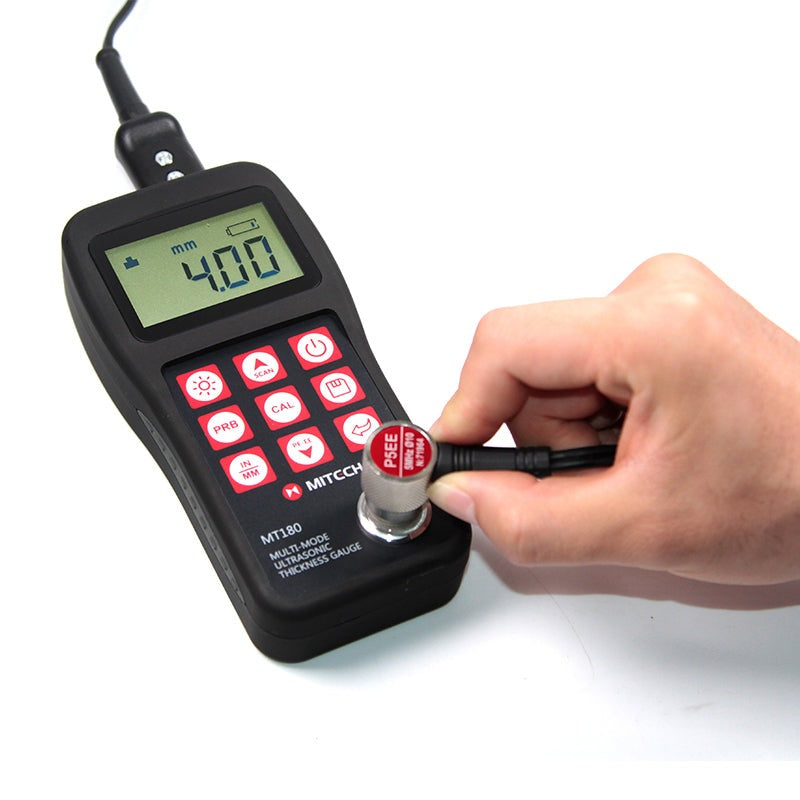

The standard configuration includes the instrument, P5EE 5 MHz probe, 2 AA alkaline batteries, couplant container, manual and carry case.

Options include the standard 2 MHz, 5 MHz and 7 MHz probes, the 5 MHZ HT high temp probe, and the download software and cable.

Specifications:

  • Range in pulse-echo mode: 0.65600 mm in steel.
  • Range in echo-echo mode: 330 mm in steel.
  • Sound Velocity Range: 1000~9999 m/s.
  • Resolution 0.1 mm/0.01 mm.
  • Accuracy: ± 0.5% of the thickness reading + 0.01 mm depending on material type and conditions.
  • Memory storage of up to 20 files, with up to 99 values per file.
  • LCD display.
  • Two “AA” size, 1.5 Volt alkaline batteries allowing for up to 100 hours typical operating time.
  • Dimensions150 mm×74 mm×32 mm.  Weight245 grams.

Download Brochure: Here

Optional Probes available:

Model

PT08

TC510

PT12

ZT12

PT06

PT04

GT12

Type

Standard

Standard

Standard

Cast iron

Small tube

Fingertip

High-Temperature

Frequency

5MHz

5MHz

5MHz

2MHz

7.5MHz

10MHz

5MHz

Chip Diameter

8mm

10mm

10mm

12mm

6mm

4mm

10mm

Measurement Range(Steel)

0.8 to
100.0mm

1.2 to
200.0mm

1.0 to 200.0mm

4.0 to
300.0mm

0.8 to
30.0mm

0.75 to 12.0mm

4.0 to
80.0mm

Temperature Range

-10 to 70

-10 to
70

-10 to 70

-10 to 70

-10 to
70

-10 to 70

-20 to 300

Features

Normal measure

For UM4/5 Series

Normal measure

For thick highly attenuating or highly scattering materials

For thin pipe wall or small curvature pipe wall measure

For thin pipe wall or small curvature pipe wall measure

For high temperature

(Lower then 300°C)
