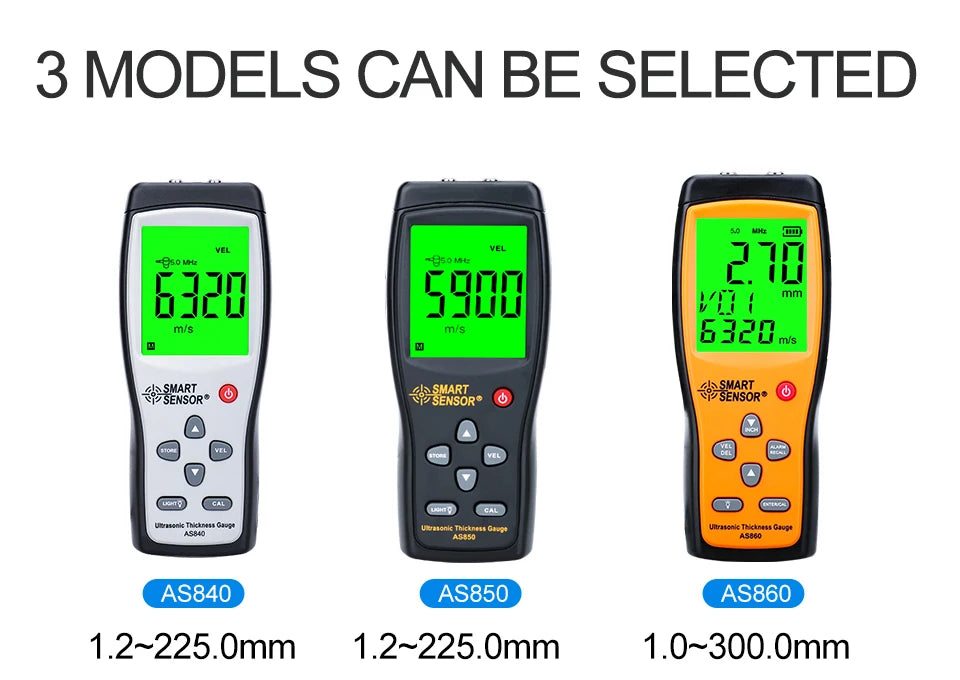

SMART SENSOR Ultrasonic Thickness Gauge 1.2 to 225-300MM

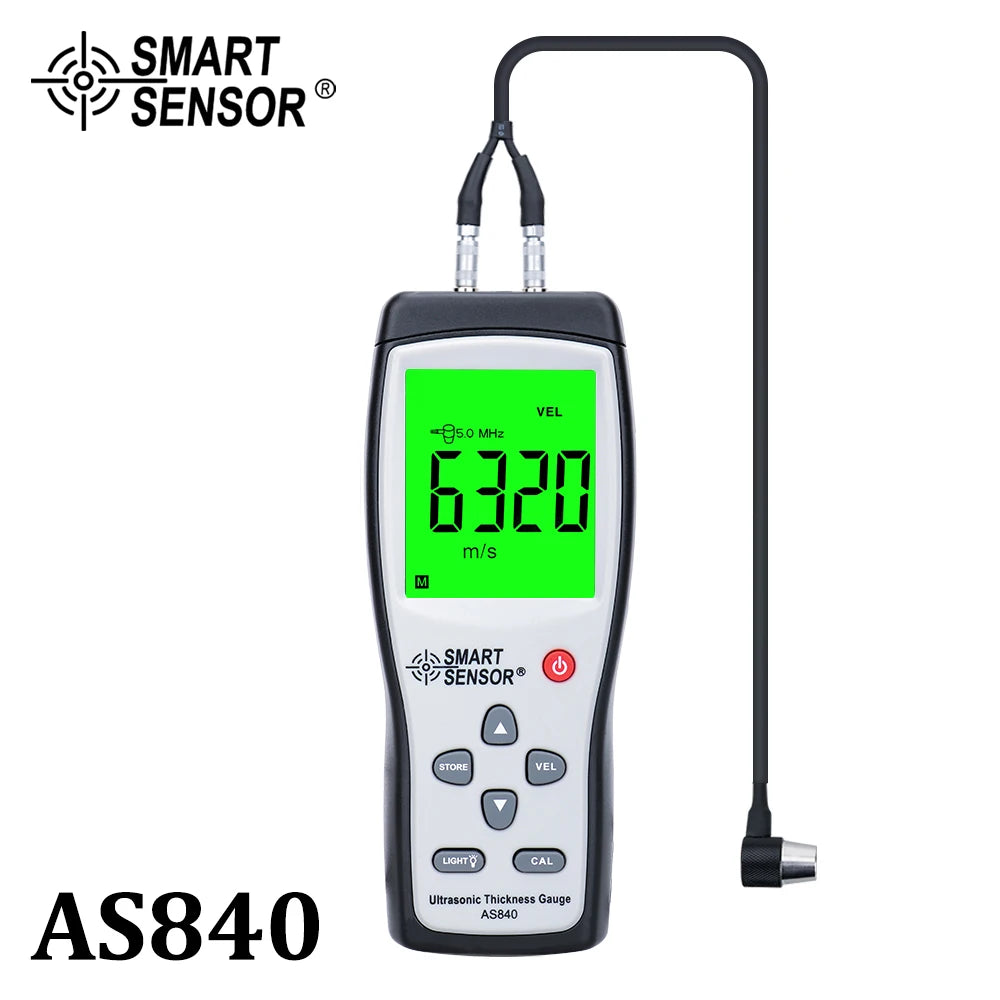

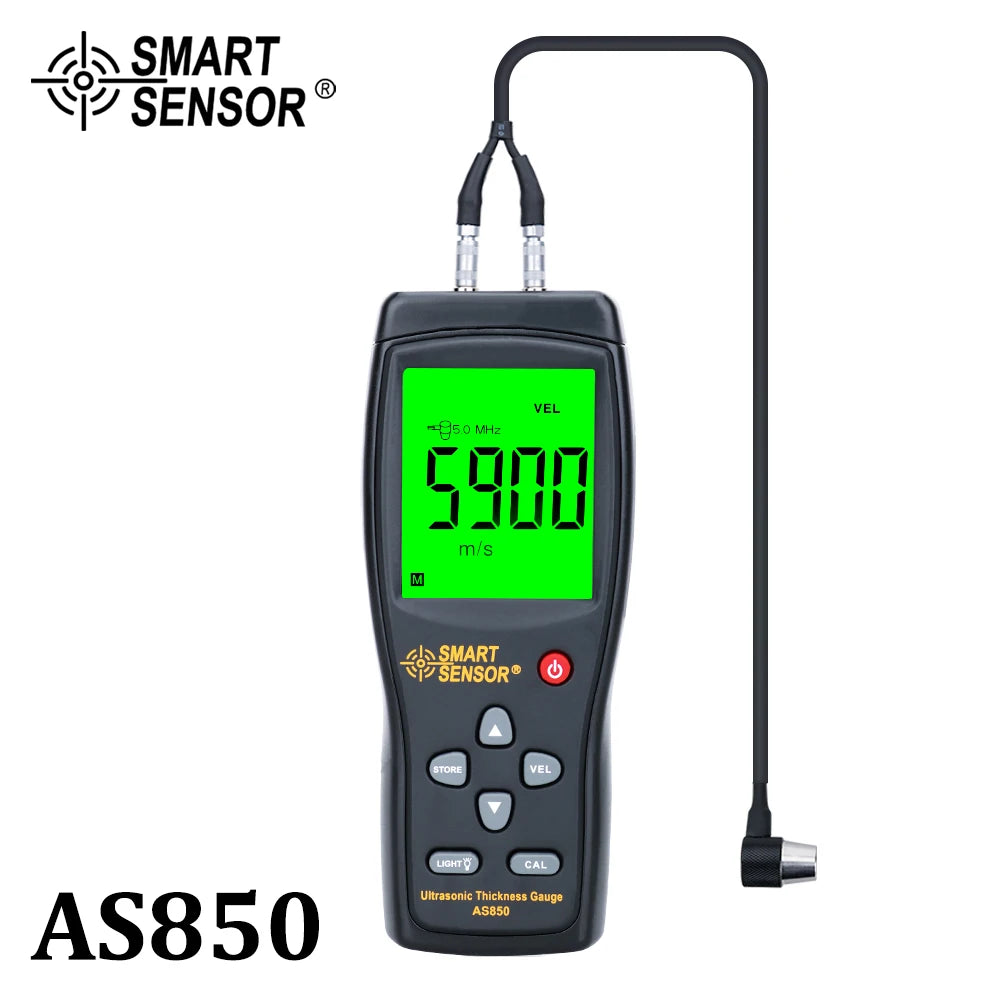

Measuring range AS840 AS850: 1.2~225mm(steel)

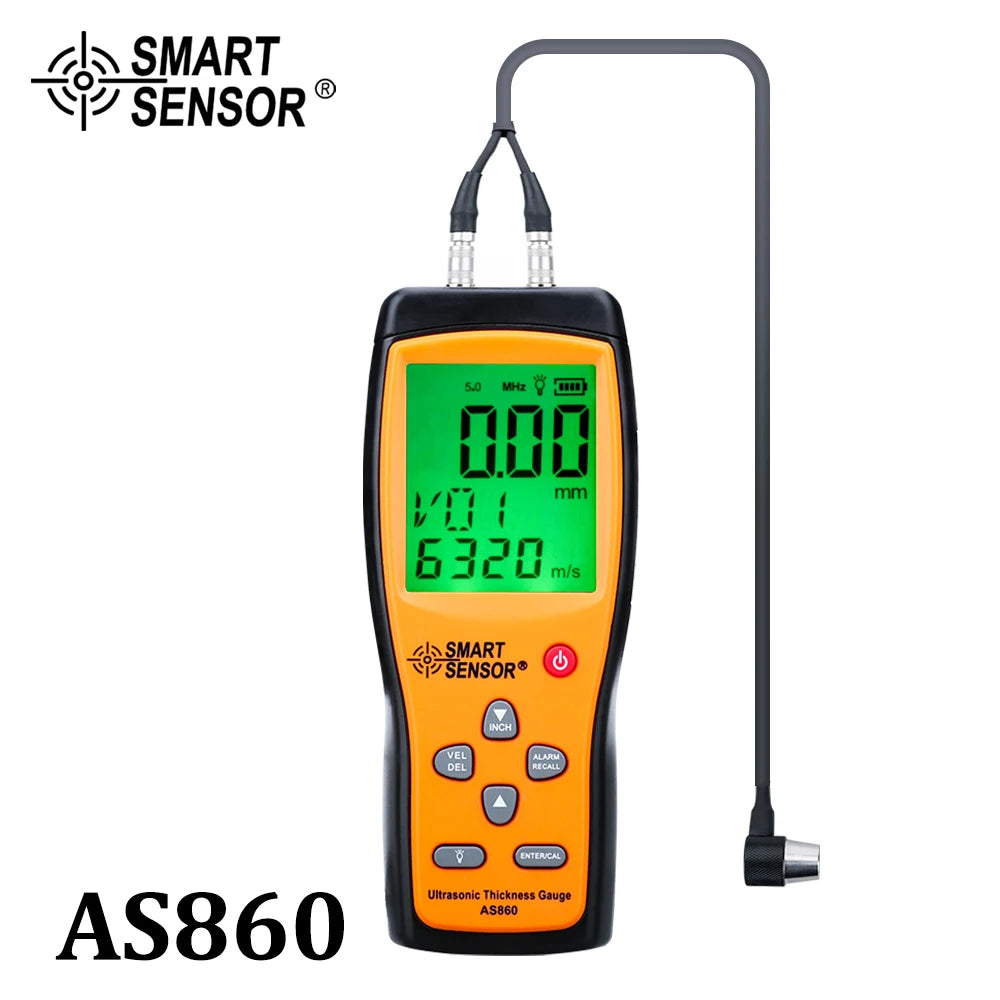

Measuring range AS860: 1.00 to 300.0mm(steel)
Description:
SMART SENSOR Ultrasonic Thickness Gauge This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely
used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.
Scope of application
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron
due to its big crystalloid composition.

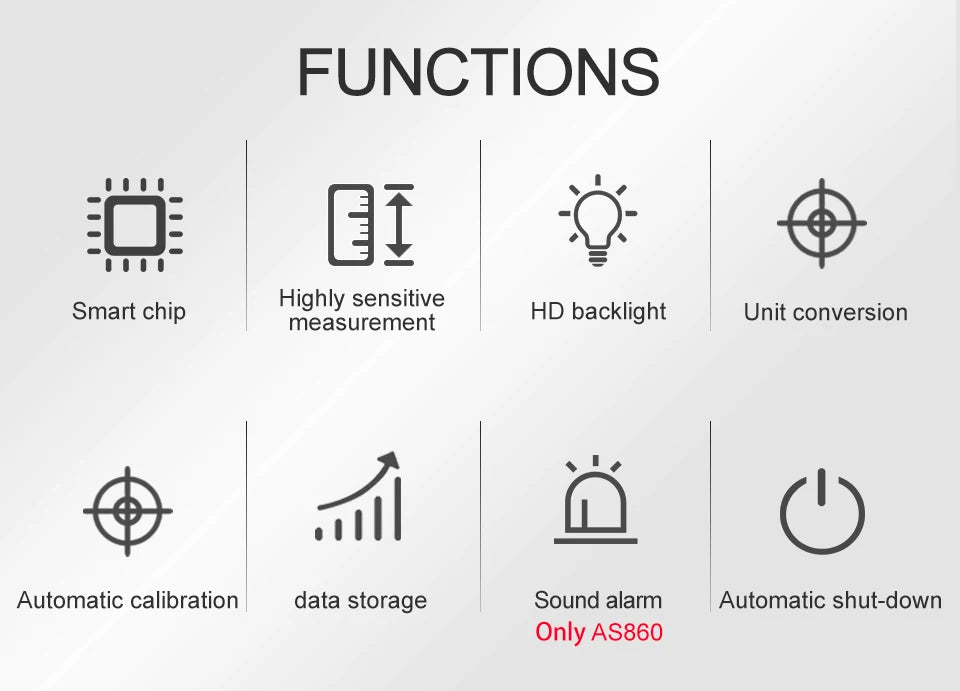

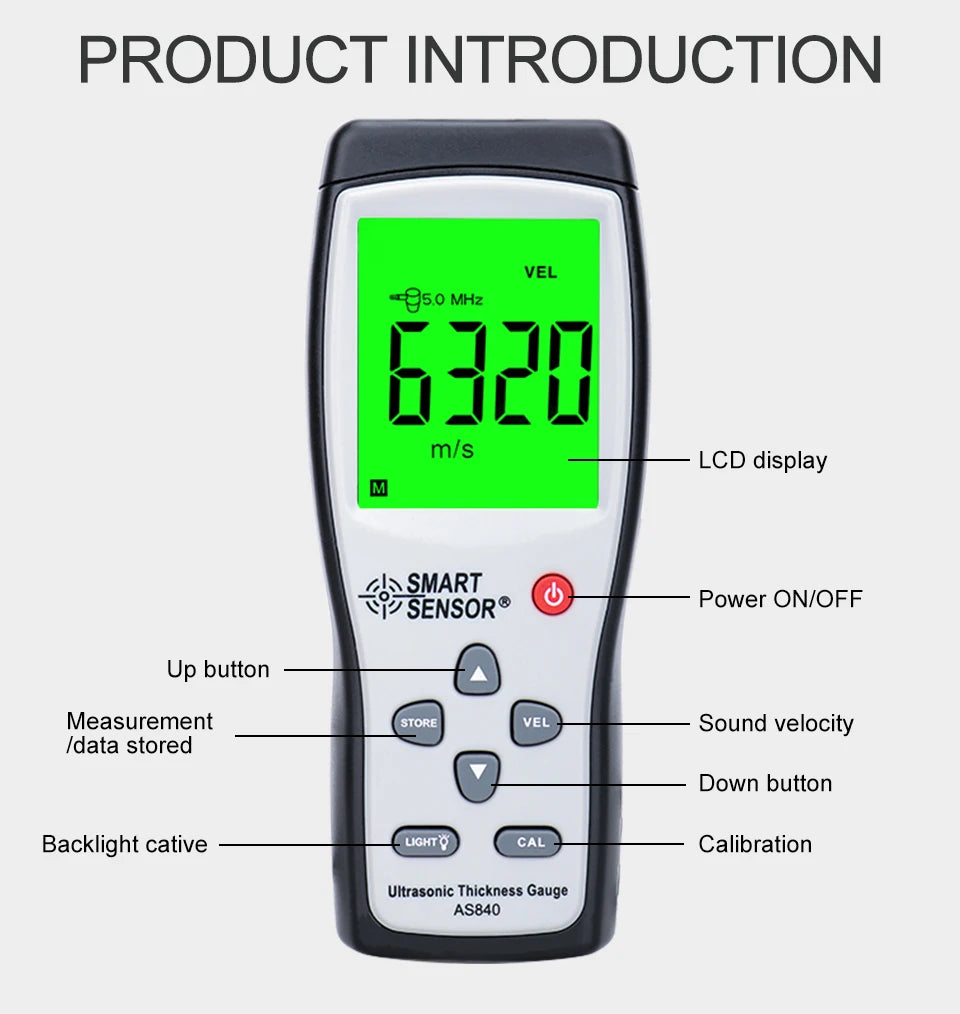

Features:
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3.12 sound velocities for different material
4. Coupling status indication, 12 thickness measurement data store and recall
5. Thickness alarm setup, Back light function, Low battery indication, Auto power off
6. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
7. Use and keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
8. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
9. 10 thickness measurement storage and recall function is available,
10. which facilitates the height work or working in wild area.
11. Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
Model |
AS840 |
AS850 |
AS860 |
Display |
4-digital LCD display |
4-digital LCD display |
4-digital LCD display |
Minimum display unit: |
0.1 mm |
0.1 mm |
0.1 mm |
Measuring Probe: |
∅10mm 5MHz |
∅10mm 5MHz |
∅10mm 5MHz |
Measuring range |
1.2 to 225.0mm (steel) |
1.2~225mm(steel) |
1.00 to 300.0mm(steel) |
Working frequency |
5MHz |
5MHz |
5MHz |
Accuracy |
(1%H+0.1)mm,H denotes |
±(1%H+0.1)mm,H denotes |
±(1%H+0.1)mm,H denotes |
Minimum limit for tube measuring |
20*3mm (steel) |
20*3mm (steel) |
20*3mm (steel) |
Sound velocity range |
1000 to 9999 m/s |
||
Operation temperature |
0℃ to 40℃ |
0℃ to 40℃ |
0℃ to 40℃ |
Relative humidity: |
<90%RH |
<90%RH |
<90%RH |
Hardware/workpiece/material temperature: |
<60°C |
<60°C |
<60°C |

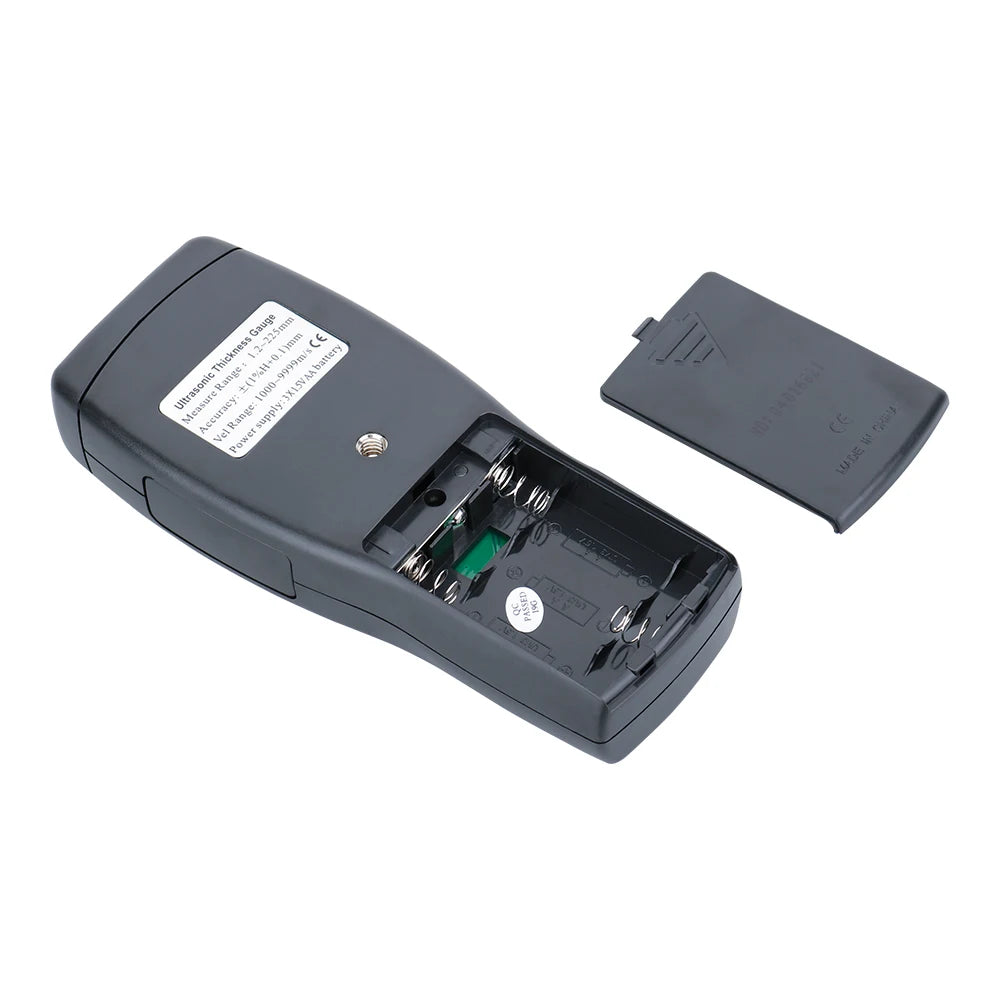

Power supply |
3 * 1.5V AA Battery(Not Included) |
3 * 1.5V AA Battery(Not Included) |
3 * 1.5V AA Battery(Not Included) |
Operation current: |
Normal operation current: 50mA |
Normal operation current: 50mA |
Normal operation current: 50mA |
Product Weight |
152g |
155g |
191g |
Product Size |
161x66x31mm |
160 x 66 x 32mm |
163 x 70 x 34mm |
Package Weight |
670g |
880g |
850g |
Package Size |
25x21x6cm |
29.5 x 19.5 x 7cm |
29.5 x 19.5 x 7cm |

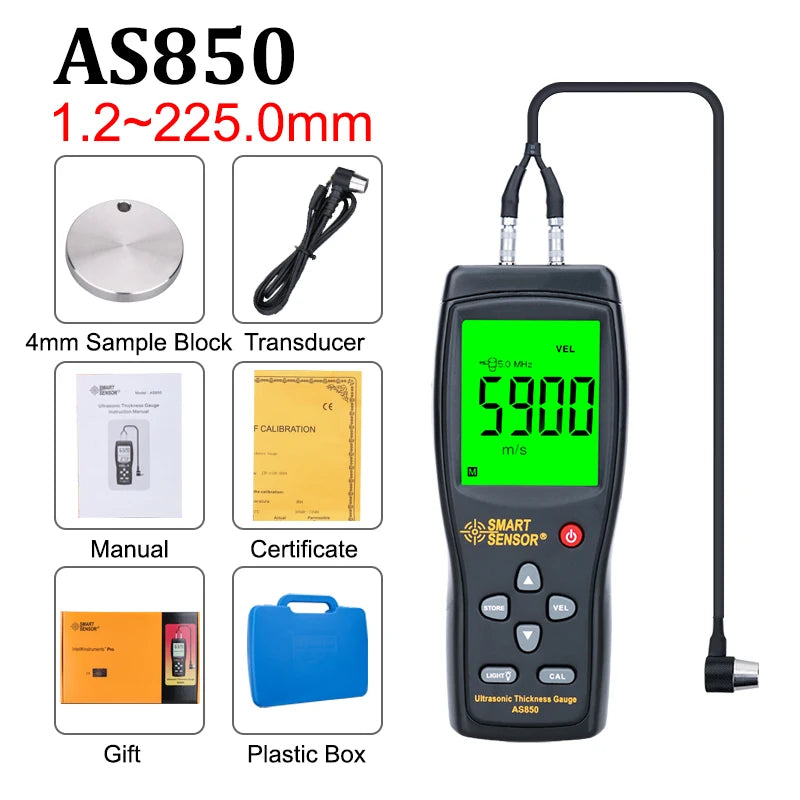

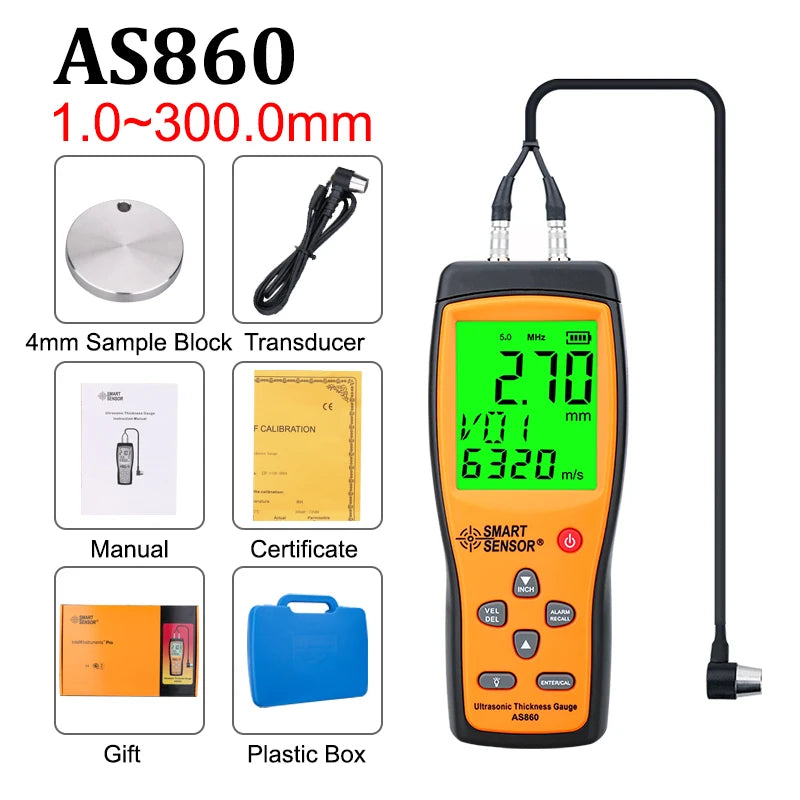

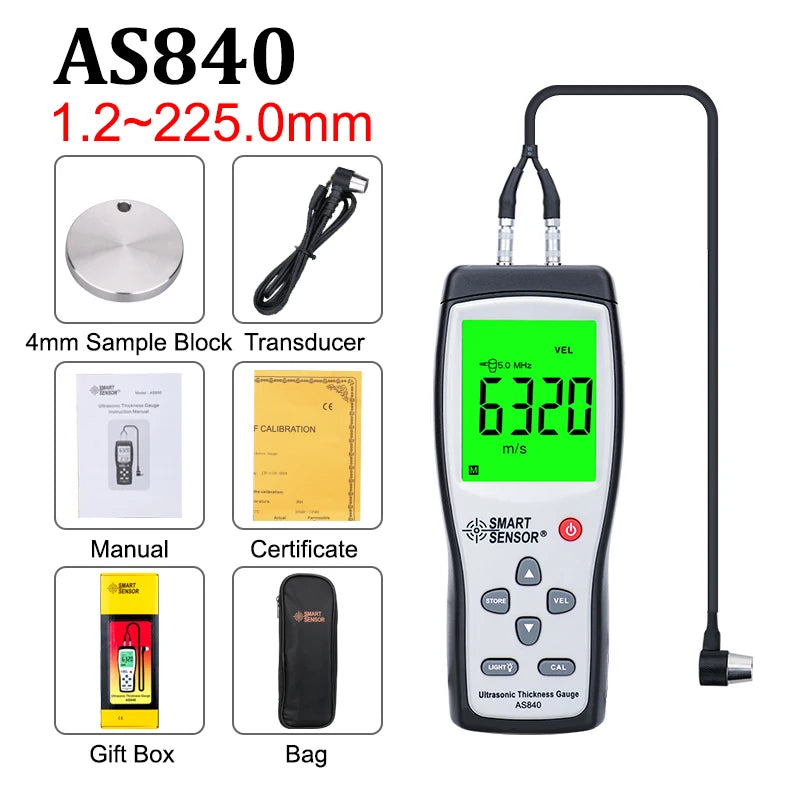

Packing Contents |
1 * Ultrasonic Thickness Gauge |
1 * Ultrasonic Thickness Gauge |
1 * Ultrasonic Thickness Gauge |
Table of sound velocity (Sound velocity of common materials) |
|||
Material |
Velocity(m/s) |
Material |
Velocity(m/s) |
Aluminum |
6320 |
Acetate resin |
2670 |
Zinc |
4170 |
Phosphor bronze |
3530 |
Silver |
3600 |
Turpentine |
4430 |
Glod |
3240 |
Glass |
5440 |
Tin |
3230 |
Incoloy alloy |
5720 |
Iron/Steel |
5900 |
Magnesium |
6310 |
Brass |
4640 |
Monel alloy |
6020 |
Copper |
4700 |
Nickle |
5630 |
SUS |
5790 |
Steel 4330 mild |
5850 |
Acrylic resin |
2730 |
Steel 330 |
5660 |
Water 20C |
1480 |
Titanium |
6070 |
Glycerinl |
1920 |
Zirconium |
4650 |
Soluble glass |
2350 |
Nylon |
2620 |
