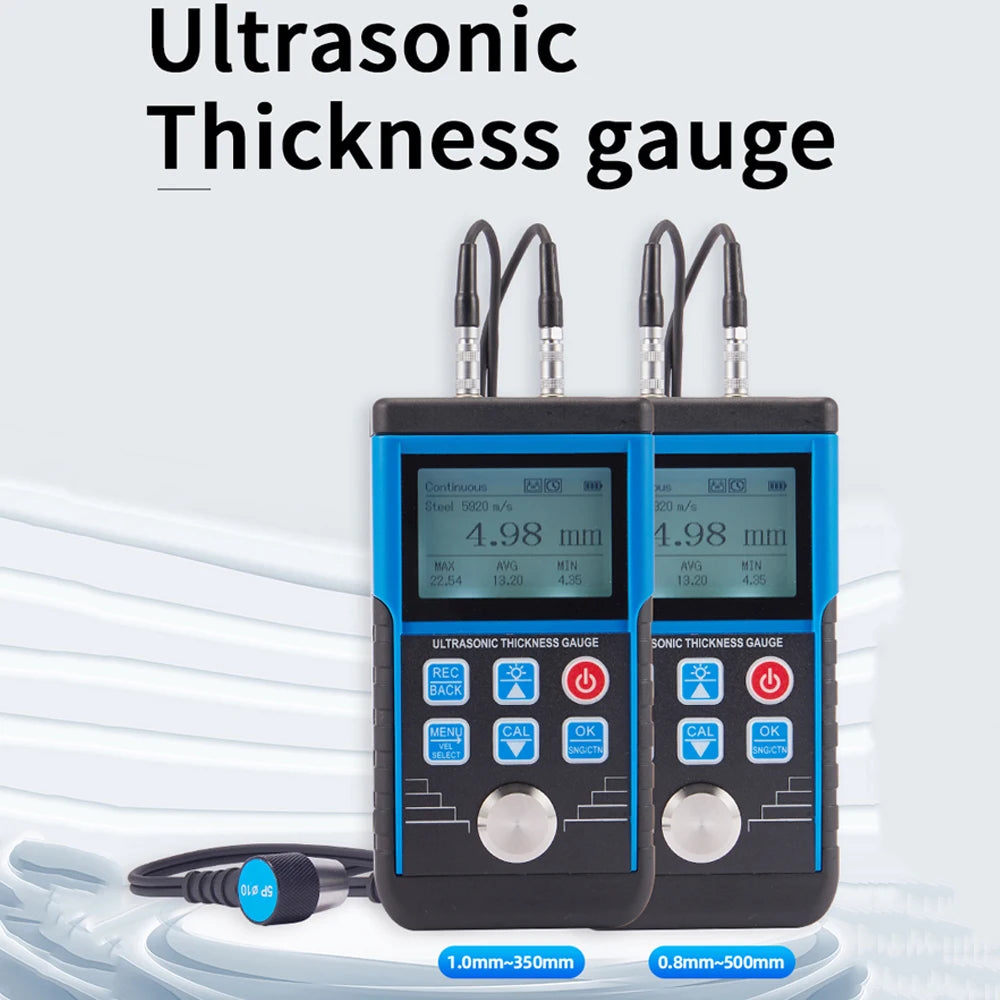

Ultrasonic Thickness Gauge - TM130 (Upgraded Model)
Features:
Ultrasonic thickness gauge is an intelligent handheld thickness measuring instrument that utilizes the principle of ultrasonic measurement.
This product is controlled by a microprocessor and measures thickness based on the principle of ultrasonic pulse reflection. When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe and the thickness of the measured material is determined by accurately measuring the time of ultrasonic propagation in the material. Can quickly and non-destructive measure the thickness of various materials.
This product is suitable for a wide range of industrial fields, and can measure the thickness of high-density materials of different materials. It can also monitor the thinning degree of pipelines and pressure vessels after corrosion in use. It is a commonly used thickness measuring instrument in non-destructive measurement industries such as manufacturing, metal processing, and commodity inspection.

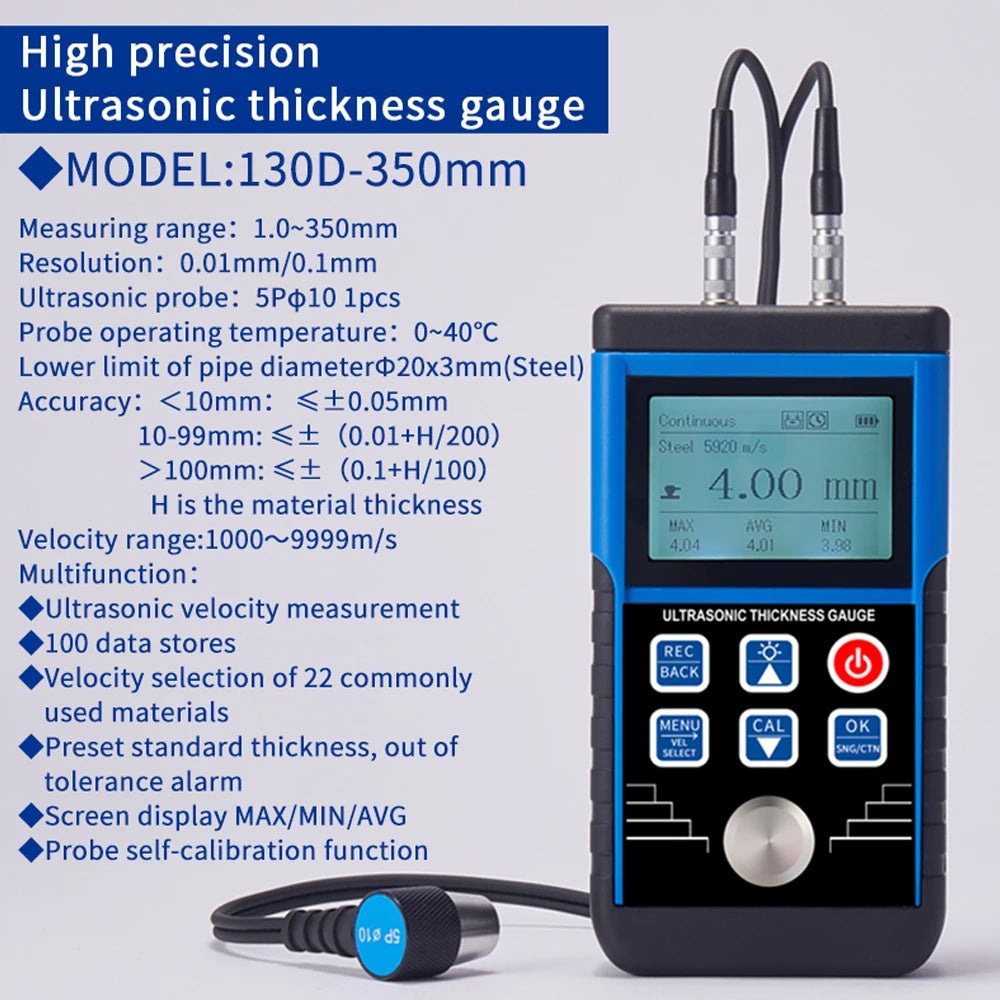

Product parameters:
Measuring range: 1.0-350mm(45#Steel)
Transducer: Φ10mm 5.0HMHz Transducer
Lower limit of the Pipe Measurement: Φ20x3mm/ 0.118inch (45#Steel)

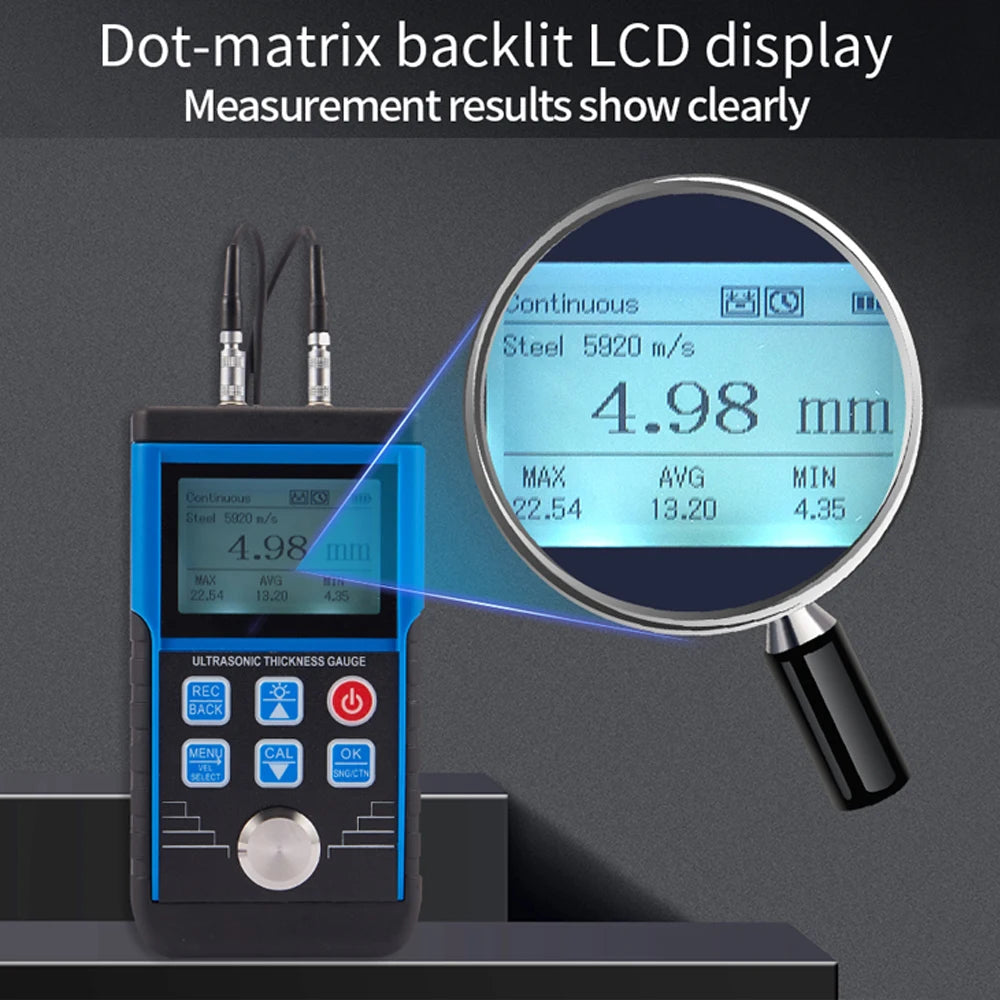

Display: 4 digital LCD Display

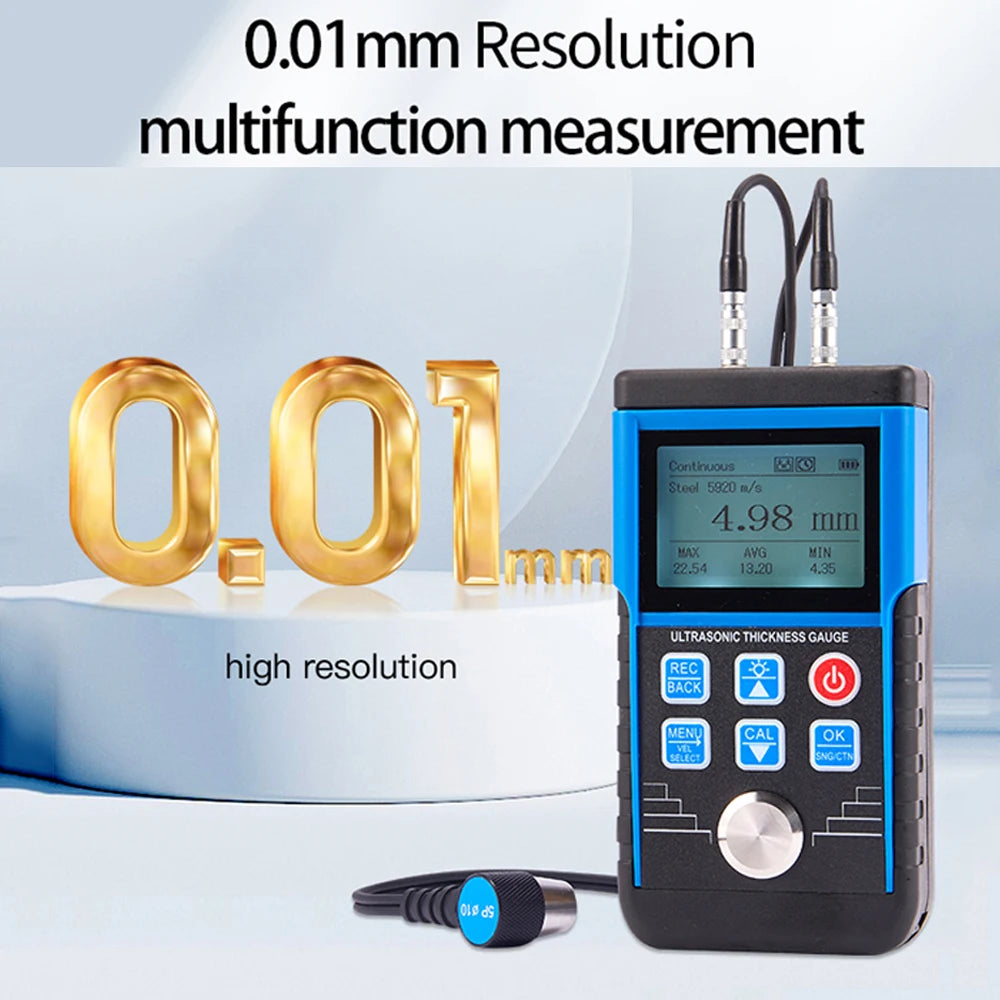

Minimum Display Unit: 0.01mm(1-99mm); 0.1mm(＞100mm
Working Frequency: 5MHz/2.5MHz(2.5MHz Use with a special probe)
Accuracy: H＜10mm, ±0.05mm; H:10-99mm，≤±（0.01+H/200）mm; H＞100mm,≤±（0.1mm+H/100）mm
Power Battery: 3x1.5V AA alkaline batteries (not include)

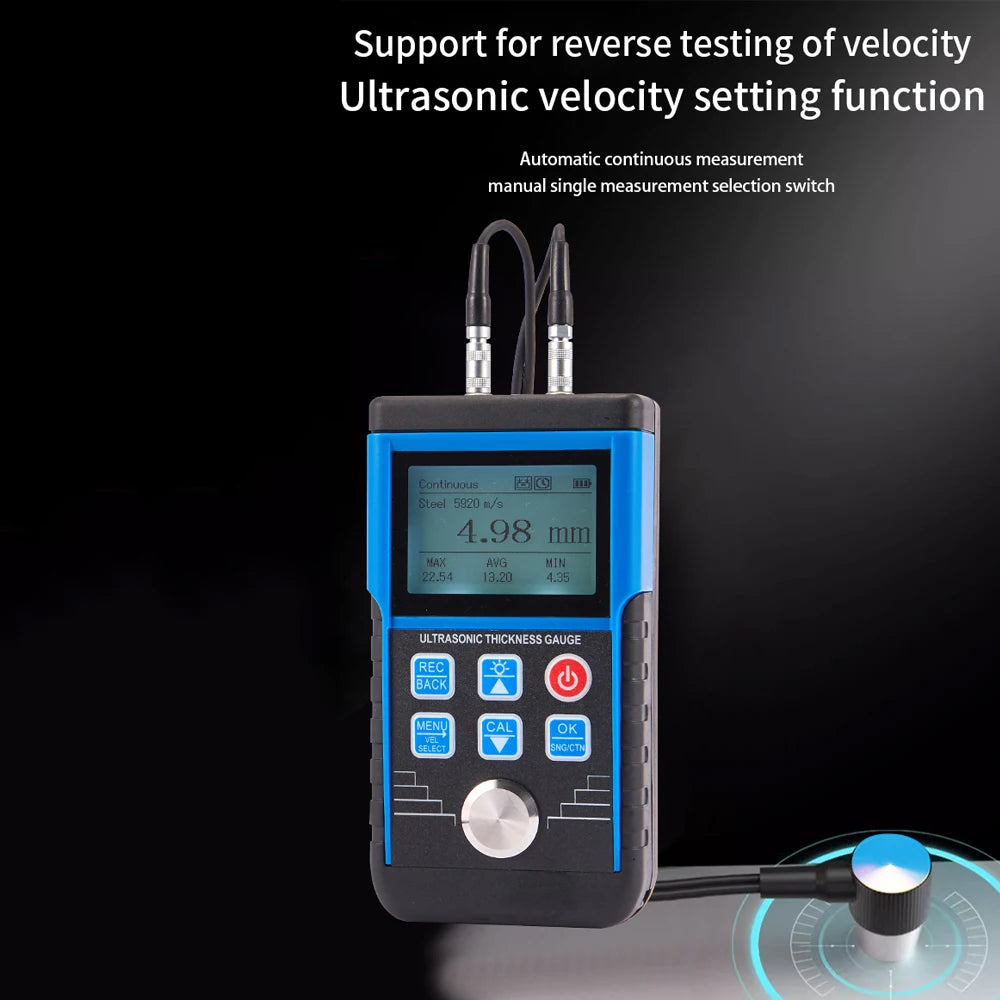

Sound Velocity Selection: Unit Preset 10 kinds materials Velocity inside
Dimension: 135mm x 36mm x 72mm

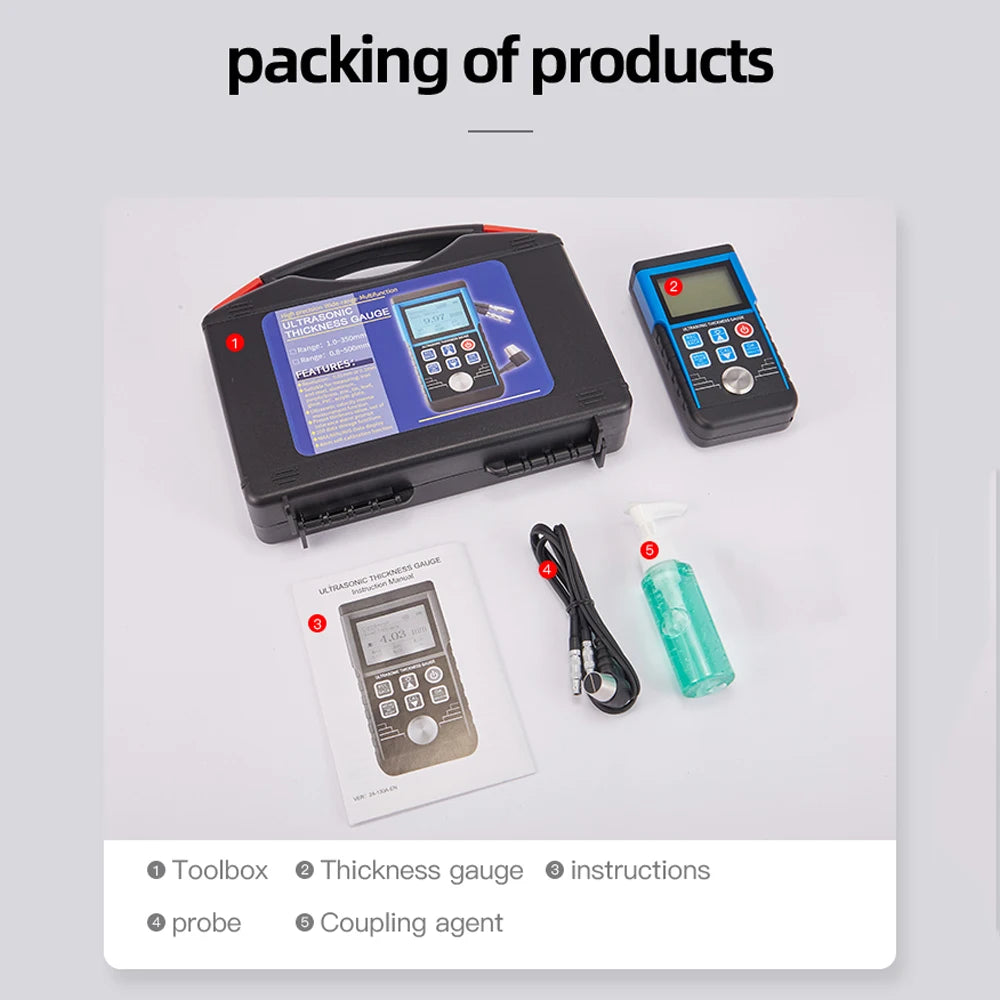

Package content:
- 1 x Ultrasonic Thickness Gauge

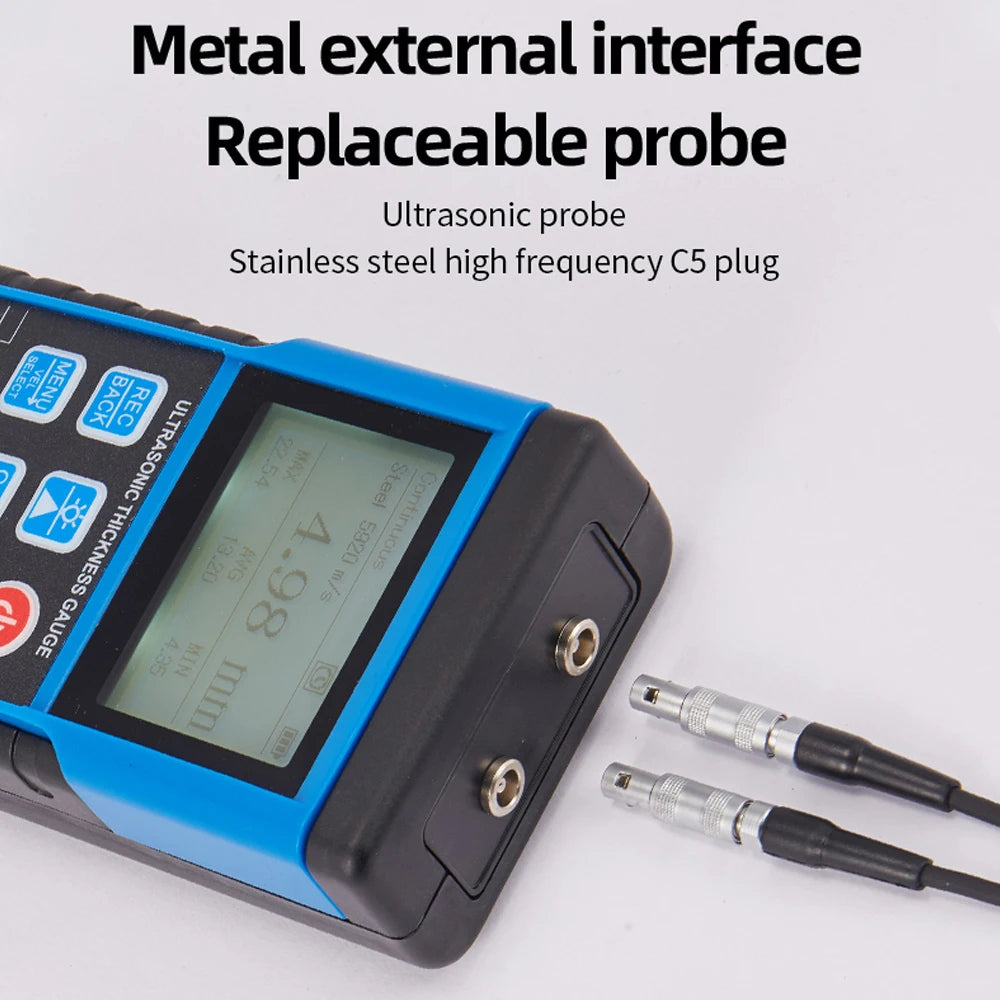

- 10mm 5Mhz TC Probe & Lead
- 1 x User Manual
- 1 x Carrying hard case
Colour may vary - comes in orange or blue model
PDF Manual
