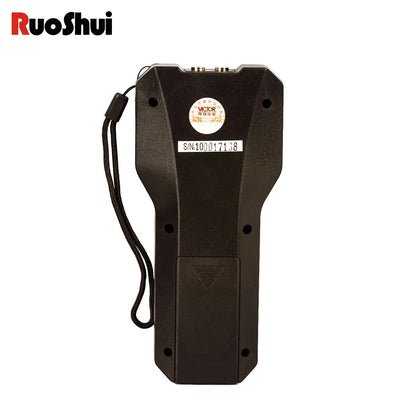

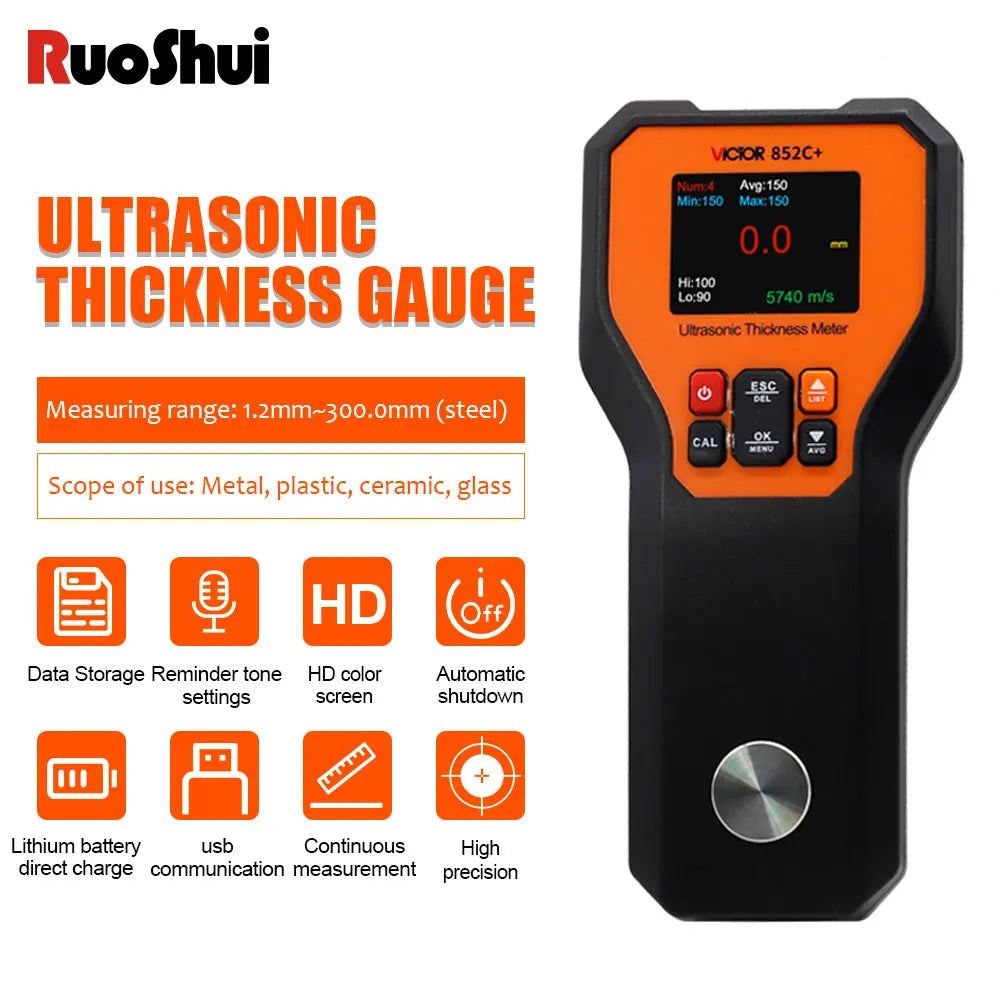

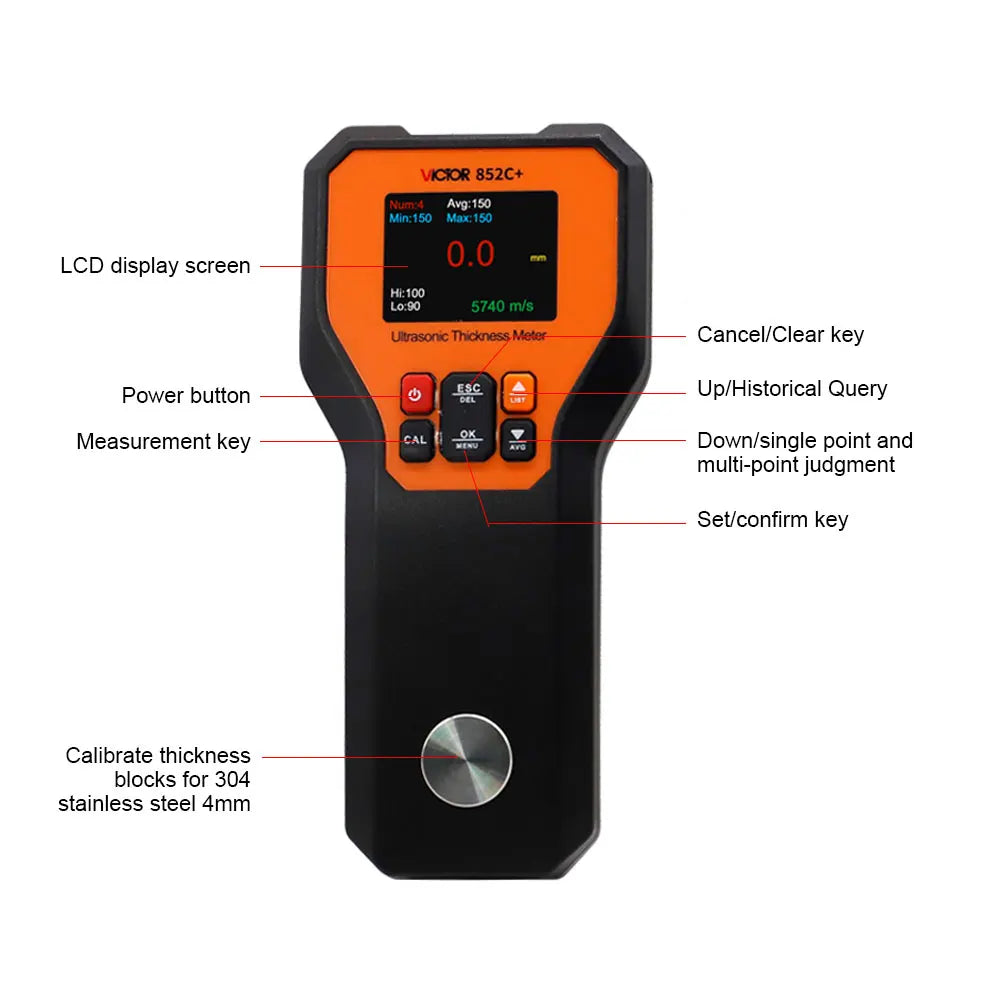

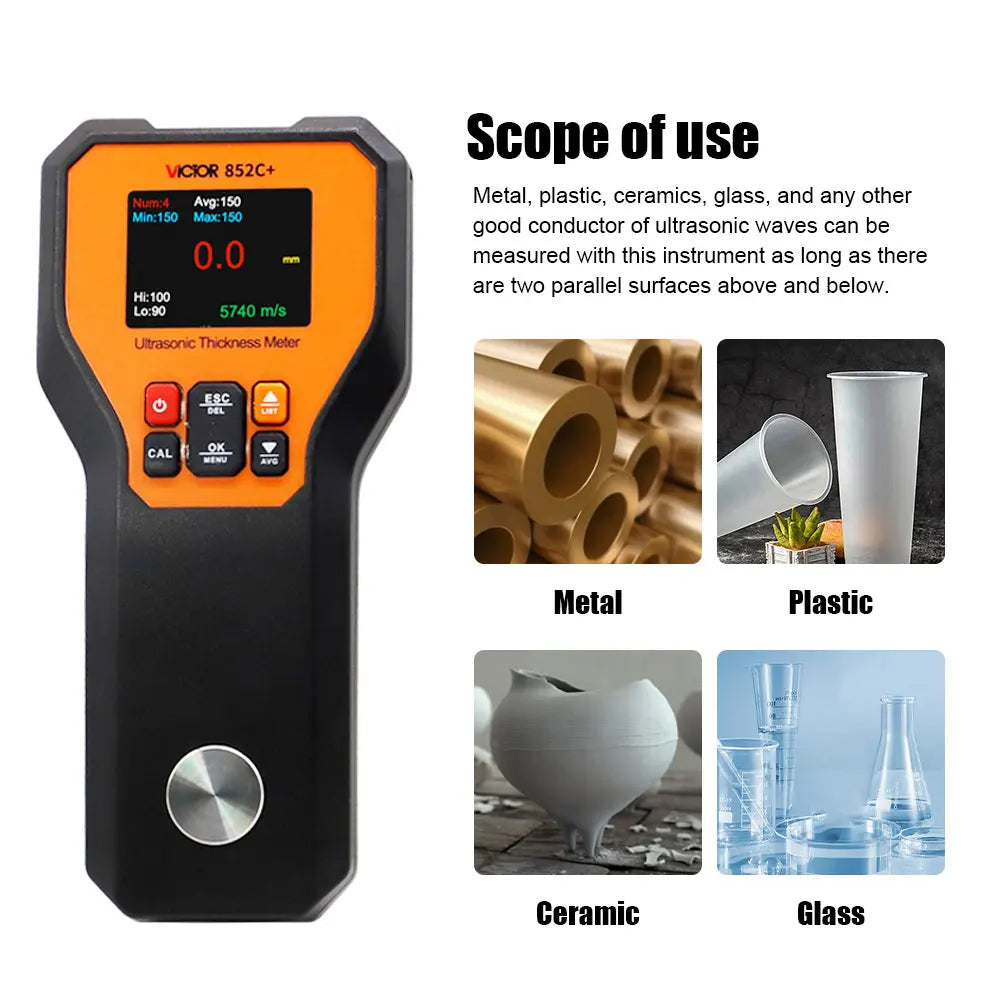

Ultrasonic Thickness Gauge - VICTOR 852C High Accuracy Non-Destructive Tester
Specification:
Model:852C+
Display mode: Four-digit LCD display.
Note: This range is only for Q235 steel. Because different materials have different sound velocities, other materials may not be
within this range.
Resolution ratio: 0.1mm
Measurement accuracy: ±(1%H+0.1)mm, H is the object thickness.
Lower measurement limit of pipes: Φ20×3mm
Sound speed adjustment scope: 1000~9999m/s
Measuring sound speed with known thickness: Measurement
scope:1000~9999m/s; when thickness of measured objects
is ≤20mm, the precision of sound speed measurement is ±1mm/
H*100%; when the object thickness is >20mm, precision of sound
speed measurement is±5%.
Power supply: 3 x 1.5V AA alkaline batteries (Not Included)
Working temperature: 0~40℃
Relative humidity: less than 90%RH
Storage temperature: -10~50℃
Workpiece temperature: less than 60℃
Working current: less than100mA
Product size:152mm×75mm×32mm

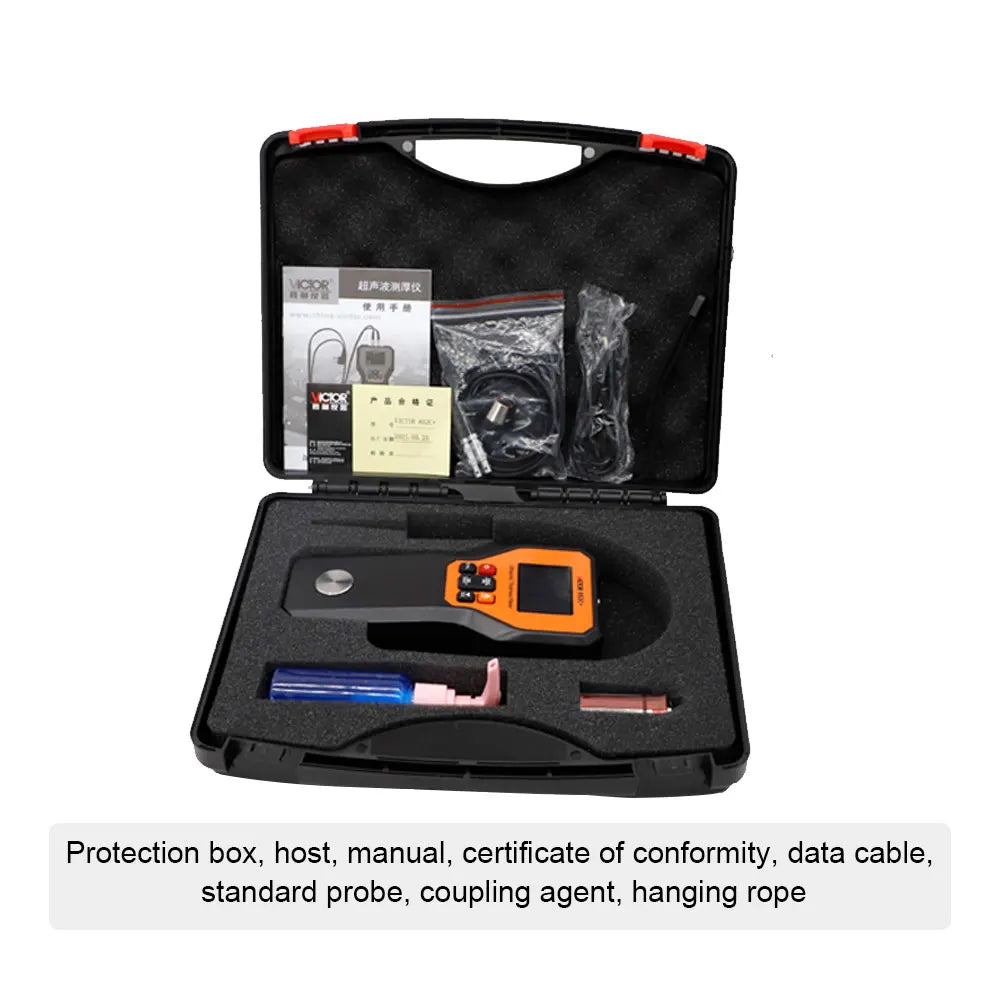

Accessories: probe, coupling agents, instruction for use, color box
Frequency of the probe:5MHZ
