Ultrasonic Thickness Gauge - WT100A / WT130A
Ultrasonic Thickness Gauge - WT100A / WT130A
Regular price
$195.00
Regular price
Sale price
$195.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

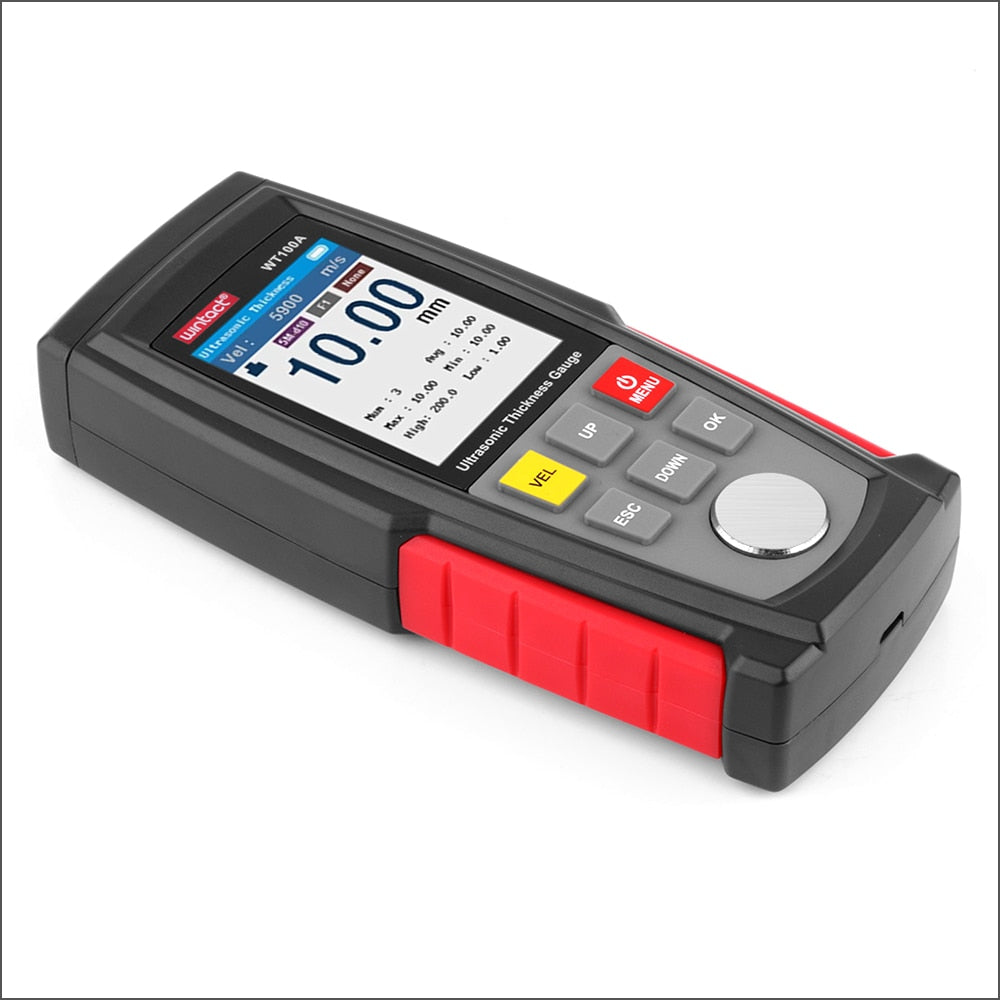

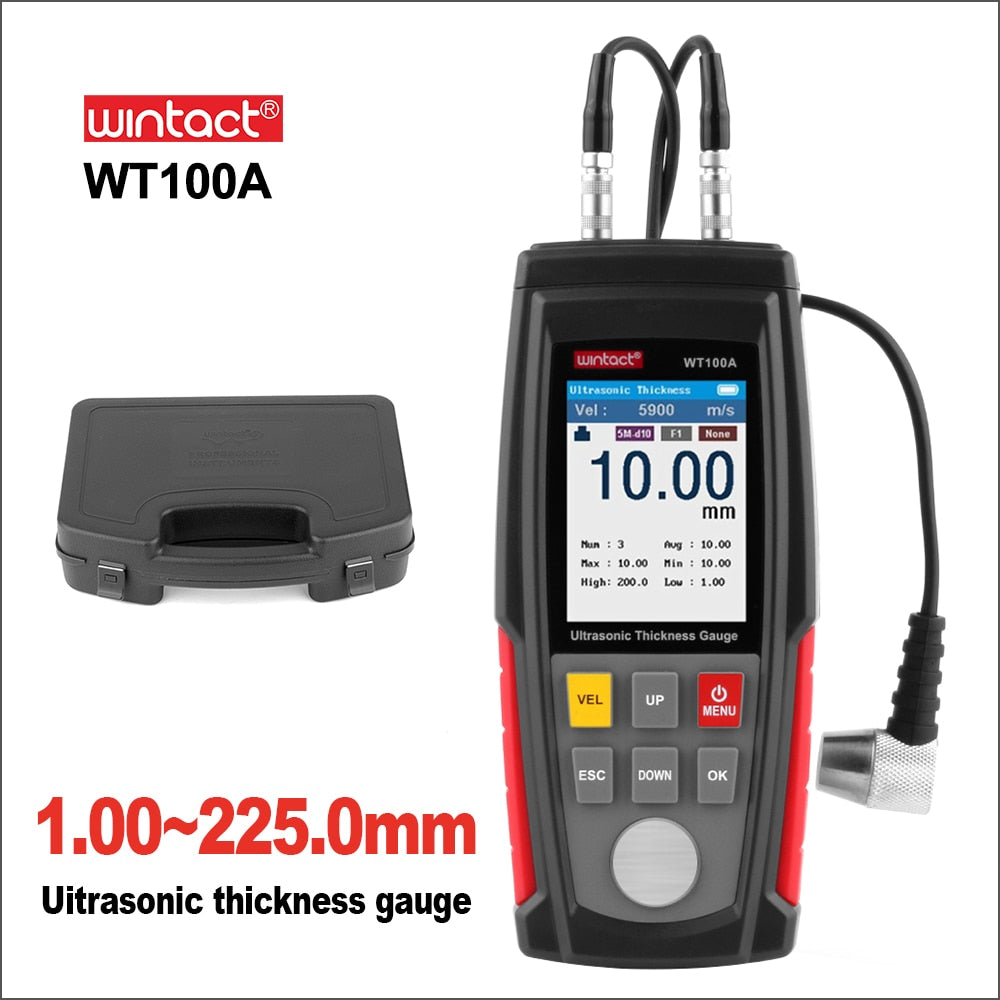

Ultrasonic Thickness Gauge - WT100A / WT130A

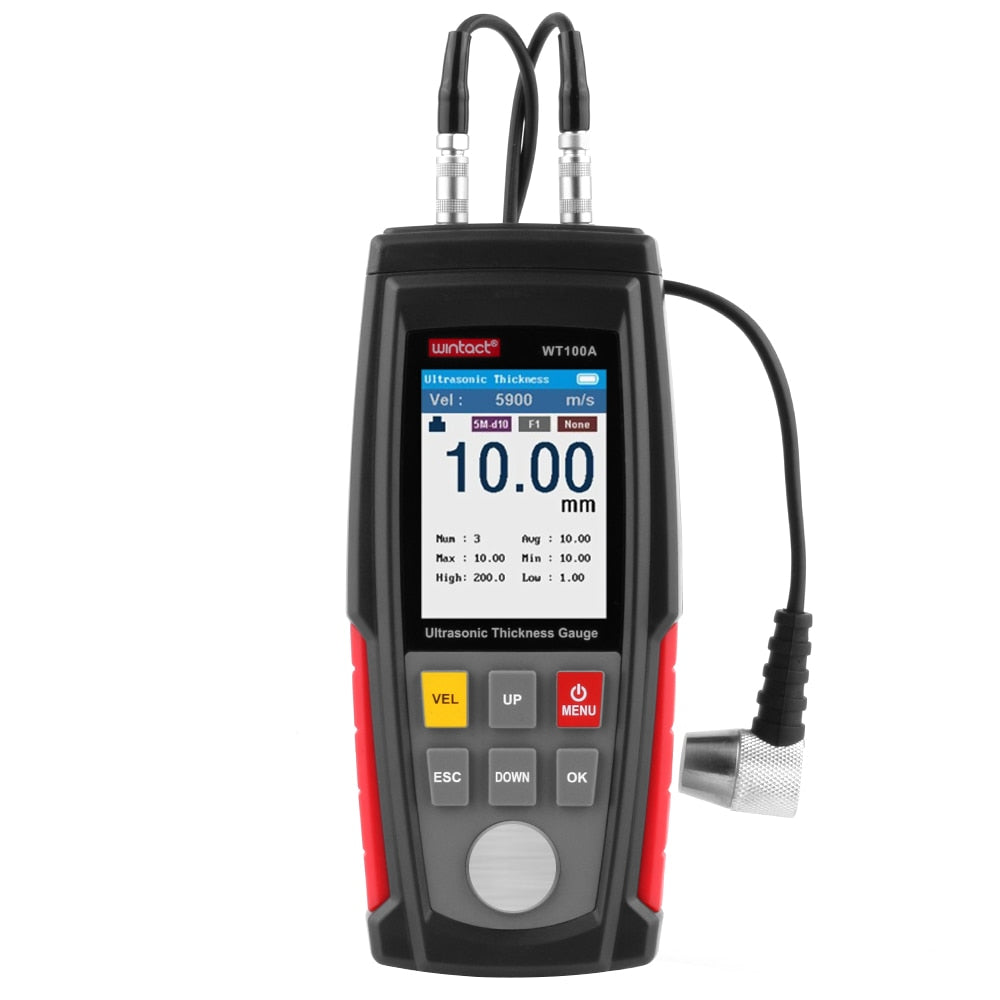

WT100A: 1.2~225.0mm (steel)

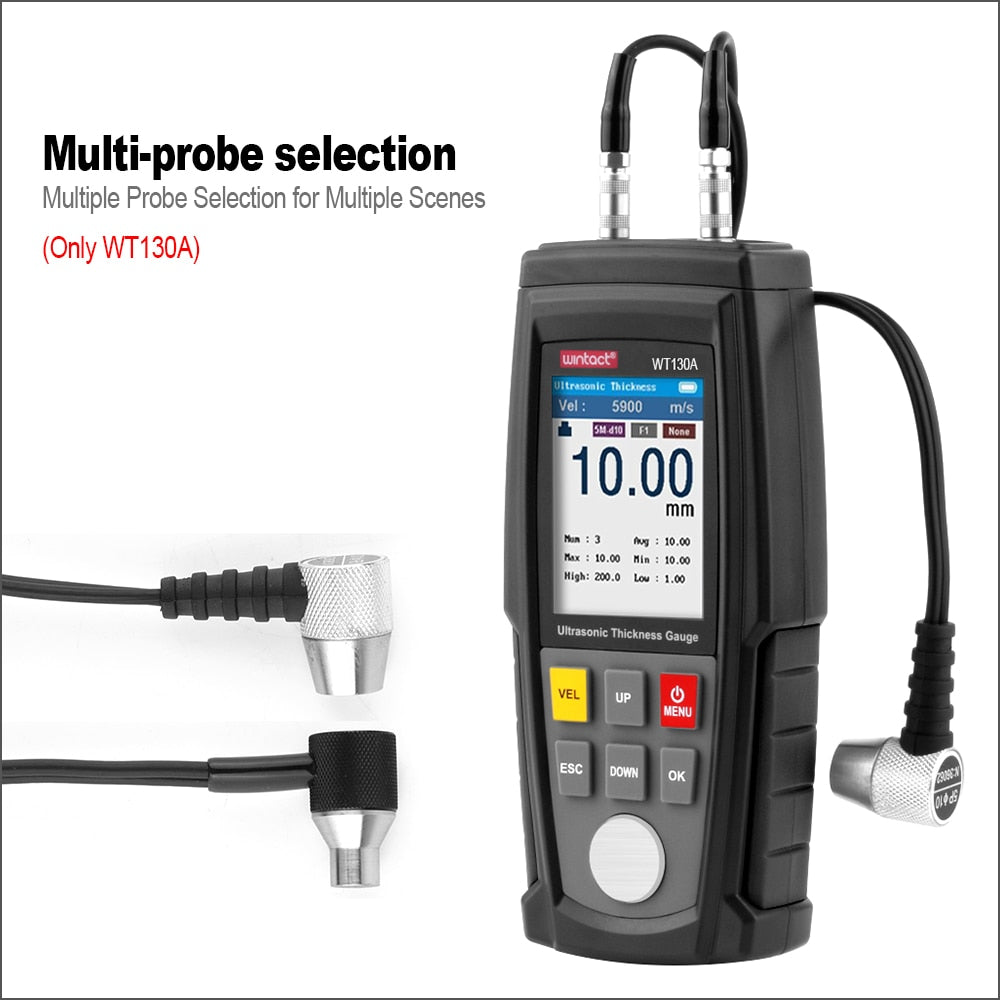

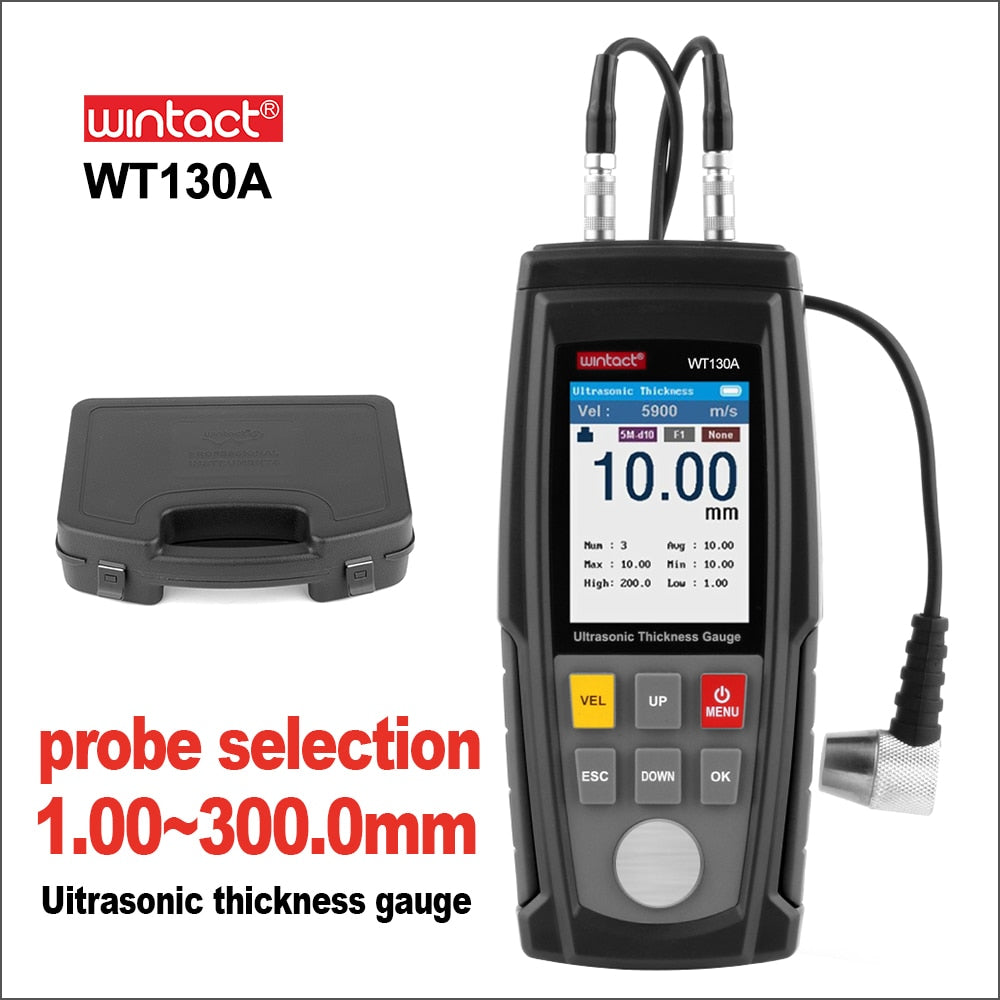

WT130A: 1.0~300.0mm (steel) & 2x probes

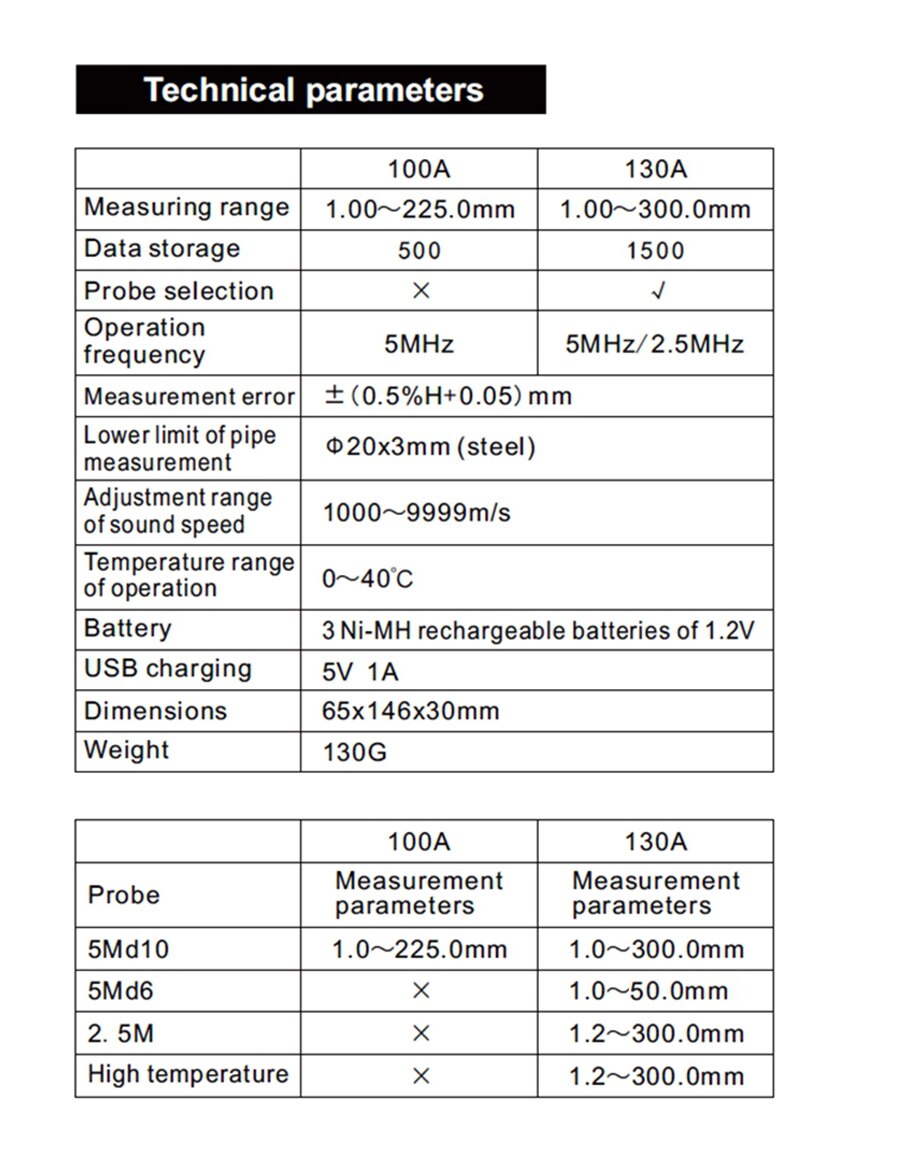

Model |
WT100A |
WT130A |
Measuring range |
1.00 -225.0mm |
1.00 -300.0mm |
Data storage |
500 |
1500 |
Probe selection |
X |
V |
Operation |
5MHz |
5MHz/2.5MHz |
frequency |
||
Measurement error |
±(0.5%H+0.05)mm |
|
Lower limit of pipe measurement |
20x3mm (steel) |
|
Adjustment range of sound speed |
1000-9999m/s |
|
Temperature range of operation |
0 -40C |
|

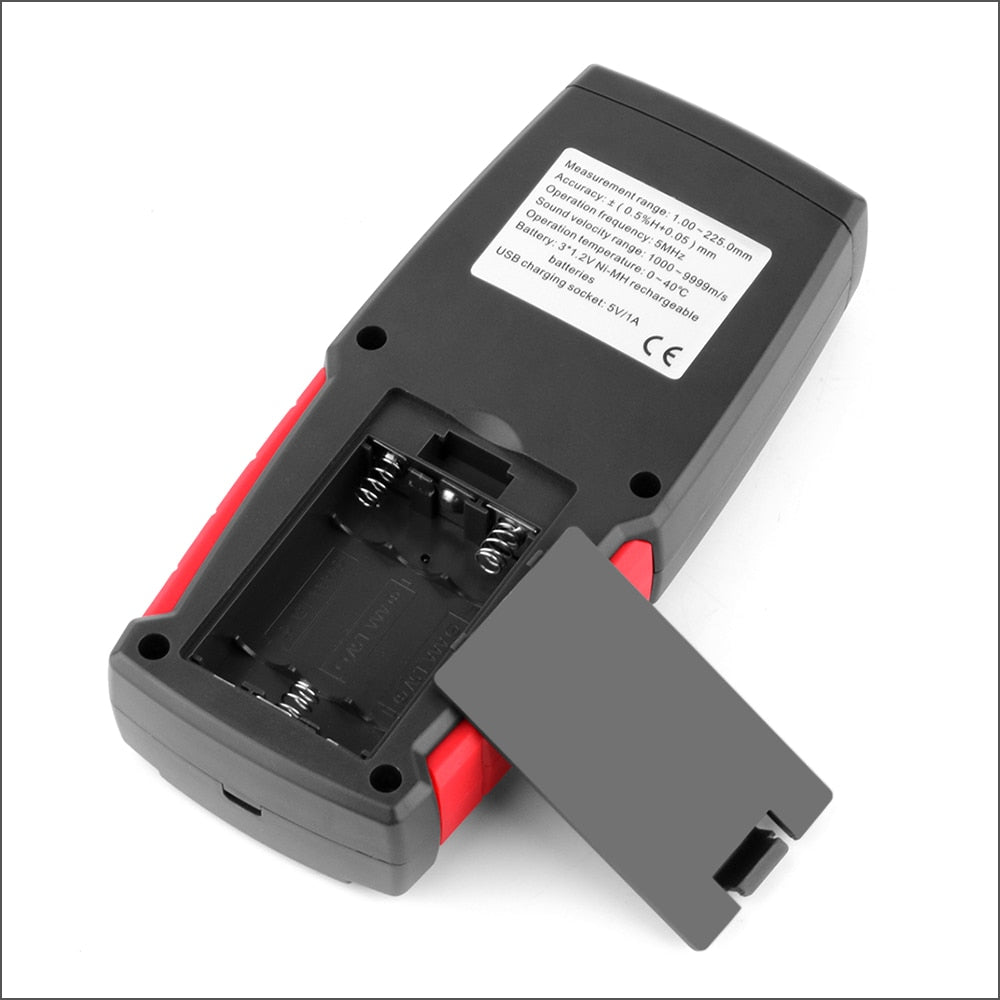

Battery |
3 Ni-MH rechargeable batteries of 1.2V |
|
USB charging |
5V 1A |
|
Dimensions |
65*146*30mm/2.6*5.7*1.2in |
|
Weight |
130g/4.6oz |
|
Probe |
Measurement parameters |
Measurement parameters |
5Md10 |
1.0-225.0mm |
1.0-300.0mm |
5Md6 |
X |
1.0-50.0mm |
2. 5M |
X |
1.2-300.0mm |
High temperature |
X |
1.2-300.0mm |
1x Digital Ultrasonic Thickness Gauge
WT100A: 1x 5mhz 10mm probe
WT130A: 1x 5mhz 10mm probe / 1x 5mhz 6mm probe
1x Retail Case
1x USB charging cable
1x Use's Manual
