UNI-T UT343D Digital Coating Thickness Gauge FE/NFE

UNI-T UT343D Digital Coating Thickness Gauge FE/NFE

Regular price $225.00
Regular price Sale price $225.00
Sale Sold out
Shipping calculated at checkout.

UNI-T  UT343D Digital Coating Thickness Gauge FE/NFE

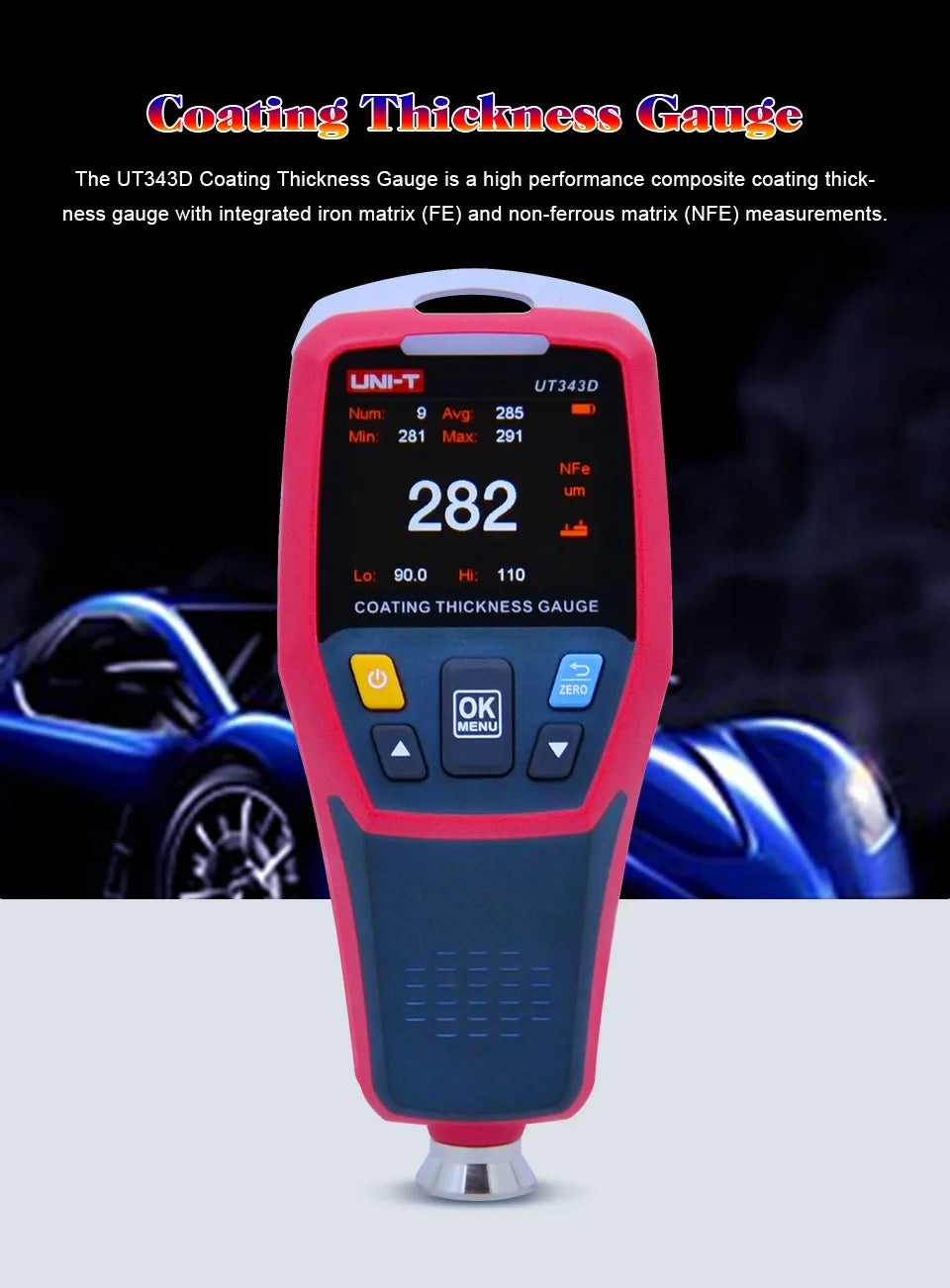

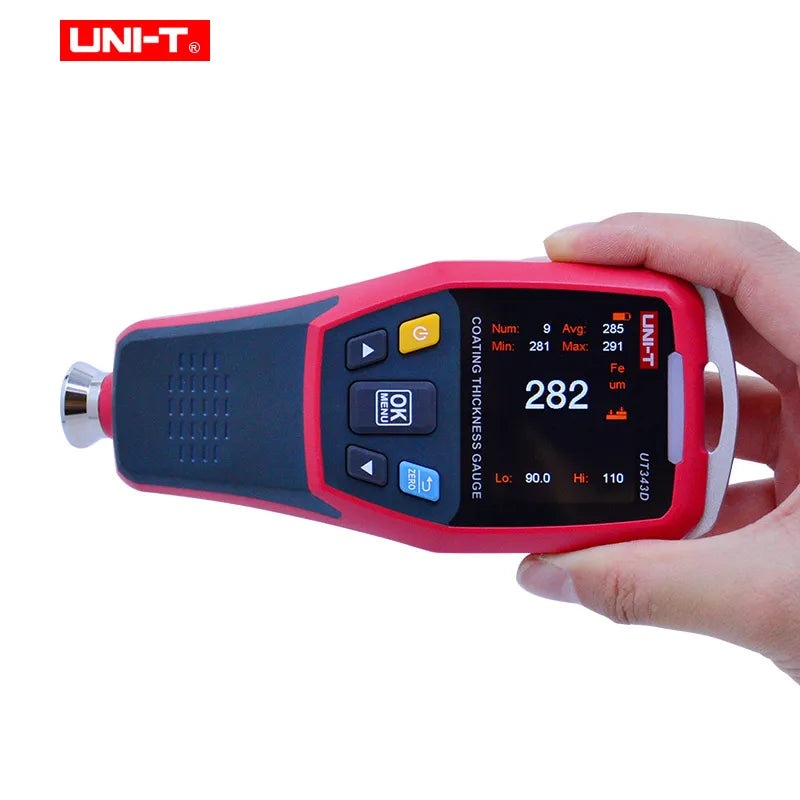

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

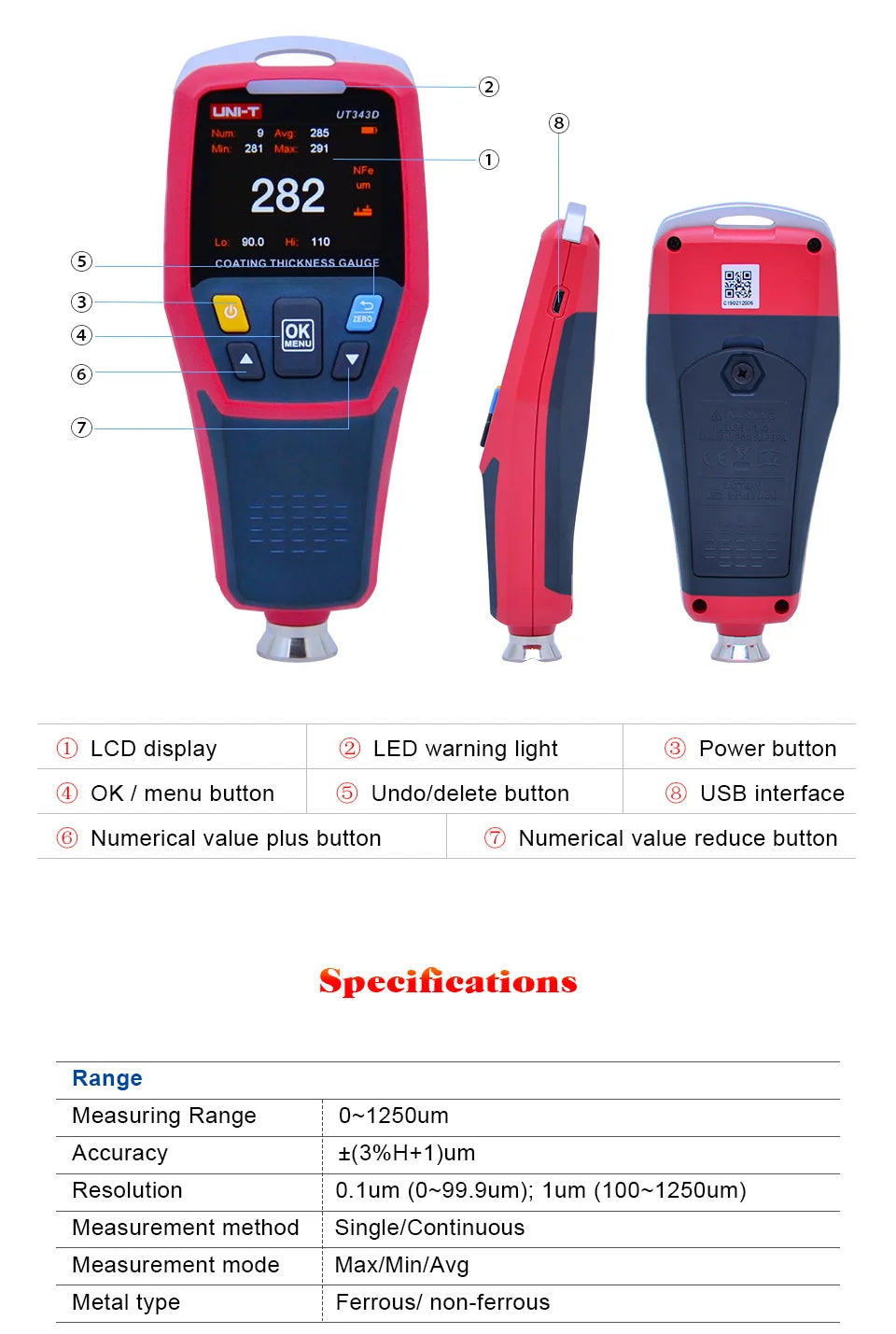

Measuring range





0.1um (0~99.9um); 1um (100~1250um)

Measurement method


Measurement mode


Metal type

Ferrous/ non-ferrous


Display type

2.0-inches TFT LCD (320 x 240 pixels)

Auto rotatable screen

Automatically rotate screen content

Unit switching

μm/mil switching

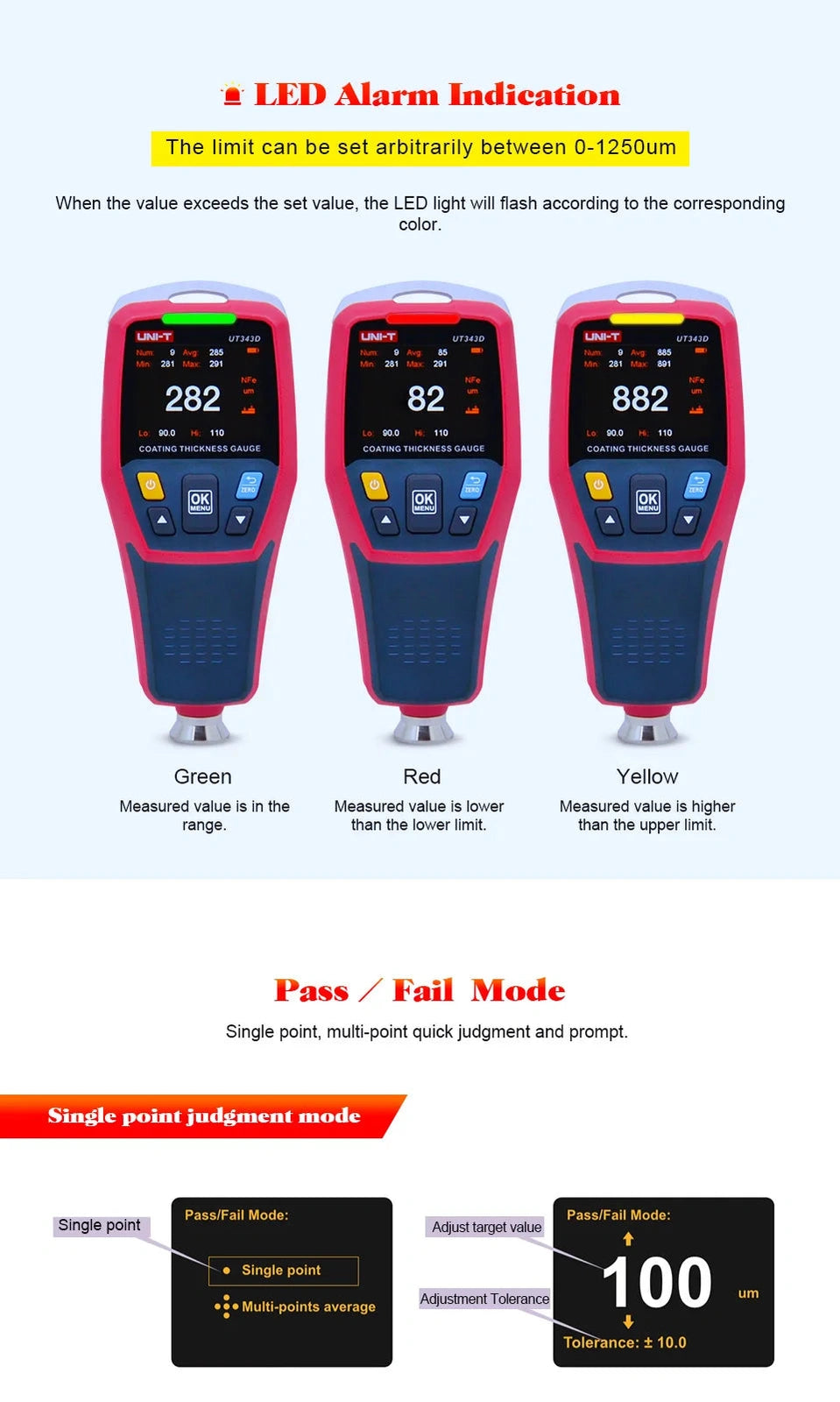

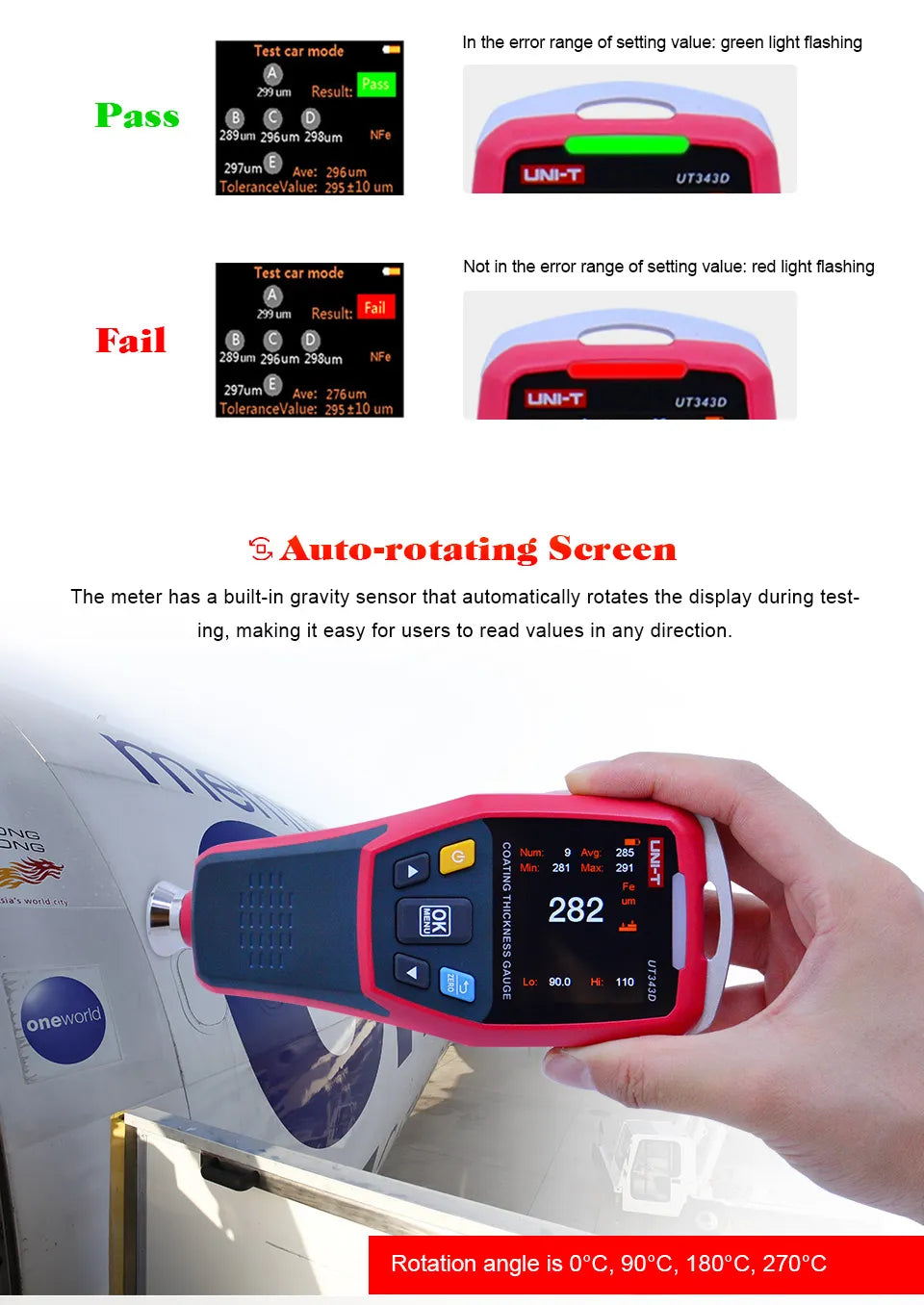

Alarm indication

When the value exceeds the set value, the LED light will flash according to the corresponding color.

Sound prompt

There is a corresponding sound when measuring and alarming

Limit setting

The limit can be set arbitrarily between 0-1250um

Measurement method


Automatic identification

The probe automatically recognizes the substrate

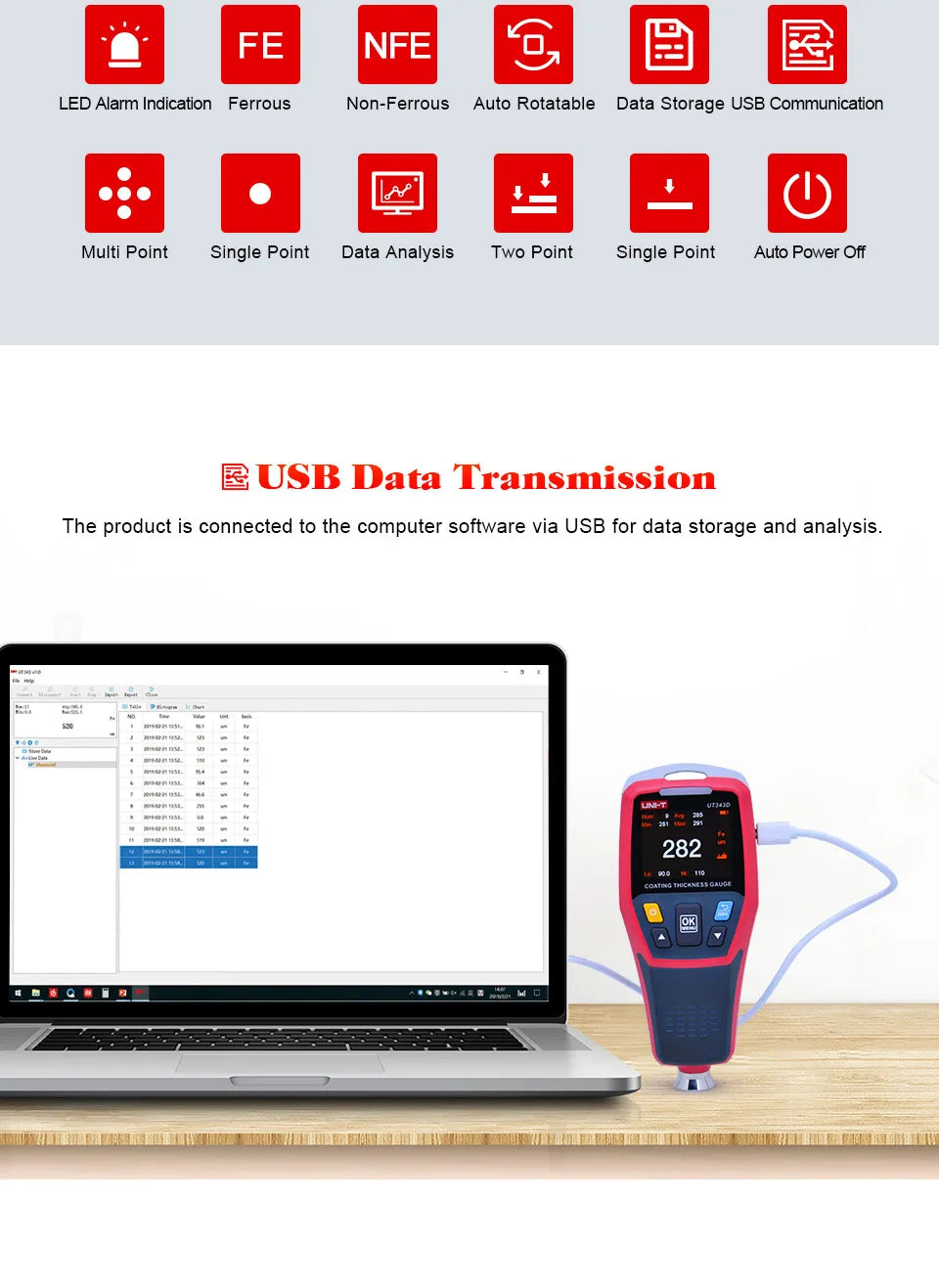

USB communication

The product is connected to the computer software via USB for data storage and analysis.

Data storage

500 sets of measured values can be stored

Backlight brightness

5 levels of brightness adjustable

Auto power off

5 minutes automatic shutdown

Low battery prompt

2.2V ± 0.2V prompt battery low battery

Product size

153.5mm x 64.5mm x 41mm

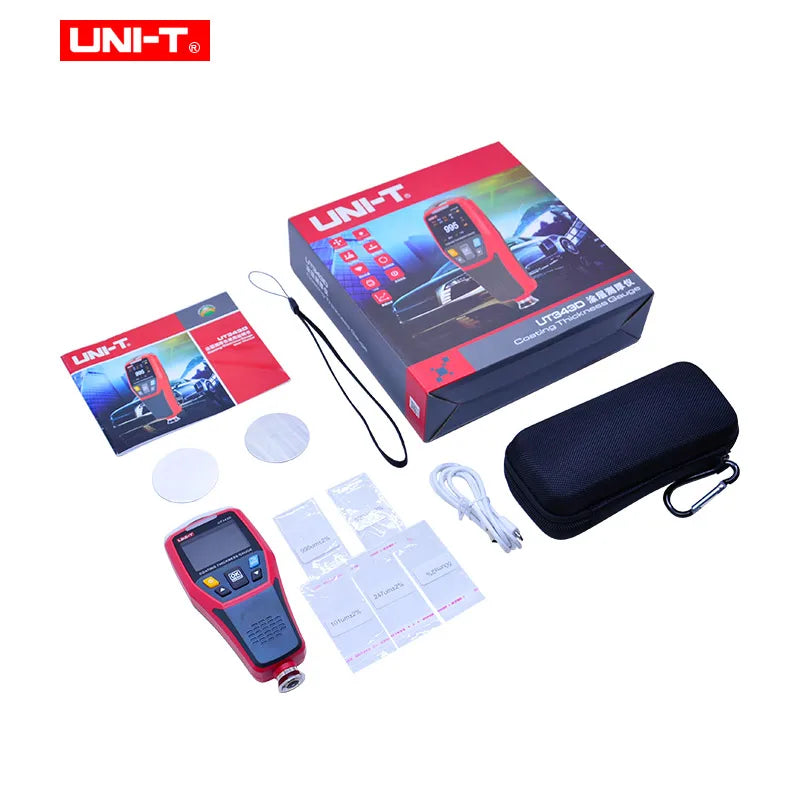

Packing List:

1*Coating Thickness Gauge 1*Micro USB interface cable 1*standard piece(iron Base/Calibration block) 1*EVA box 1*Hand strap 1*Operating Manual 1*Color box
