Welding Gauge - Skew-t Fillet Weld Gauge Gage Welding Inspection Tool

  • Sale
  • Regular price $50.00
Shipping calculated at checkout.

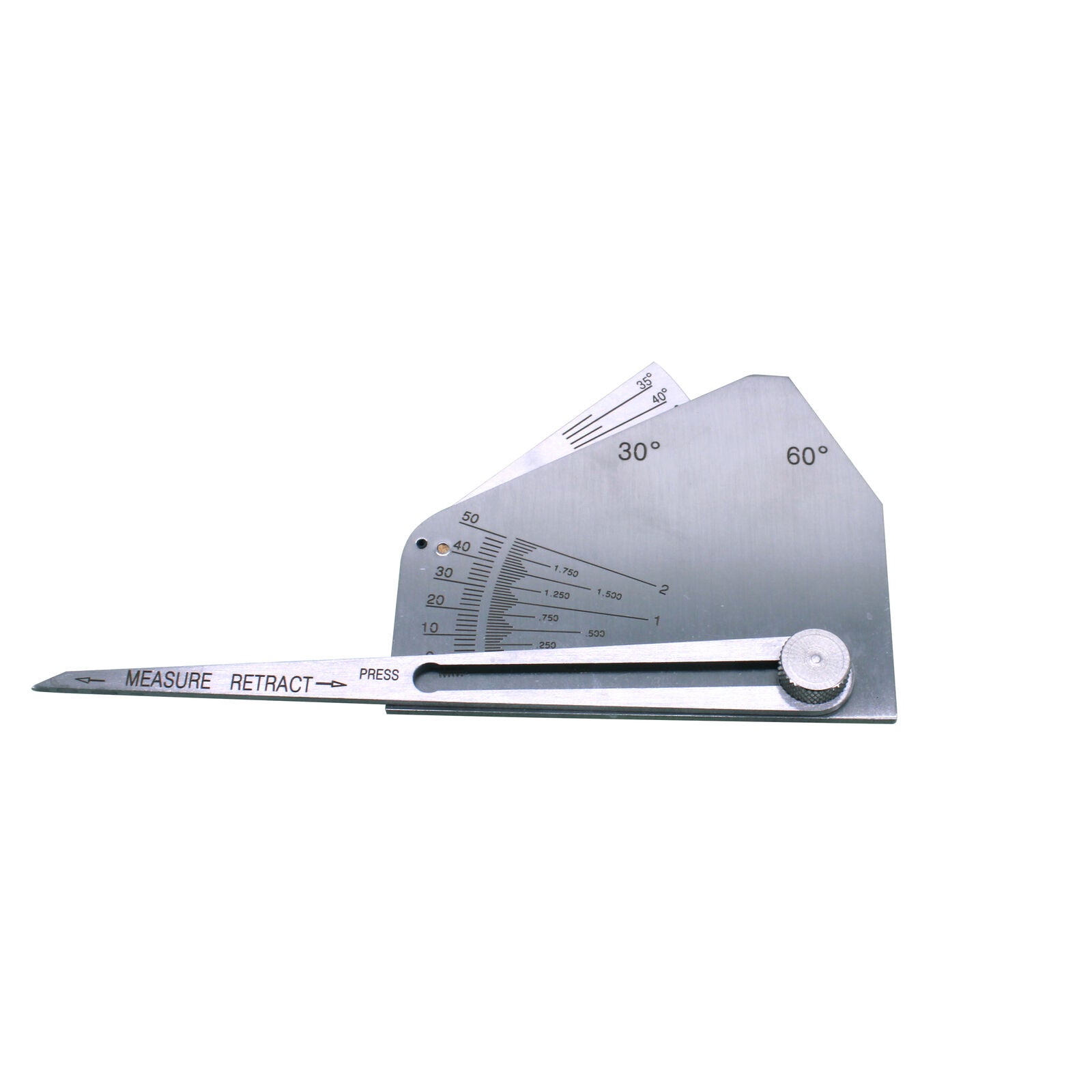

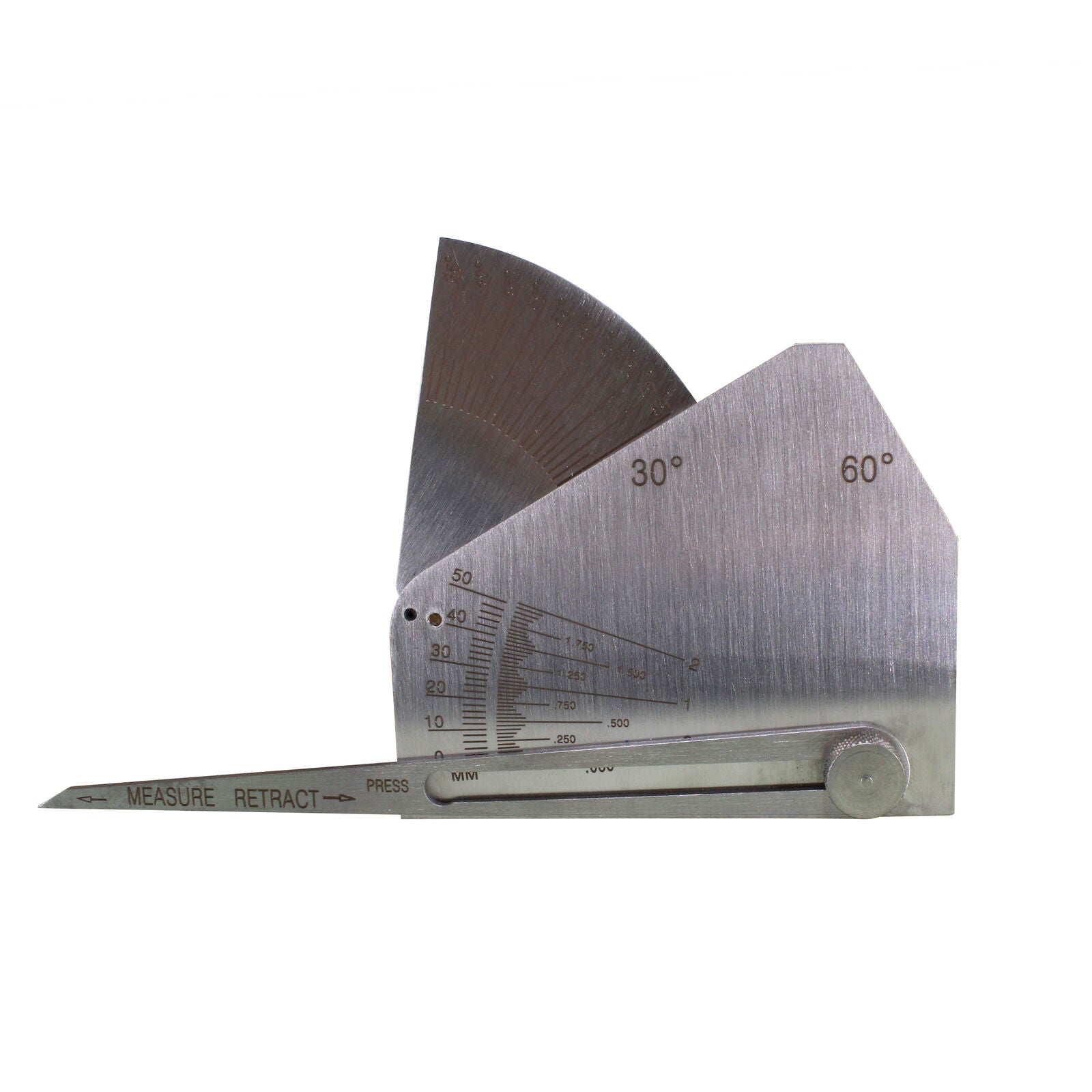

Skew-t Fillet Weld Gauge Gage Welding Inspection Tool

Description:

- The gauge inspect angle of the skewed member: 30-90 Degree.

- Laser engraving,accurate figures and increments are etched into surface.

- SKEW-T Fillet Welding Gauge is Metric reading.

- Made of stainless steel,not easy to rust, not easy to bend.

- Packed in plastic box with instruction for use.

Specification:

- Material: Stainless Steel

- Color: Silver

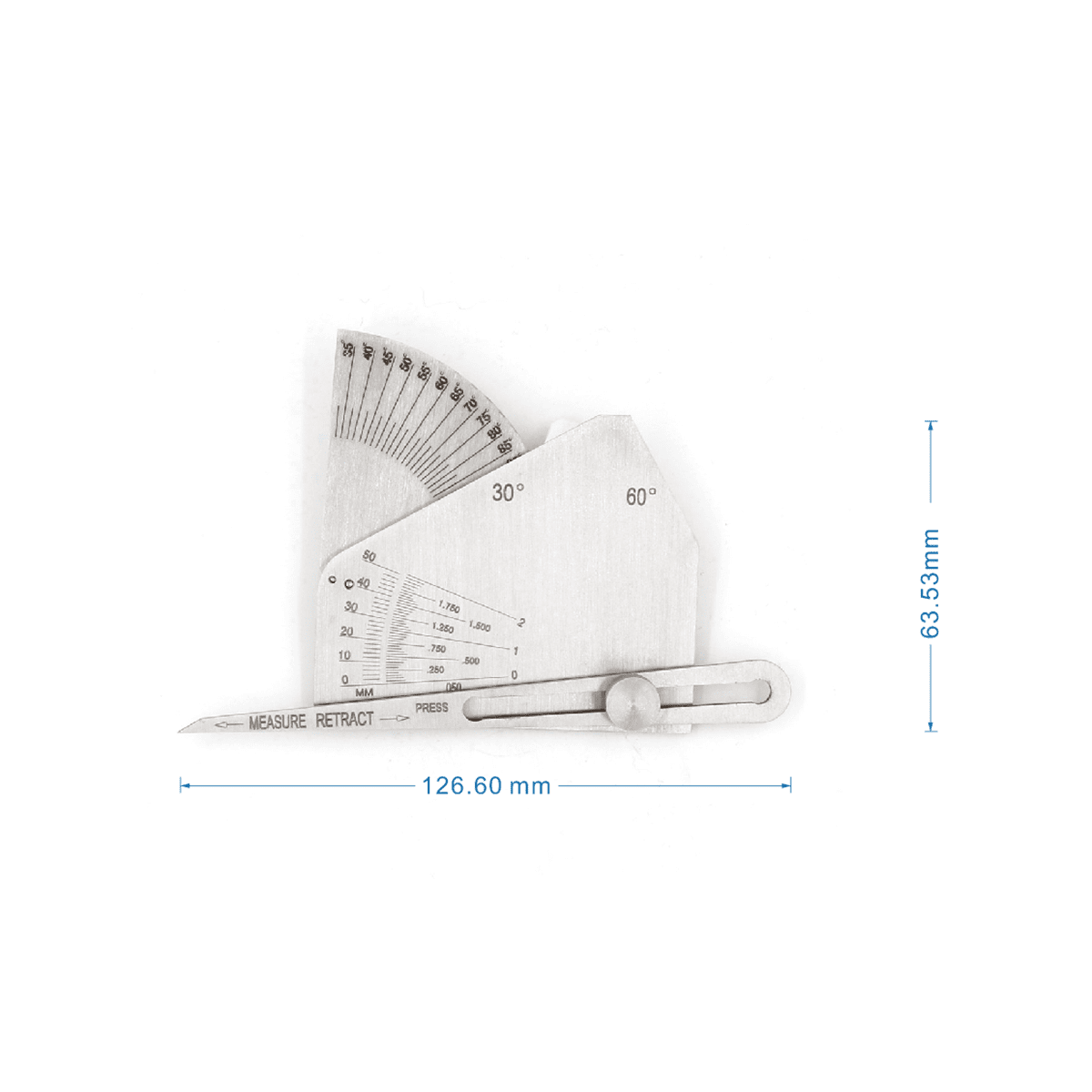

- Size(L*W): Approx. 12 x 6.5 cm / 4.72 x 2.56 inch

- Metric

- 1.Angle of the skewed member: 30-90°

- 2. Theoretical Throat (in Inch): 0-1.2''

- 3. Leg Size of Fillet (in Inch): 0-1.6''

- 4. Inspection Dimension (in Inch): 0-1.6''

- Inch

- 1.Angle of the skewed member: 30-90°

- 2. Theoretical Throat (in Metric): 0-30mm

- 3. Leg Size of Fillet (in Metric): 0-40mm

- 4. Inspection Dimension (in Metric): 0-40mm

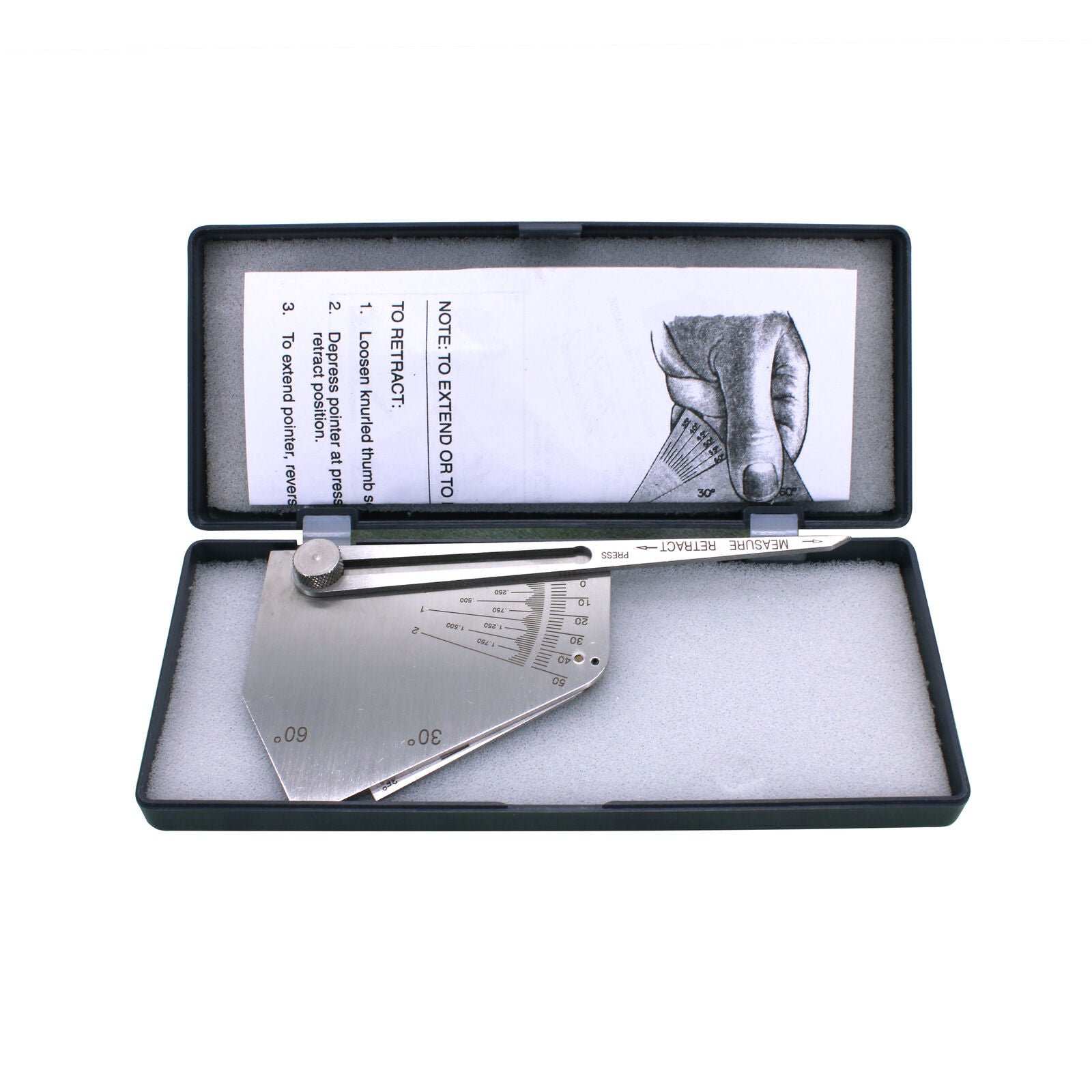

Package includes protective box
