Welding Gauge - Weld Size Butt Fillet Inspection Gauge

  • Sale
  • Regular price $40.00
Shipping calculated at checkout.

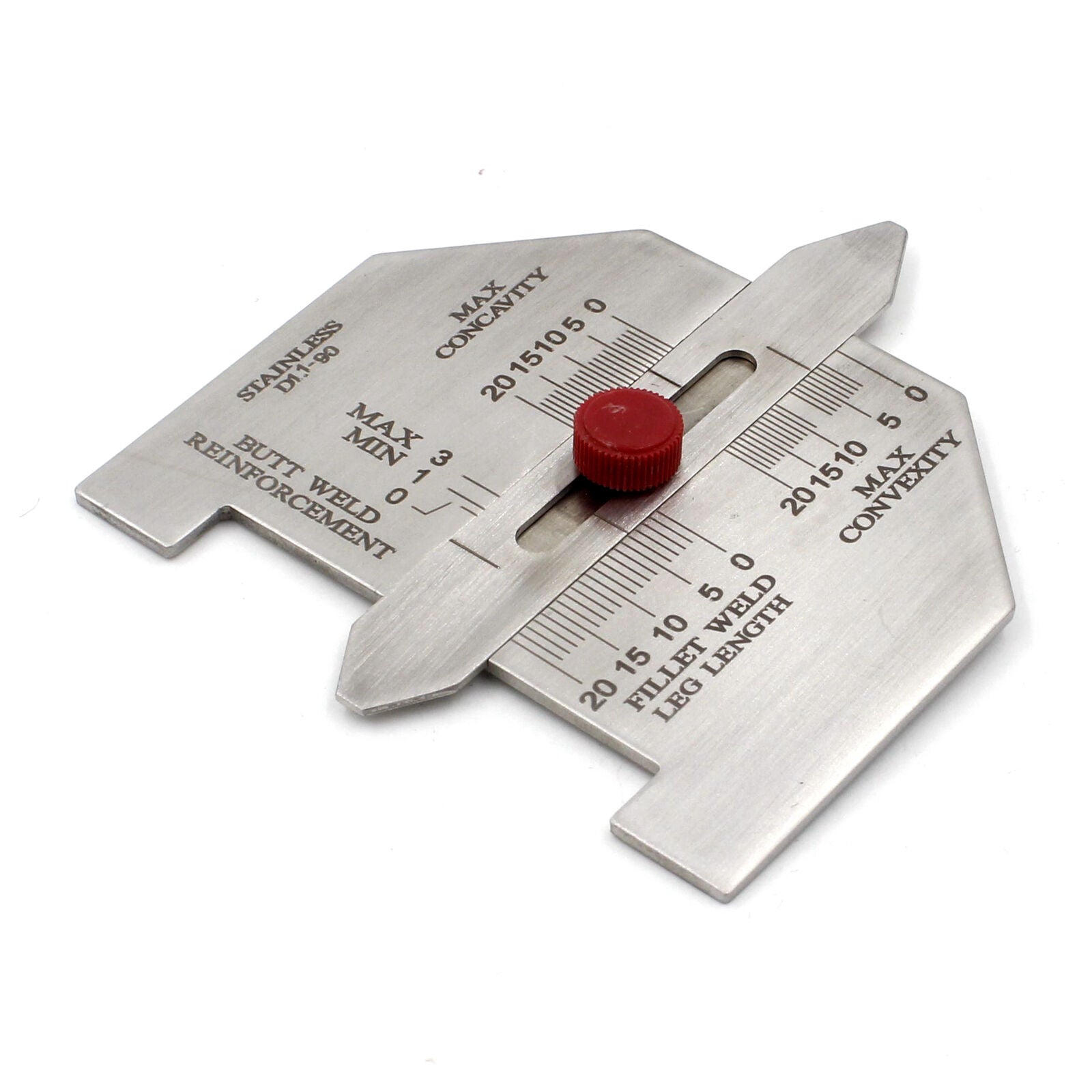

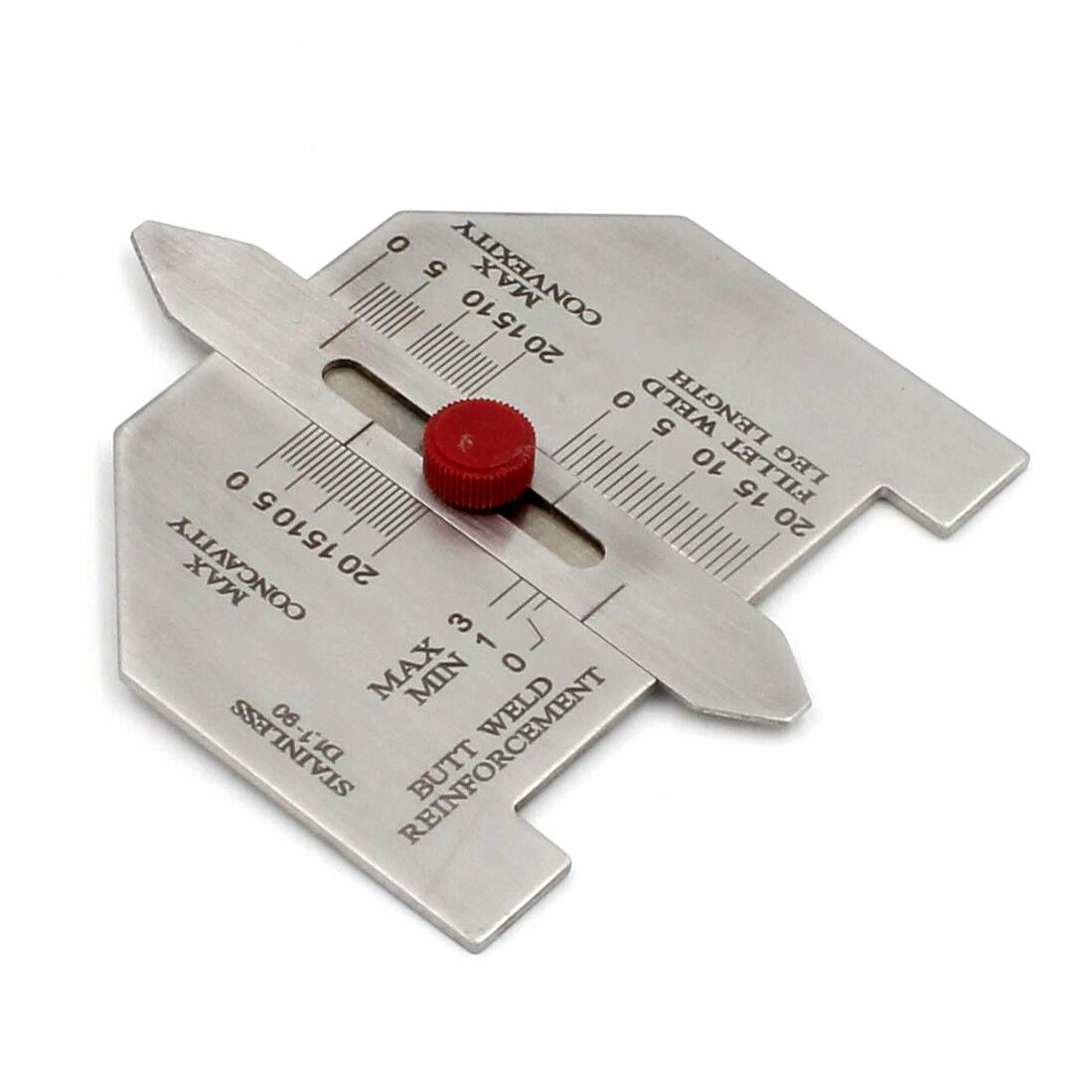

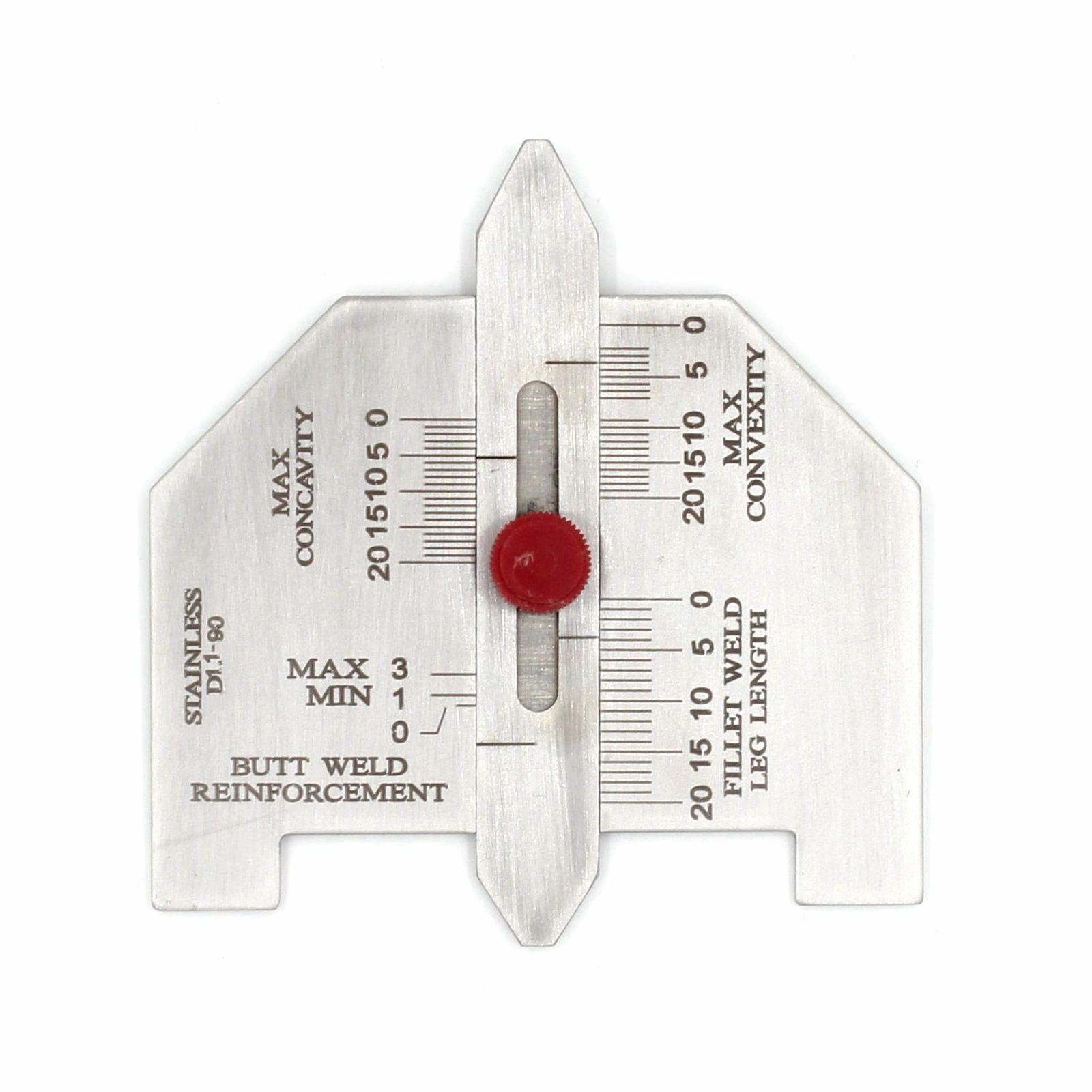

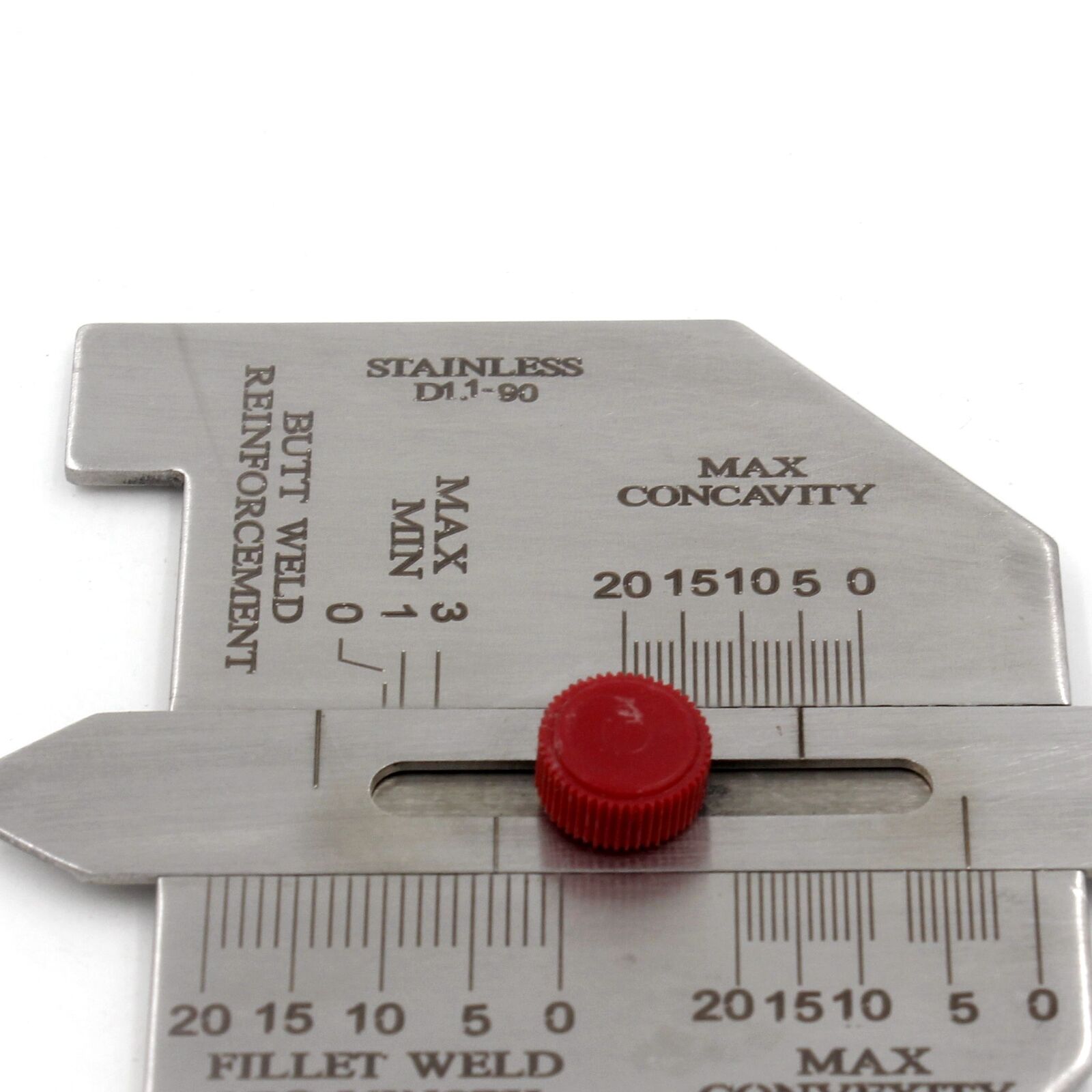

Welding Gauge - Weld Size Inspection Gauge

For Accurate Calibration of Butt and Fillet Type Welds

Description:

  • Made of high quality stainless steel

  • Suitable for Butt weld and fillet weld.

  • Max Convexity: 0, 1/4 (6.35mm), 1/2 (12.7mm), 3/4(19mm)

  • Max Concavity: 0, 1/4 (6.35mm), 1/2 (12.7mm), 3/4(19mm)

  • Fillet Weld Leg Length: 0, 1/8 (3.17mm), 1/4 (6.35mm), 3/8 (9.52mm), 1/2 (12.7mm), 5/8 (15.9mm), 3/4 (19mm)

  • Butt Weld: 1/8 (3.17mm), 1/32 (0.79mm)

Specification:

  • Material: high-carbon steel

  • Color: Silver

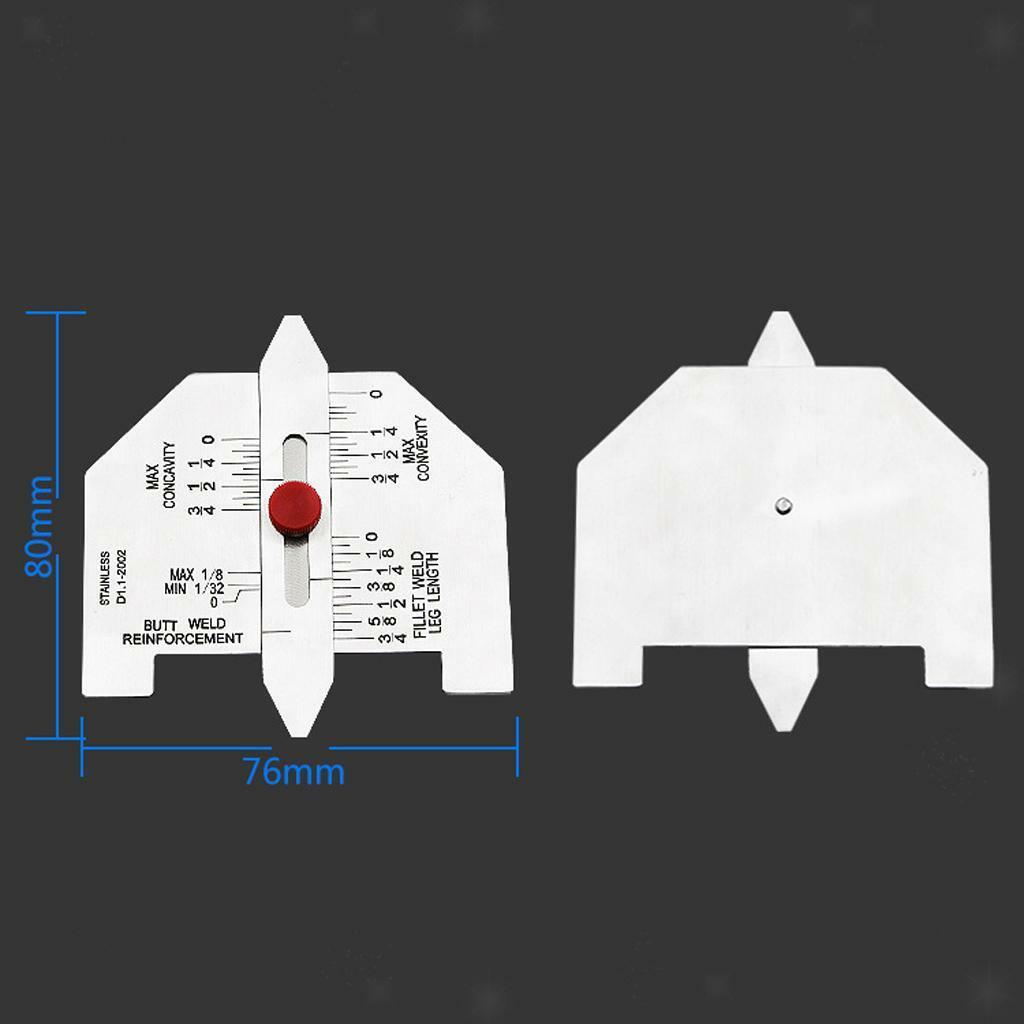

  • Size: Approx. 80x 76mm/ 3.15x 2.99inch

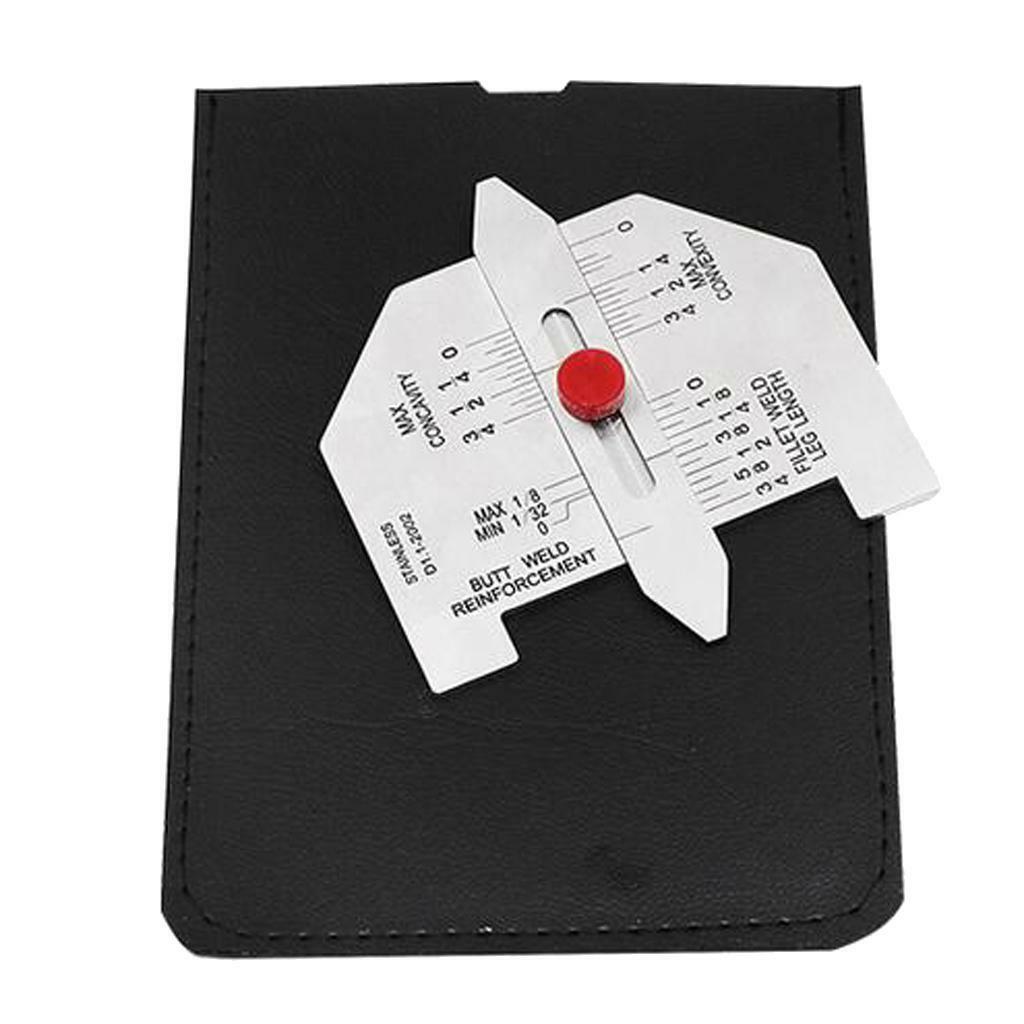

Package includes protective pouch or box
