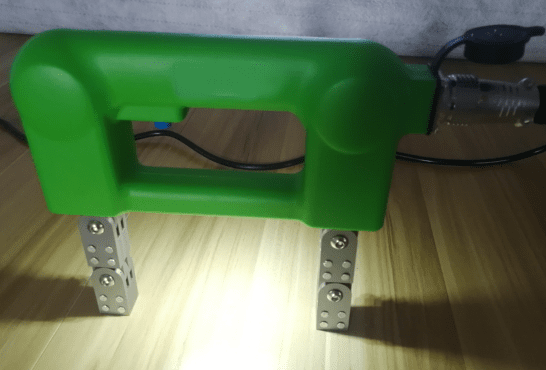

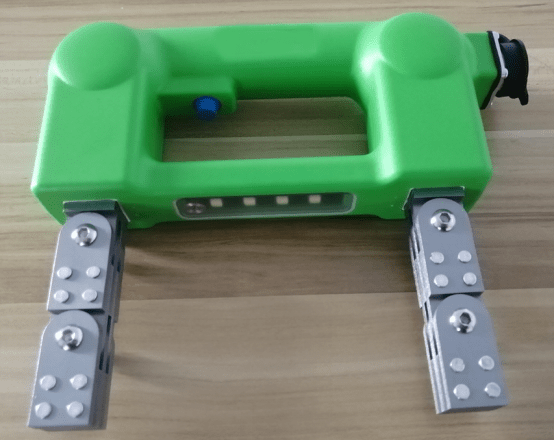

Y1L - Magnet AC Yoke with optional Lights

Y1L - Magnet AC Yoke with optional Lights

Regular price $695.00
Regular price $745.00 Sale price $695.00
Sale Sold out
Shipping calculated at checkout.
Lead Type

Y1L MT Yoke AC Type: Heavy duty and lightweight.

Now available with Optional White or UV Lights & Heavy Duty Oil Resistant Neoprene lead.

Technical Parameters:

1. Power source: AC 220V  ±10% 50HZ  5A

2. Output: AC 36V 10A

3. Working temperature:  -10~+40℃

4. Storage temperature: -20~50℃

5. Relative humidity: No condensing<80%

6. Operation temperature rise: <18℃

7. Duty cycle: >50%

8. Fault detection speed:  ≥6 m/ m

9. Sensitivity:type A1 standard specimen 15/50 grooves are clearly displayed

10. Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg(68.6N)

11. Electrode spacing: 0 - 210mm

12. Weight of the detector: 2.25kg

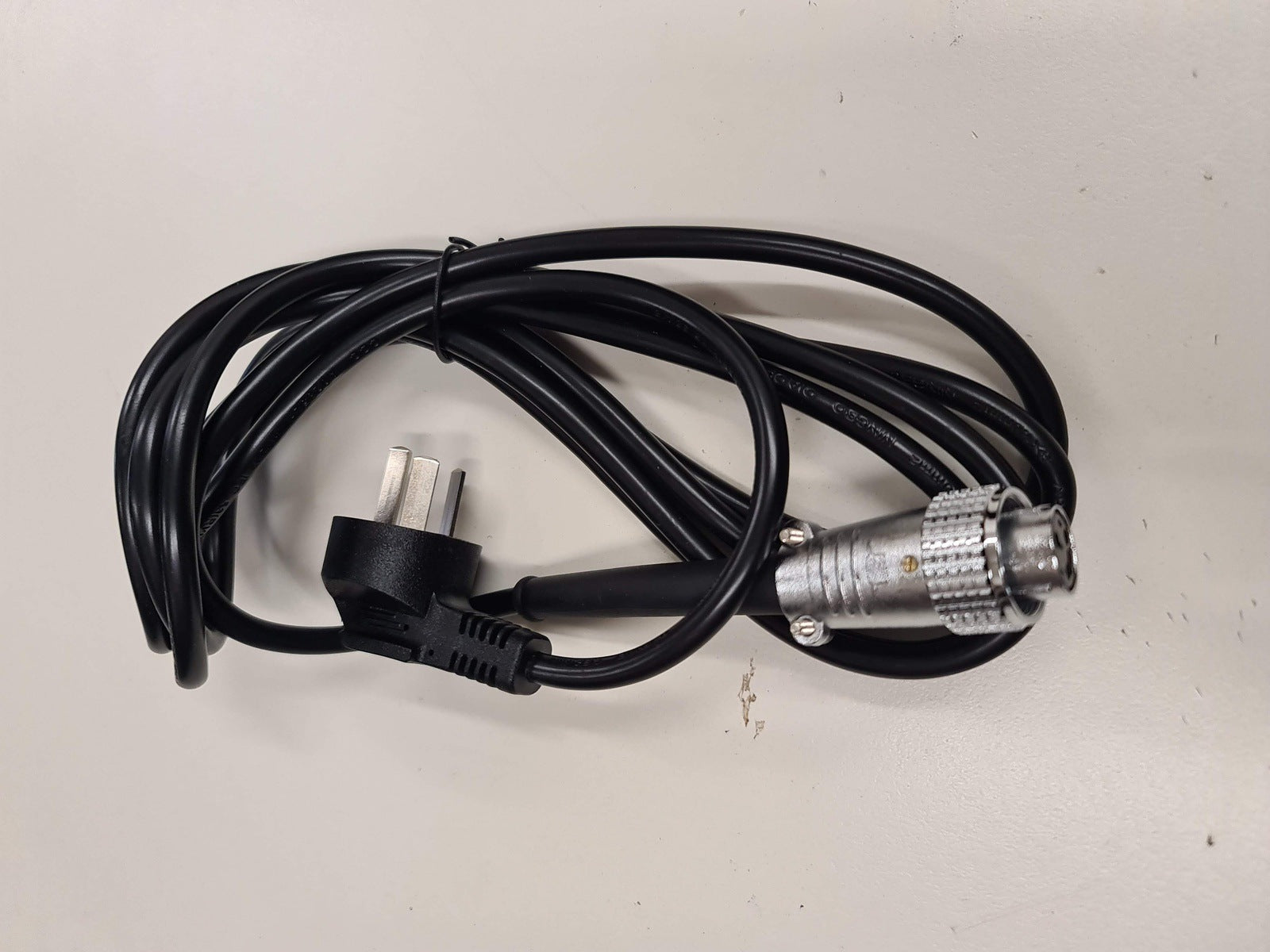

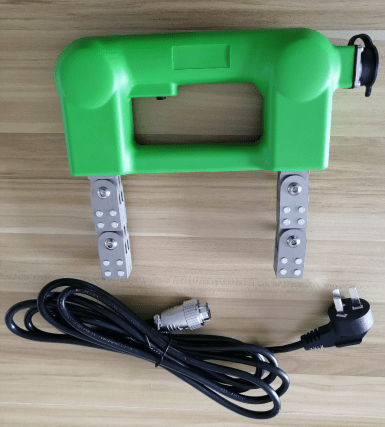

Standard kit includes: Magnet, removable lead (180cm) & carry case.

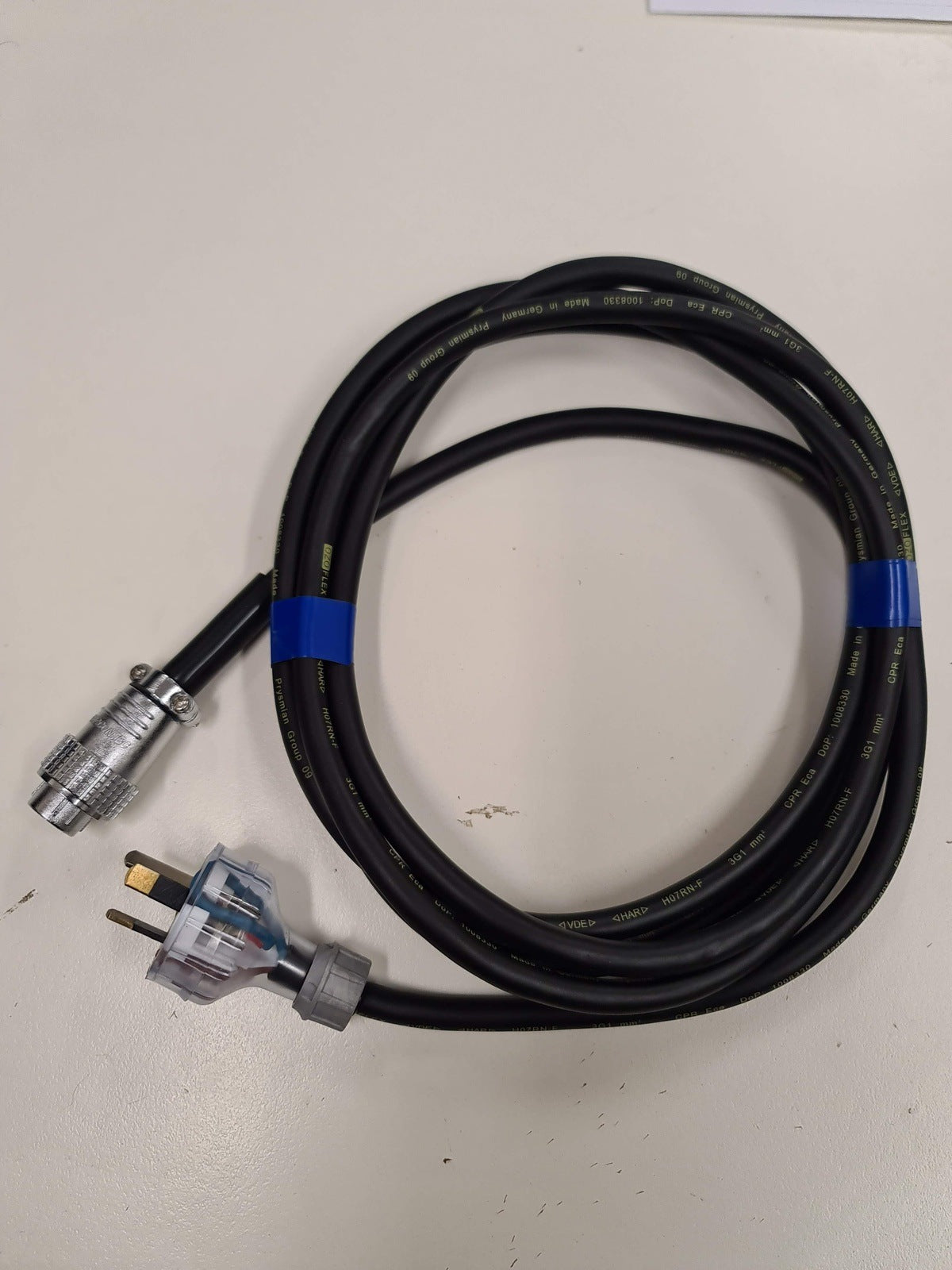

Optional Heavy Duty neoprene oil resitant lead (300cm)

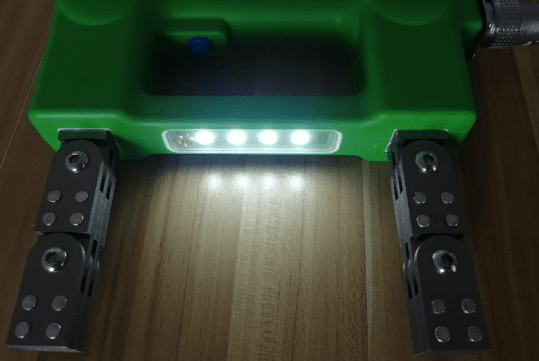

Also available with optional White or UV Light built in & switchable.

Also available with AC & DC Battery packs

Colour may vary
