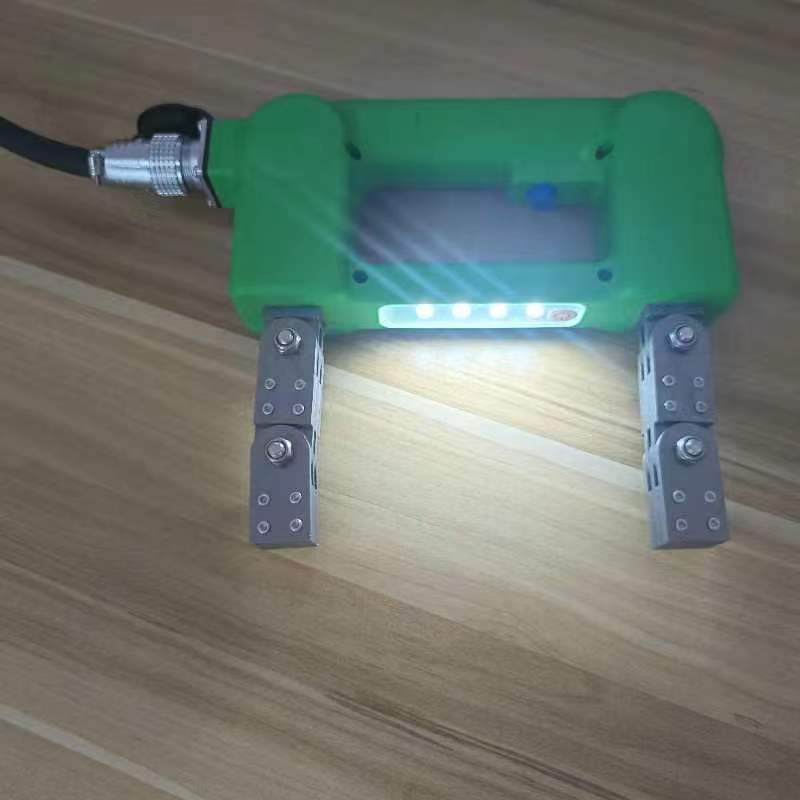

Y2L MT Yoke with DC Battery: Heavy duty and lightweight via MT-500 DC Battery Power Pack
Now available with Optional White or UV Lights & Heavy Duty Oil Resistant Neoprene lead.
Technical Parameters:
1. Power source: AC 220V ±10％ 50HZ 5A
2. Output: AC 36V 10A
3. Working temperature: -10～+40℃
4. Storage temperature: -20～50℃
5. Relative humidity: No condensing<80%
6. Operation temperature rise: <18℃
7. Duty cycle: >50%
8. Fault detection speed: ≥6 m/ m
9. Sensitivity:type A1 standard specimen 15/50 grooves are clearly displayed
10. Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg(68.6N)
11. Minimum DC boost: >18.1kg(177N), maximum DC boost: 23kg (225N)
12. Electrode spacing: 0 - 210mm
13. Weight of the detector: 2.25kg
Details of magnetized power supply
|
Name
|
AC
magnetized power supply
|
DC
magnetized supply
|
|
Model
|
Y8L/TM-60 / MT-600
|
Y2L/TM-50 / MT-500
|
|
Output voltage
|
AC
|
DC
|
|
Type of Battery
|
LITHIUM
|
LITHIUM
|
|
Charging current
|
2A
|
2A
|
|
Battery capacity
|
4400mAh
|
4400mAh
|
|
Usage time
|
About 4 hrs
|
About 8 hrs
|
|
Weight
|
1.0kg
|
0.65kg
|
|
Overall dimensions
|
55X95X180mm
|
55X95X110mm
|

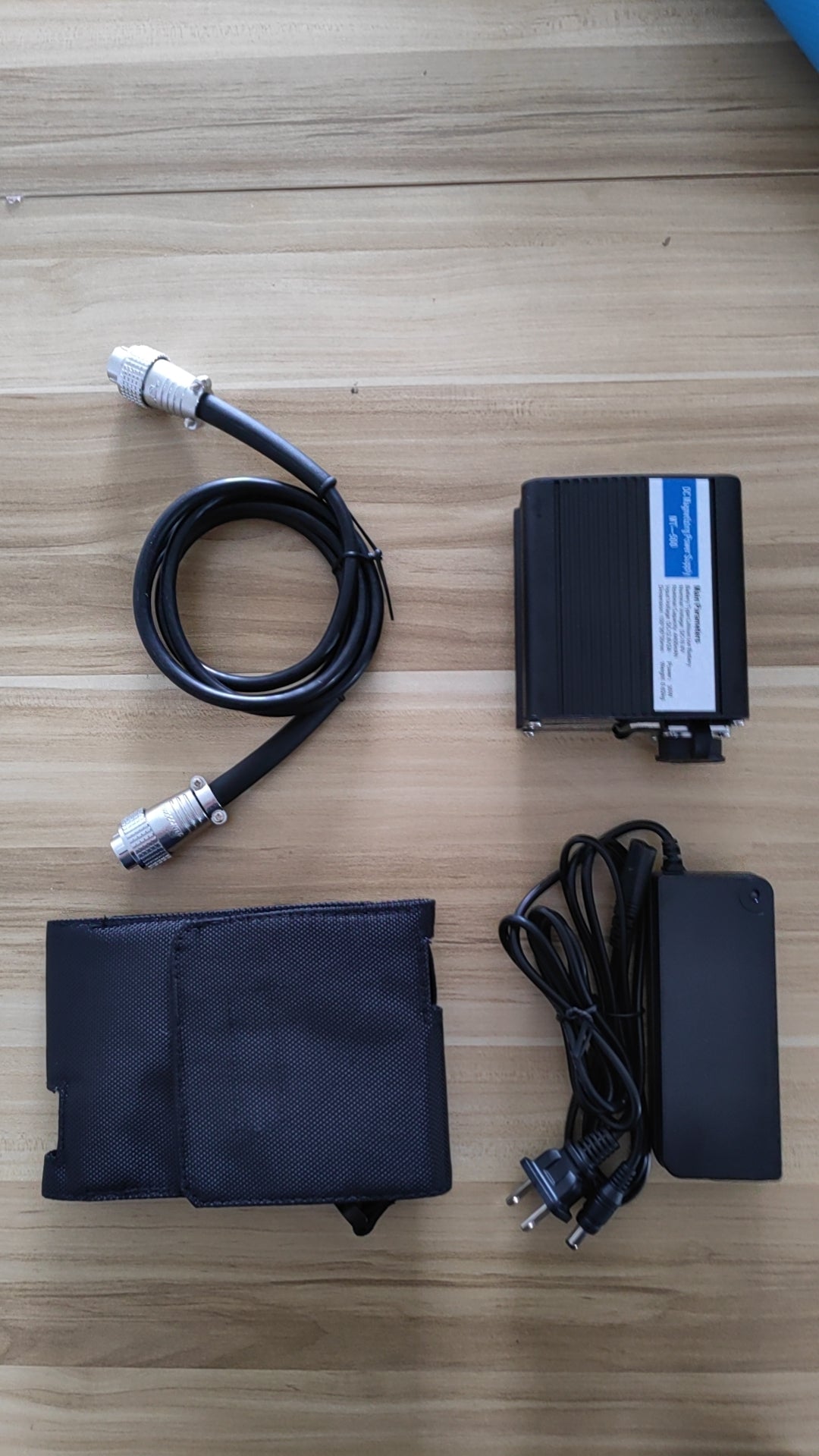

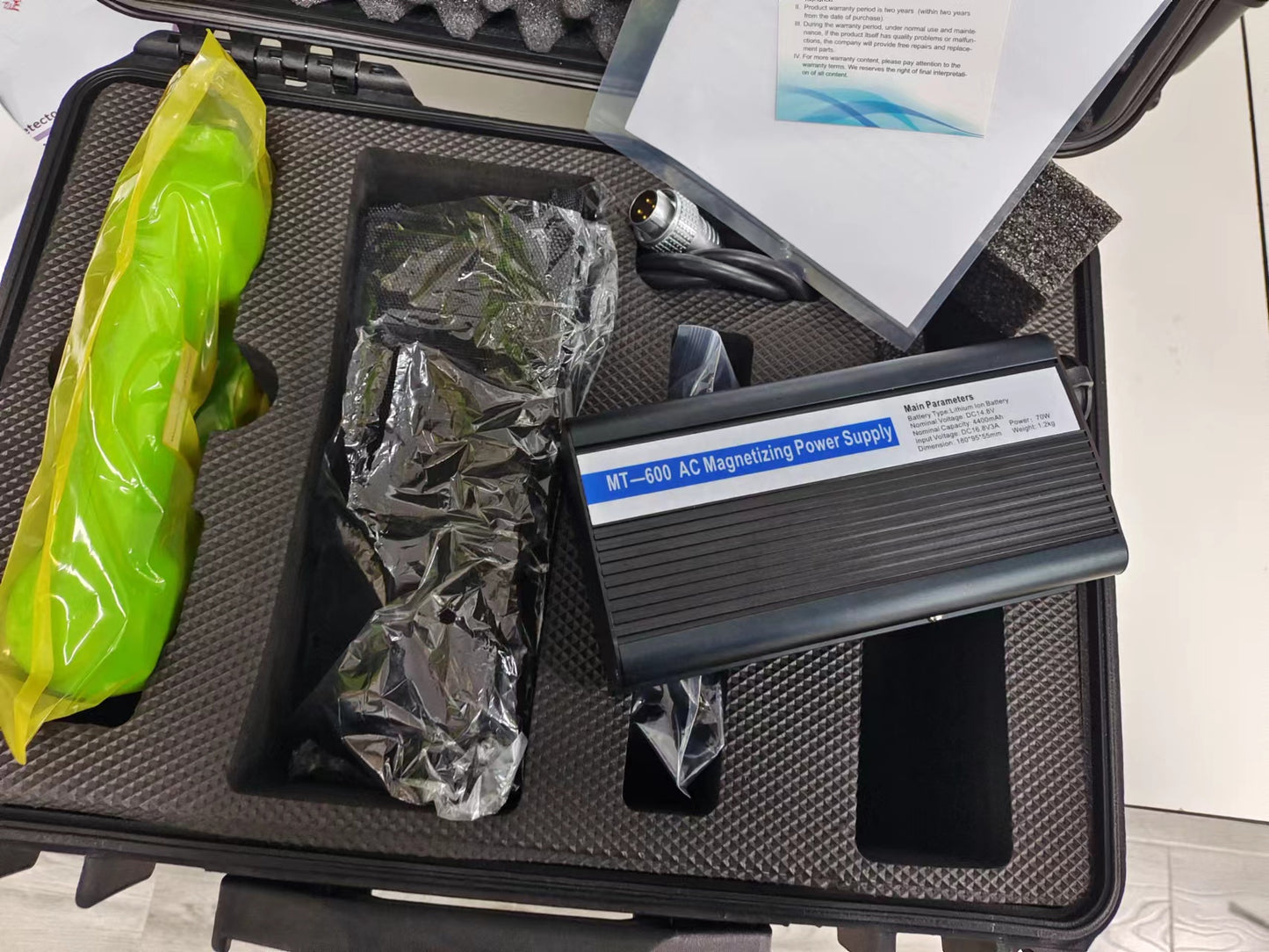

Standard kit includes: Magnet, AC removable lead (180cm), DC Battery pack with lead, charger & carry case.
Optional Heavy Duty neoprene oil resitant lead (300cm)

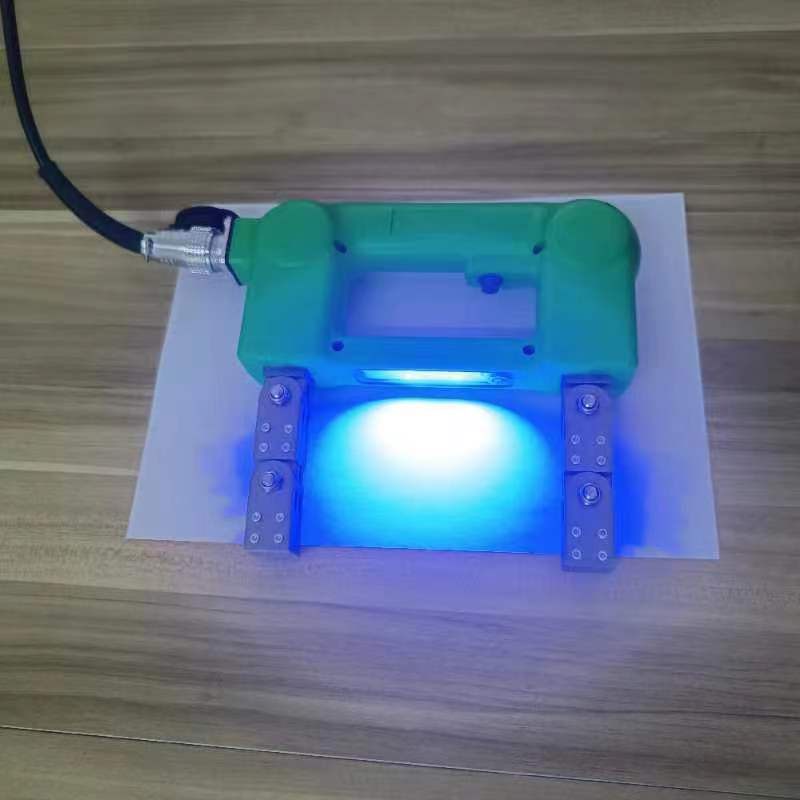

Optional White or UV Light built in & switchable.
Also available with AC Battery packs
Colour may vary
Note: White or UV light currently only works on AC 240v
