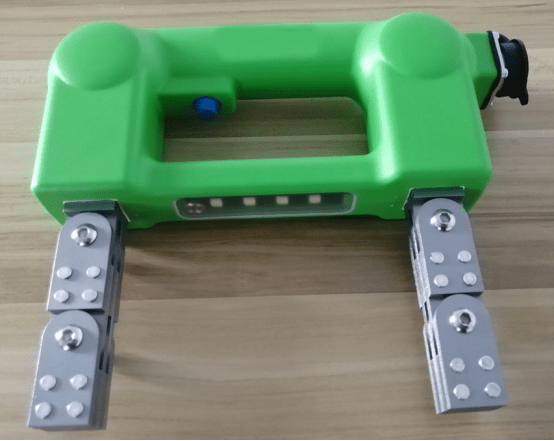

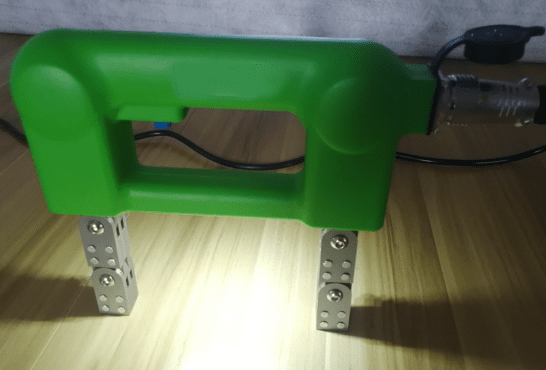

Y8L - Magnet AC Yoke with AC Battery and optional lights

Y8L - Magnet AC Yoke with AC Battery and optional lights

Regular price $1,600.00
Regular price Sale price $1,600.00
Sale Sold out
Shipping calculated at checkout.
Lead Type

Y8L MT Yoke AC Type: Heavy duty and lightweight with portable AC Magnetization via MT-600 AC Battery Power Pack

Now available with Optional White or UV Lights & Heavy Duty Oil Resistant Neoprene lead.

Technical Parameters:

1. Power source: AC 220V  ±10% 50HZ  5A

2. Output: AC 36V 10A

3. Working temperature:  -10~+40℃

4. Storage temperature: -20~50℃

5. Relative humidity: No condensing<80%

6. Operation temperature rise: <18℃

7. Duty cycle: >50%

8. Fault detection speed:  ≥6 m/ m

9. Sensitivity:type A1 standard specimen 15/50 grooves are clearly displayed

10. Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg(68.6N)

11. Minimum DC boost: >18.1kg(177N), maximum DC boost: 23kg (225N)

12. Electrode spacing: 0 - 210mm

13. Weight of the detector: 2.25kg



Details of magnetized power supply:

Name

AC
magnetized power supply

DC
magnetized supply

Model

TM-60 / MT-600

TM-50 / MT-500

Output voltage

AC

DC

Type of Battery

LITHIUM

LITHIUM

Charging current

2A

2A

Battery capacity

4400mAh

4400mAh

Usage time

About 4 hrs

About 8 hrs

Weight

1.0kg

0.65kg

Overall dimensions

55X95X180mm

55X95X110mm

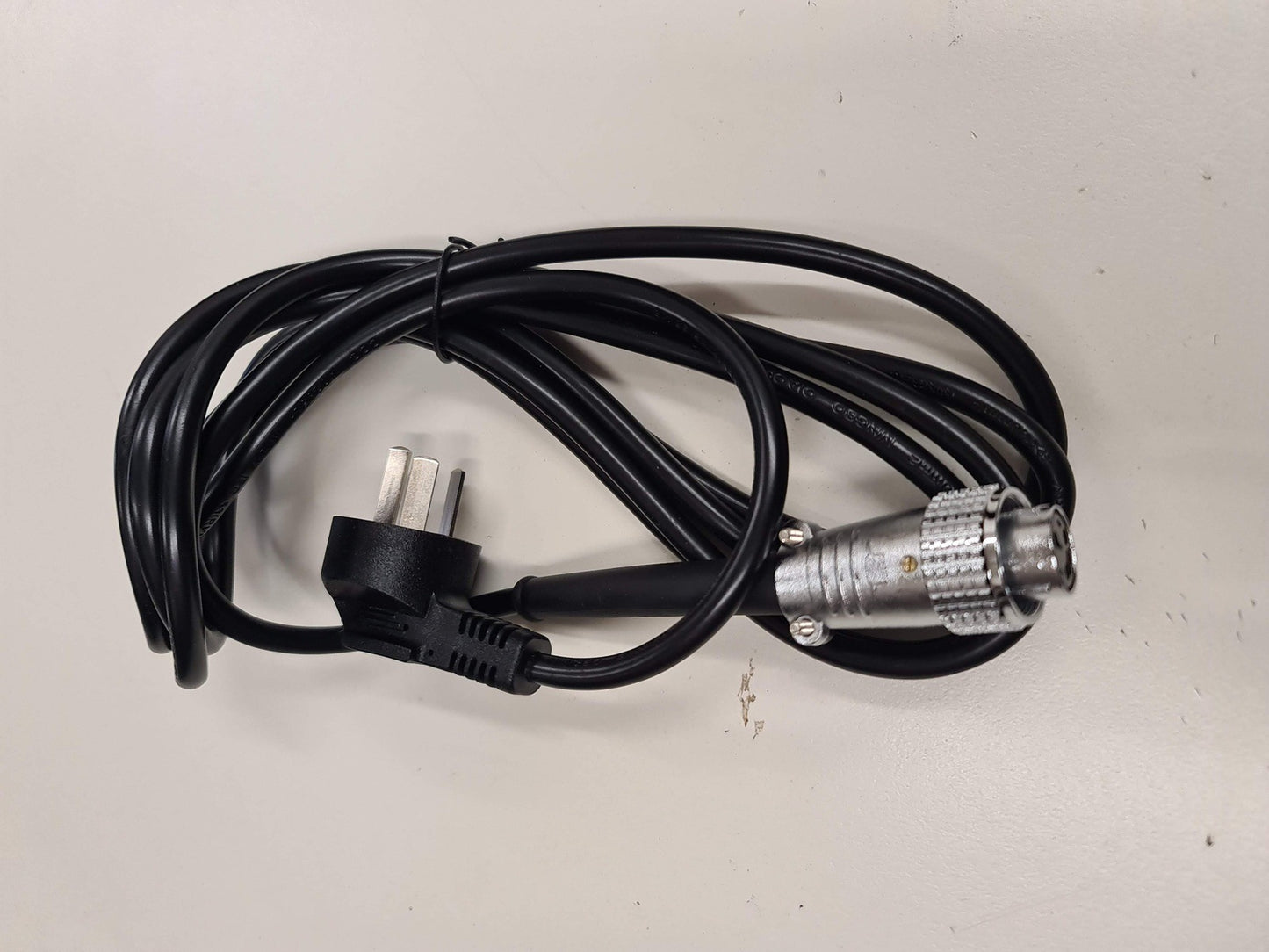

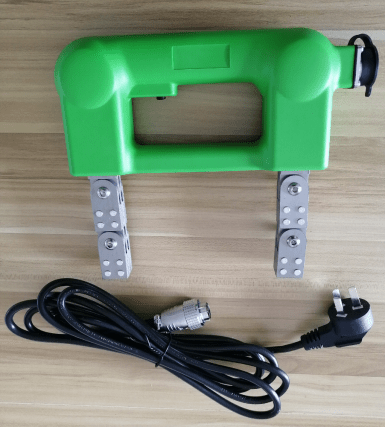

 Standard kit includes: Magnet, AC removable lead (180cm), AC Battery pack with lead, charger & carry case.

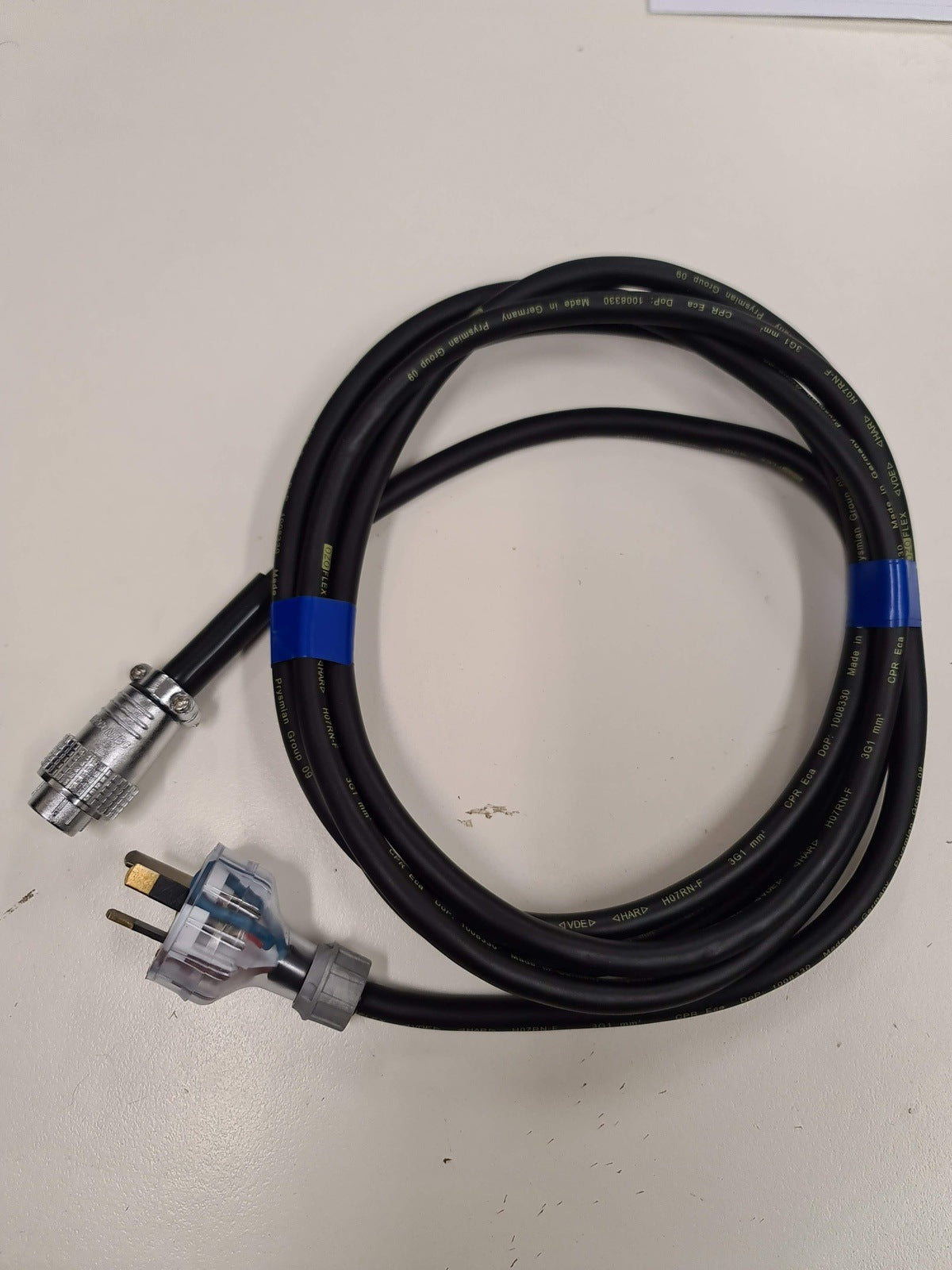

Optional Heavy Duty neoprene oil resitant lead (300cm).

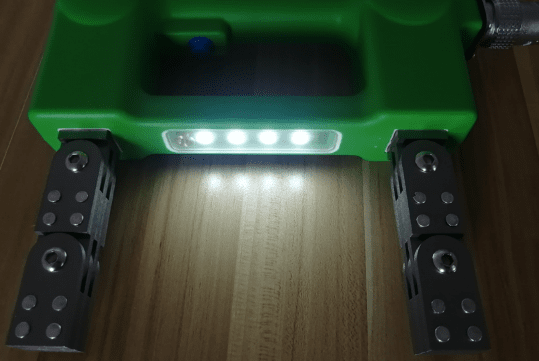

Also available with optional White or UV Light built in & switchable.

Also available with DC Battery packs.

Colour may vary.
