MH180 Portable Leeb Hardness Tester

  • Sale
  • Regular price $995.00
Shipping calculated at checkout.


MH180 Portable Leeb Hardness Tester Durometer NDT Instruments Sclerometer Durometer

Product Features:

* Working principle: impact rebound method: the impact body impact the workpiece surface, use the rebound speed and impact speed to calculate the hardness value.

Based on the principle of leeb hardness testing theory, it can measure many metalic materials.

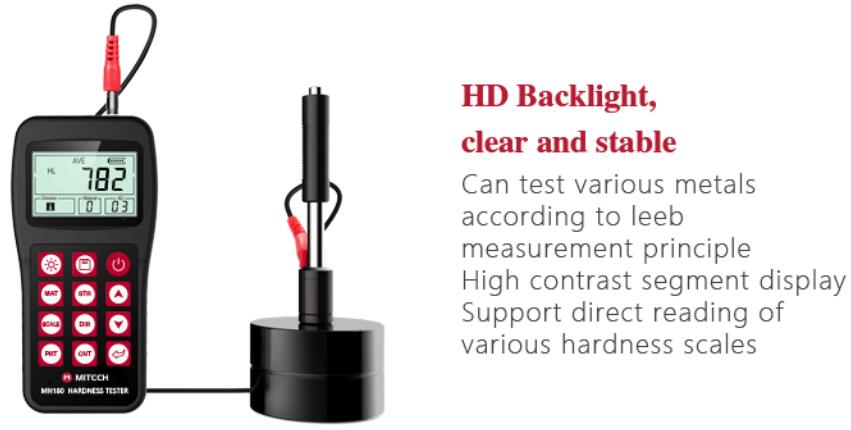

* High-contrast segment LCD, easy to use.

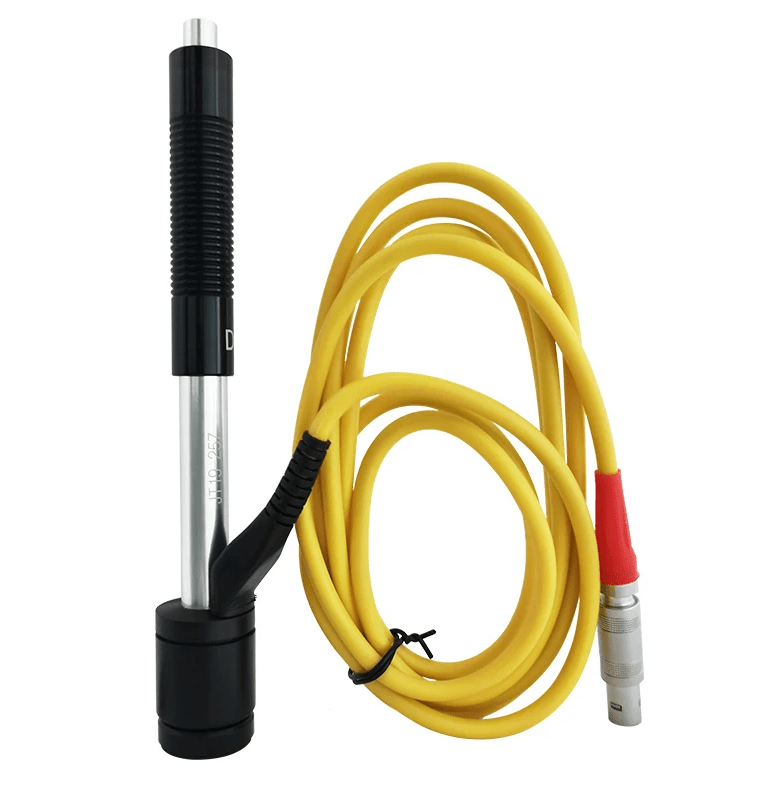

* One main unit can match to 6 impact devices.

* Support steal, when using D/DC sensor to tst steel, it can show HB directly. no need to check manually.

* Software calibration automiatically.

* 100 groups (impact times 32~1) hardness measurements, each set of data includes single testing value, average value, measurement data/time, impack    direction, frequency, material, hardness, and other information.

* Real-time display the remaining battery power, charging progress is displayed while charging.

* high brightness EL back-light display to use in dimly environment.

* Equipped with PC software(optional), with functions of measurements transmission, value storage management, statistical analysis of the measured value,   the print report of measured value, batch setting instrumnet parameter, to meet the higher requirements of quality for activities and management.

* Two ordinary AA batteries, it can work for not less than 100 hours, automatic sleep, automatic shutdown and other power-saving feature.

* small size, portable, stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic  interference.

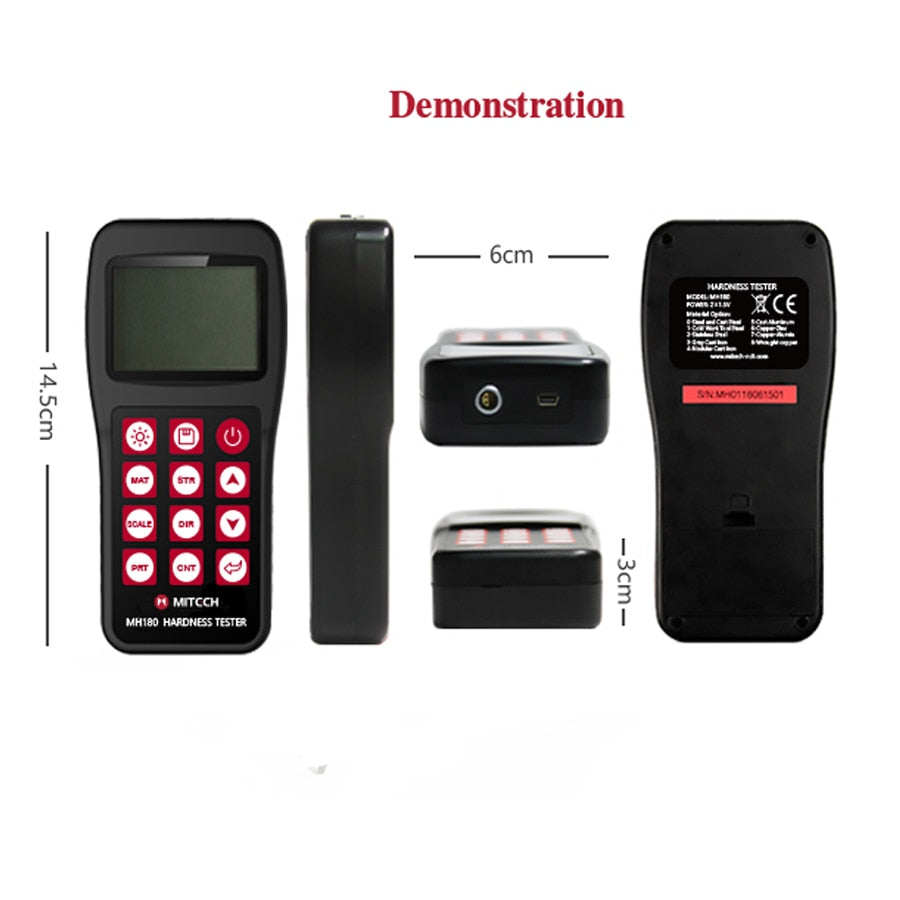

* Dimension: 150mm x 74mm x32mm.

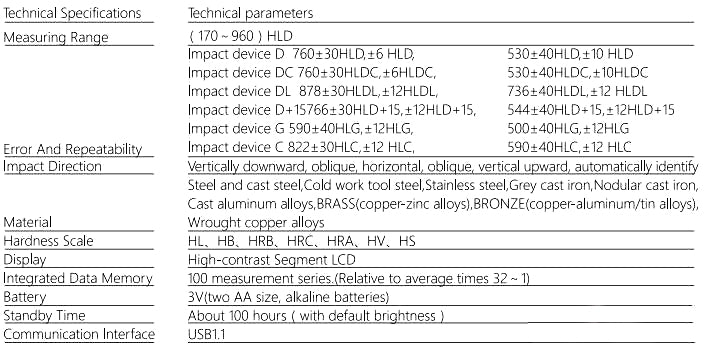

Parameters:

Display and convert among various hardness scales:

Support hardness scales of HL, HB, HRB, HRC, HRA, HV, HS
