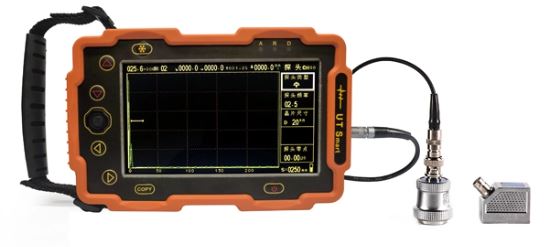

Ultrasonic Flaw Detector Mini UT Smart
Functions & Features

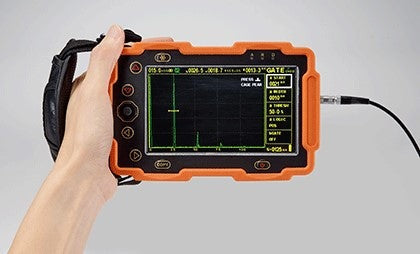

●Ultra mini size & weight: design for Field work, Aerial work
●Probe automatic calibration
●Automatically form DAC, AVG (DGS) curves by using standard test block
●Display the echo parameters (depth D, level P, the distance S, the amplitude H)
●Peak memory: Search the highest wave of defects; Record the max. value of defects ●Defect location: display of the defect's horizontal, depth (vertical), and sound path position
●Defect qualitation : Echo envelope, convenient for manual judge
●Weld diagram: directly display the defect location, the bevel form and sound velocity direction
●Built-in Standards: Freely set flaw detection standards of various industries
●Working mode: straight probe, Angle probe, dual crystal probe, penetrating flaw detection
●Storage: 300 pieces of A-scan images and data
●PC software is available for data analysis, management and reports printing
Technical Parameters
|
Model
|
Mini UT Smart 530
|
|
Operating Frequency
|
0.5MHz～10MHz
|
|
Scan Range(mm)
|
0-1000mm ( Longitudinal wave in Steel )
|
|
Velocity Range（m/s）
|
1000～9999
|
|
Vertical linearity error
|
≤3%
|
|
Horizontal linearity error
|
≤0.1%
|
|
Dynamic Range
|
≥36dB
|
|
Testing sensitivity
|
≥50dB (Depth 200mm, Φ2 flat bottom hole)
|
|
Measuring channel
|
16
|
|
Storage
|
500
|
|
PC Connection
|
●
|
|
Gain Range(dB)
|
0~110 (adjustable: 0.1dB，2dB，6dB，12dB)
|
|
Standard Probes
|
Straight probe: 2.5MHz, diameter 20mm, cable Lemo (C5-Q9) Angle probe: 4MHz, 60 degree, 8*9 mm, cable Lemo (C5 -Q9)
|
|
Working mode
|
Straight probe, Angle probe, Dual crystal probe, Penetrating flaw detection
|
|

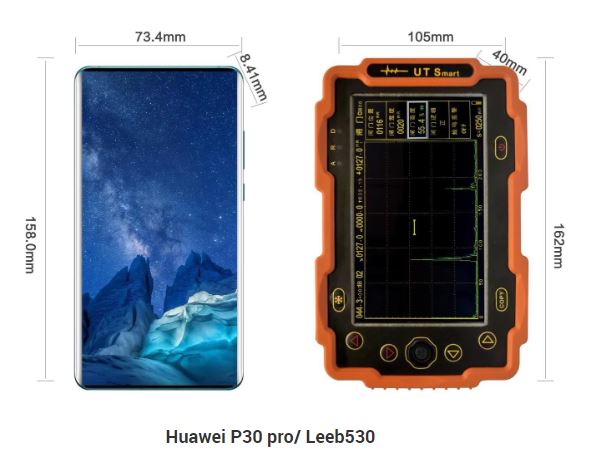

Dimension
|
162×105×40mm
|
|
Weight
|
0.68kg (include Li-ion battery)
|
|

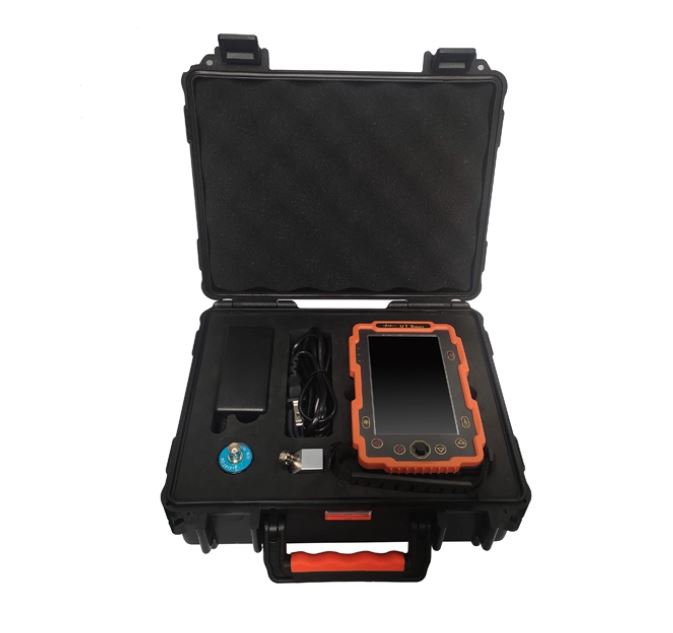

Optional Accessories
|
Optional probes, Cables, Calibration blocks, Coupling agent
|
This item is by order only.
